Complete West Linn Paper Mill

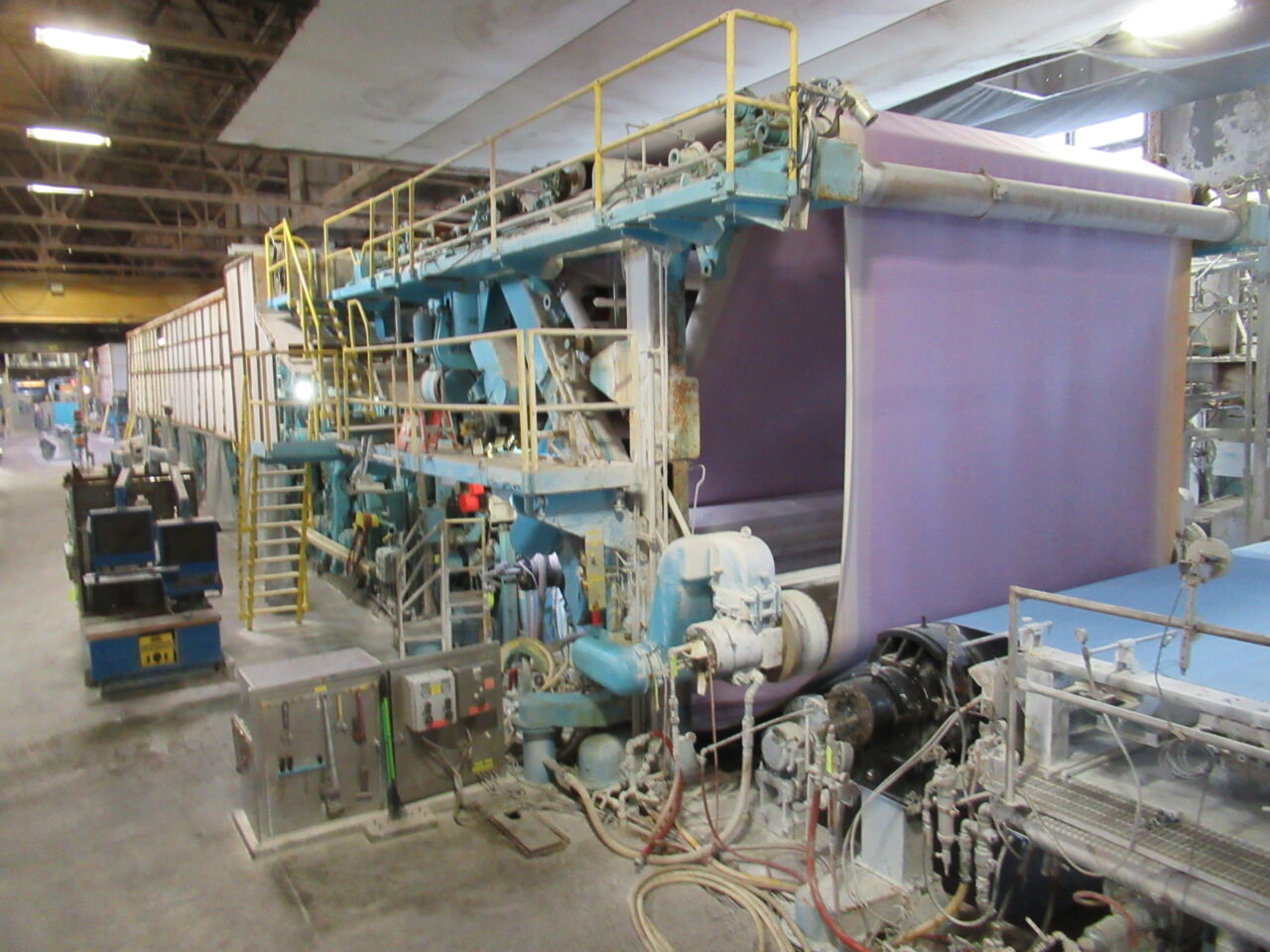

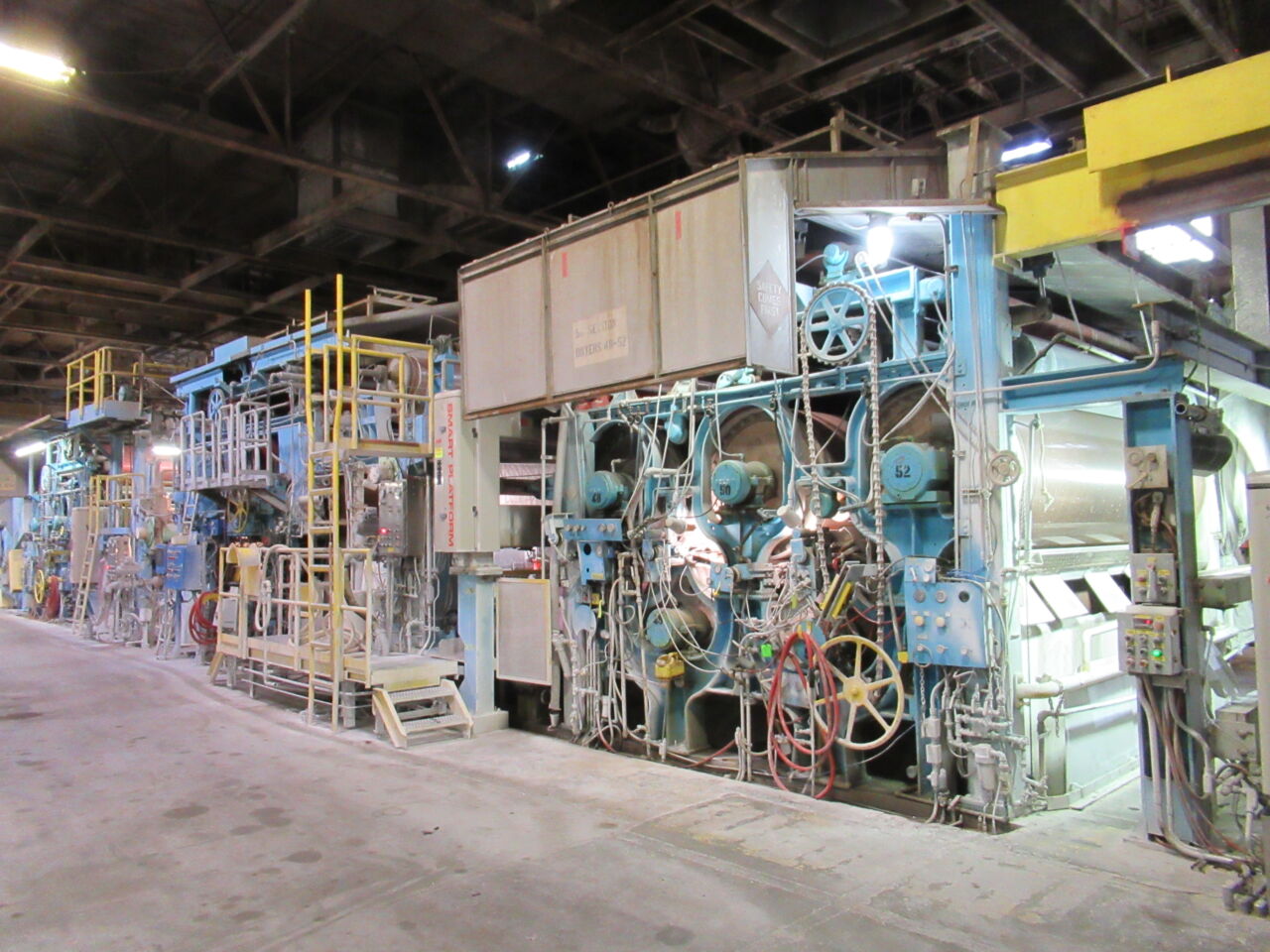

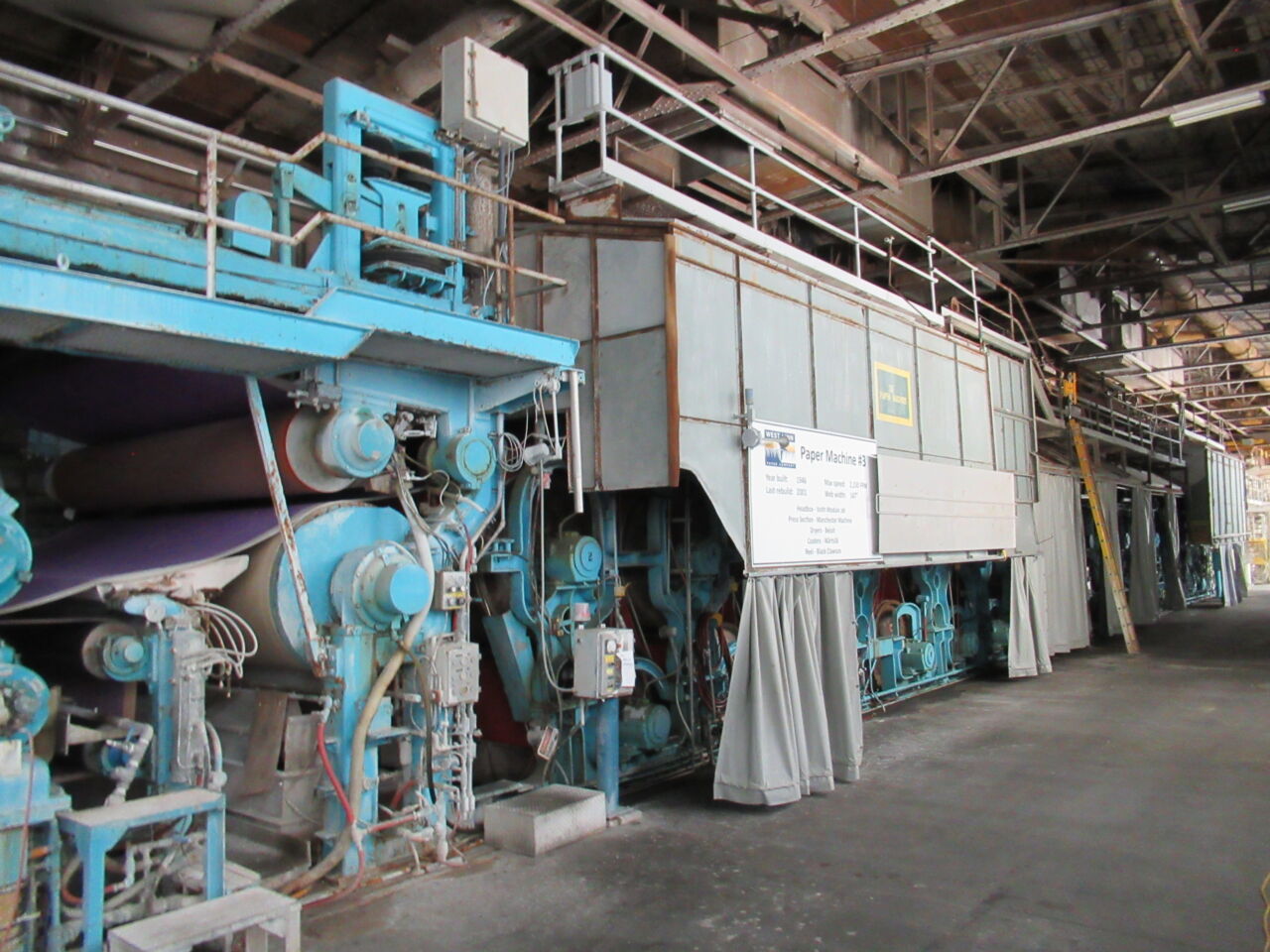

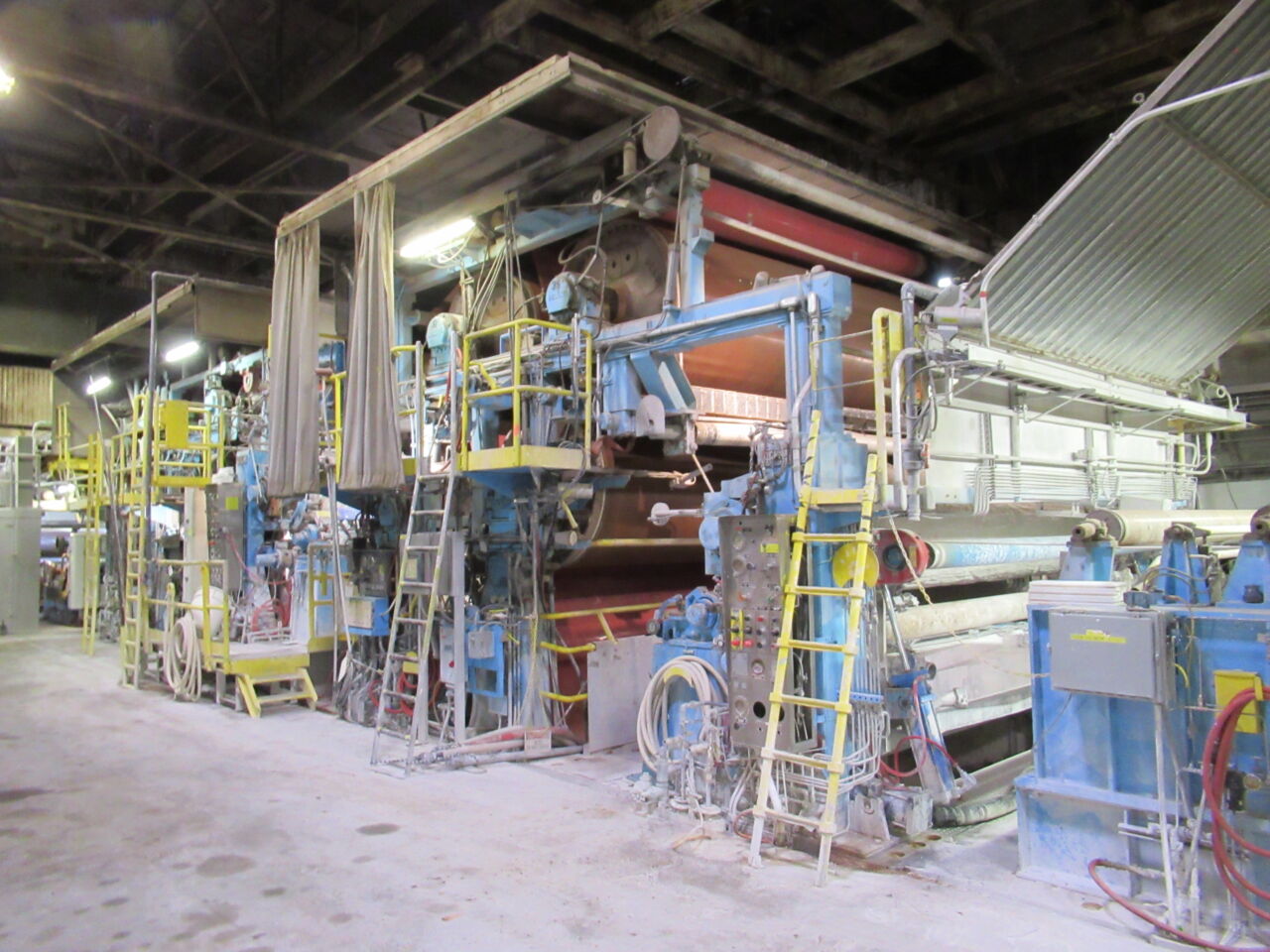

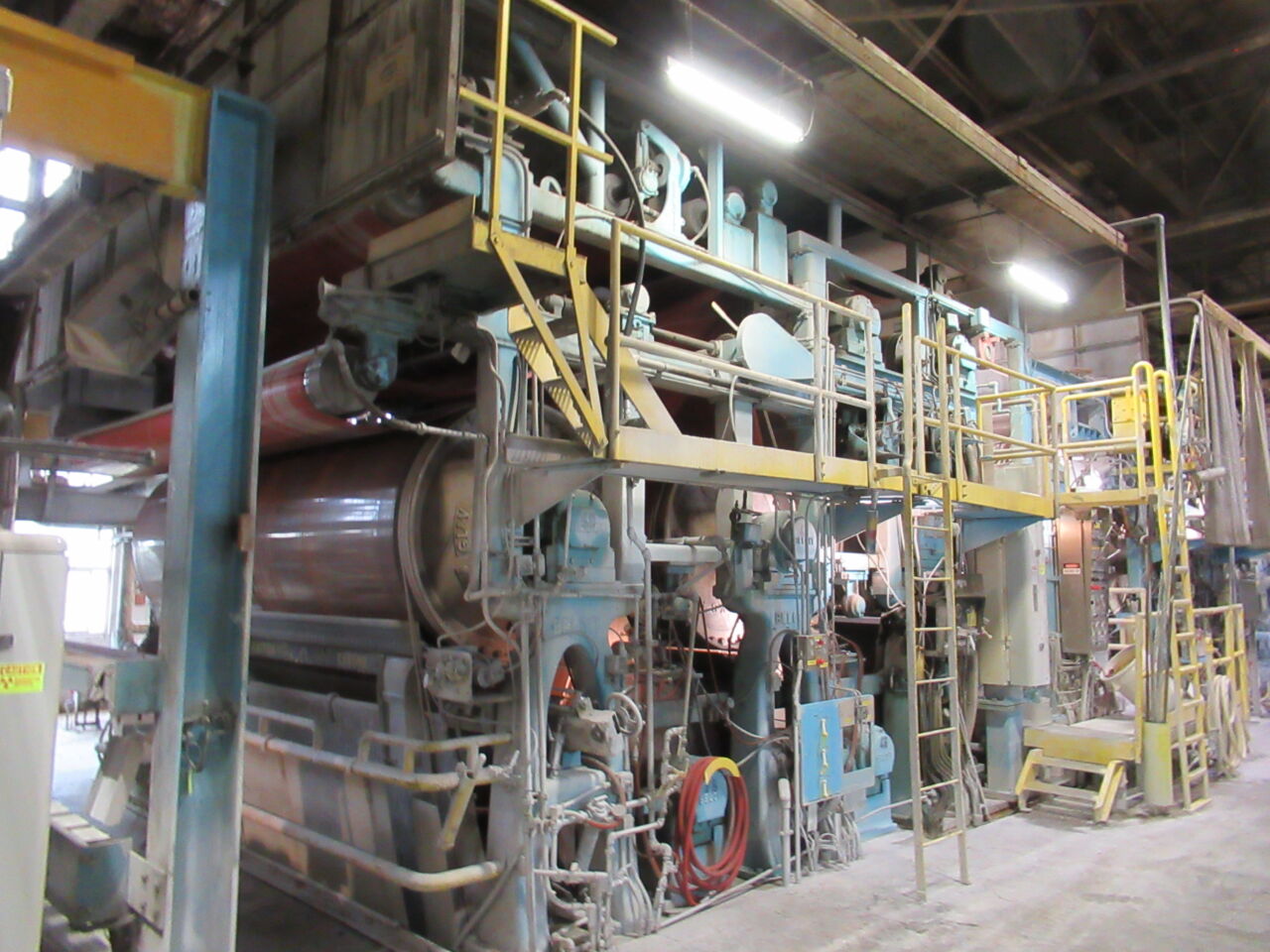

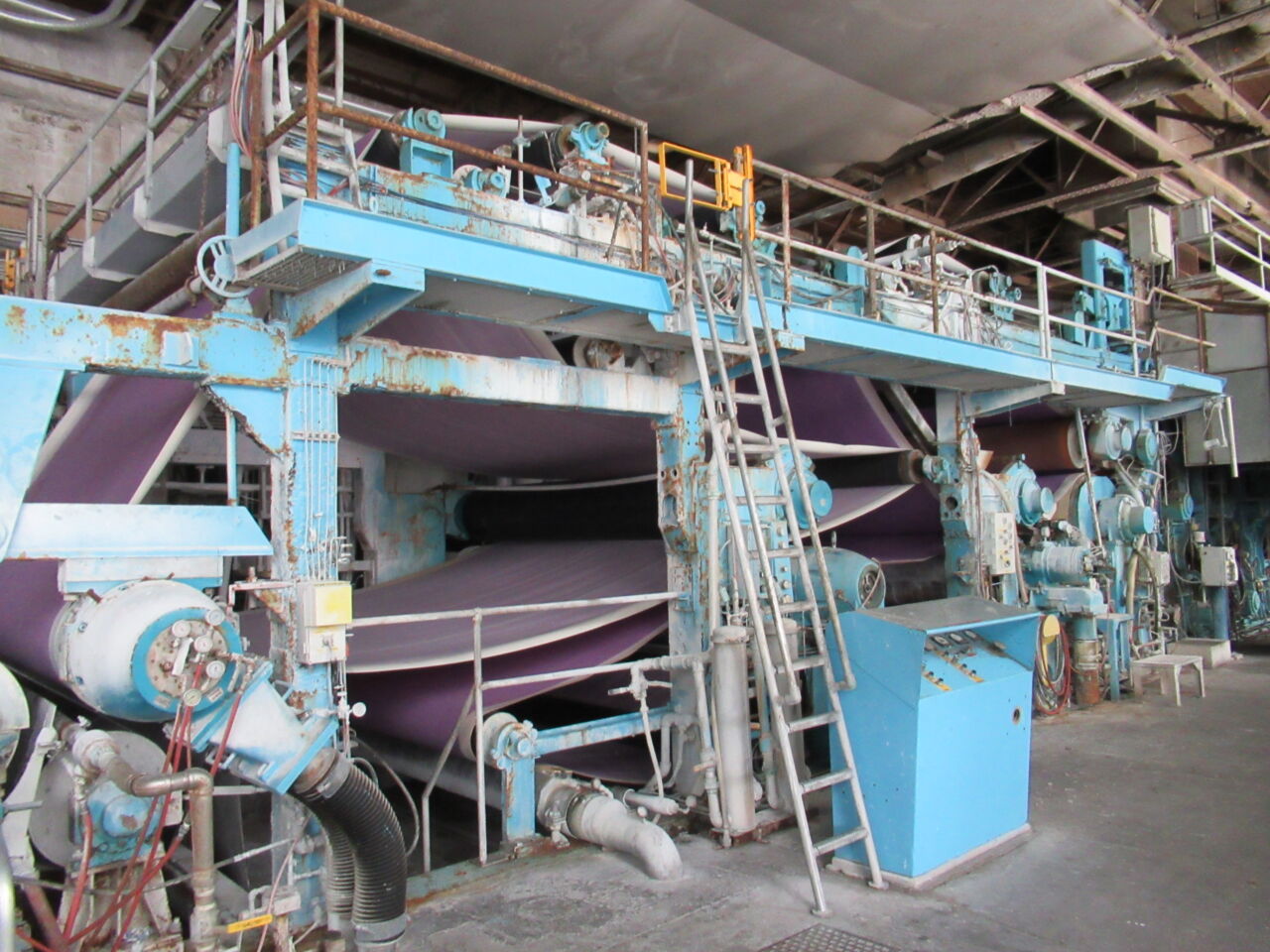

Paper Machine #1

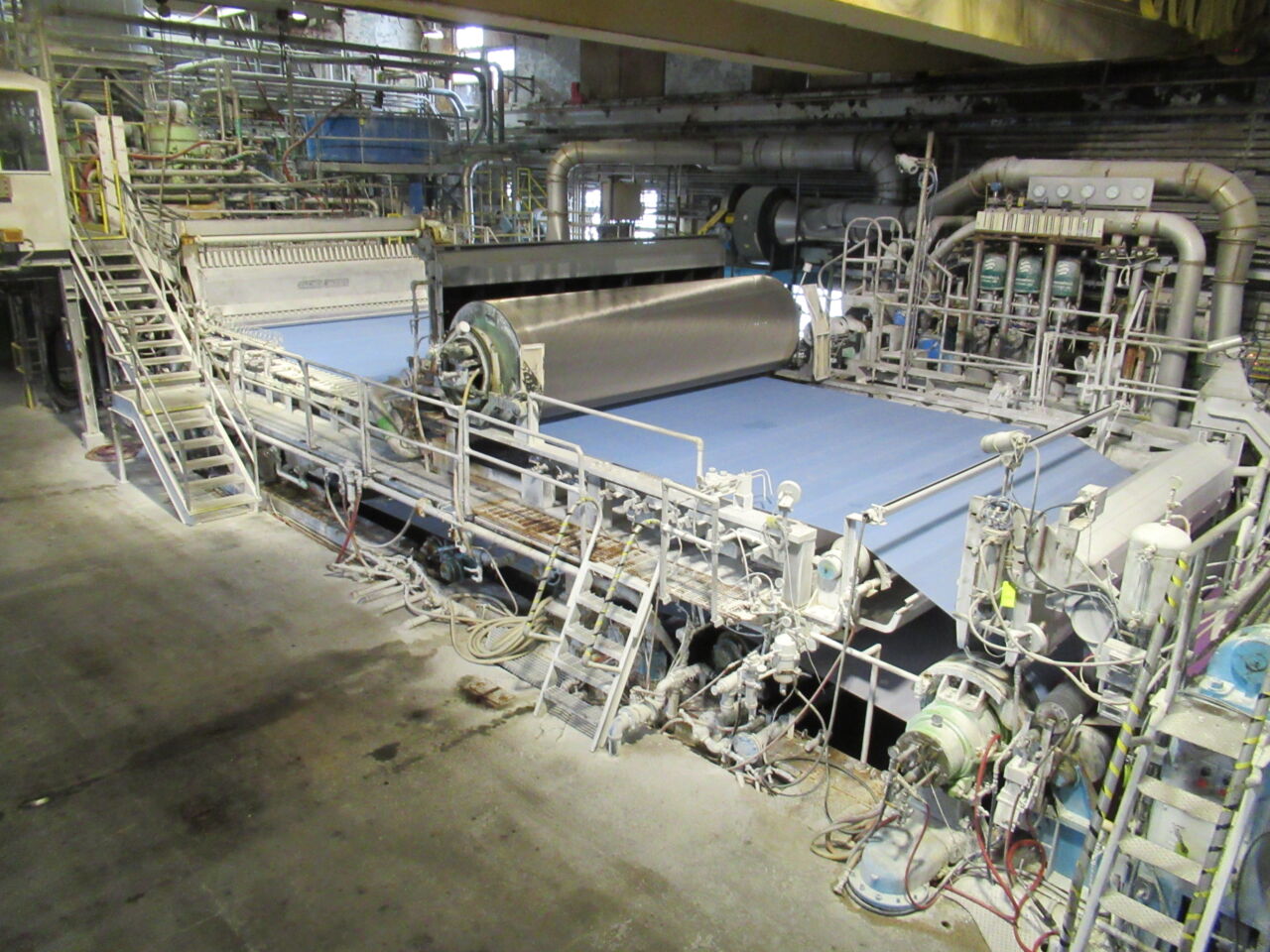

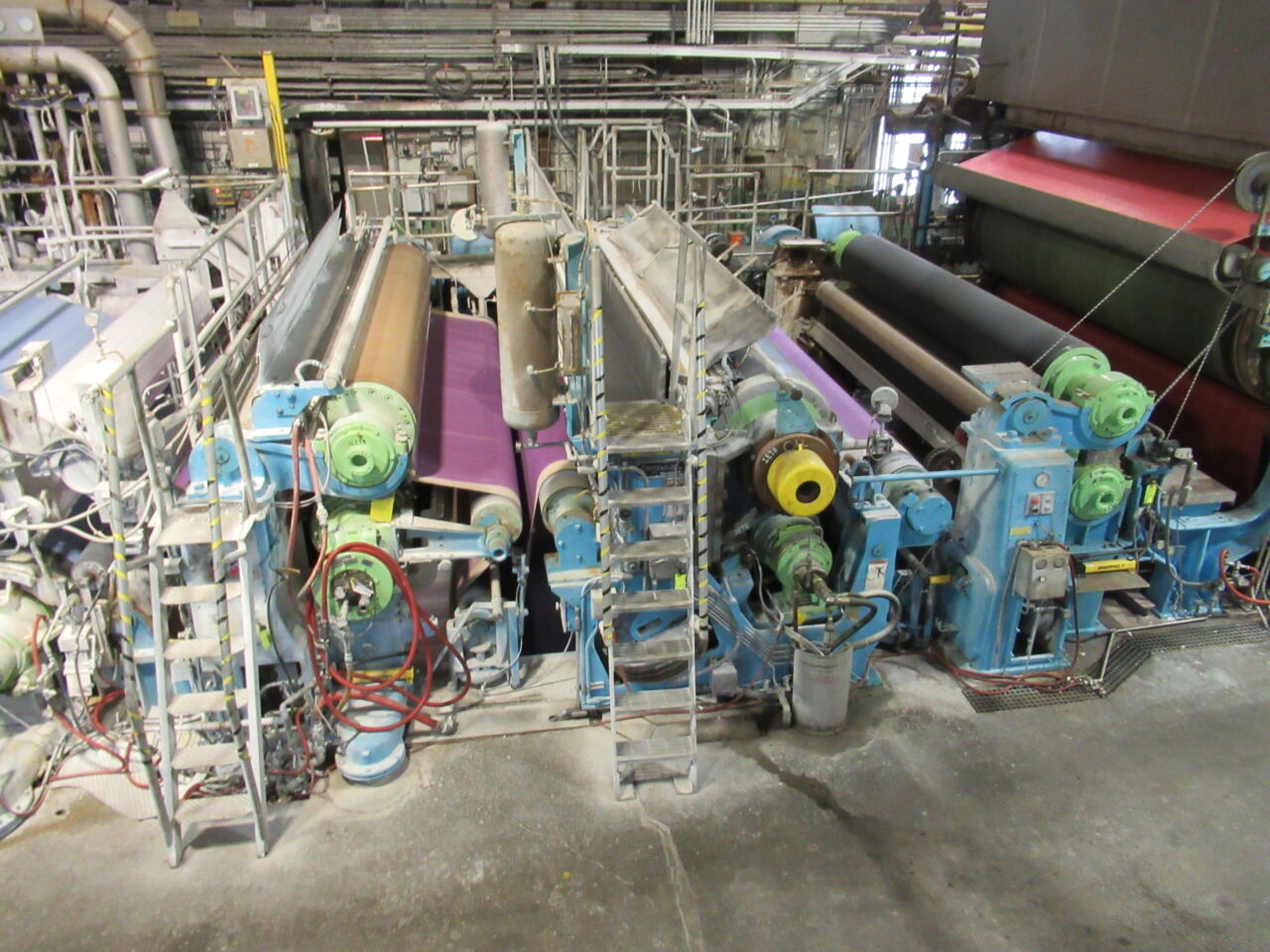

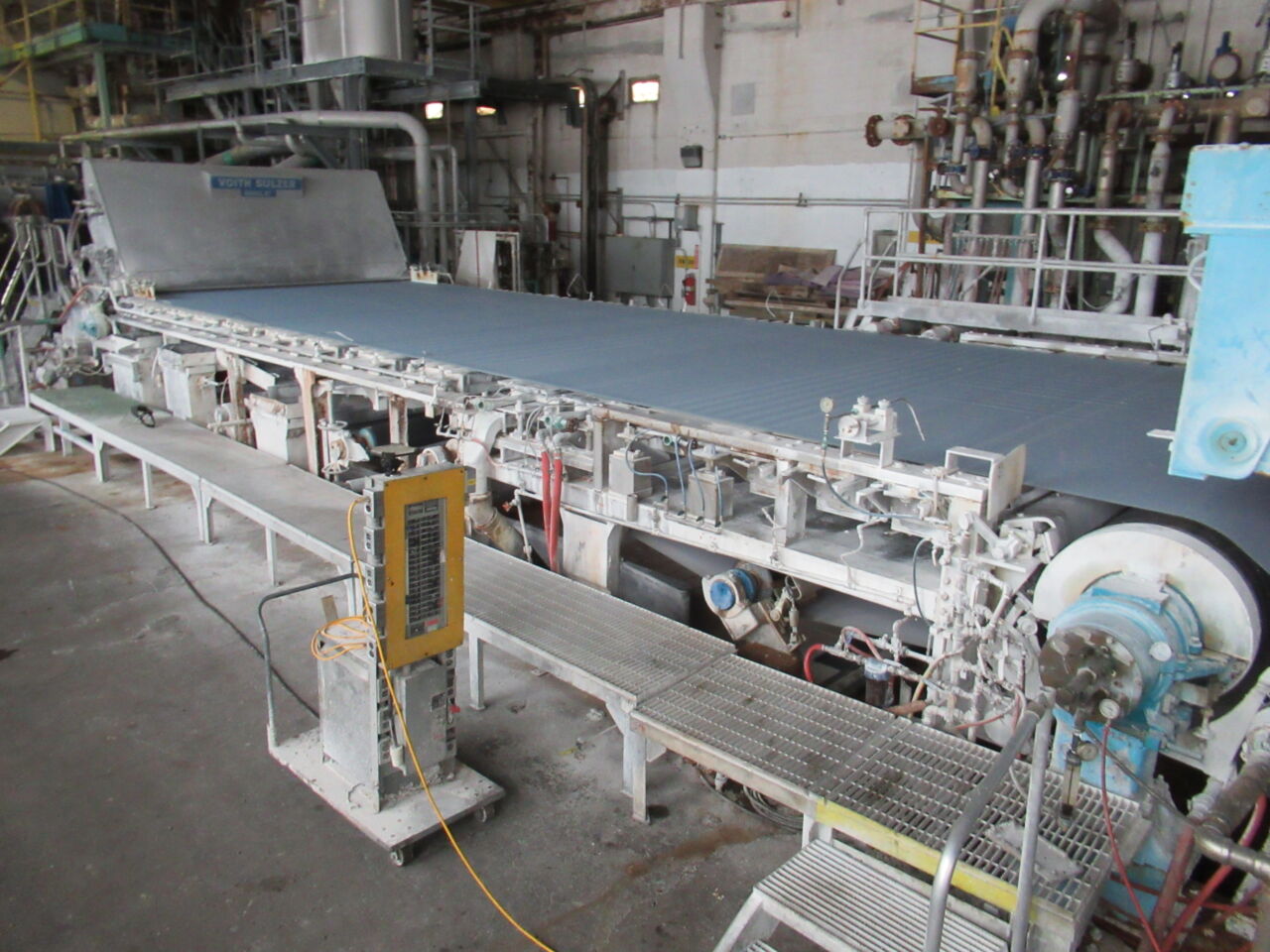

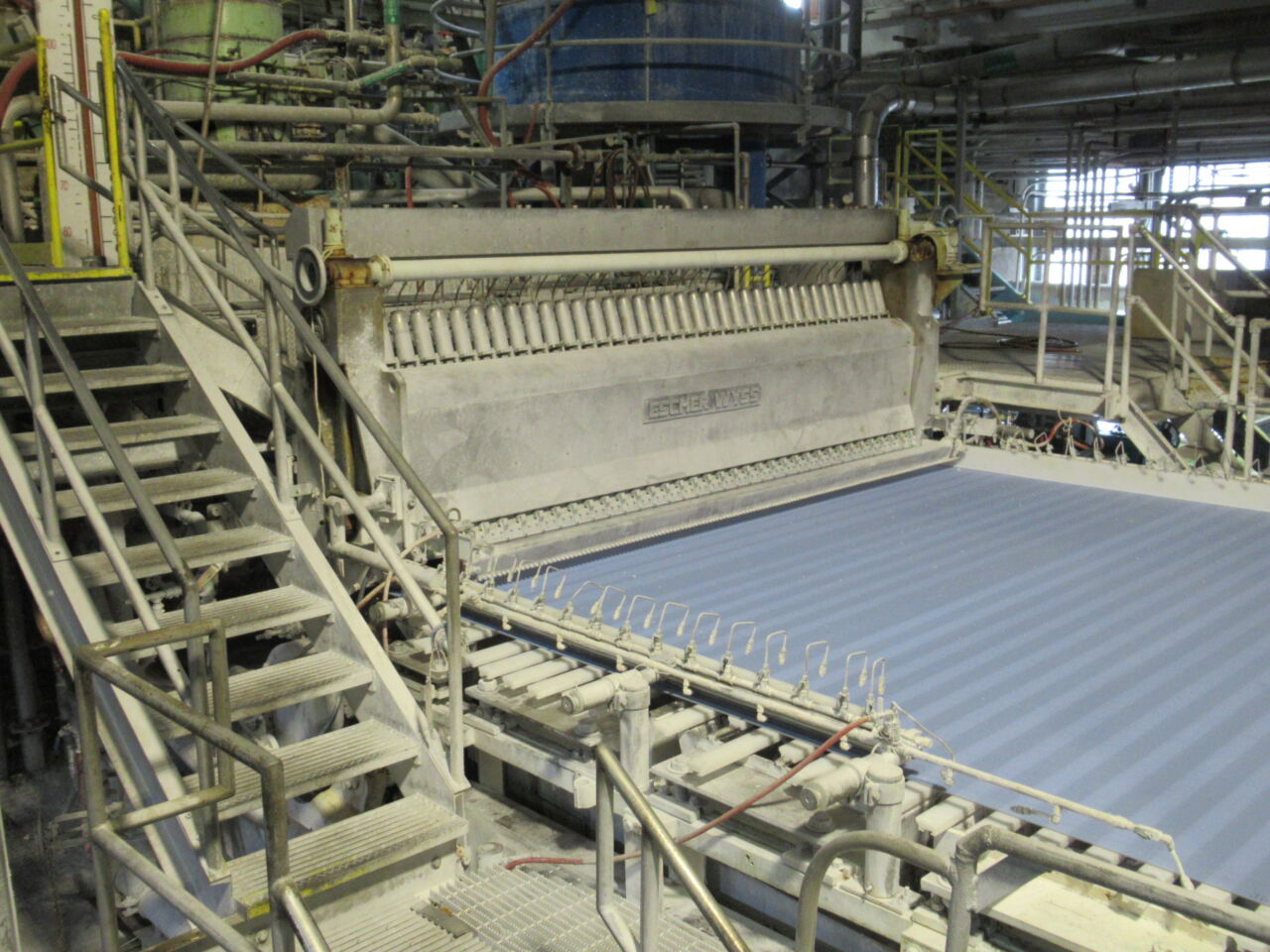

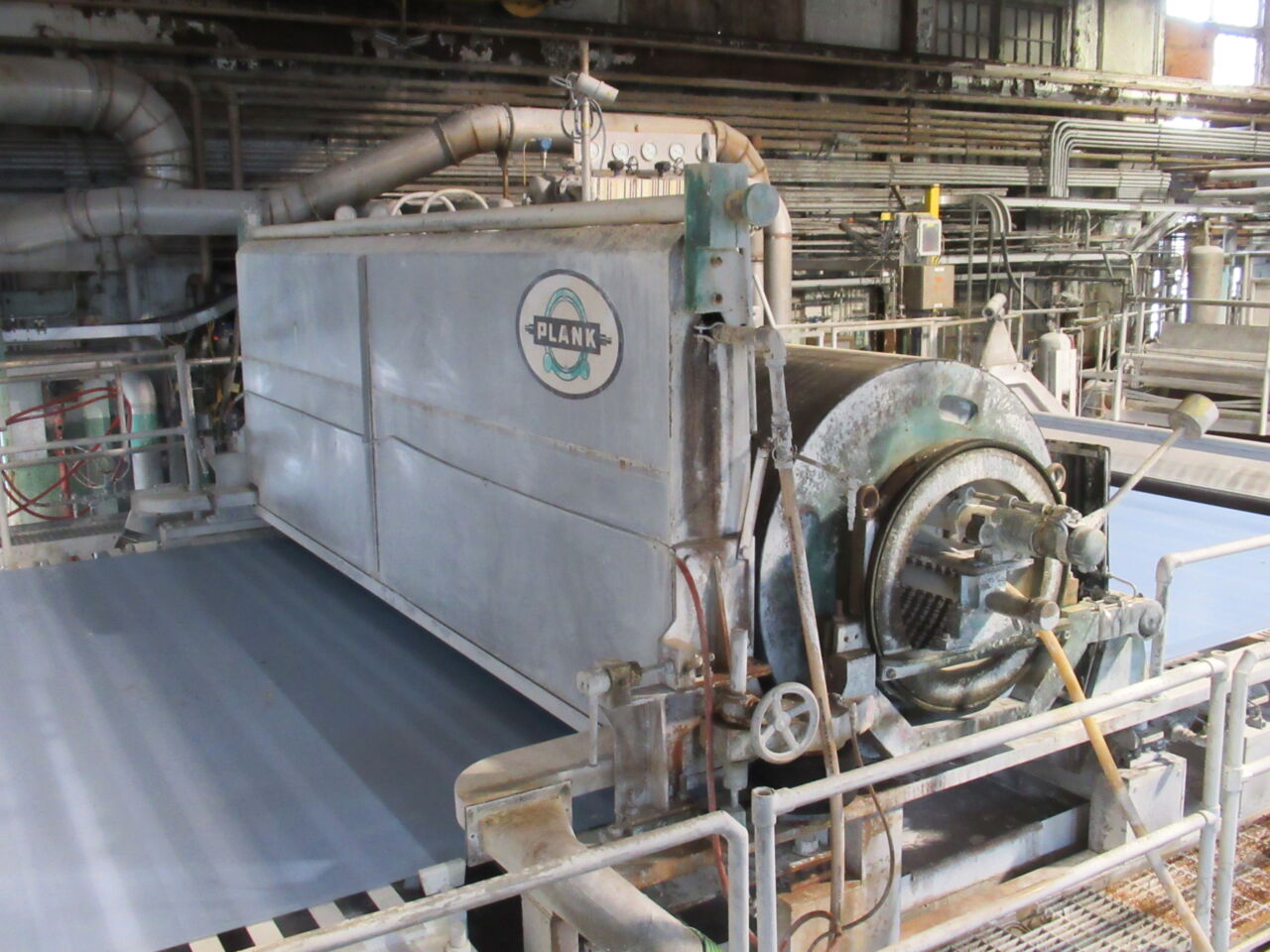

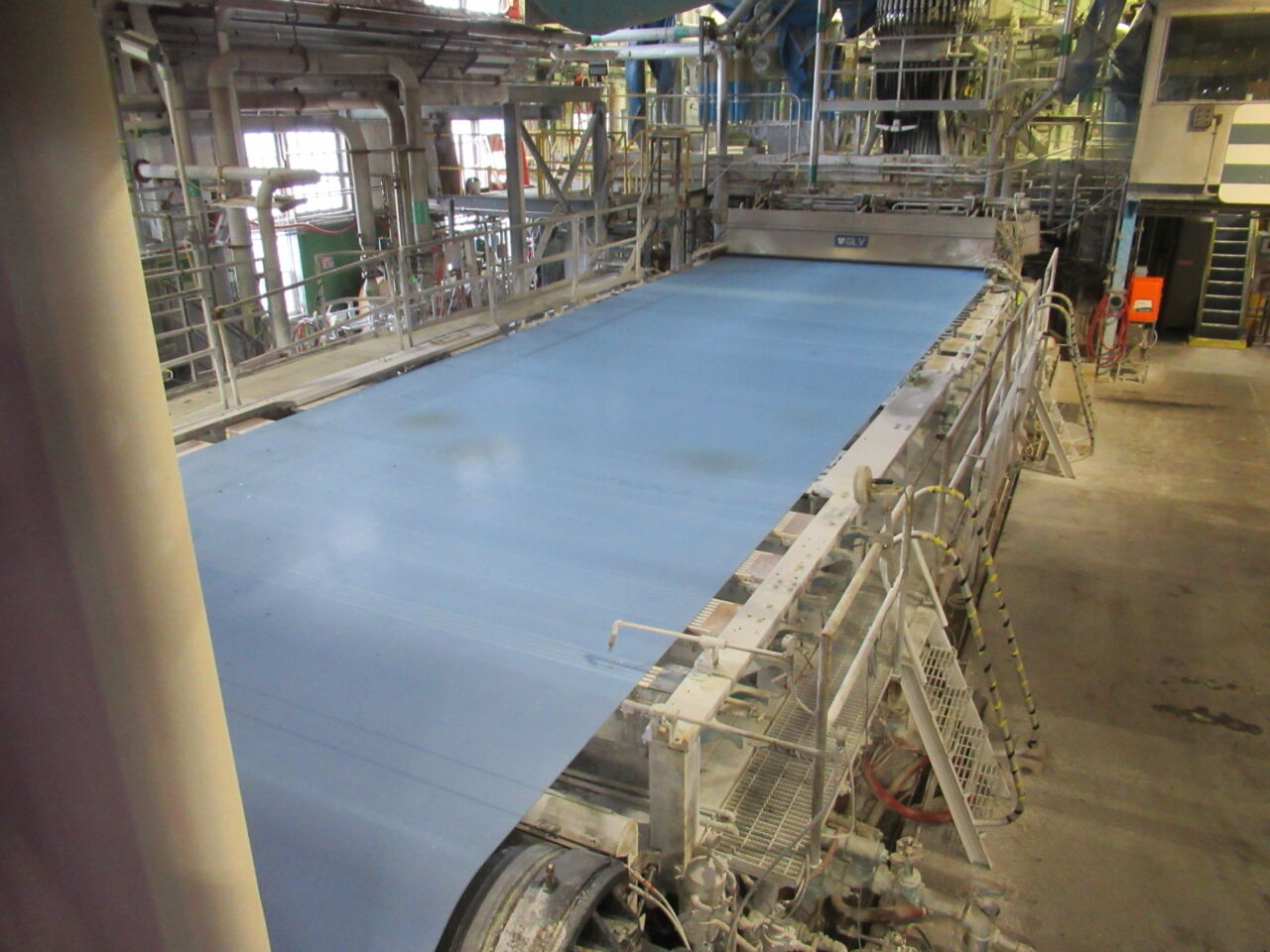

Previously running standard offset C2S grades, C1S, plus fragrance and playing cards, with 134 grades in dull, dull-SG, matte and gloss finishes. Weight ranges from 70 to 148 lb. (per 3300 sq ft.). as well as 30% PCW furnish capability at standard production rates 300 to 430 tons per day and coating weights from 14 to 30 lbs. Fourdrinier measures 159” with Valmet steam box over couch roll. Wet end blended stock screened through (3) Black Clawson slotted screens, 5-stage GL&V/Celleco 350 cleaners, and 3 stage Voith screen matrix. Temperature-controlled 155” SEW step diffuser headbox controlled by ABB and Delta V DCS systems.

Full details available upon request

Paper Machine #2

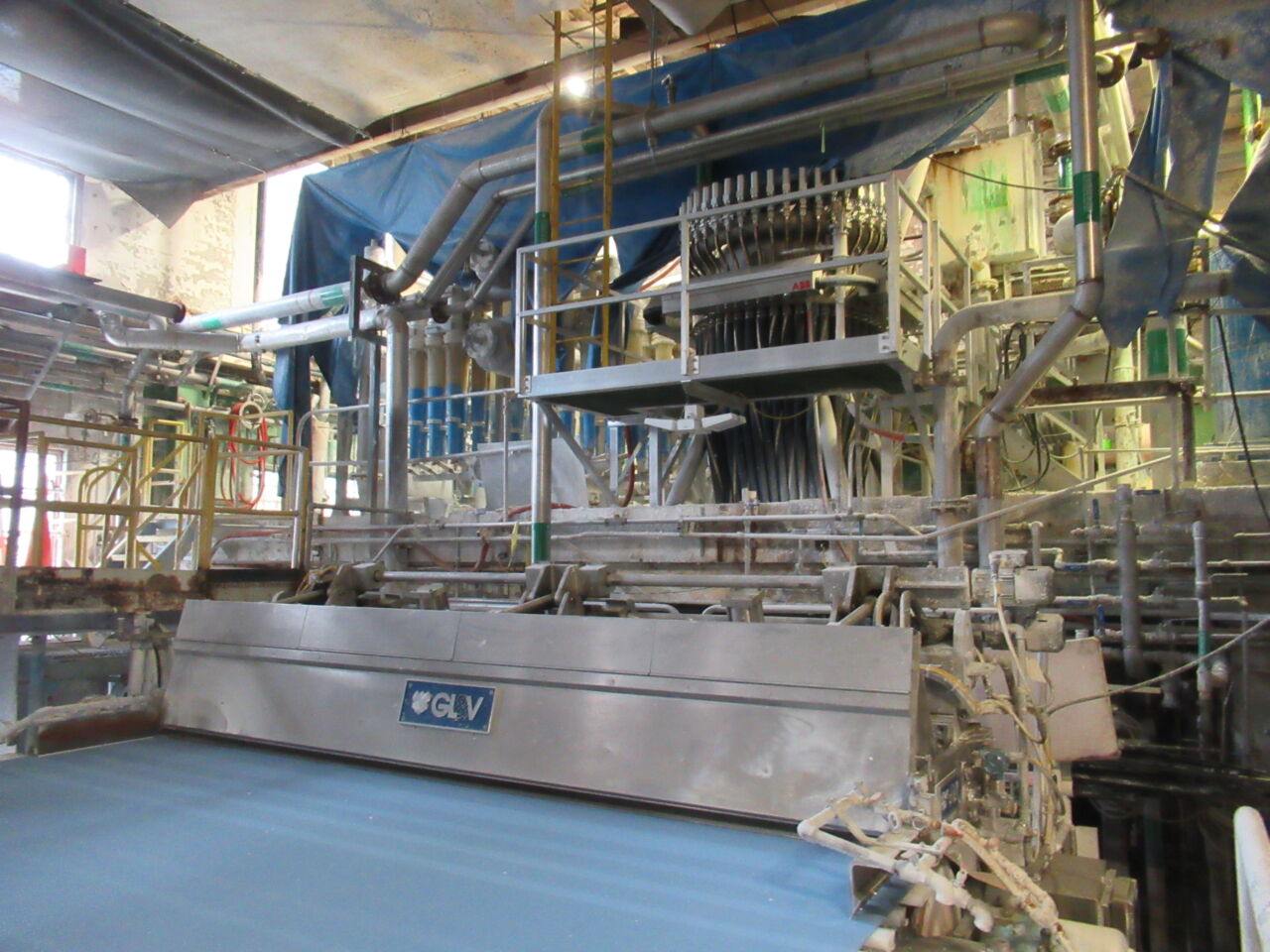

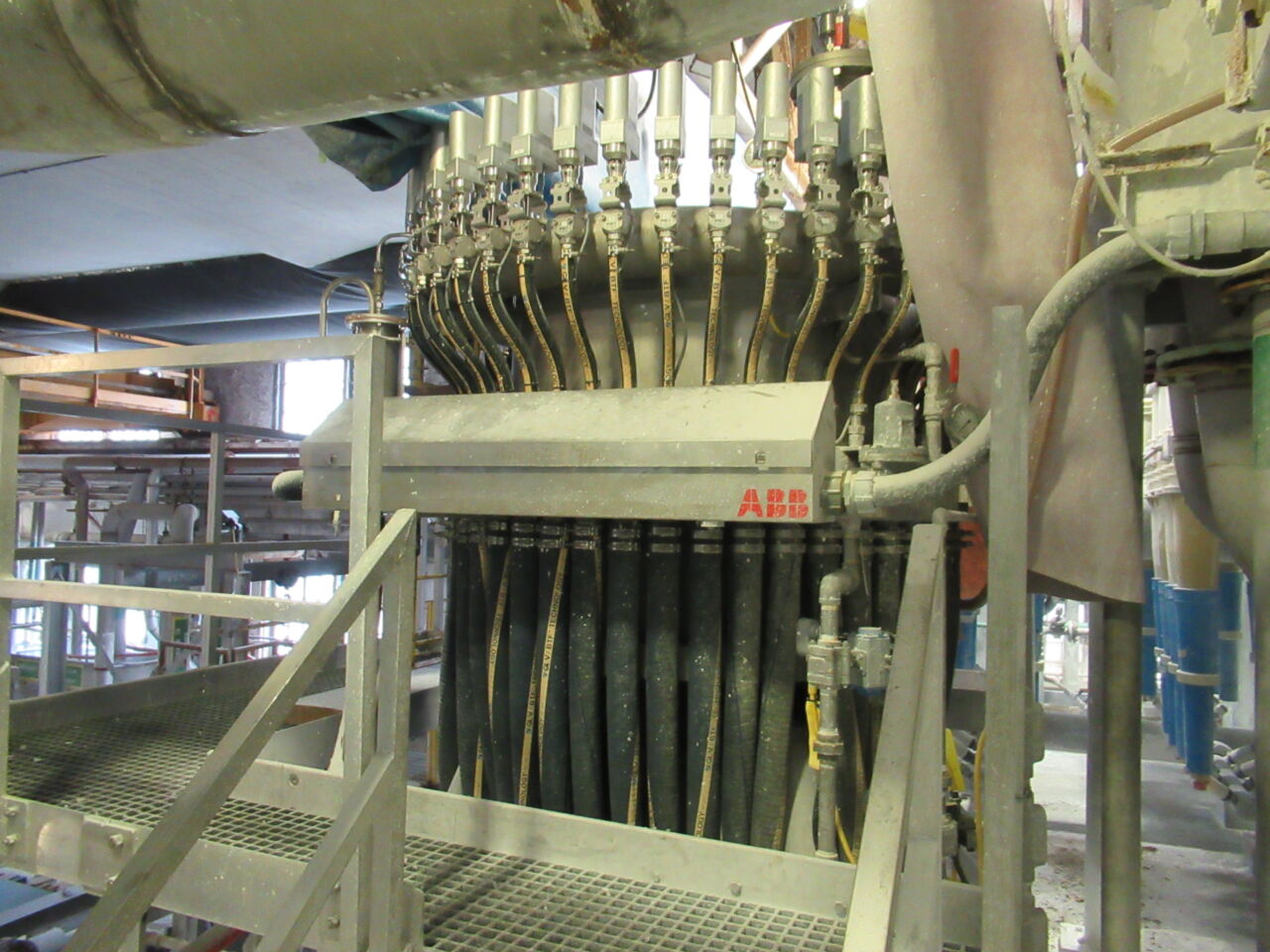

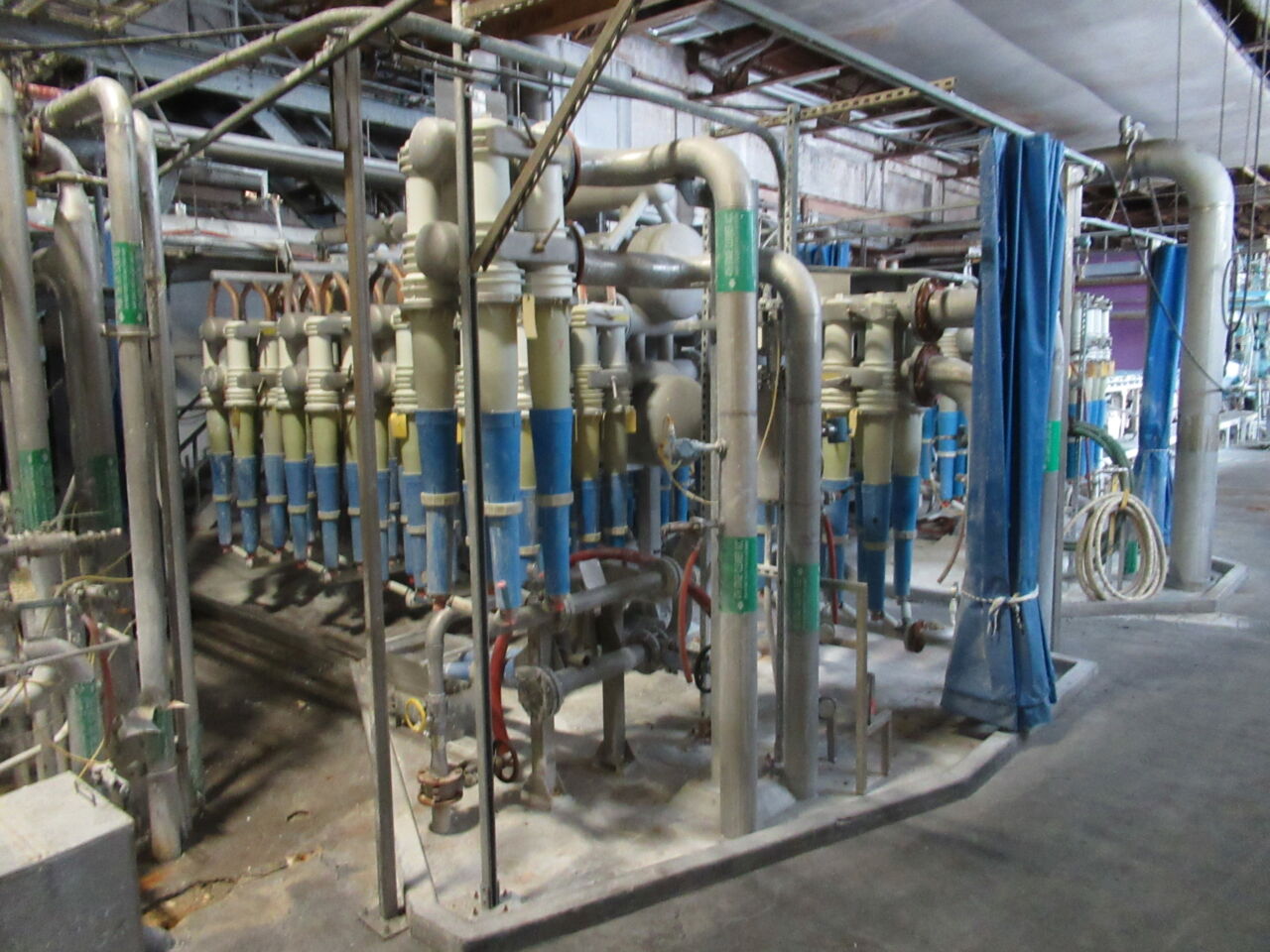

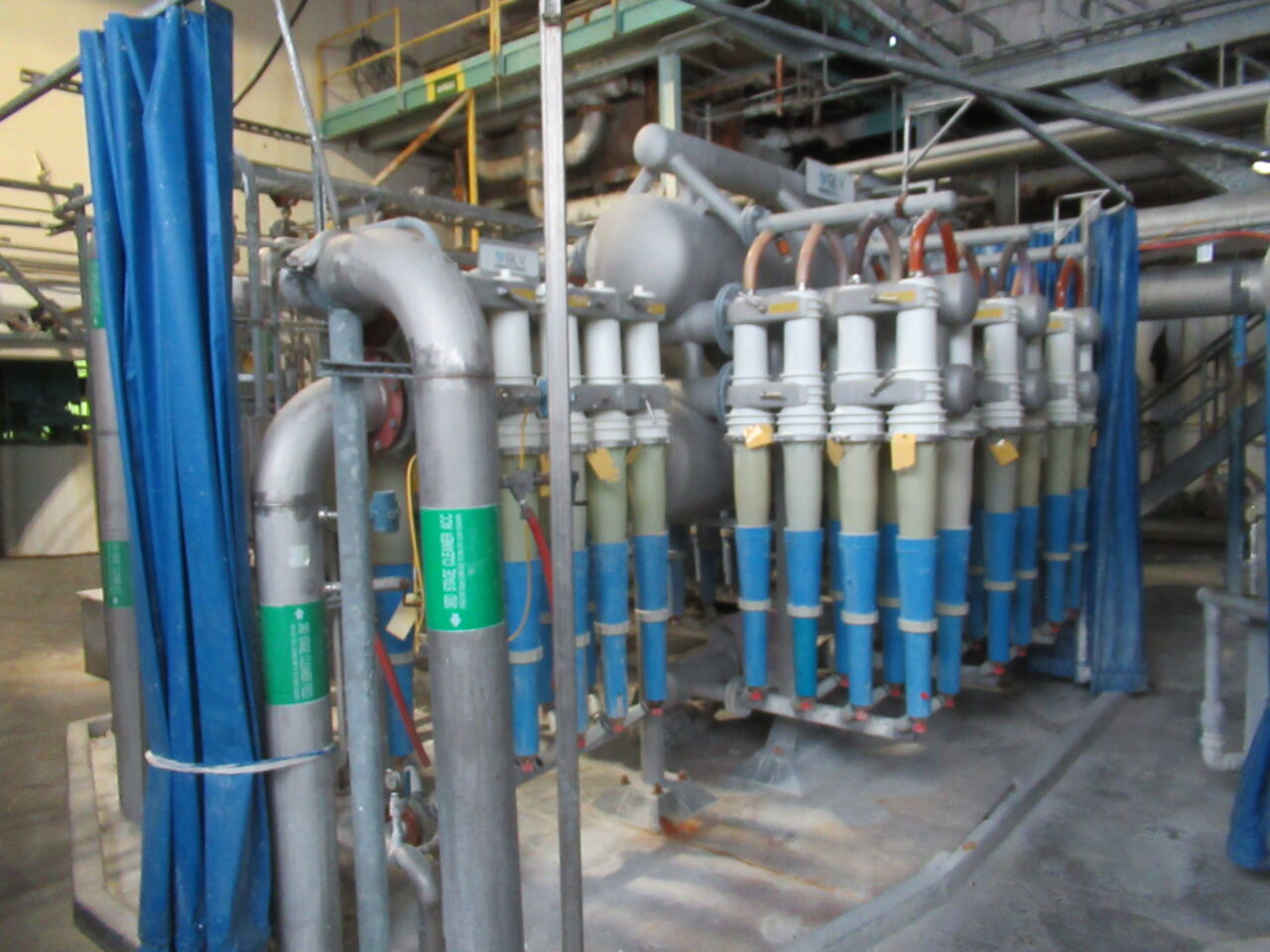

Previously running standard offset C2S grades, plus C1S, InkJet, OGR and wet strength. Produces 120 grades with book matte, dull, dull-SG, gloss, matte, smooth & wove finishes, Base weight ranges from 22 to 80 lb. (per 3300 sq ft.). Also runs 30% PCW furnish with production rate of 130 to 350 TBD. Pond width of 161.44” Continuously blended stock screened through Beloit 32-S primary slotted and 24-S secondary screen. Additional wet end components include GL&V M-50 primary and Black Clawson 12P secondary screen, 4-stage GL&V/Celleco 700 centrifugal cleaners and GL&V dilution headbox with BTF central distributor (rebuilt in 2016).

Full details upon request

Paper Machine #3

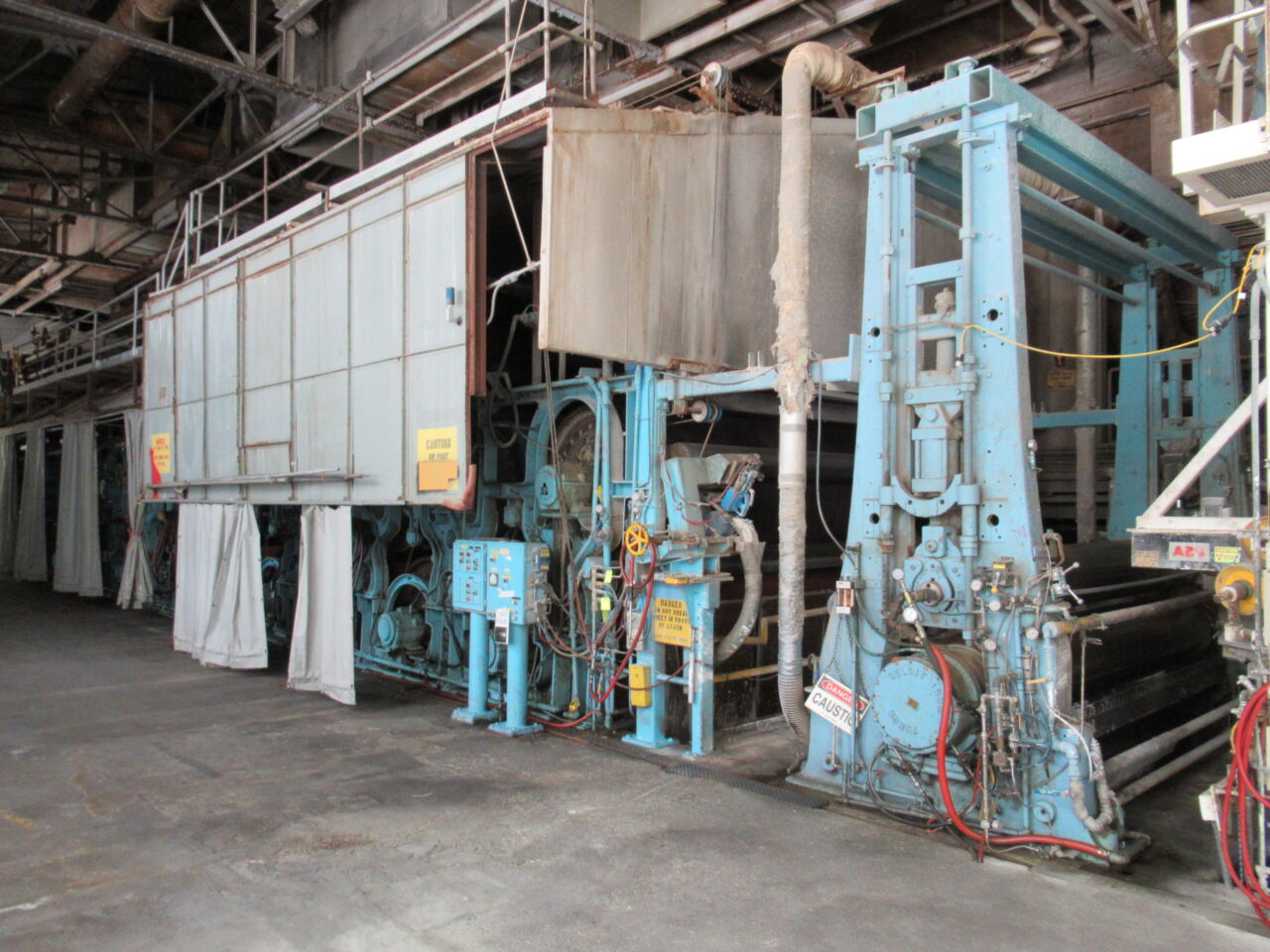

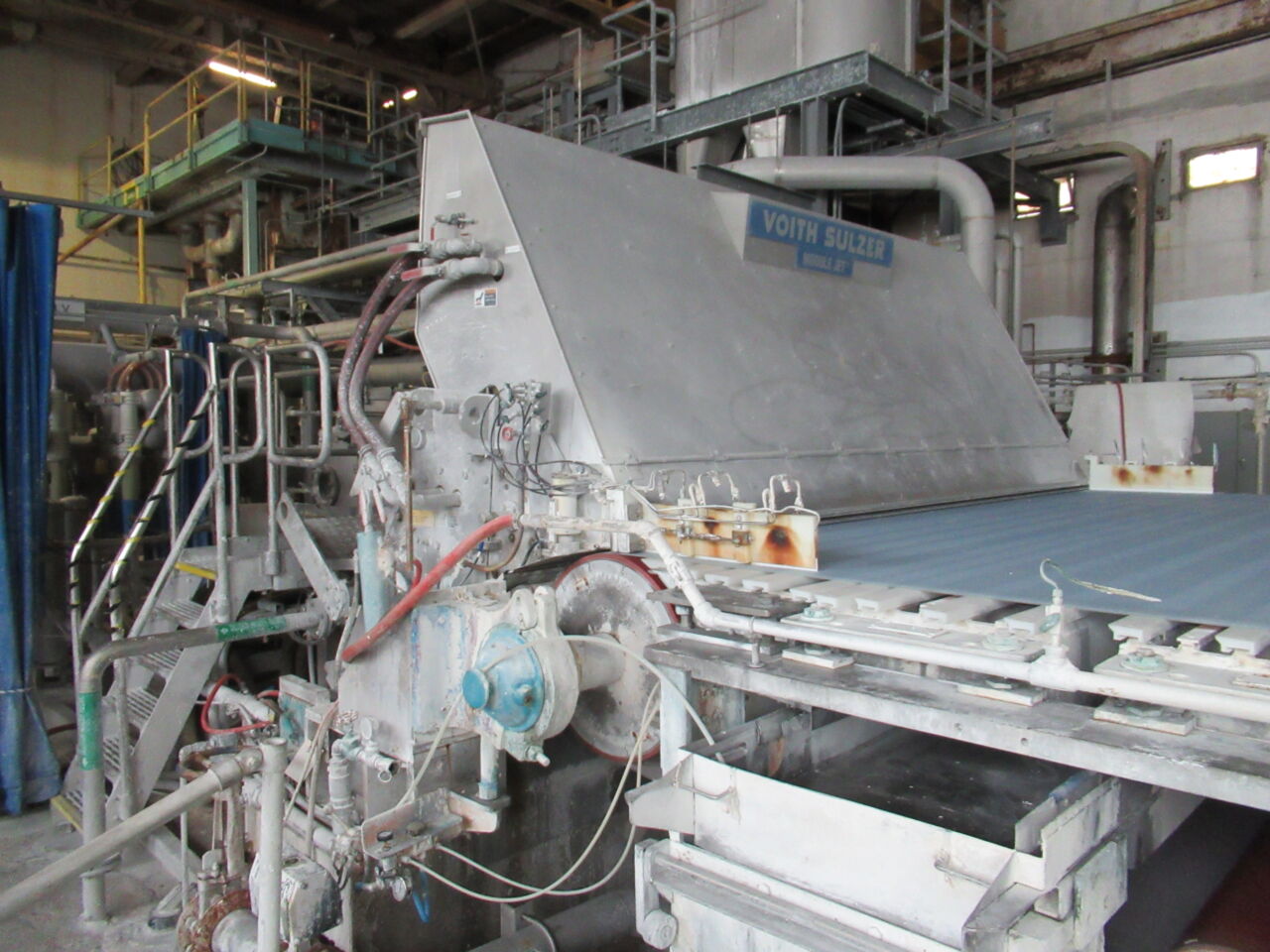

Previously running up to 30% PCW furnish with standard production rates from 250 to 350 tons per day at the reel. Coat weights range from 2.5 to 24 lbs., with standard speed ranges from 1400 ft/min to 2000 ft/min. Pond width of 159.7”. Wet end blended stock screened through a Voith Sulzer primary Multi-Screen, a Black Clawson P12 secondary, and a Voith Additional wet end components include 5-stage GL&V/Celleco centrifugal cleaners, Voith MSA 15/15 primary and Black Clawson 24P secondary screens. Head box features Voith Master Jet F with central distributor. Wet end controlled by ABB Delta V DCS system.

Full details available upon request

Finishing Department

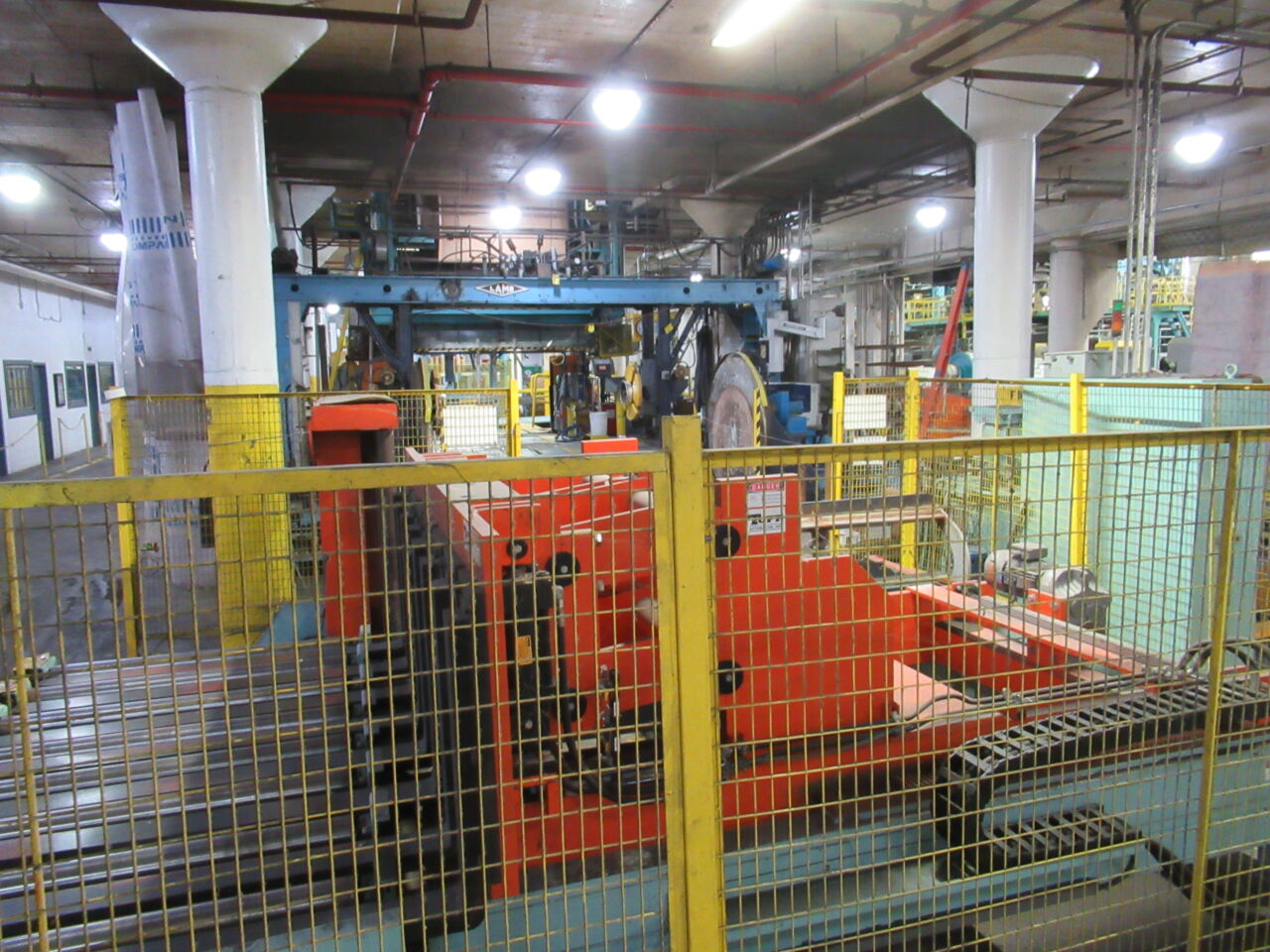

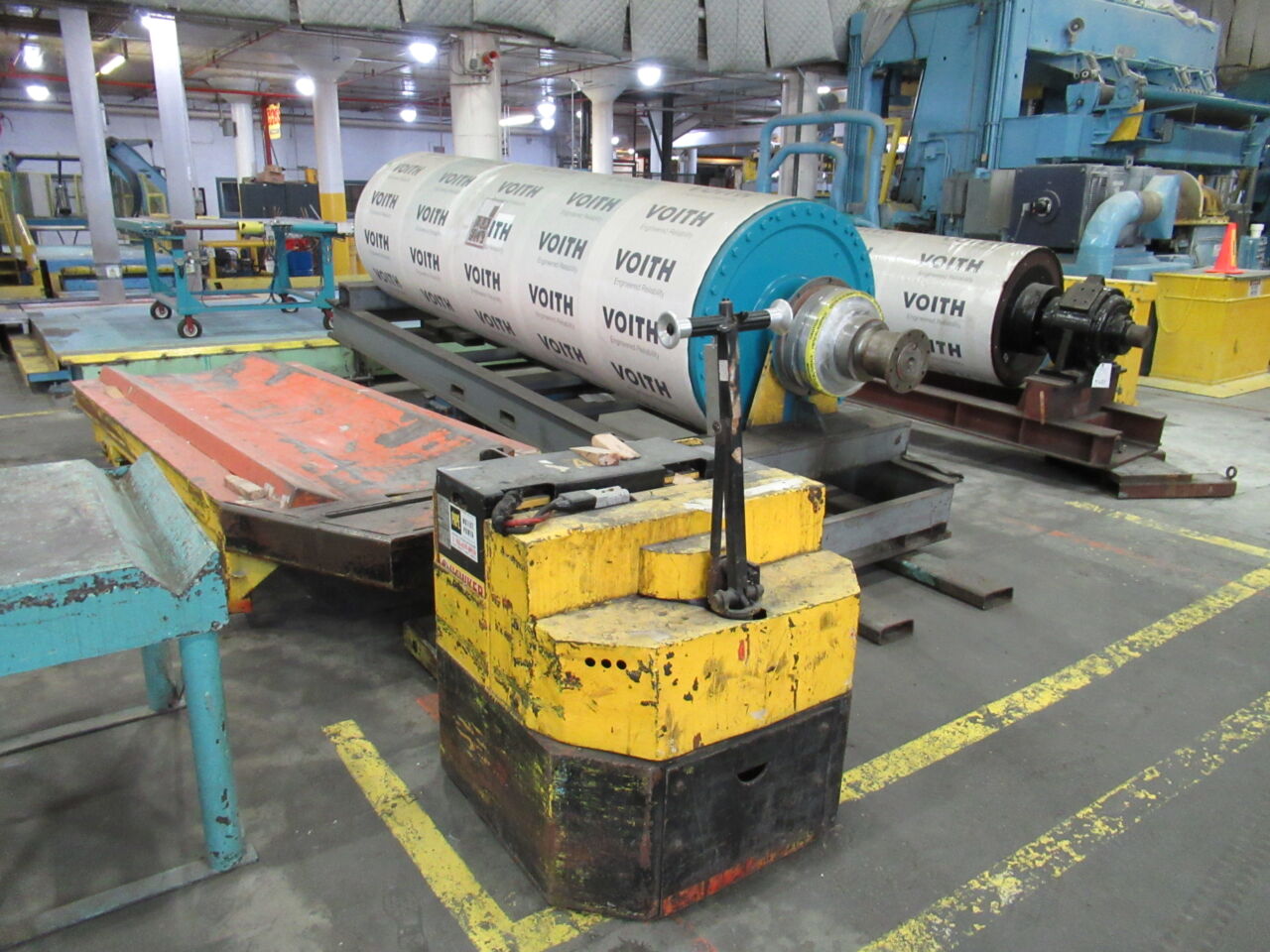

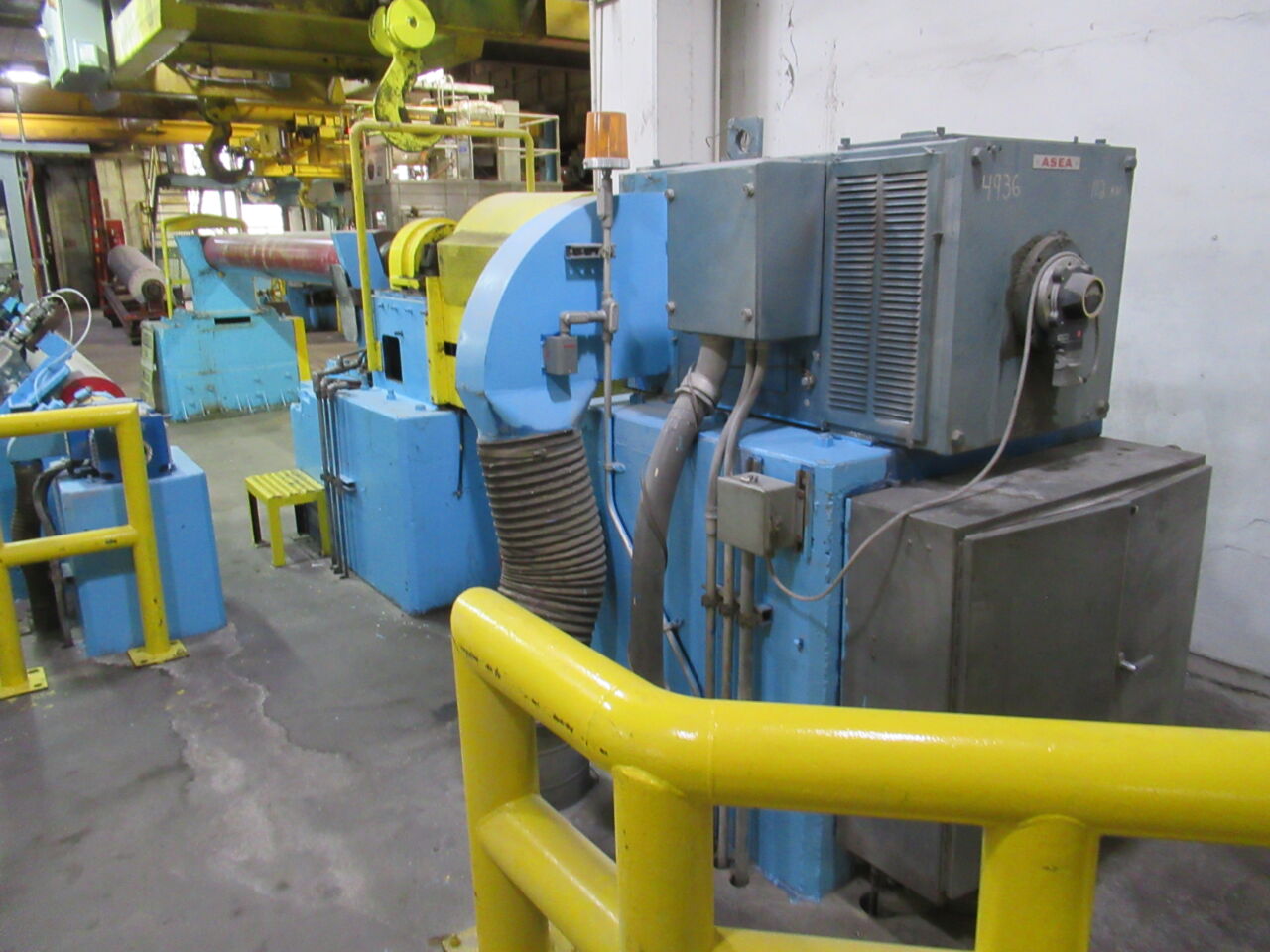

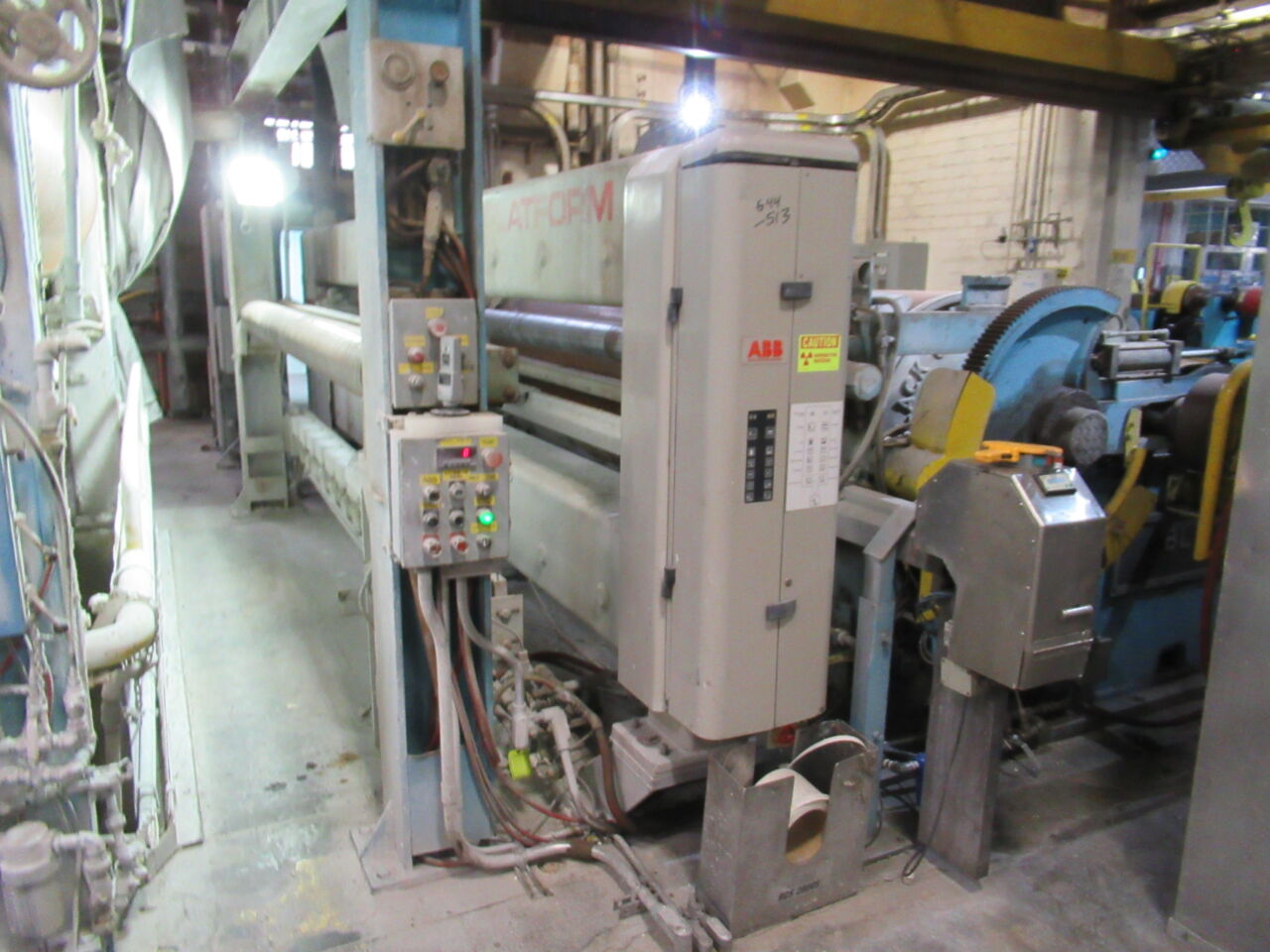

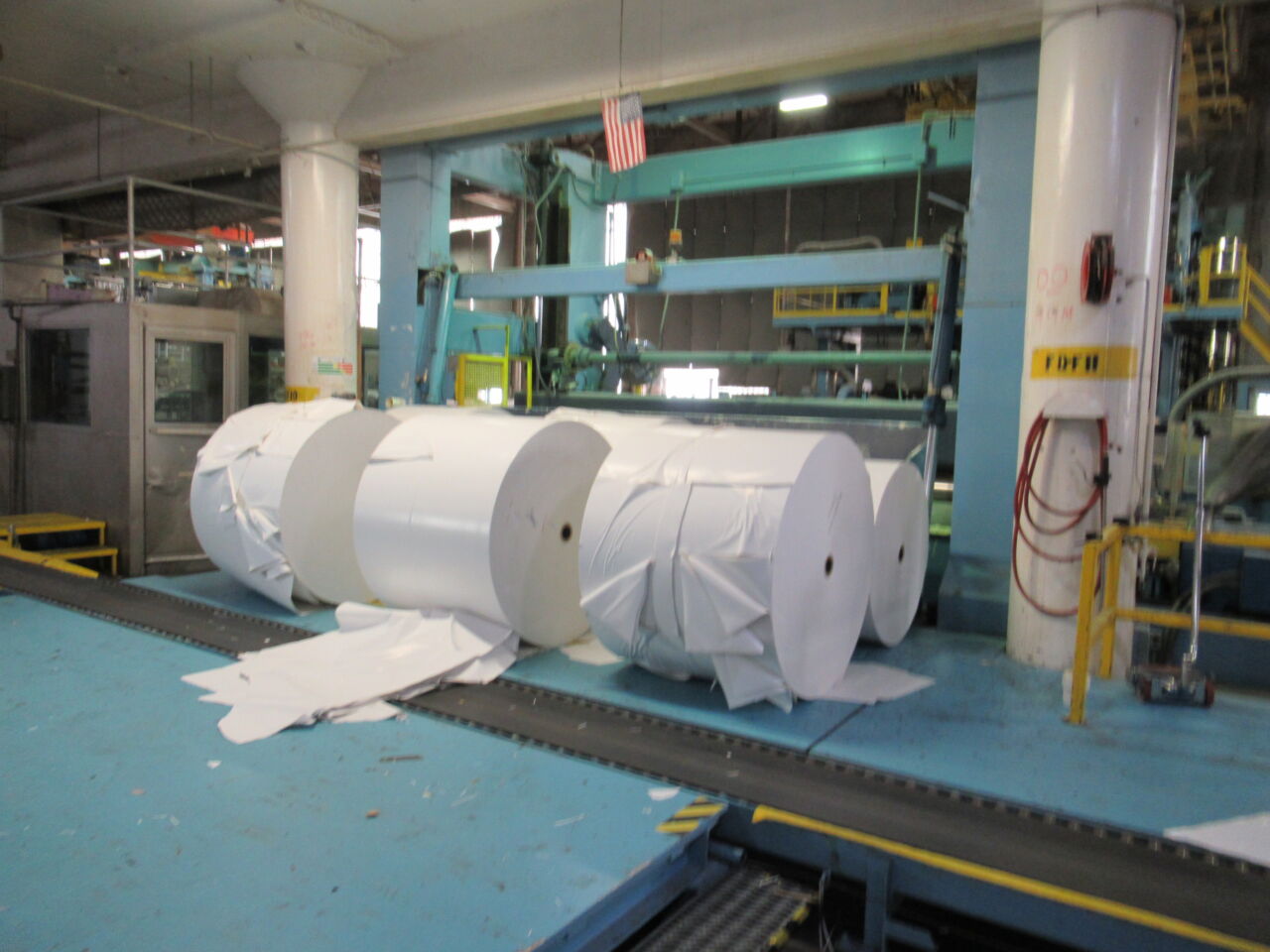

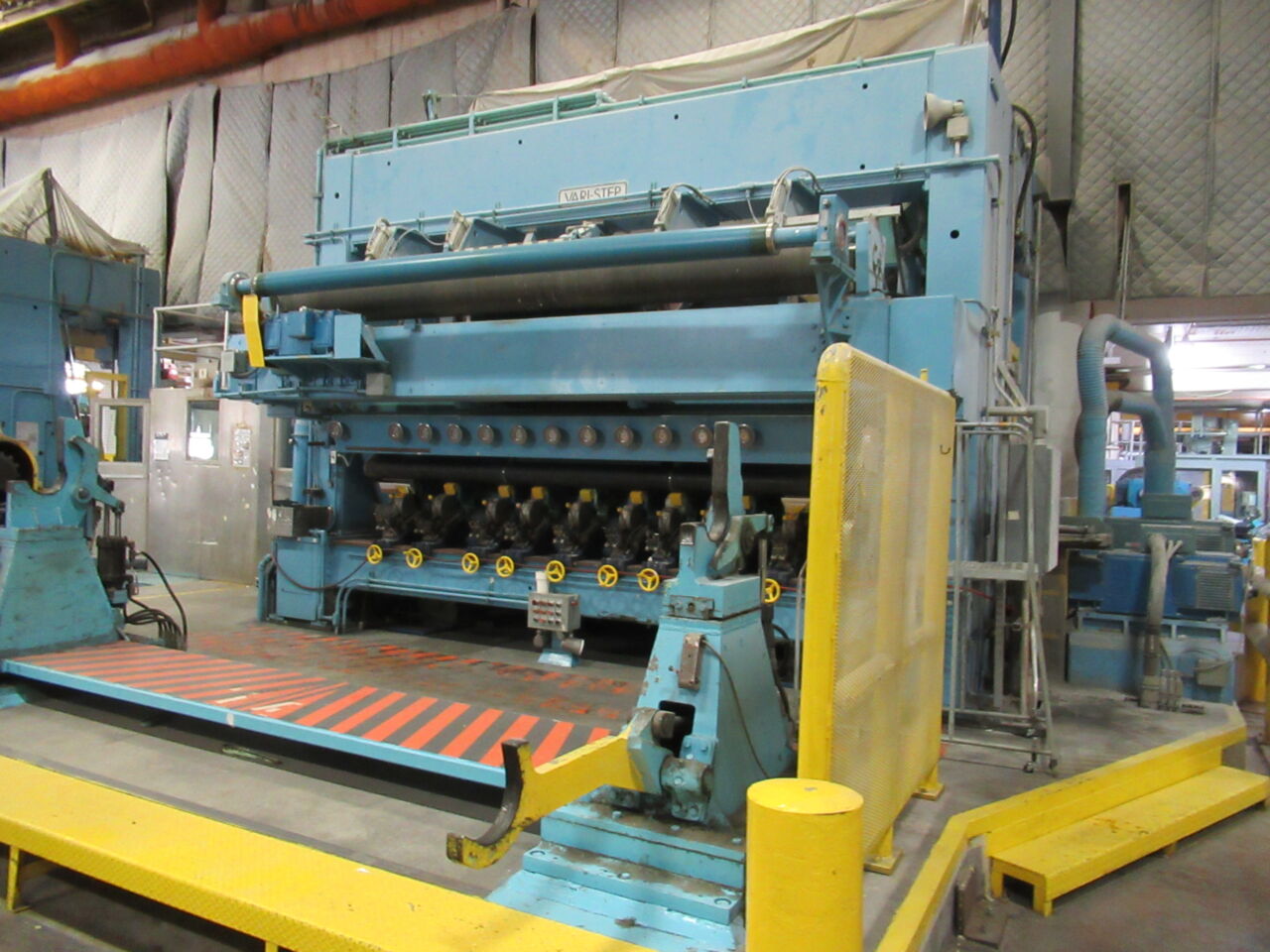

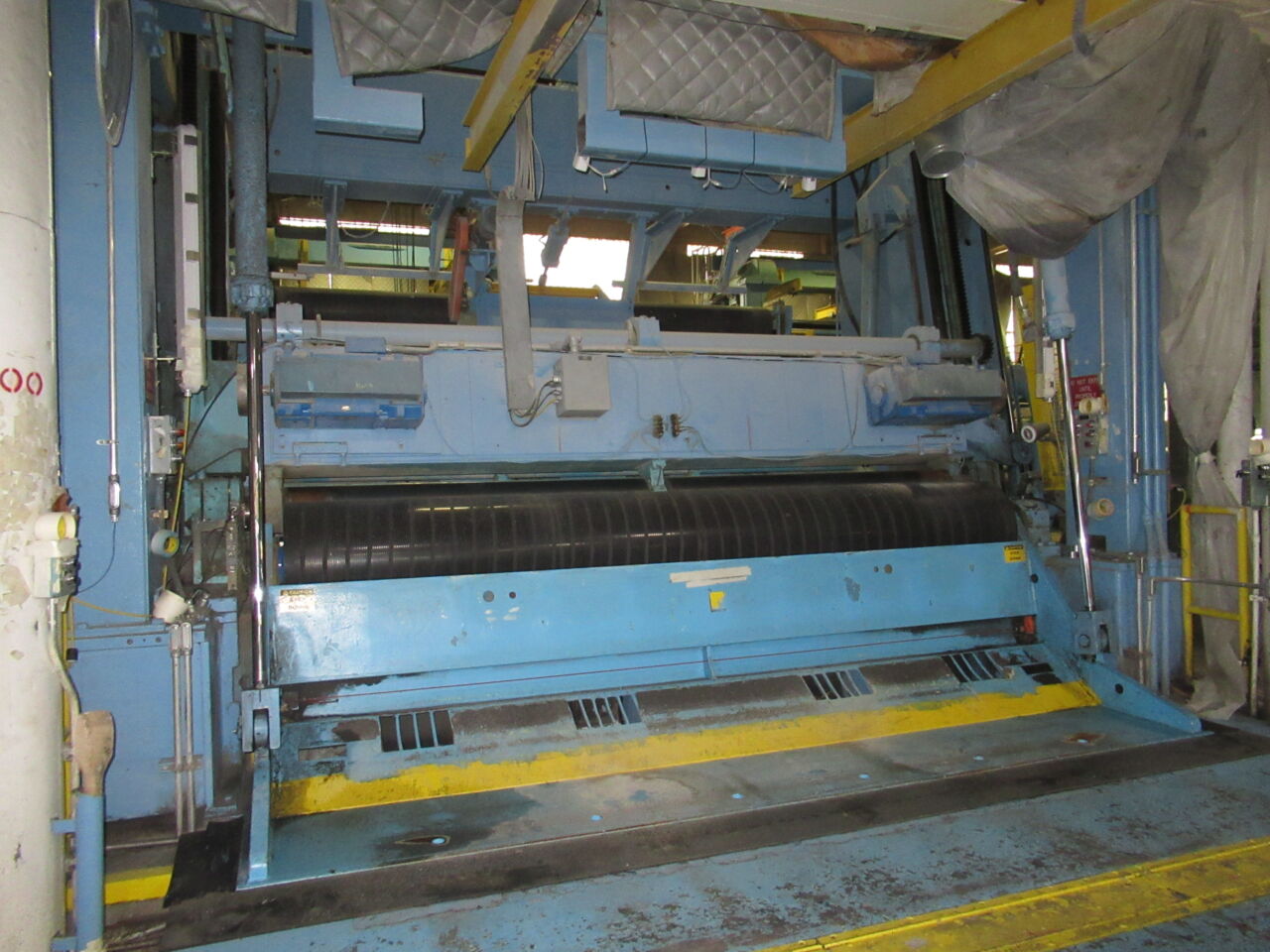

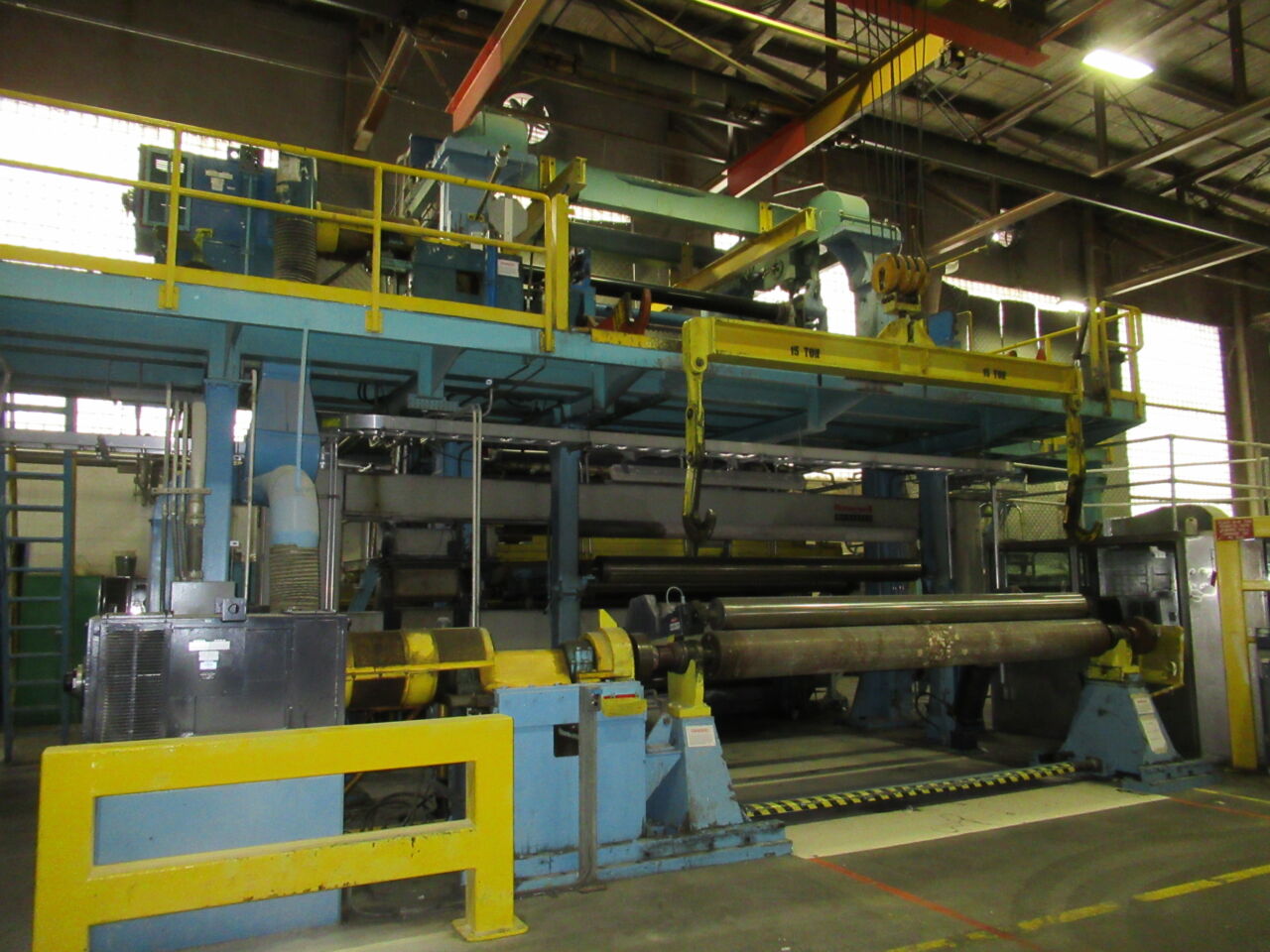

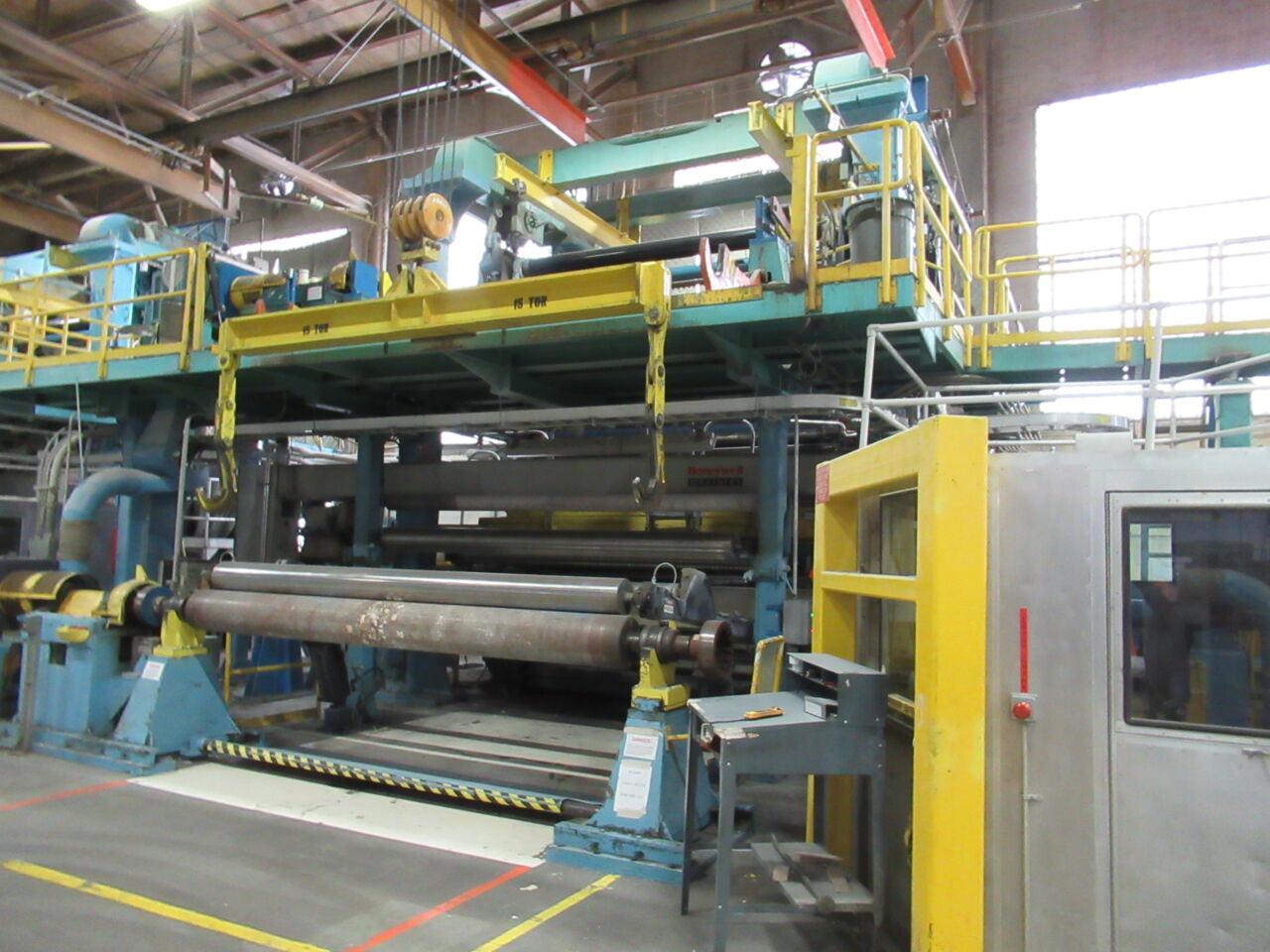

• (2) Jagenburg 161″ vari-step double drum slitter/winders, 8 roll cap., 10” trim per side

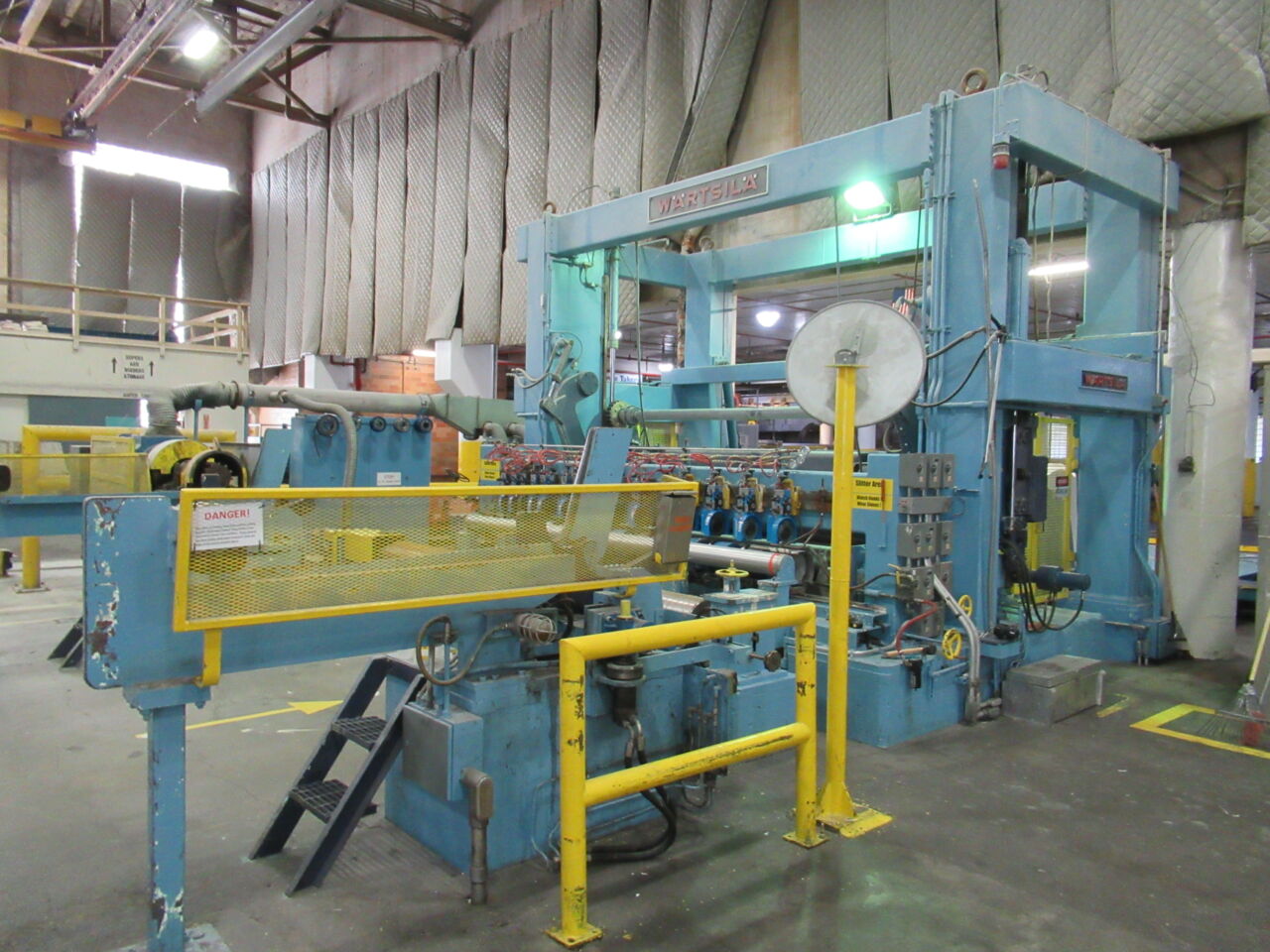

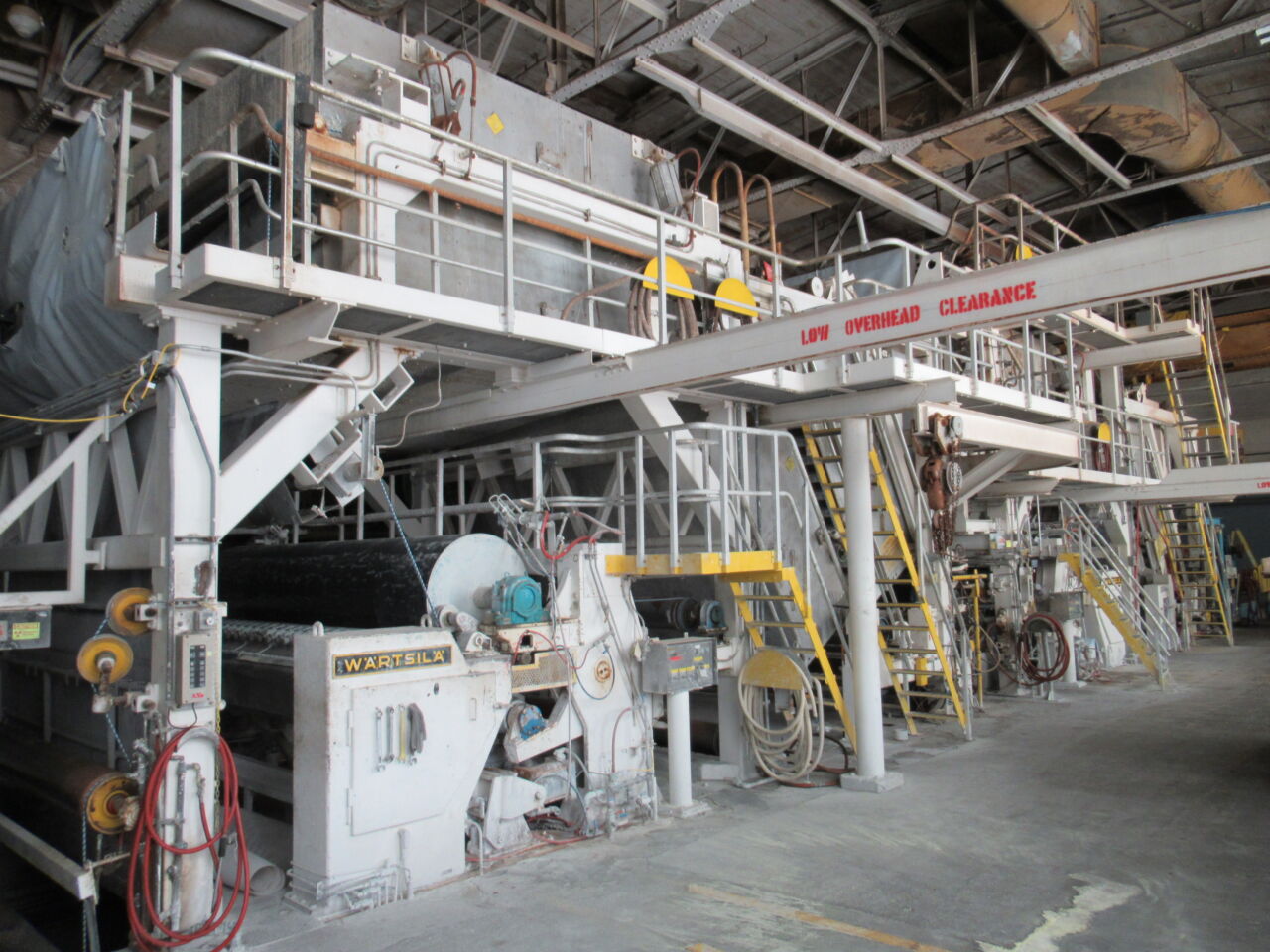

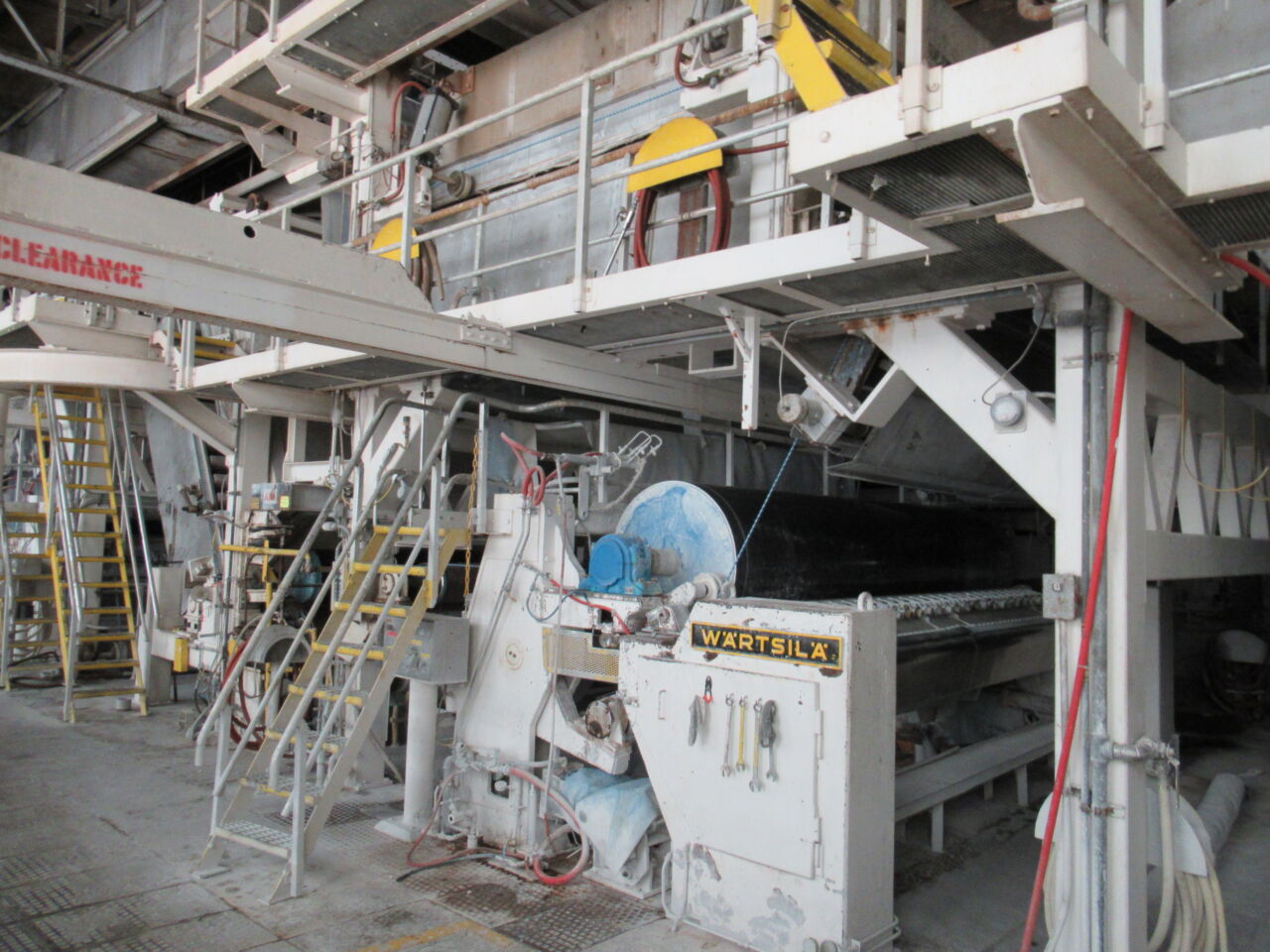

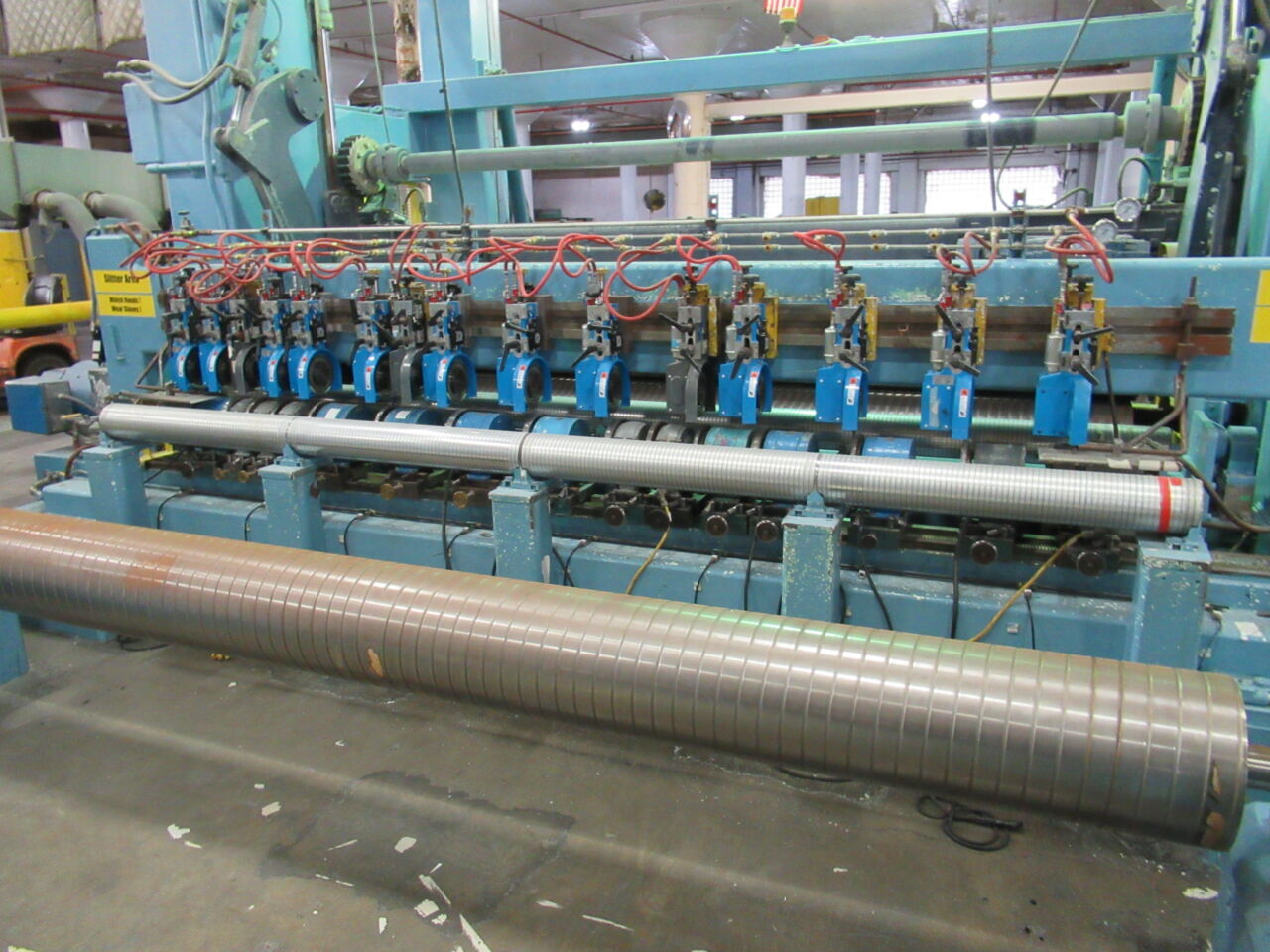

• Wartsilia 144” winder, widths from 72” to 144”, 15-roll cut stations, speed to 5400 FPM

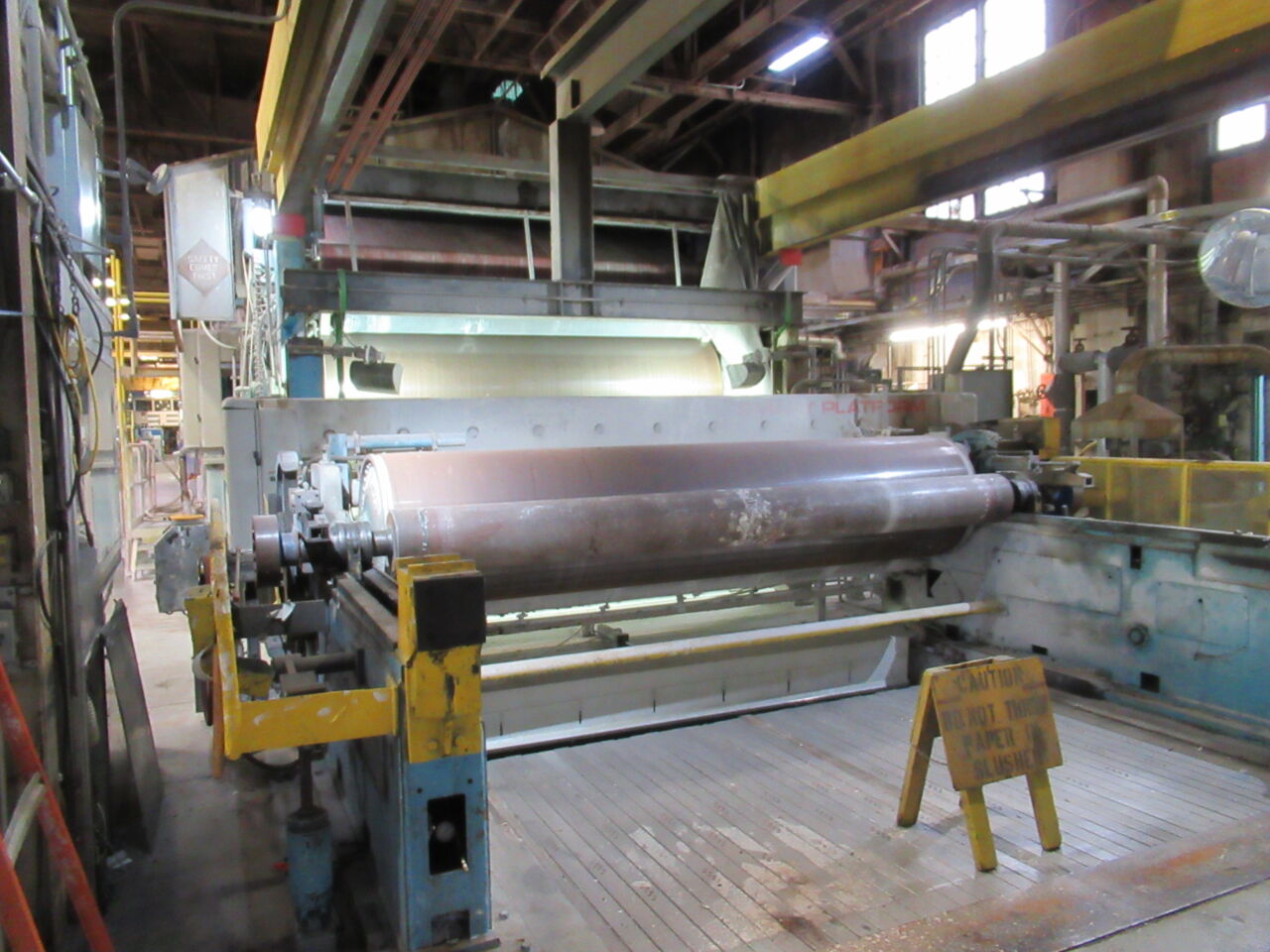

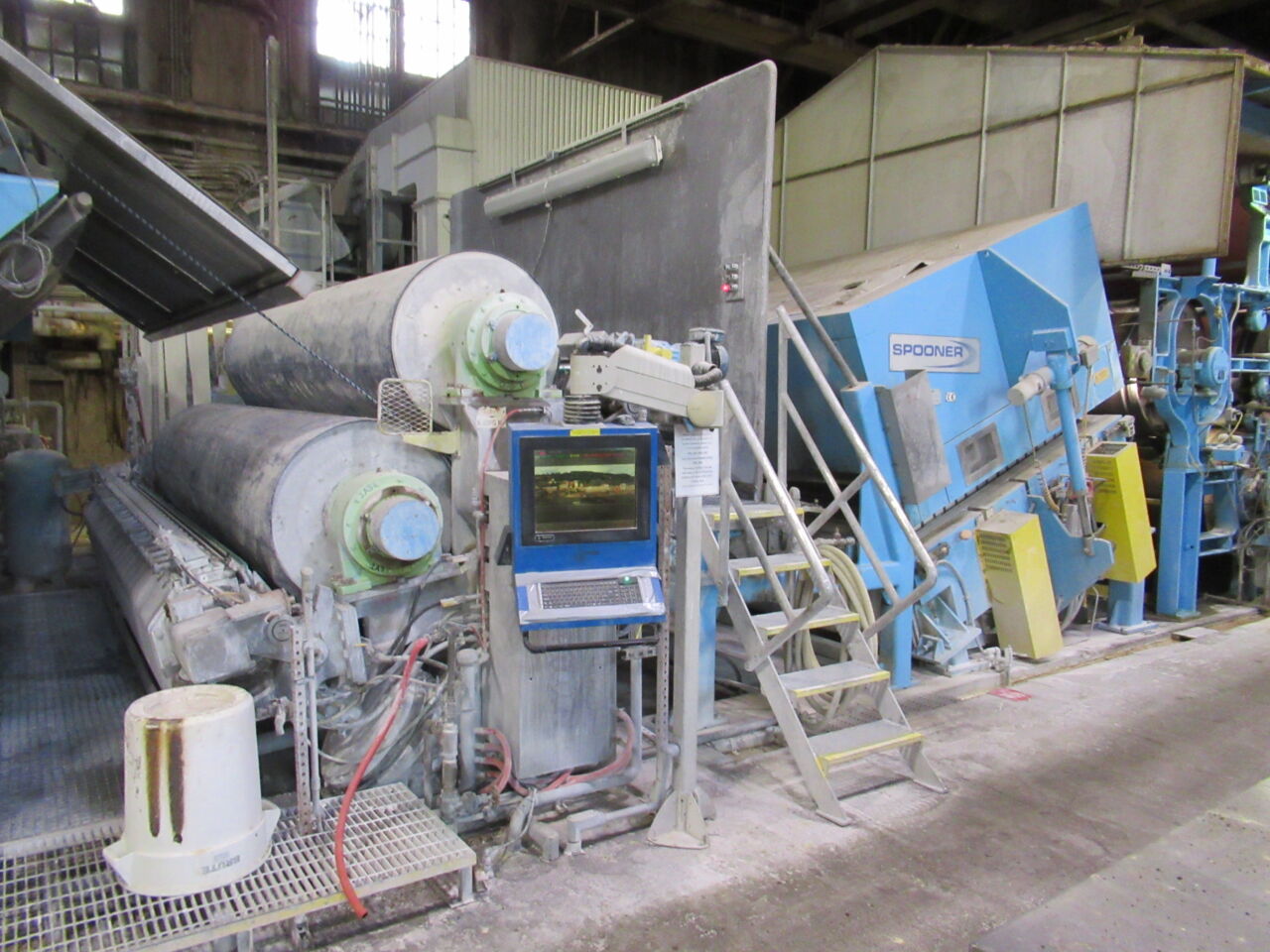

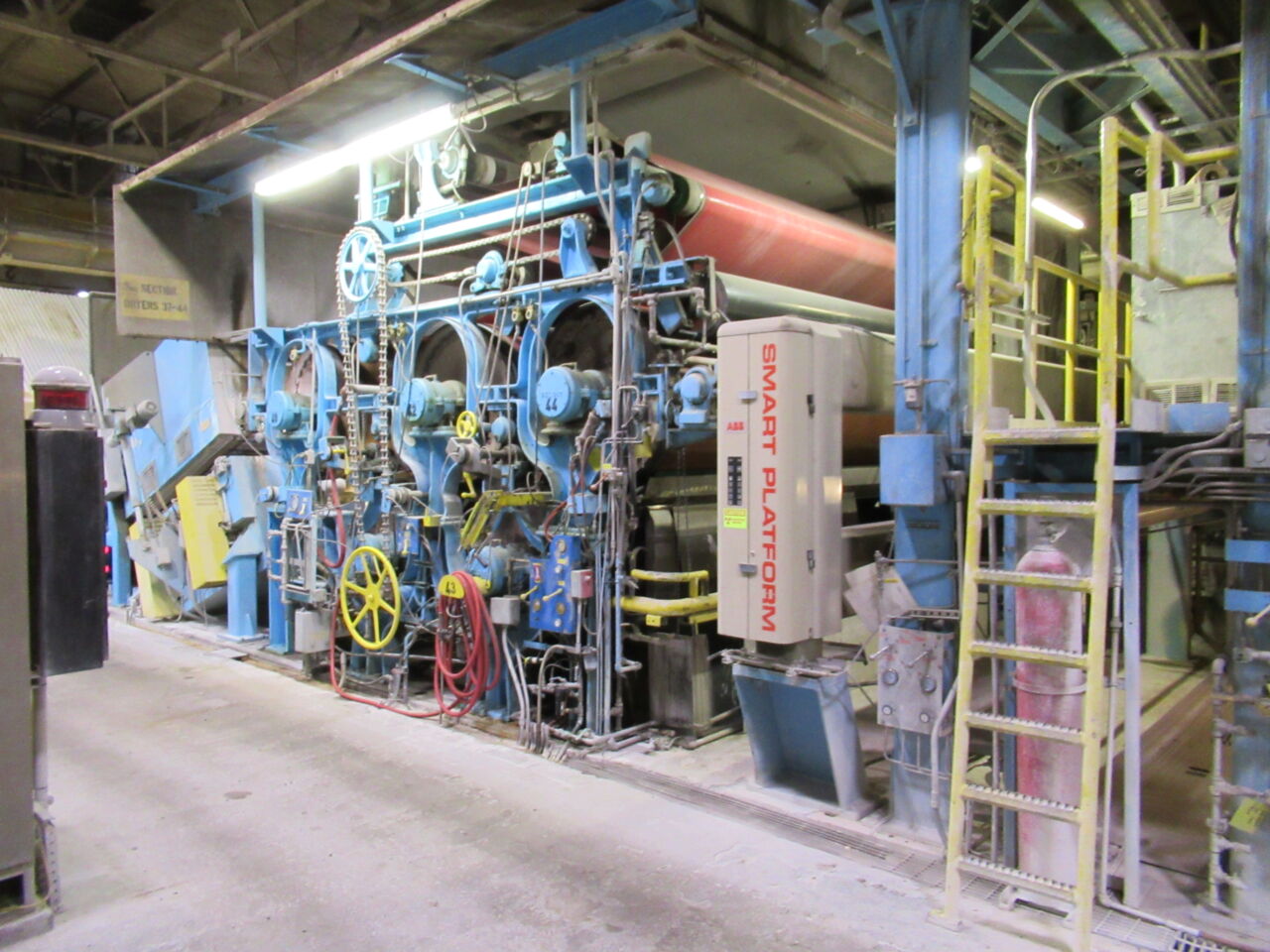

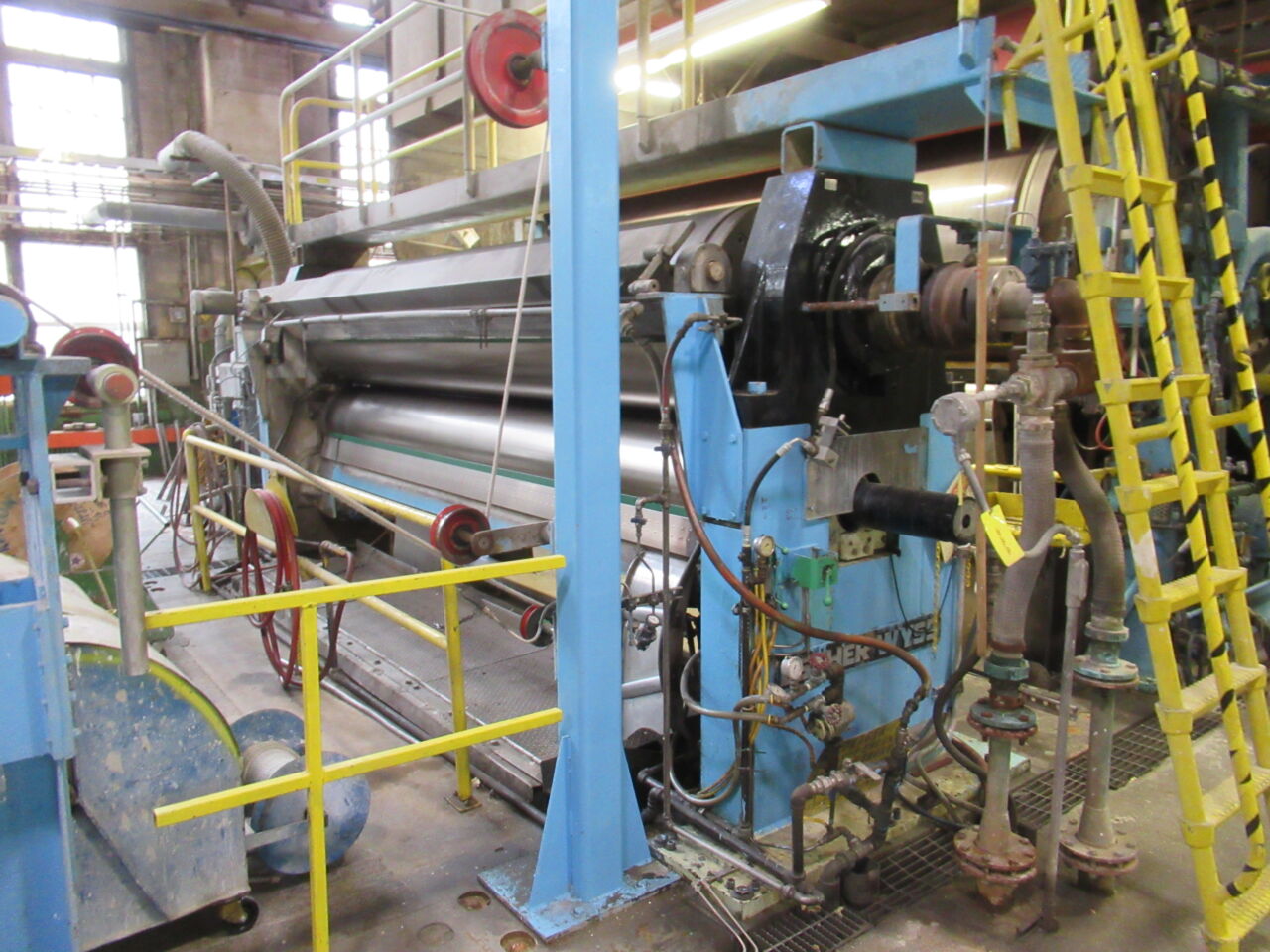

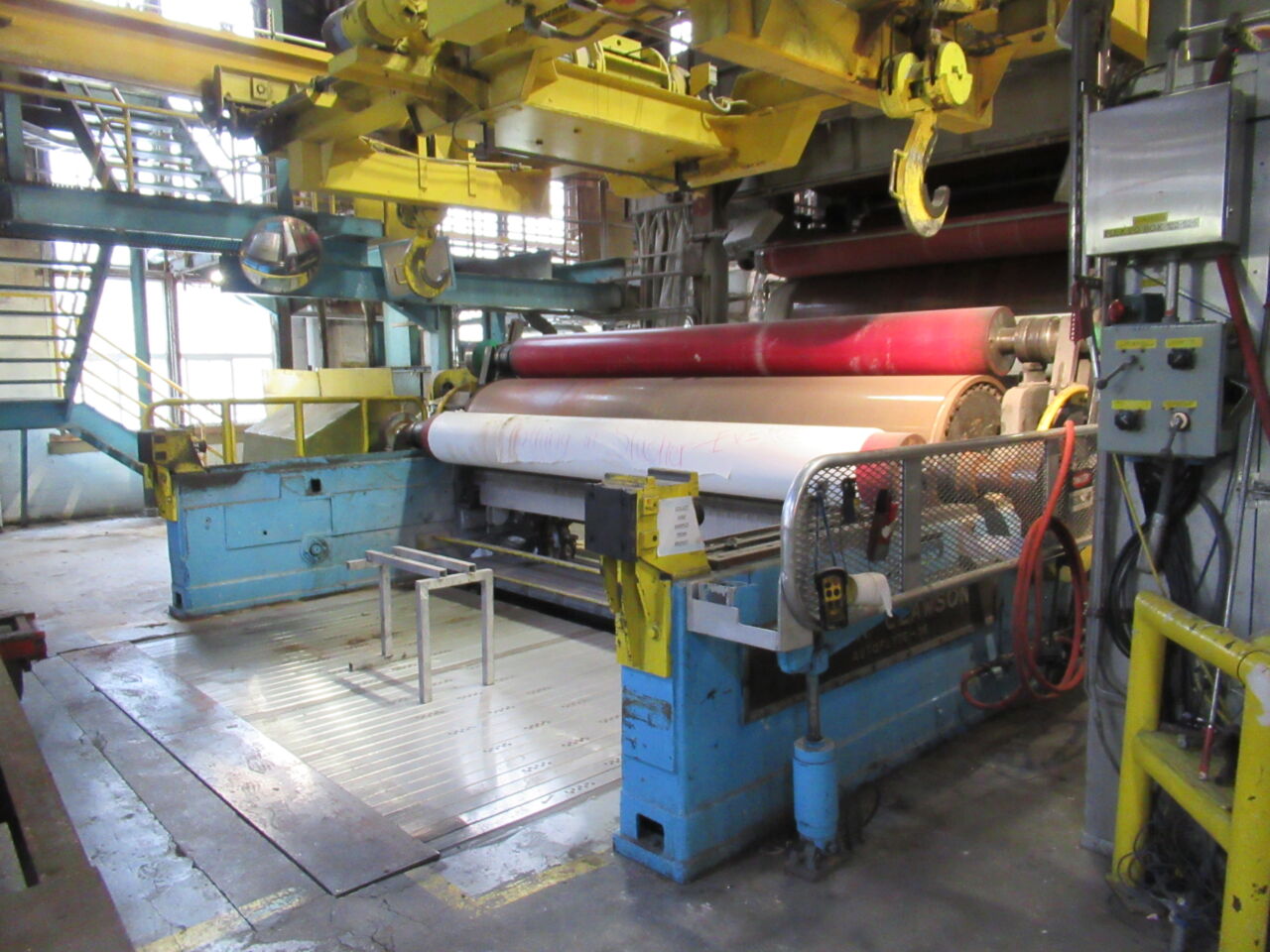

• (2) Beloit 157″ 10-roll stack super calenders, with Honeywell Davinci gloss scanners
• Bruderhaus 155” 10-roll open faced super calender with Kuster controlled crown rolls
• Maxson 60″ dia. x 65″ wide shaft type roll max stand with pre & post knife air doctors
• Lamb roll wrap line with Measurex roll tracking system and 2012 upender auto loader

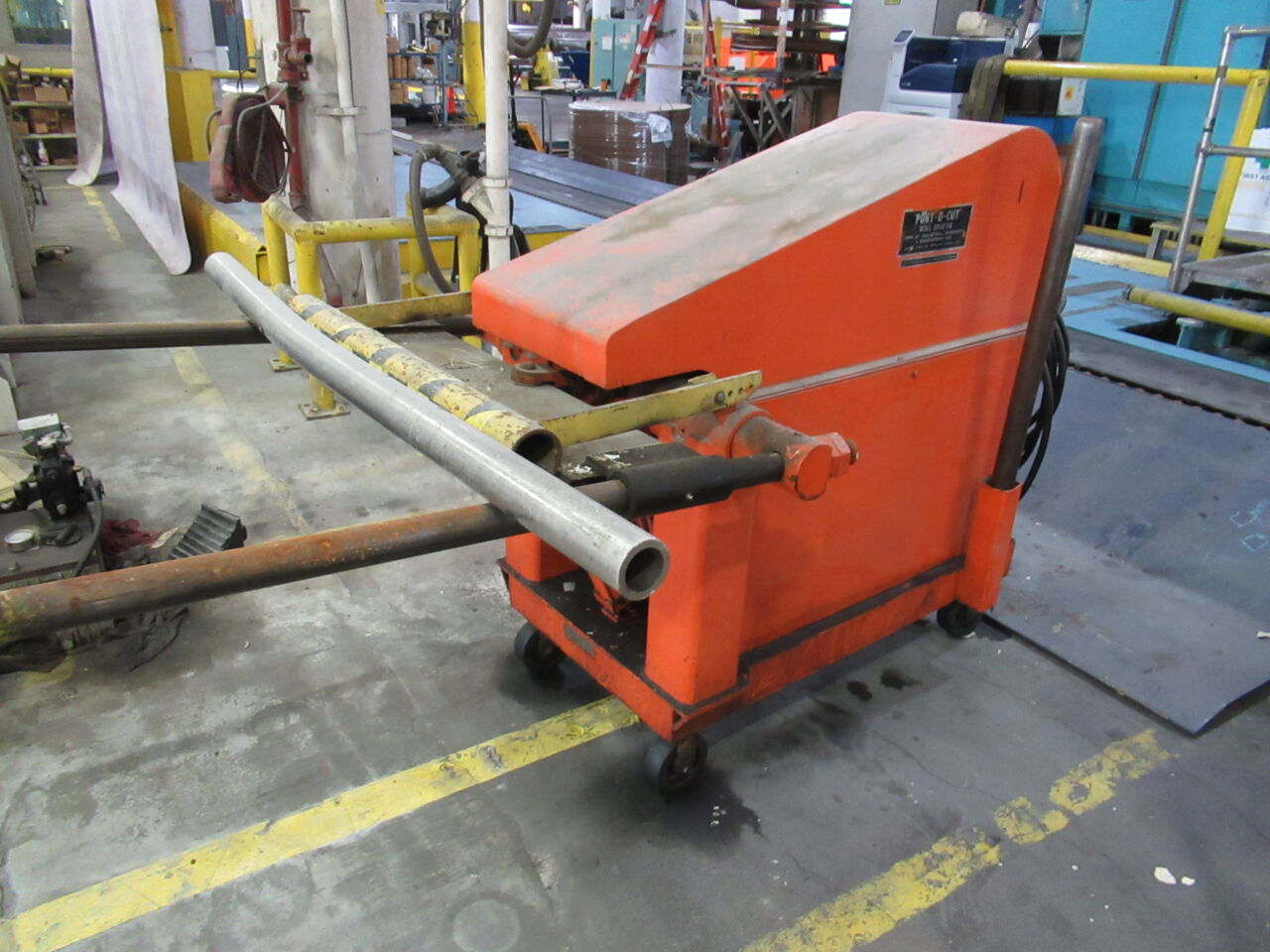

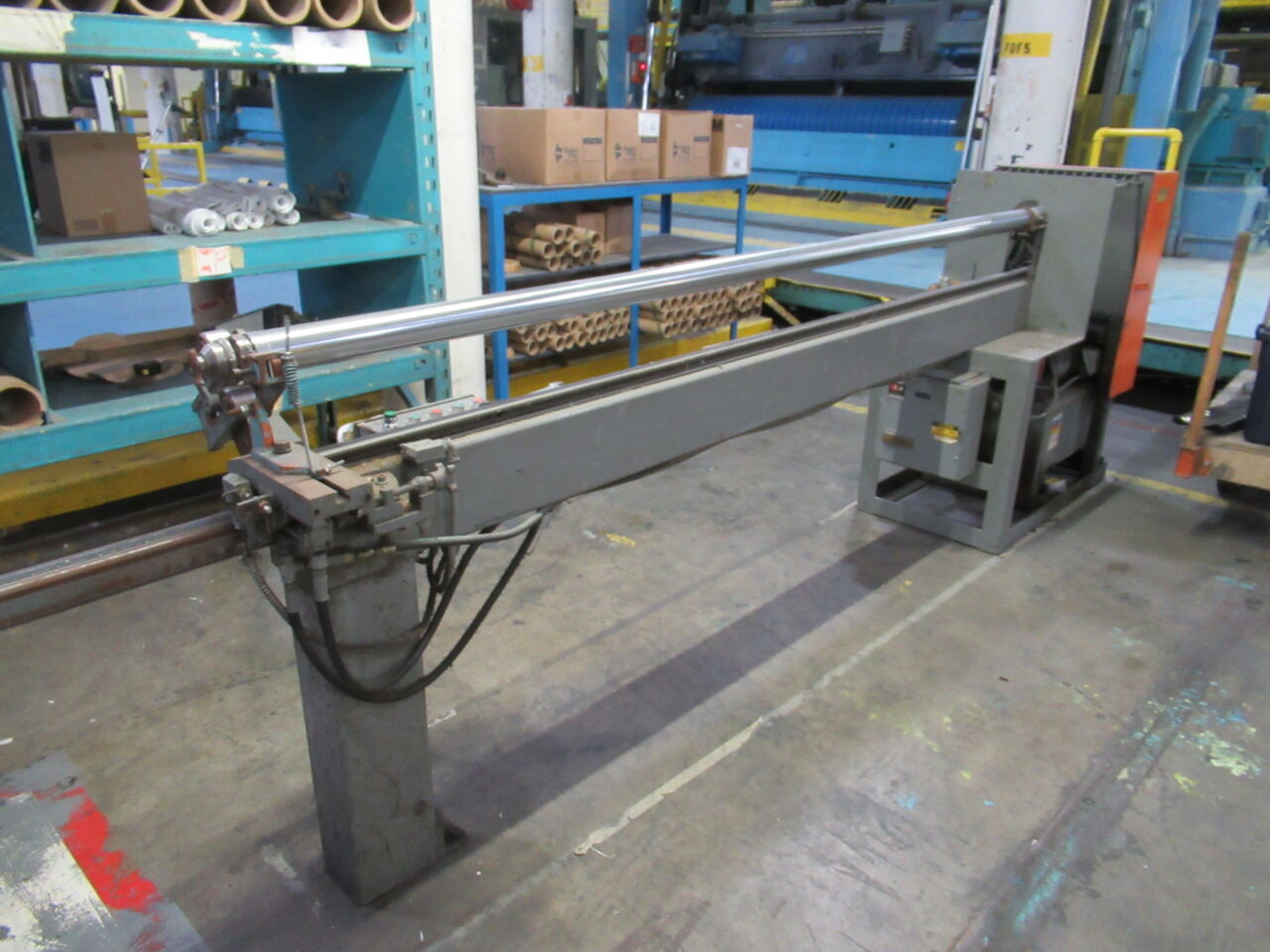

• Port-o-Cut roll splitters, Triumph 4850A paper cutter, core cutters & label printers

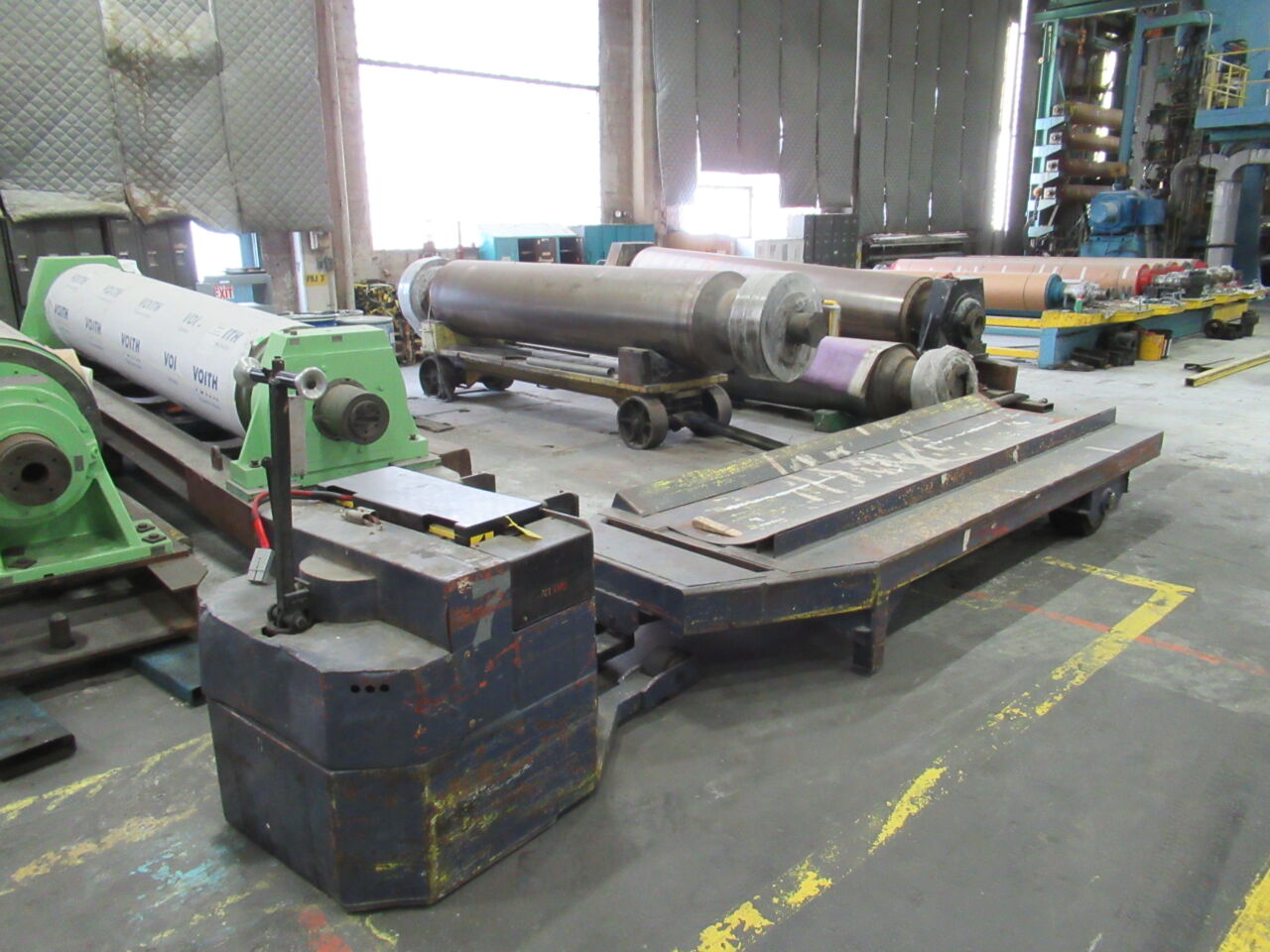

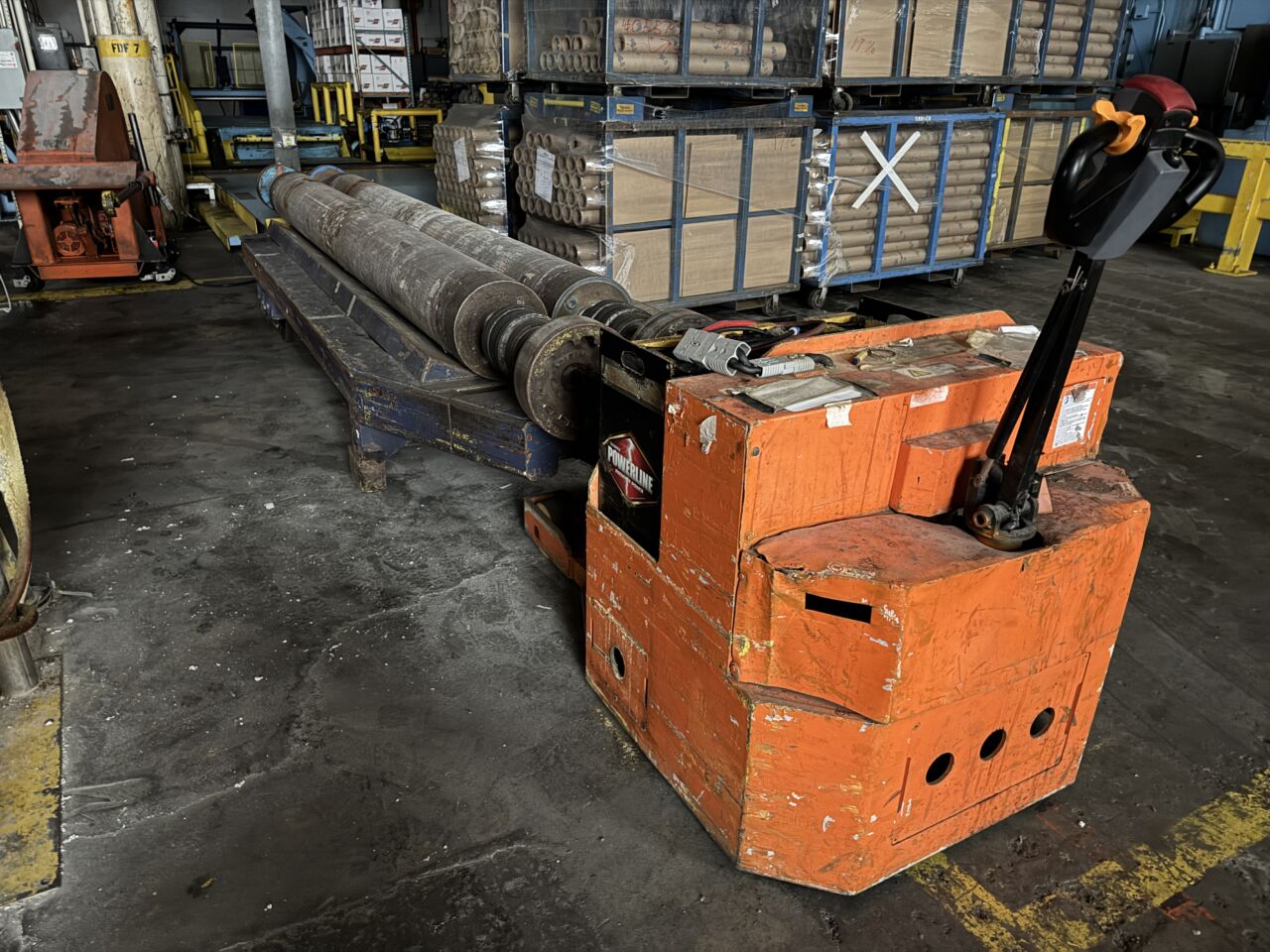

• Technique gloss meter, electric paper roll tow carts, roll spreader lifting bars & cranes

Refiners, Screens & Stock Prep (partial listing)

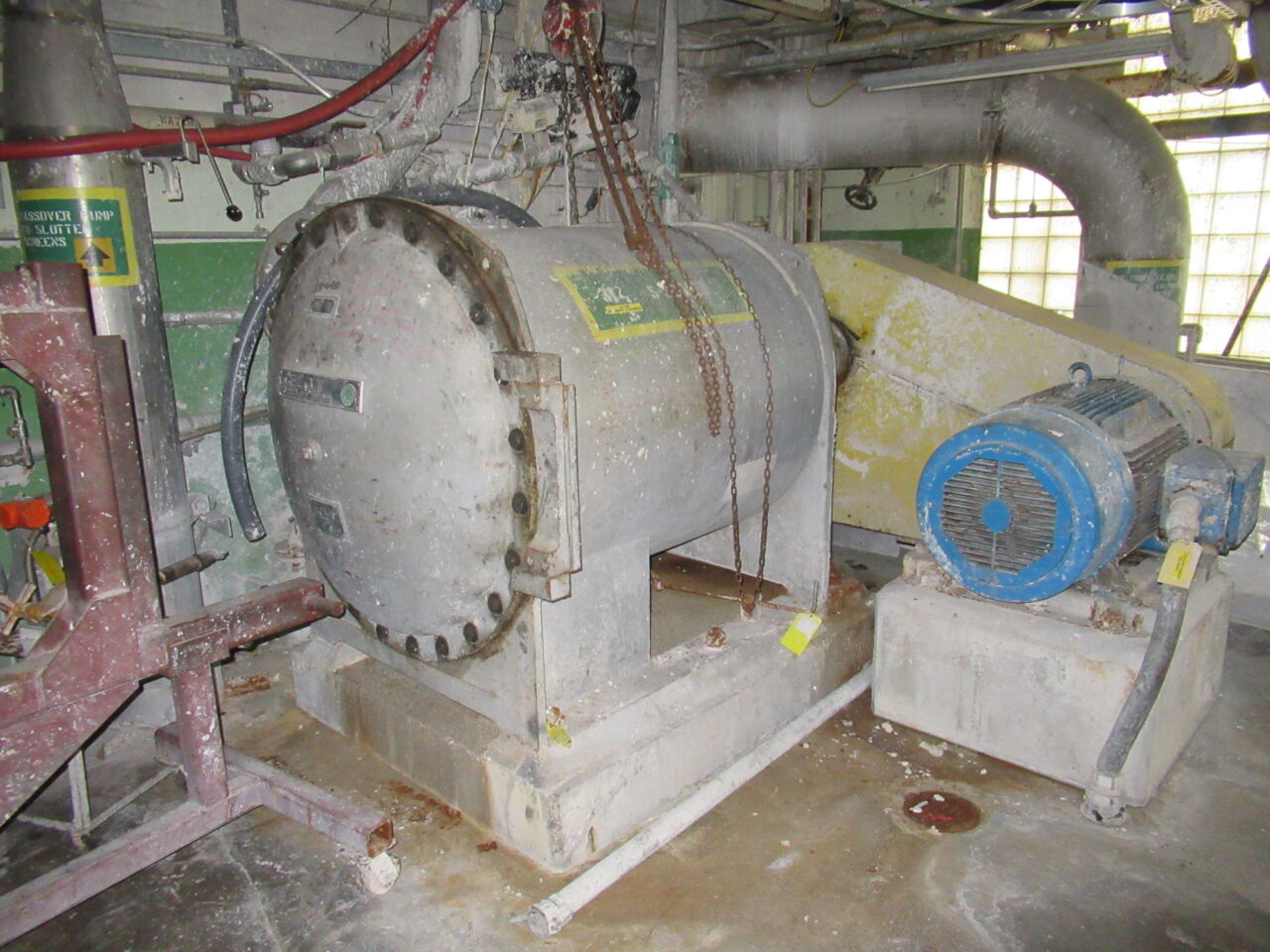

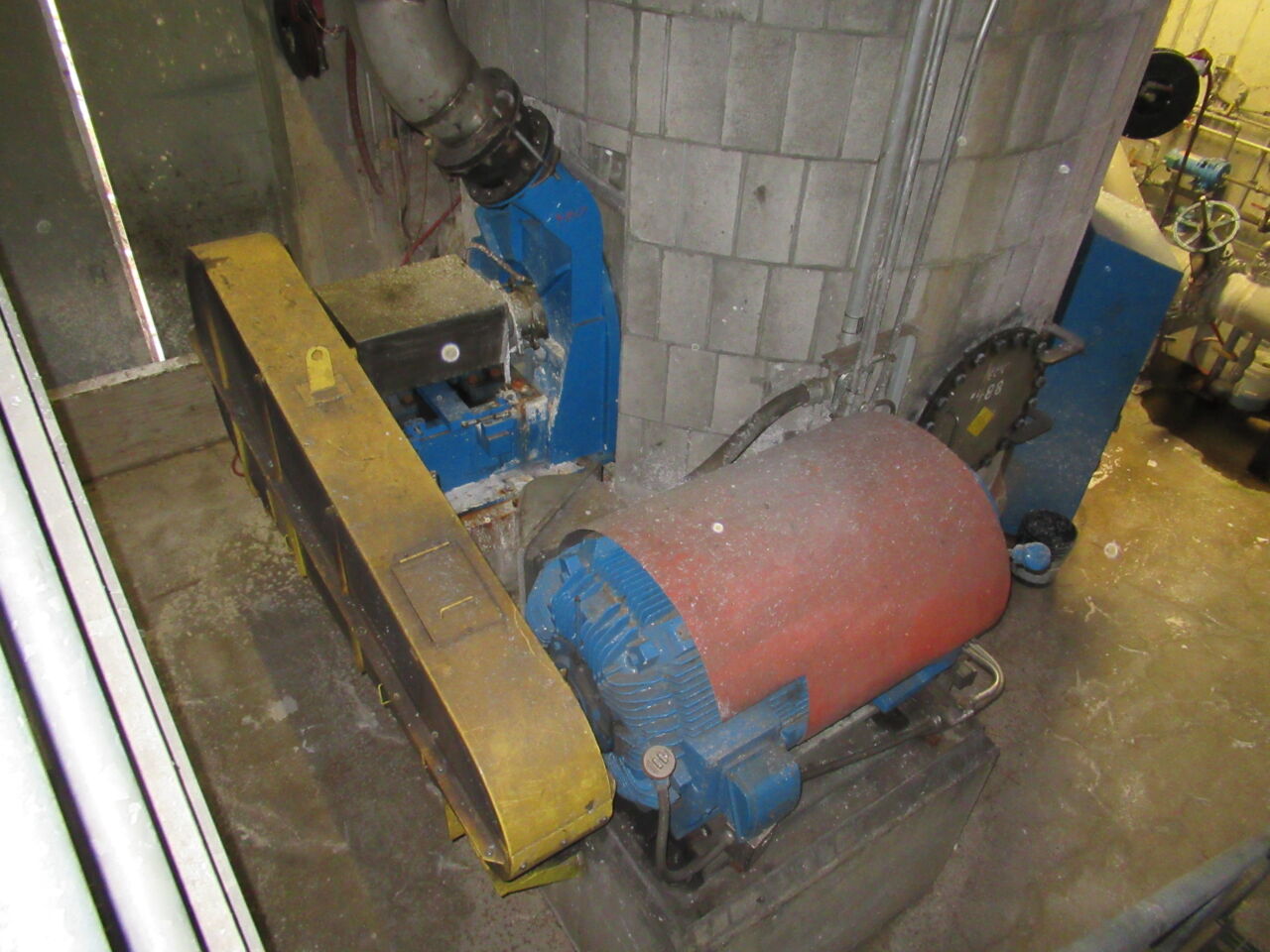

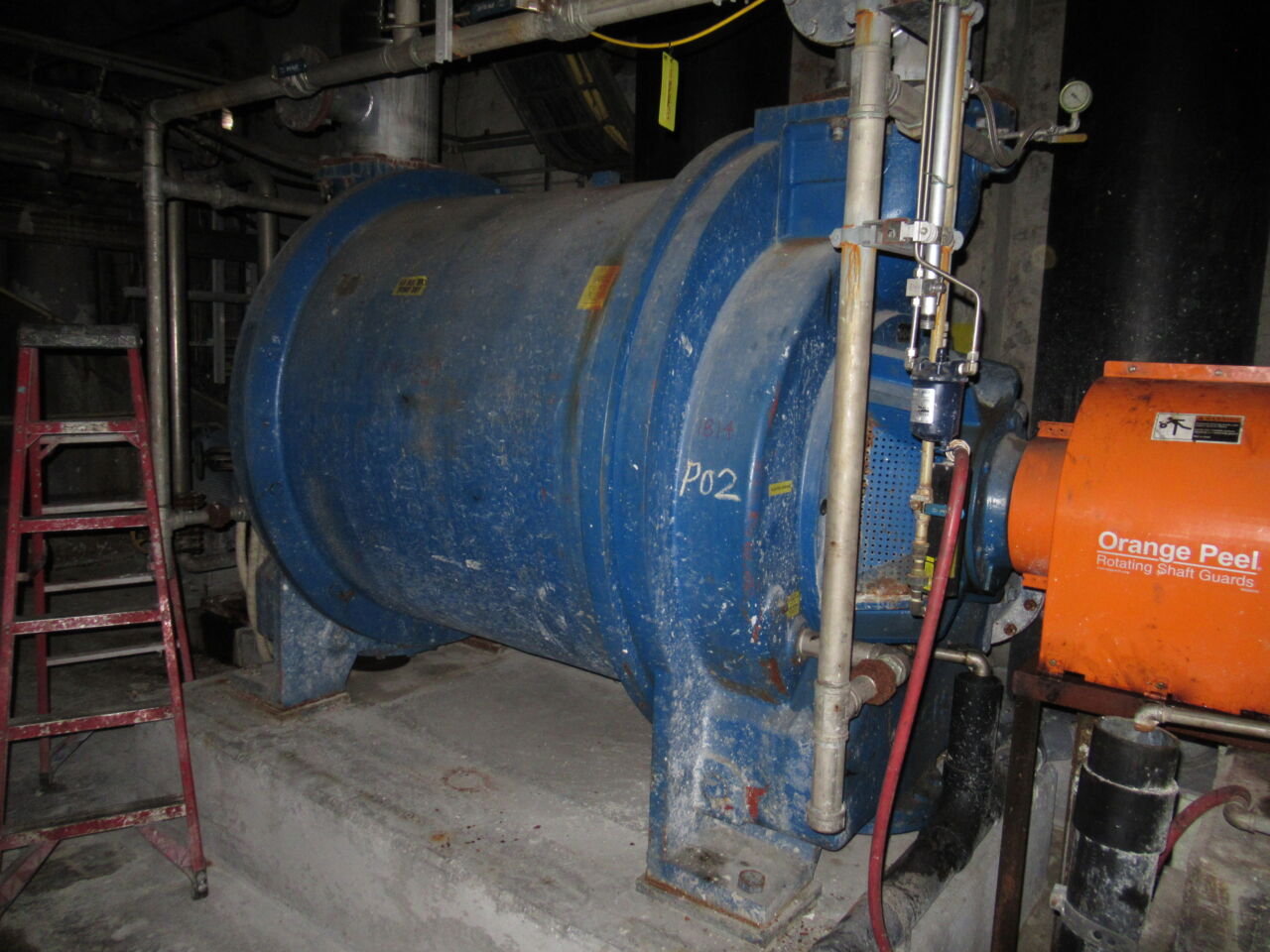

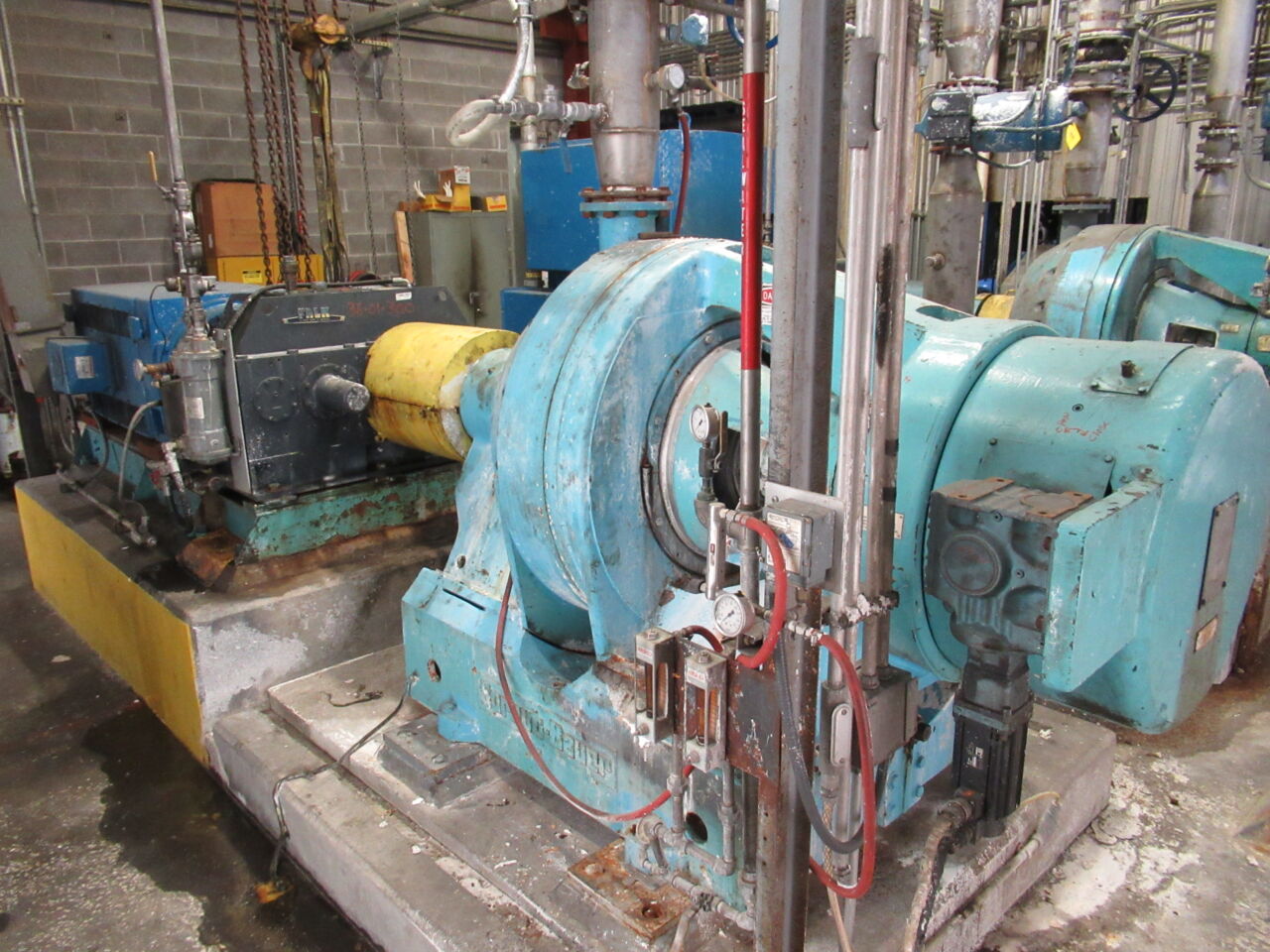

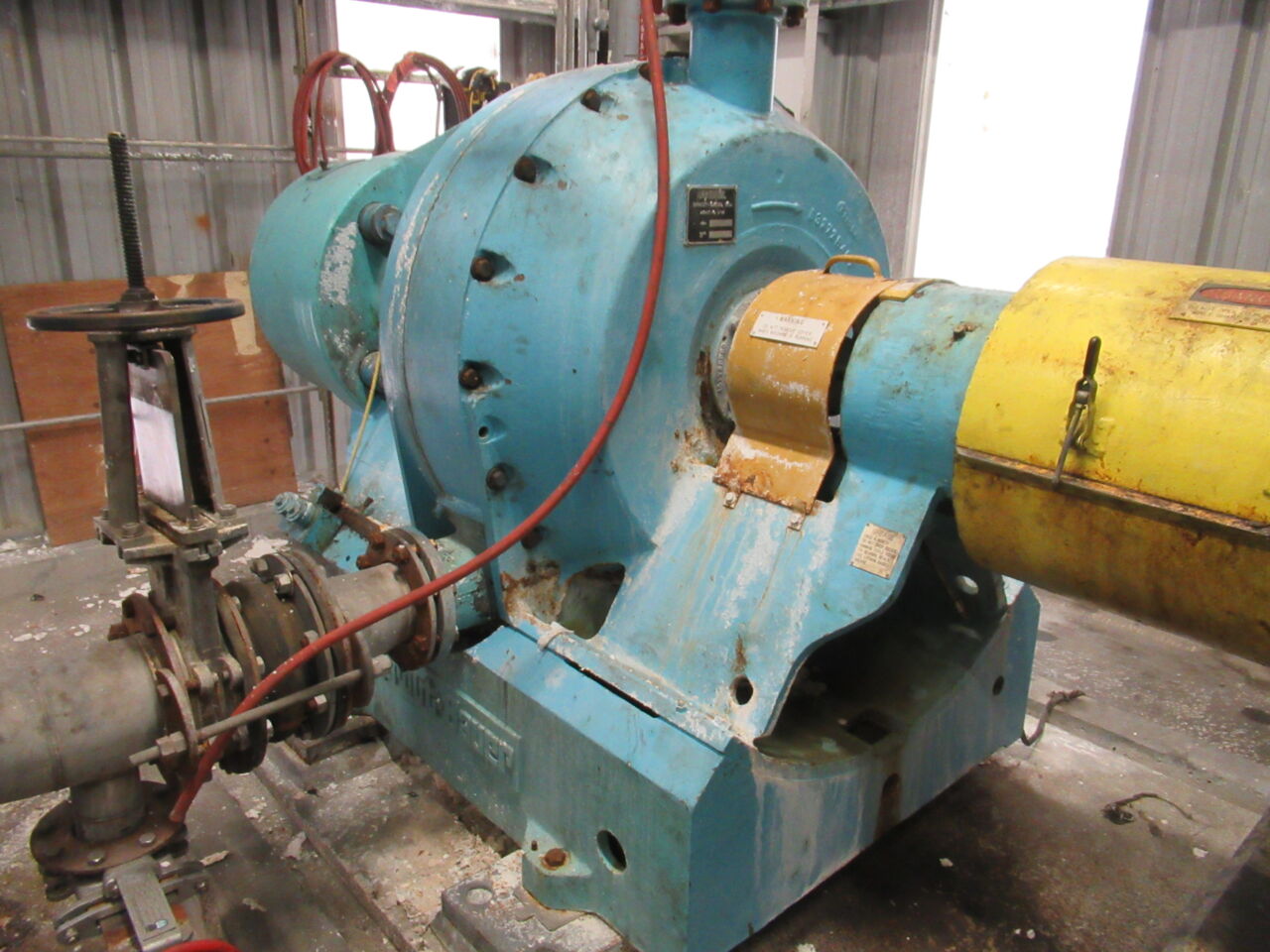

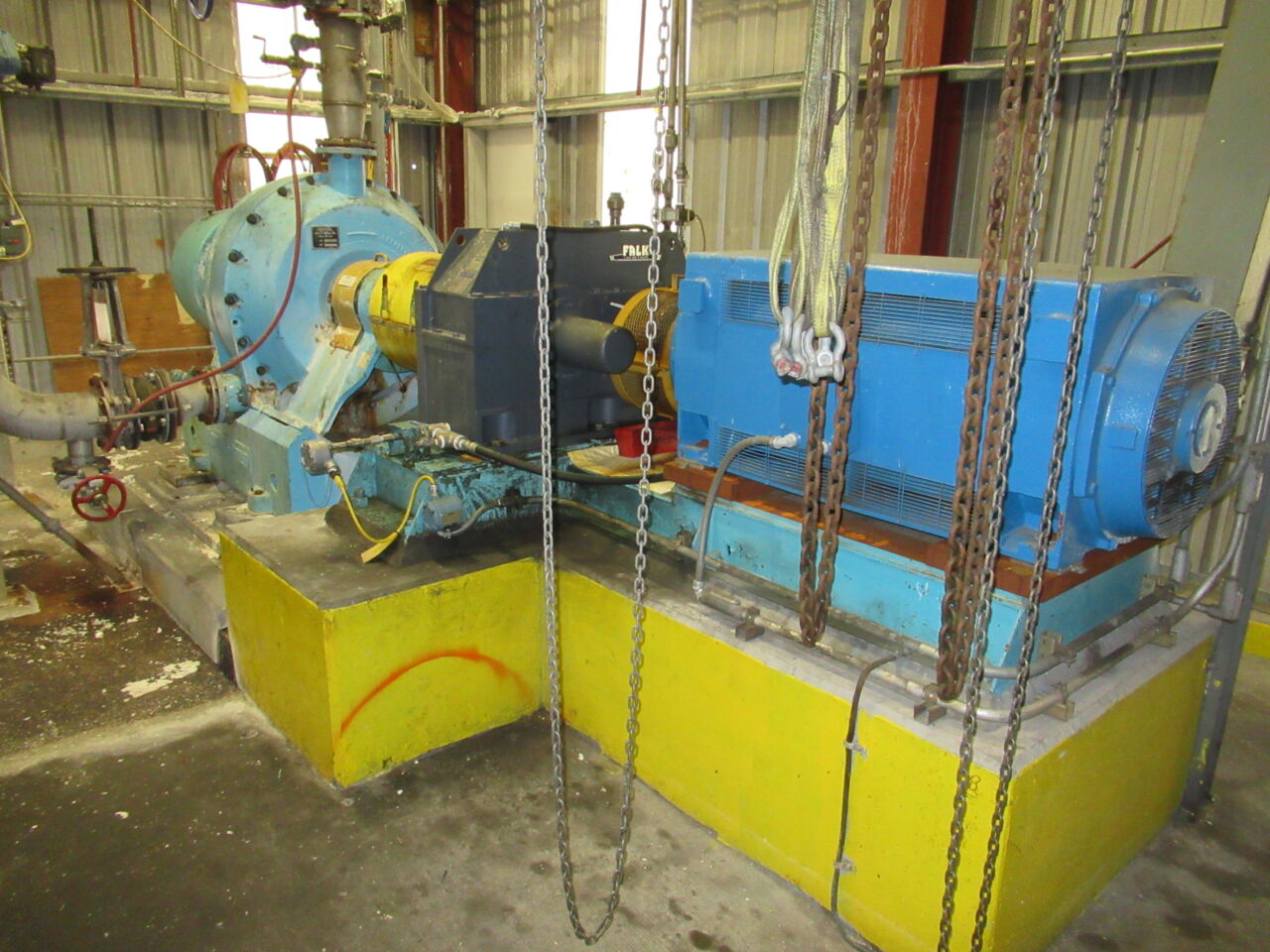

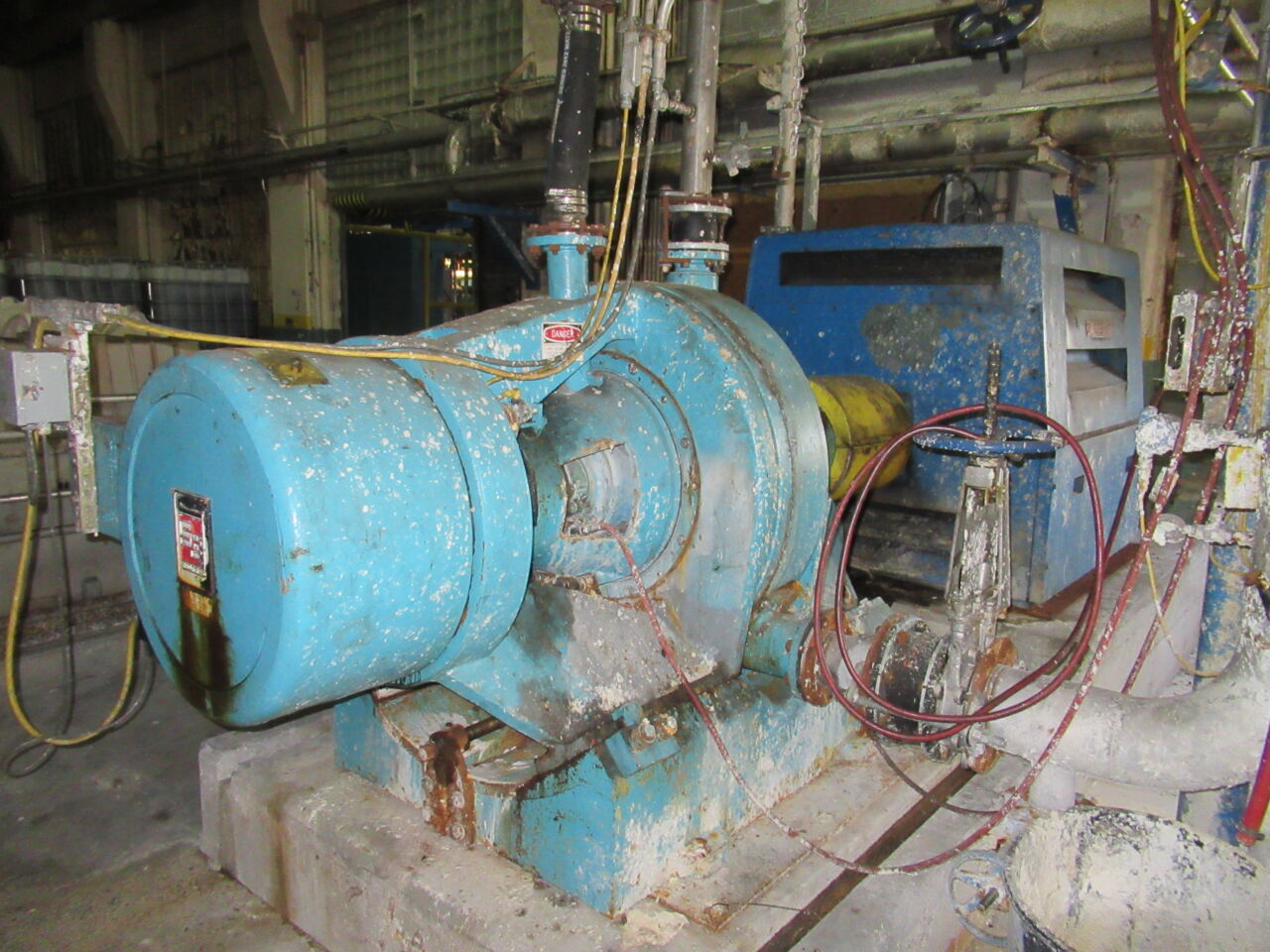

• Andritz Sprout Waldron Twin-Flo 26” & 34” refiners, up to 400 hp motors
• Sprout Waldron 1250 hp refiner, plus Black Clausen A-80 refiners with 150 hp motors

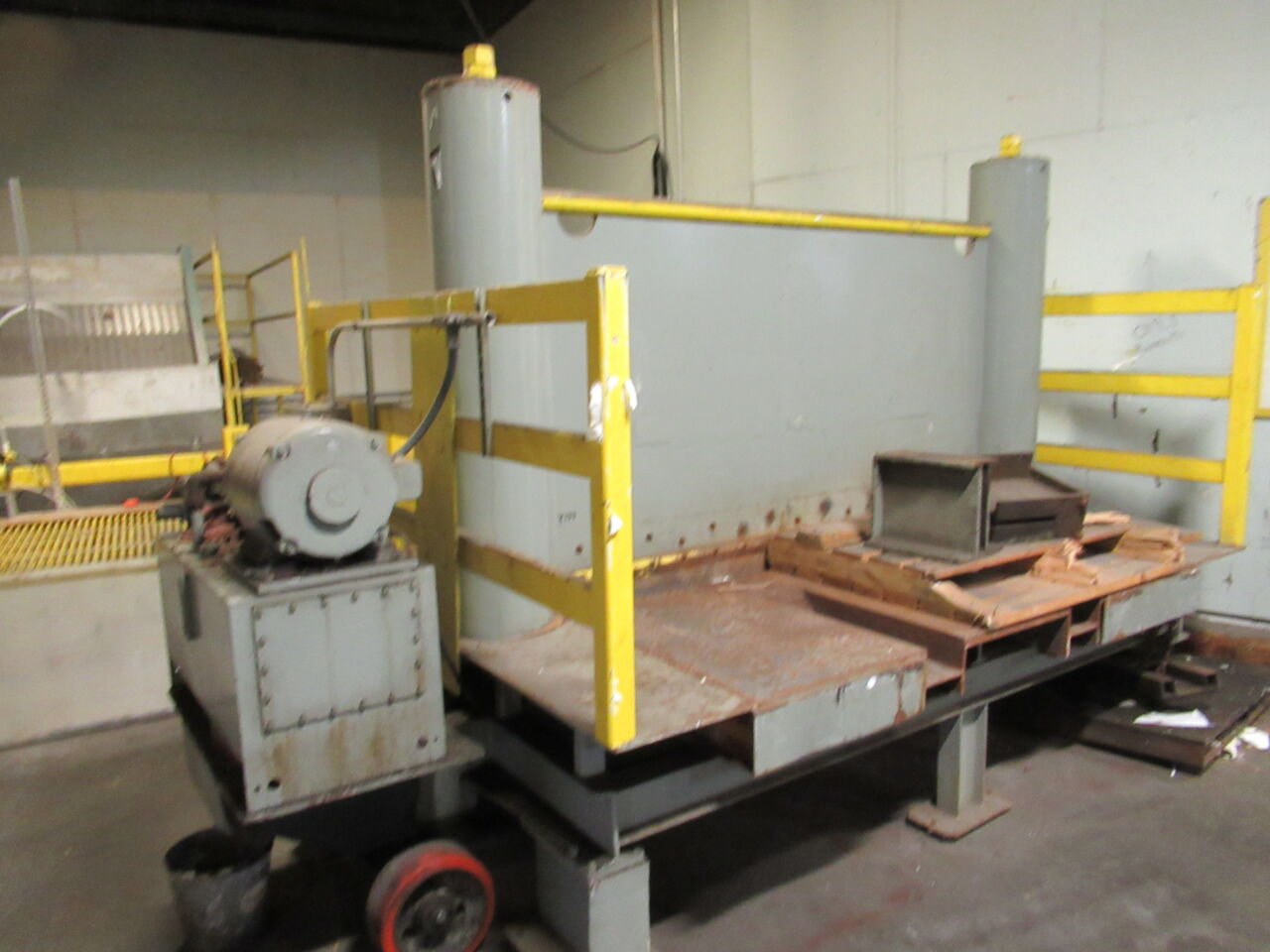

• Hydraulic guillotine type roll splitter with 62” & 90” blade widths
• James Brinkley 400 hp continuous wet pulper with bale de-wire and transfer deck

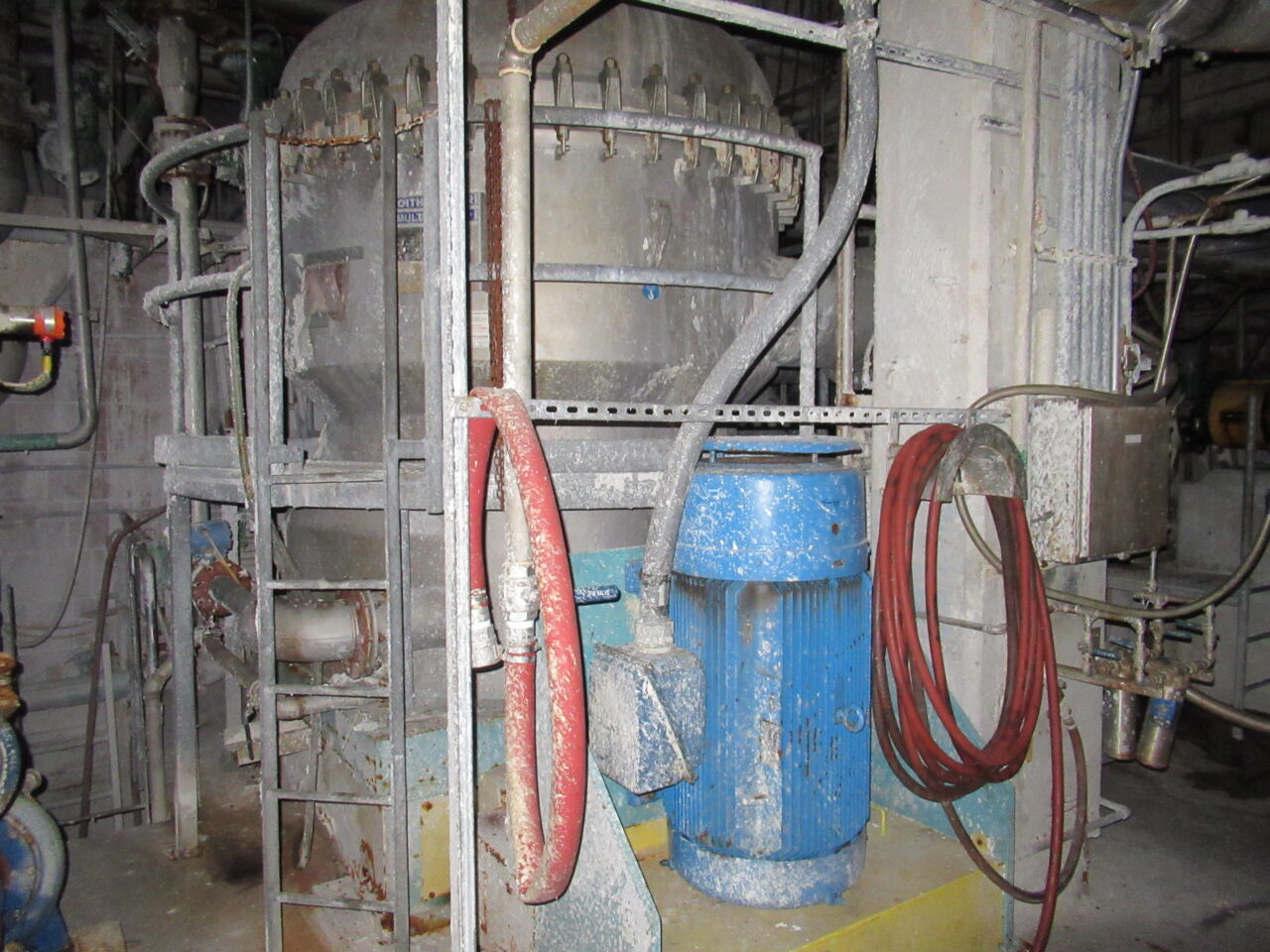

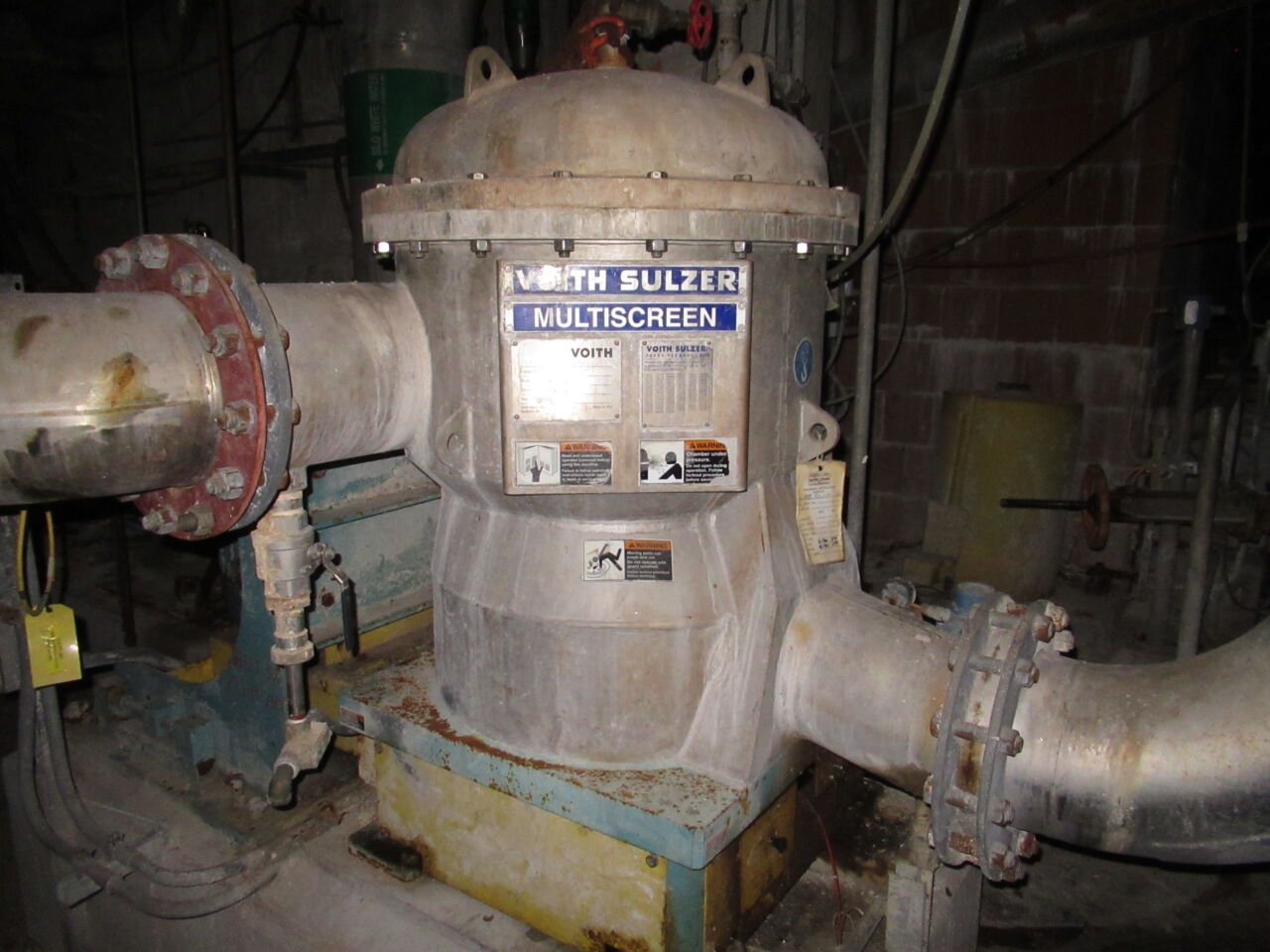

• Voith Sulzer screens featuring 150 hp model MSA15/15 Multi-Screen (PM3 machine)

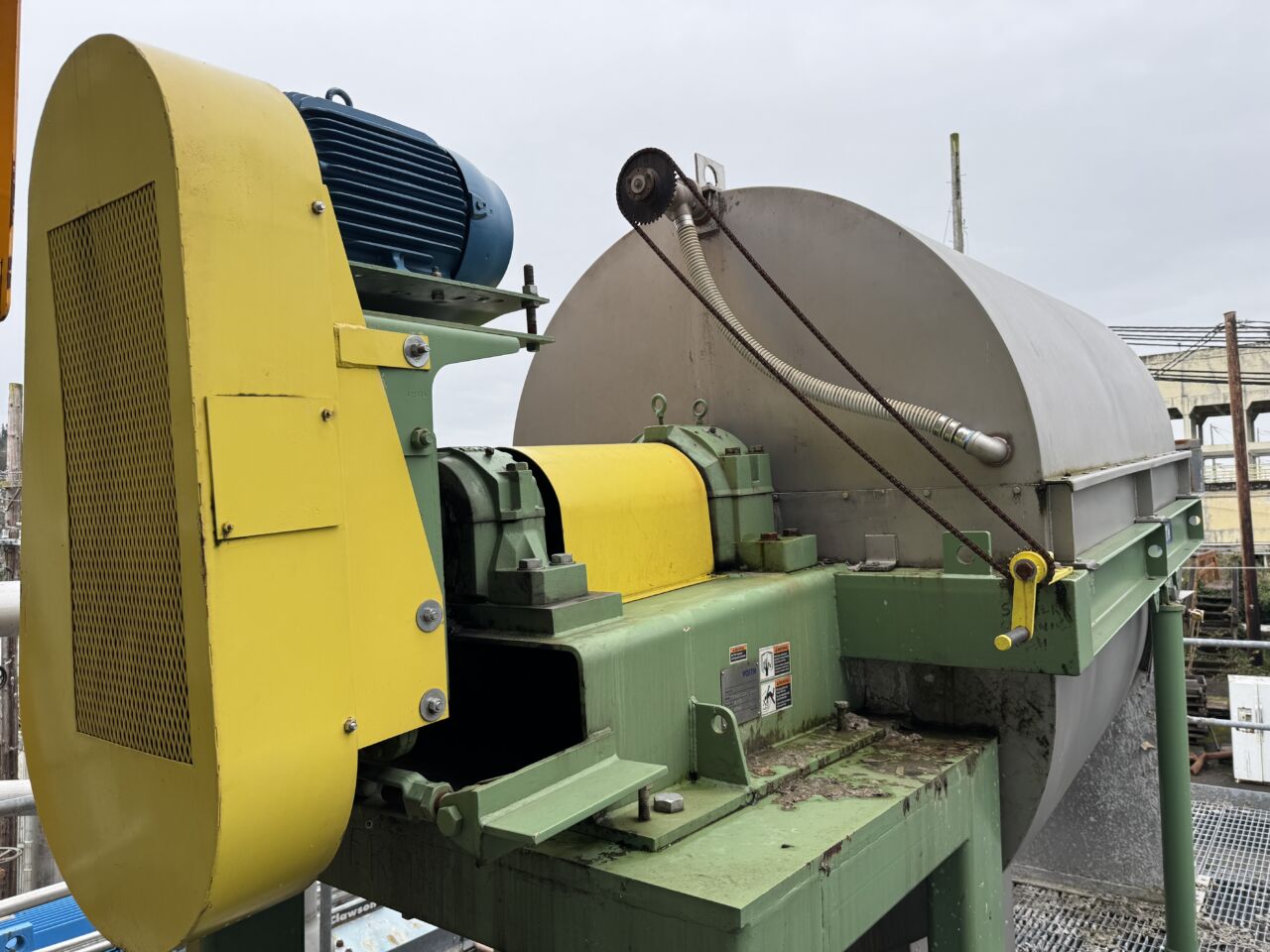

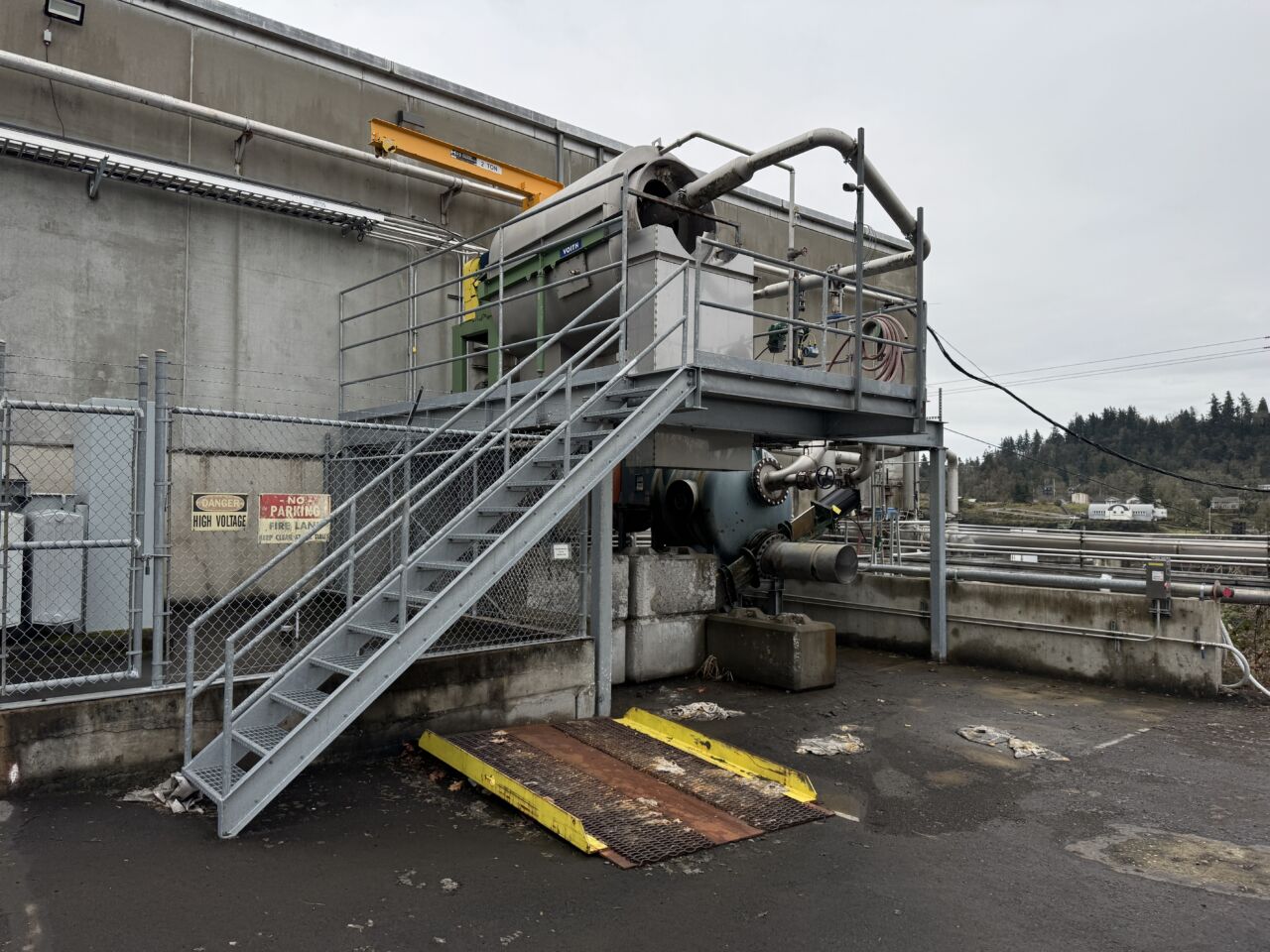

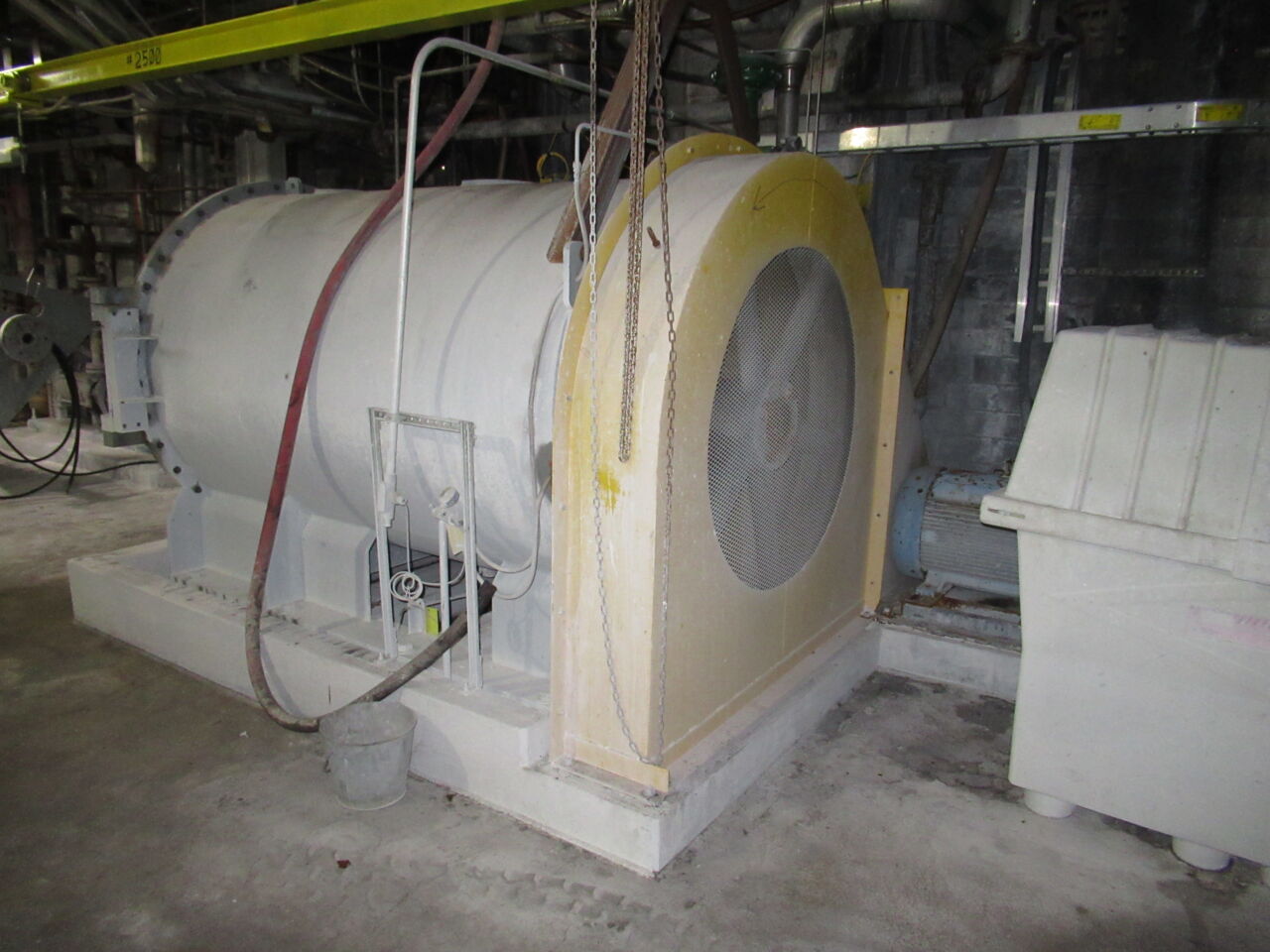

• Voith waste screen drum system, model STR2F, with Black Clawson waste collector

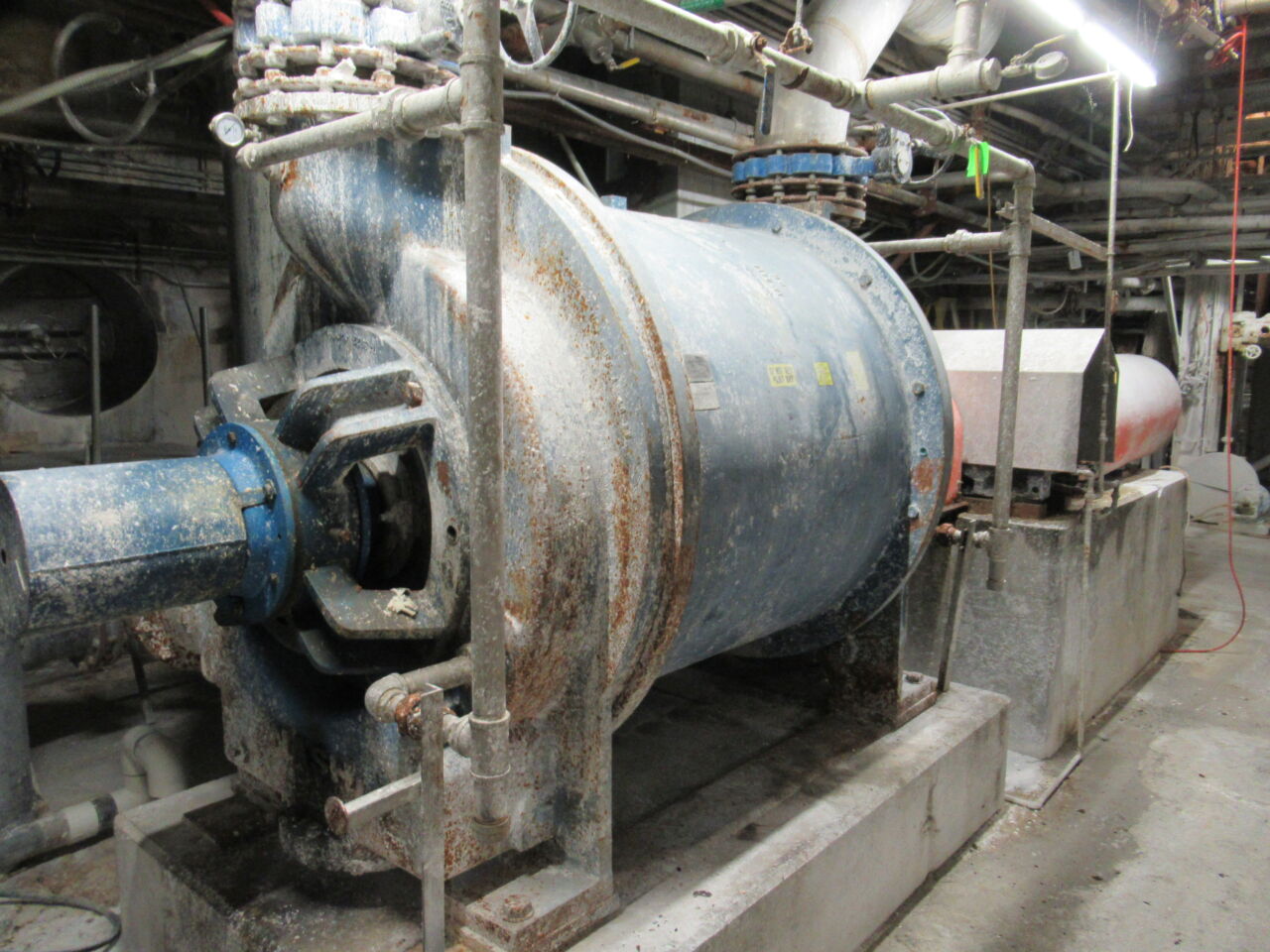

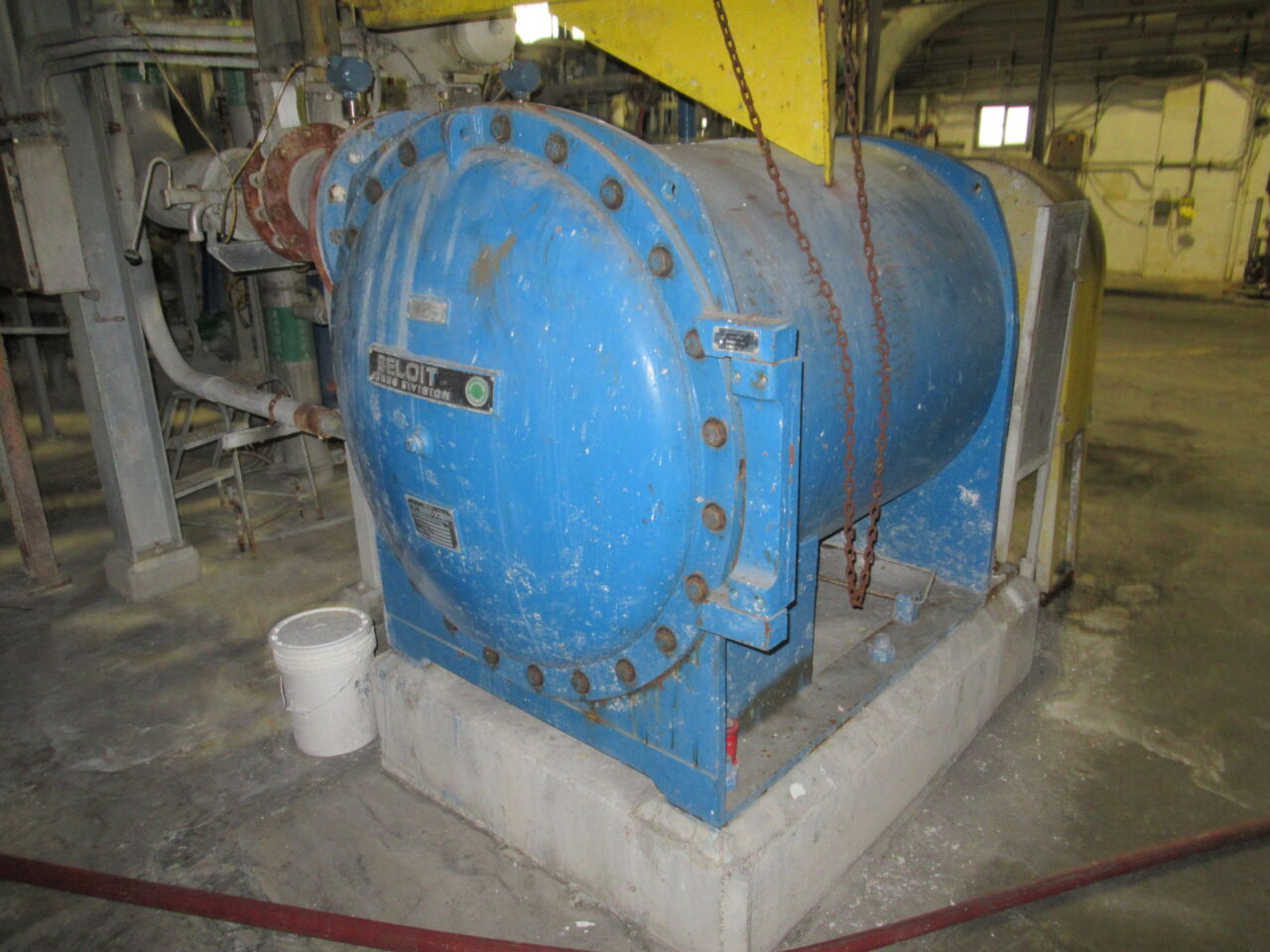

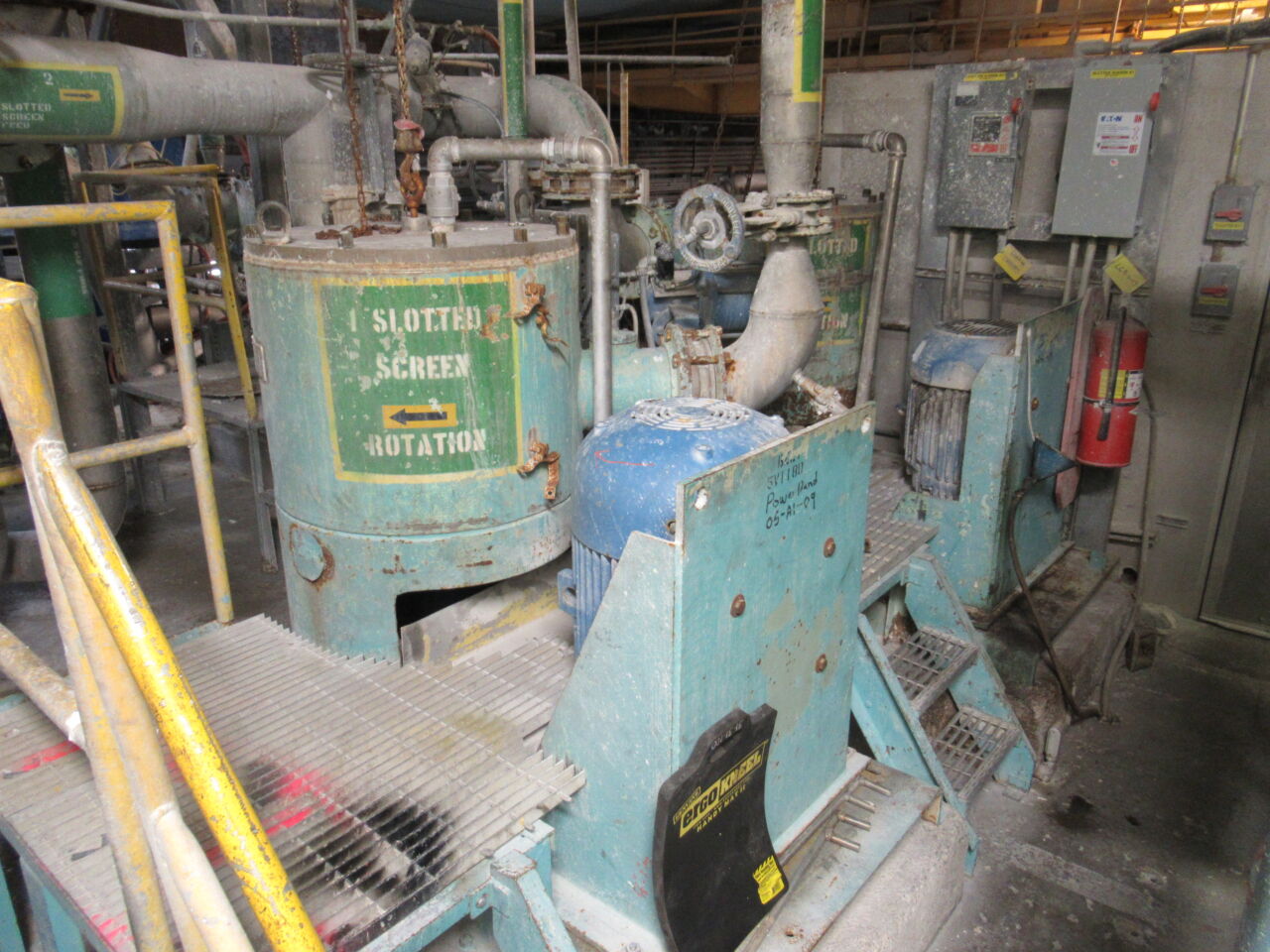

• Assorted Black Clausen and Beloit Series S primary and secondary screens
• Coating kitchen with Cowles dissolvers, Sweco screens plus stainless mix tanks

Spare Parts, Motors and Pumps

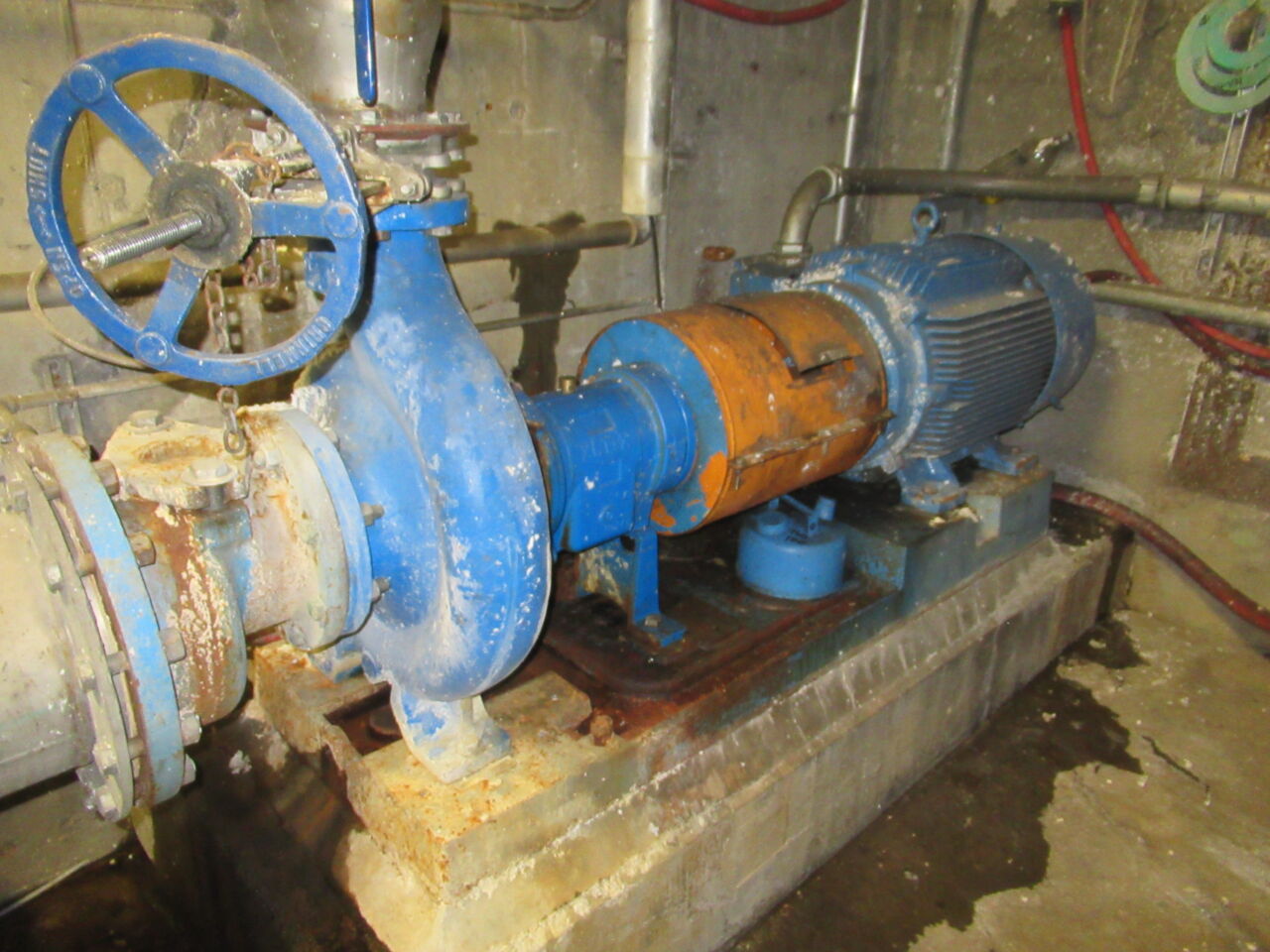

• Wide assortment of Goulds pump casings, impellers, and gear boxes

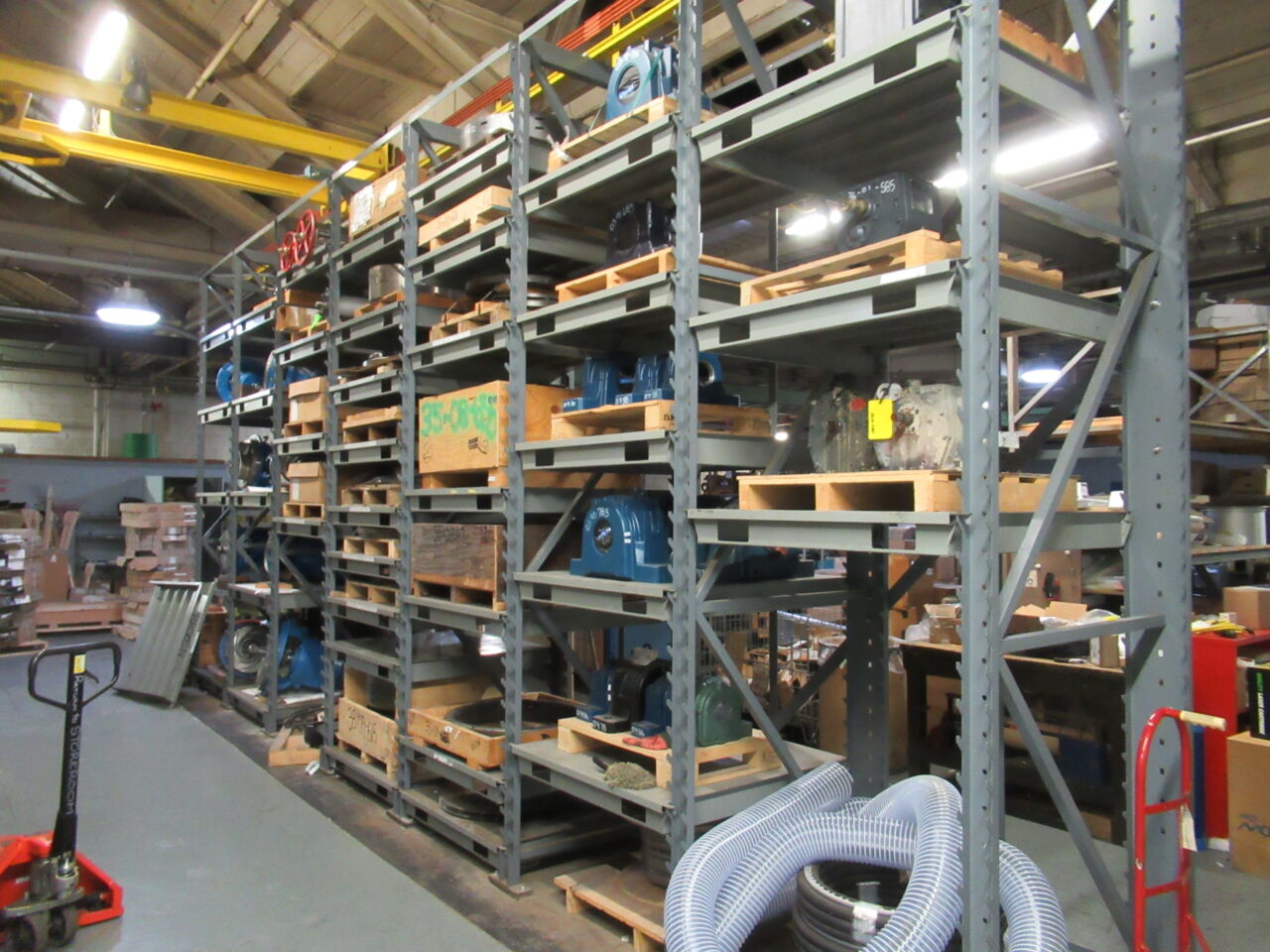

• Large quantity of bearings, pillow blocks, couplings, shafts and seals
• Huge amount of Allen Bradley electrical components and assorted VFD’s

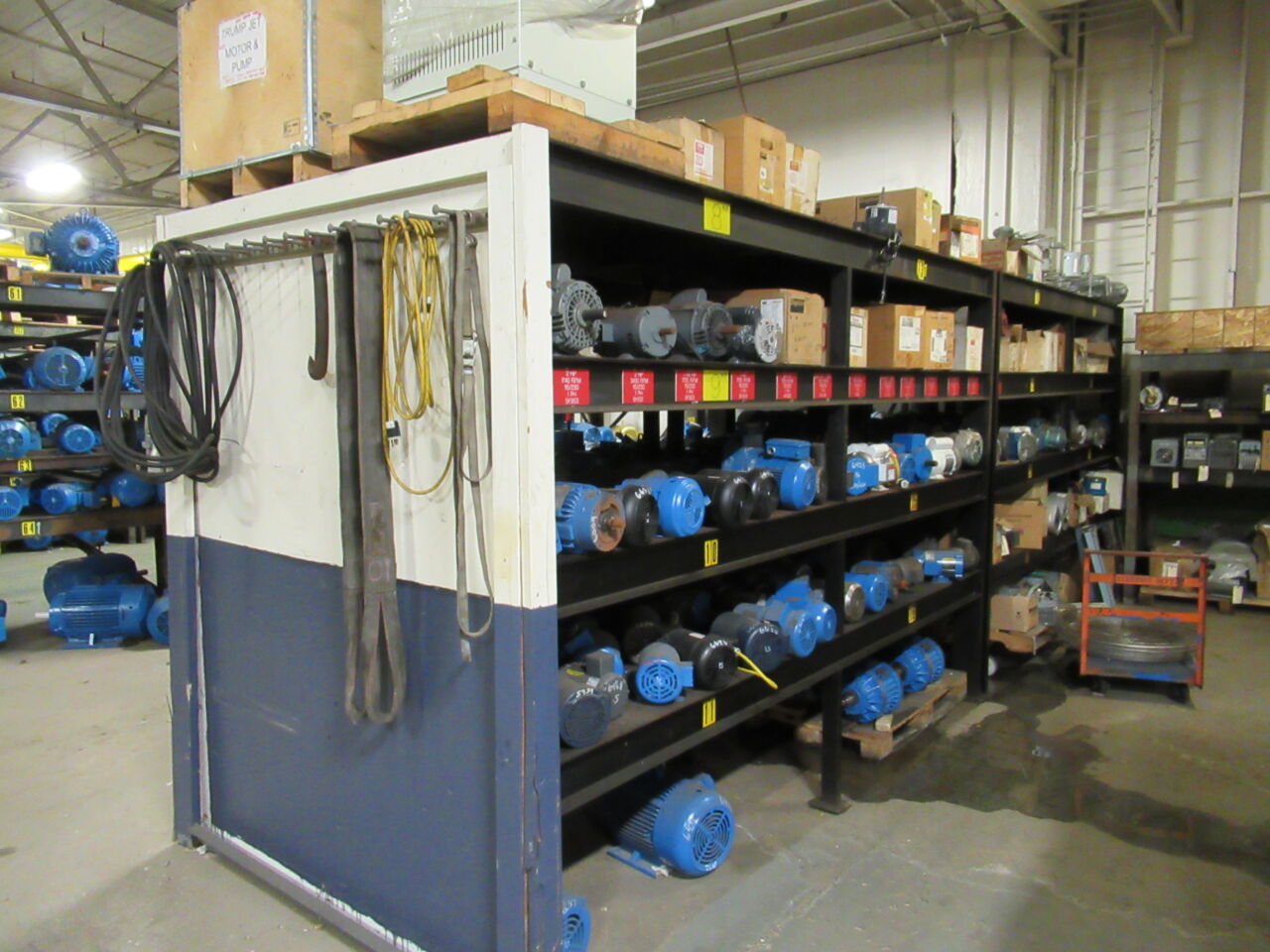

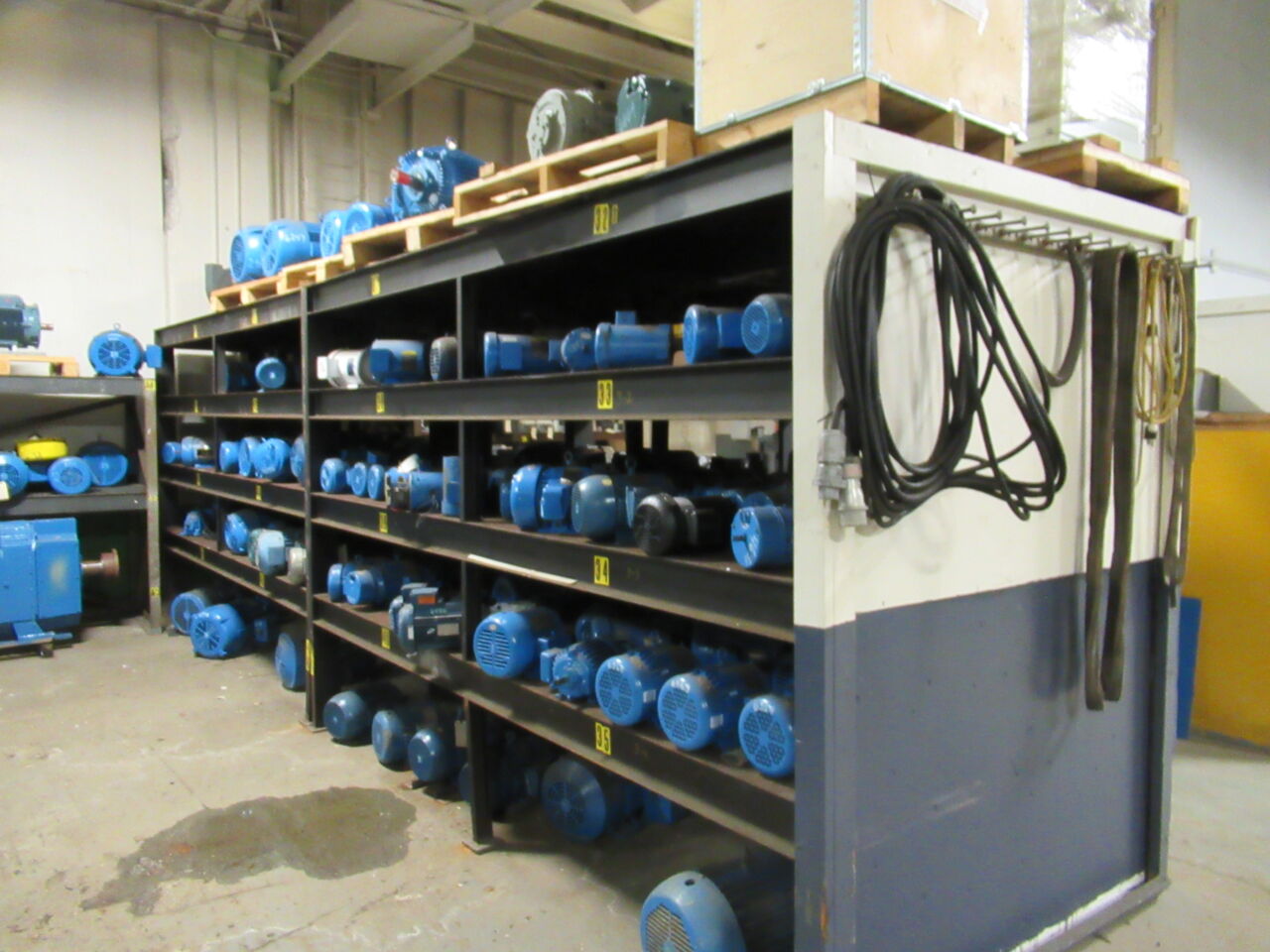

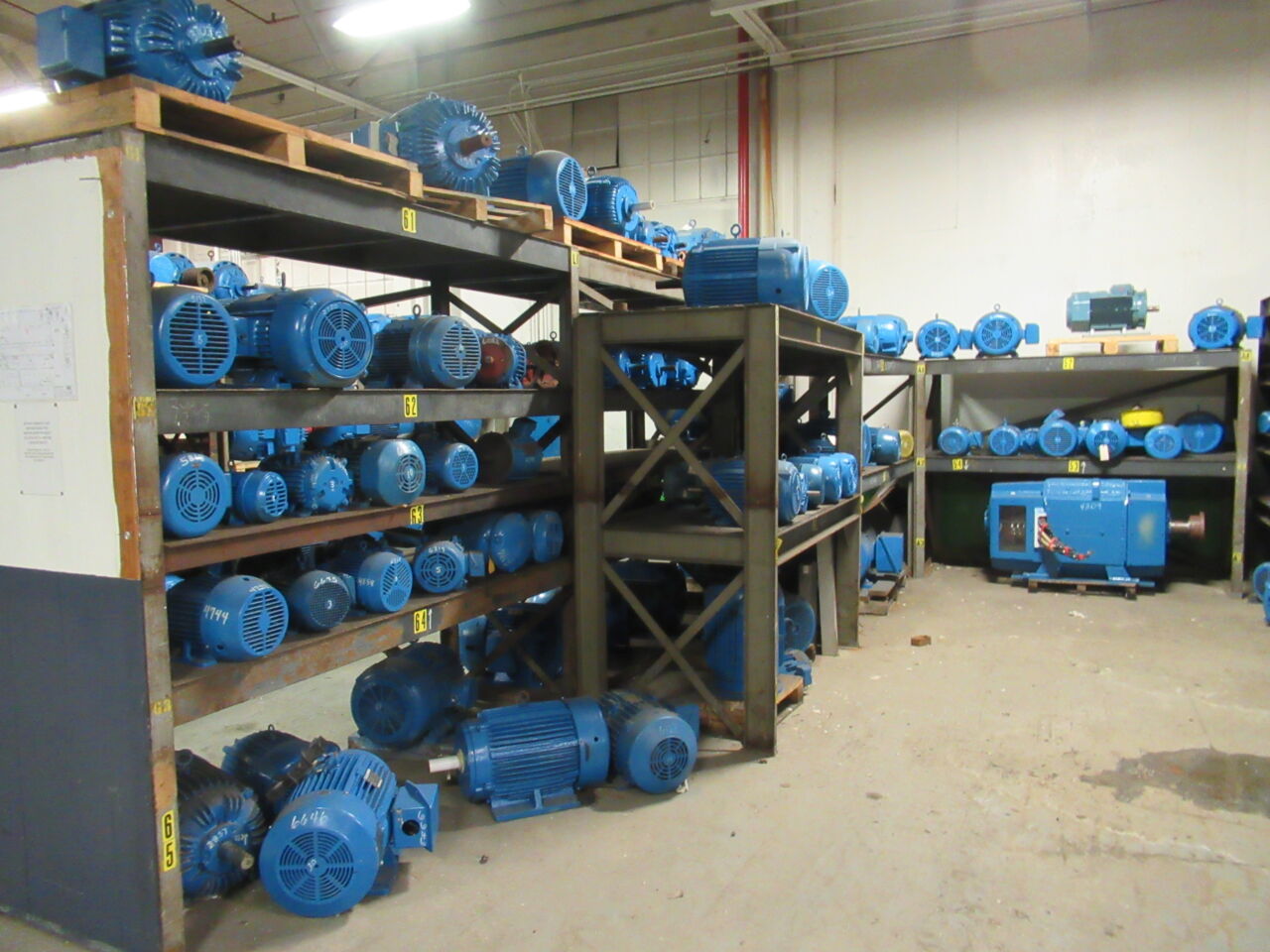

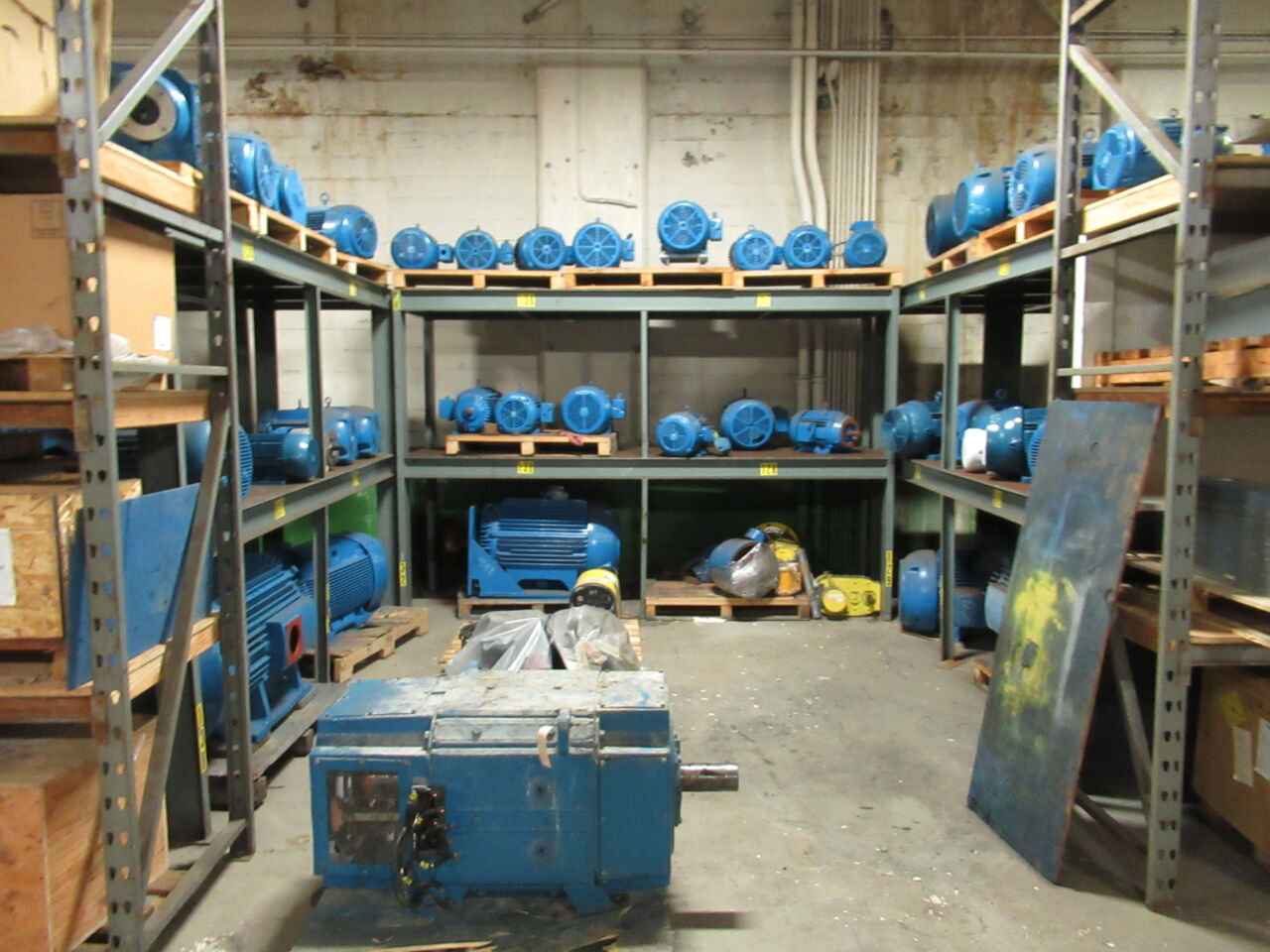

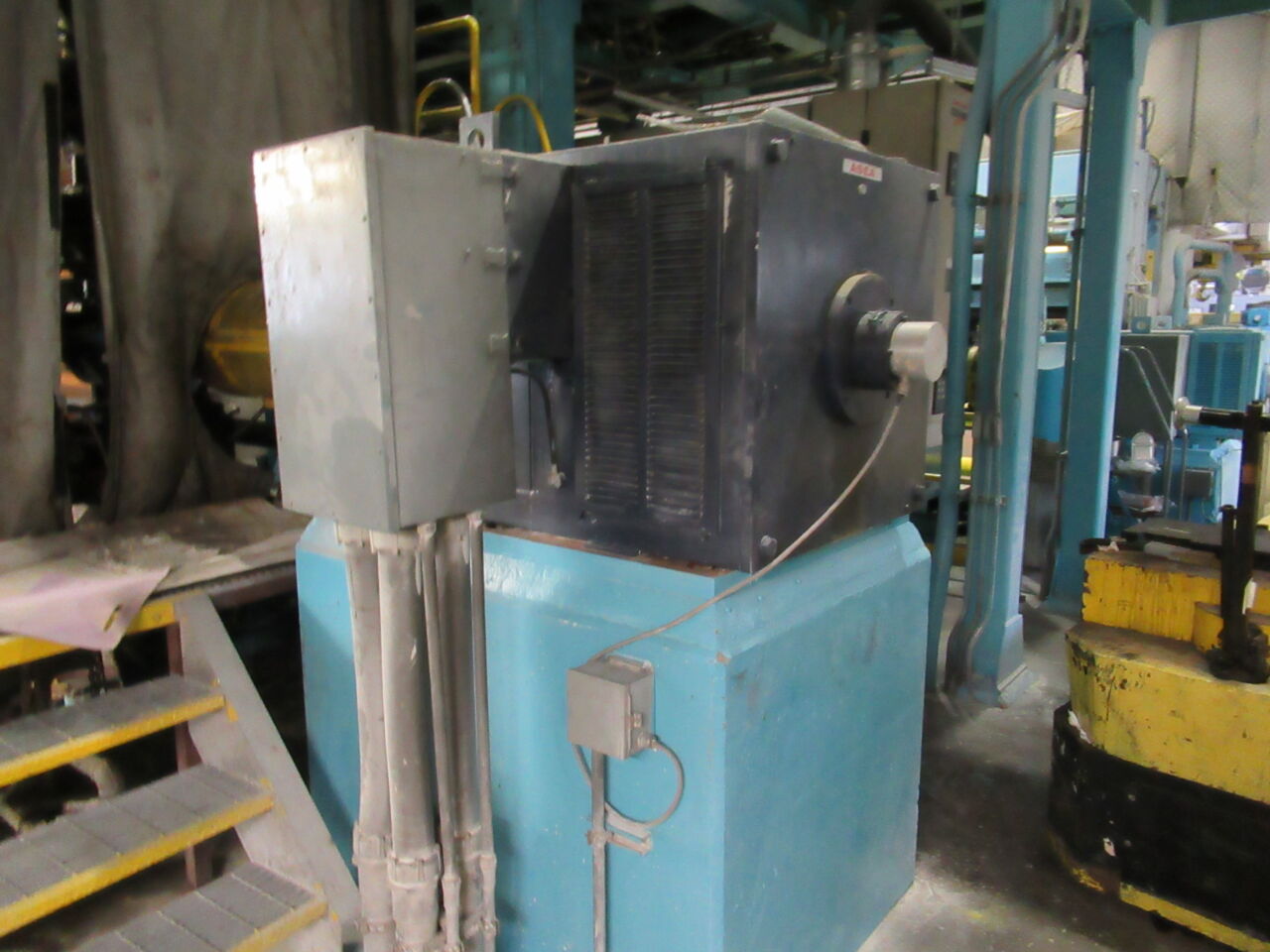

• Over (300) new and rebuilt electric motors, from 50 to 500+ horsepower

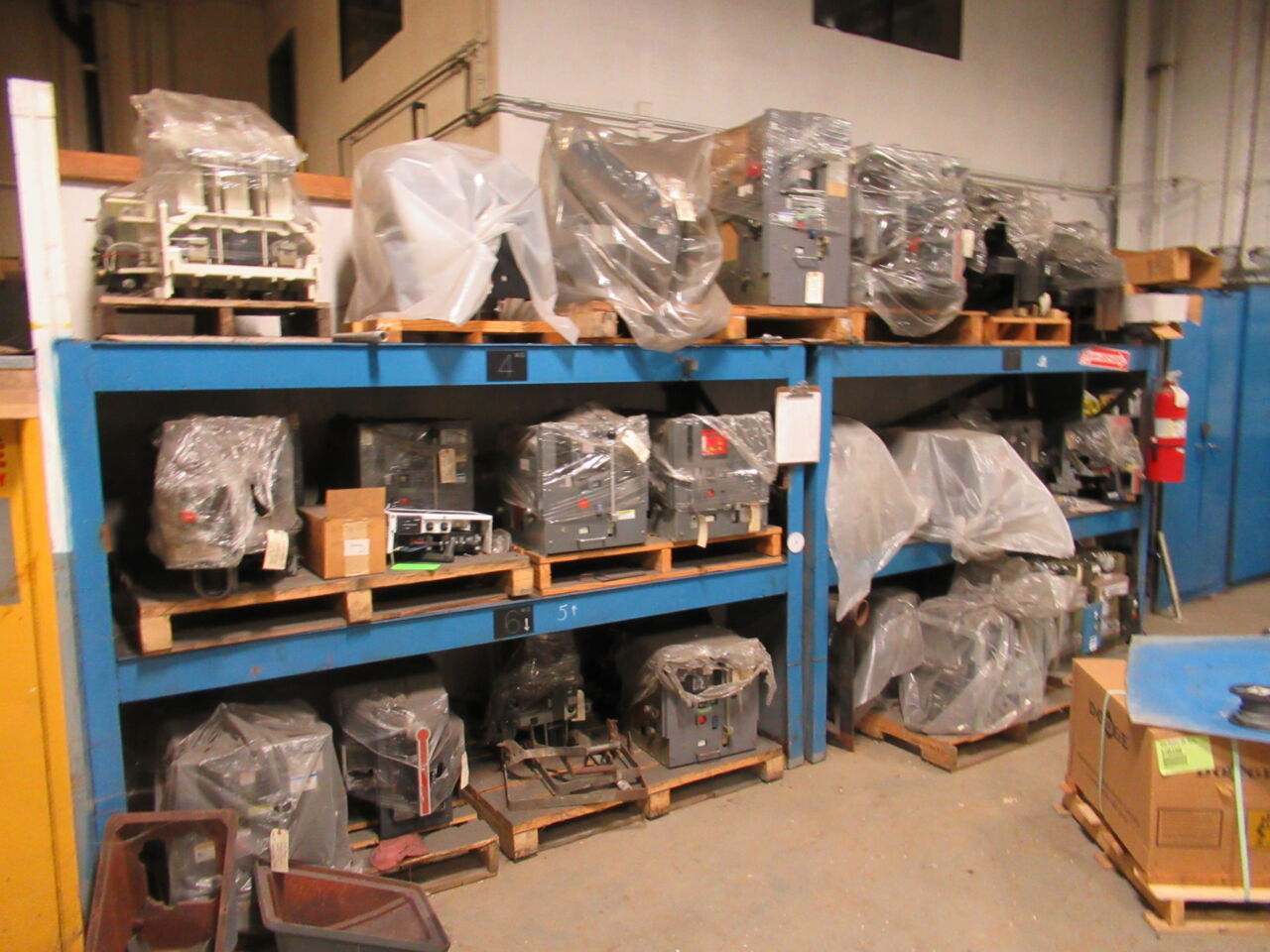

• Uninstalled MCC switchgear, transformers, and high voltage breaker inserts

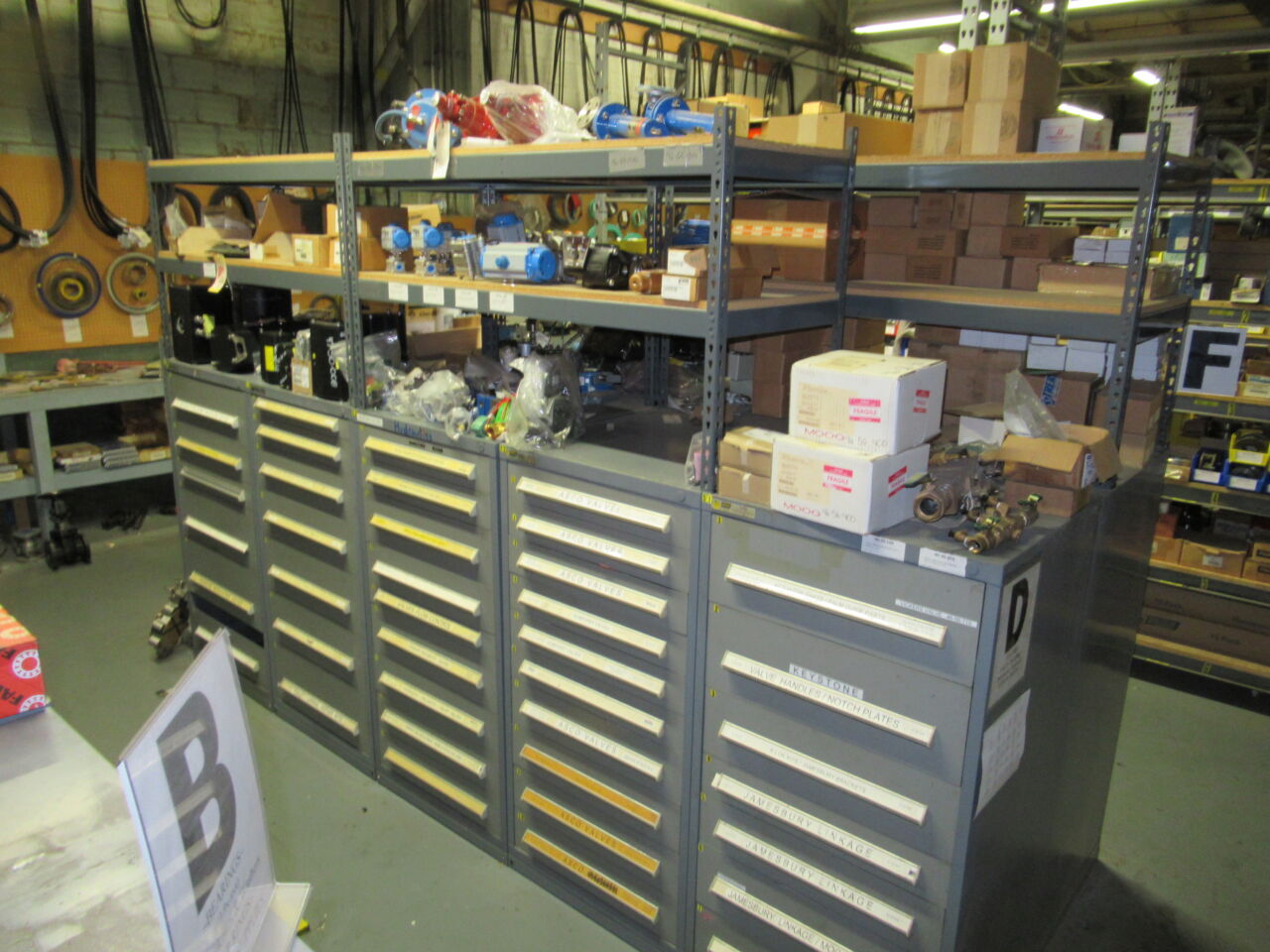

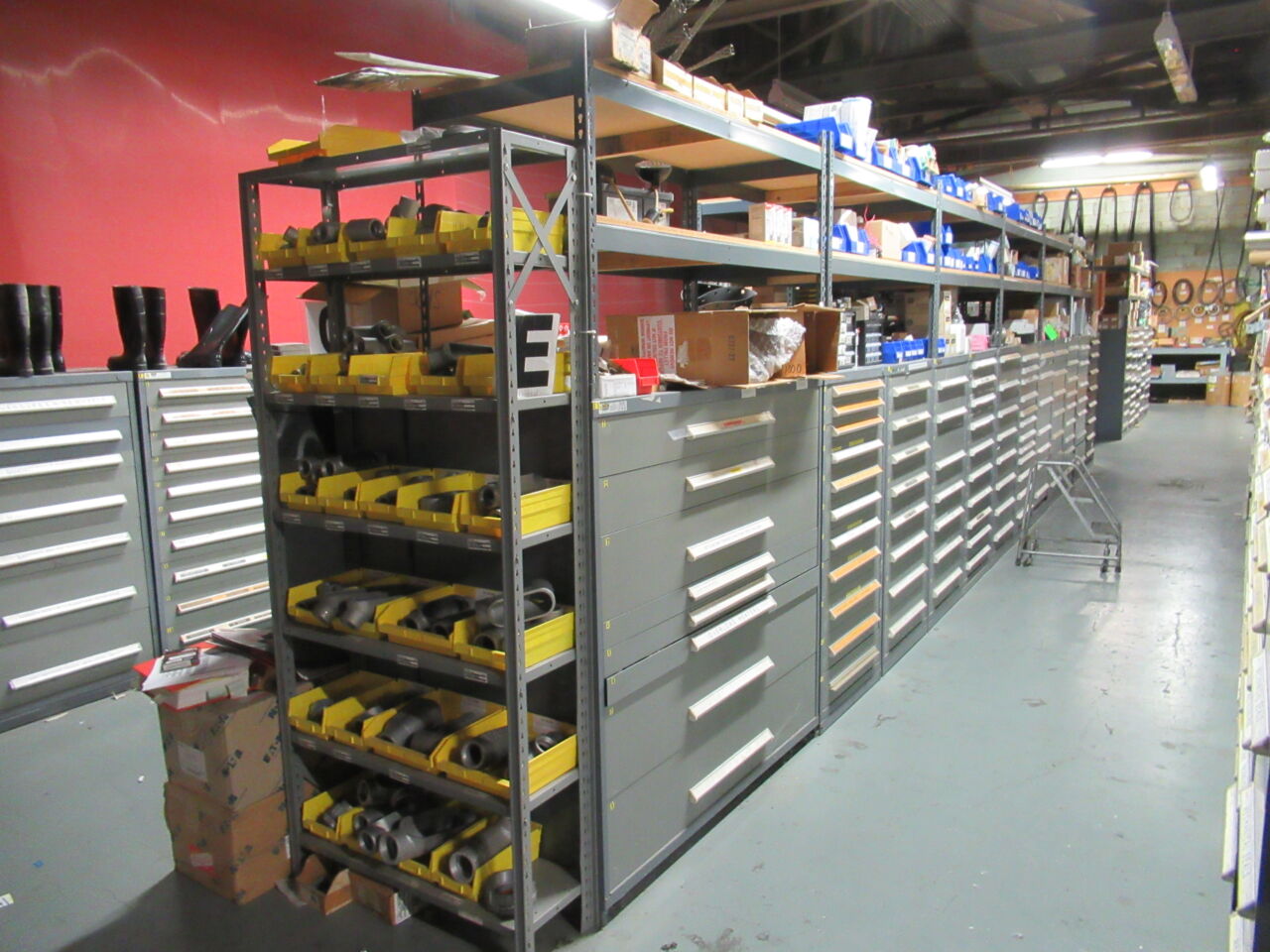

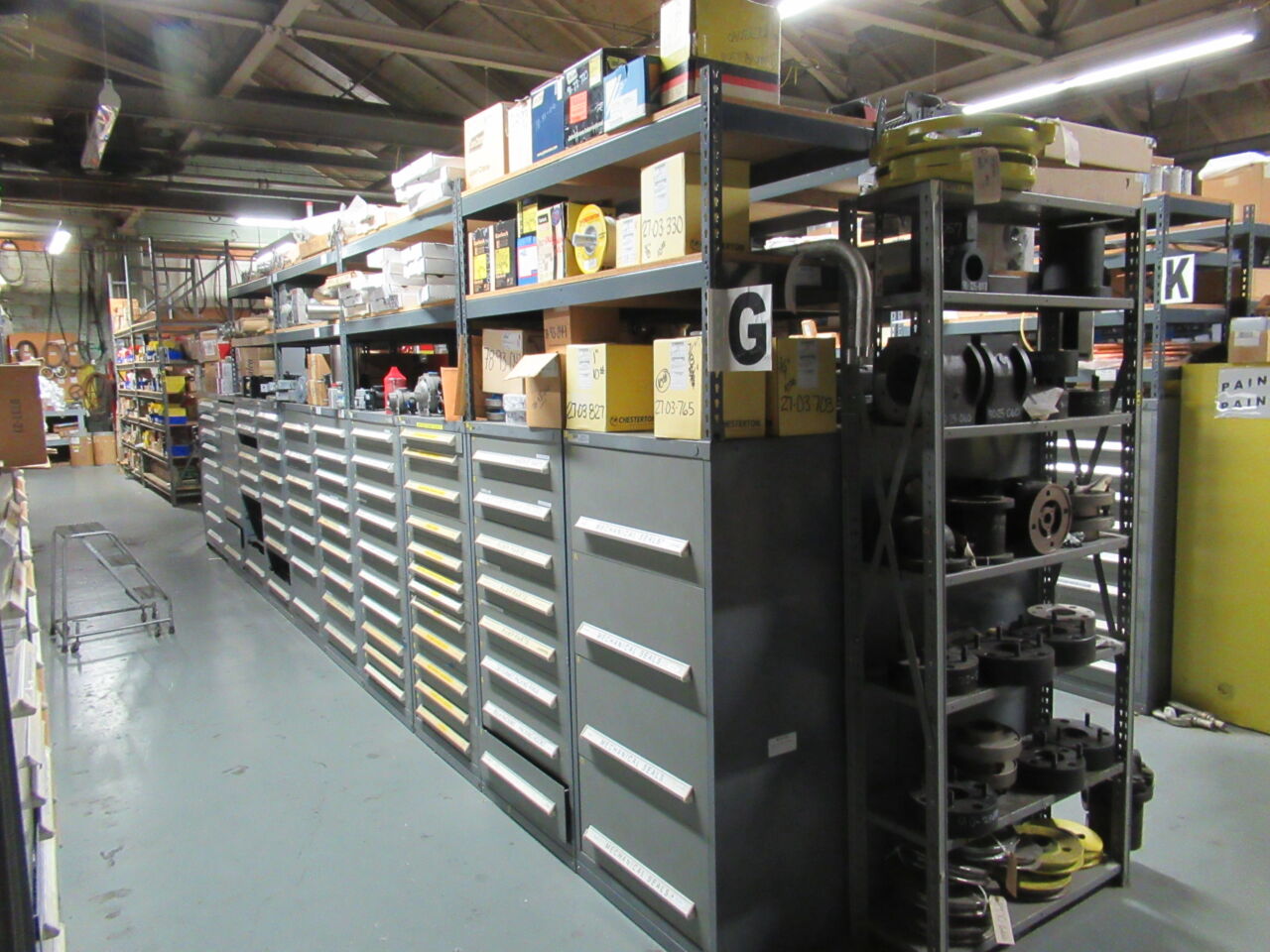

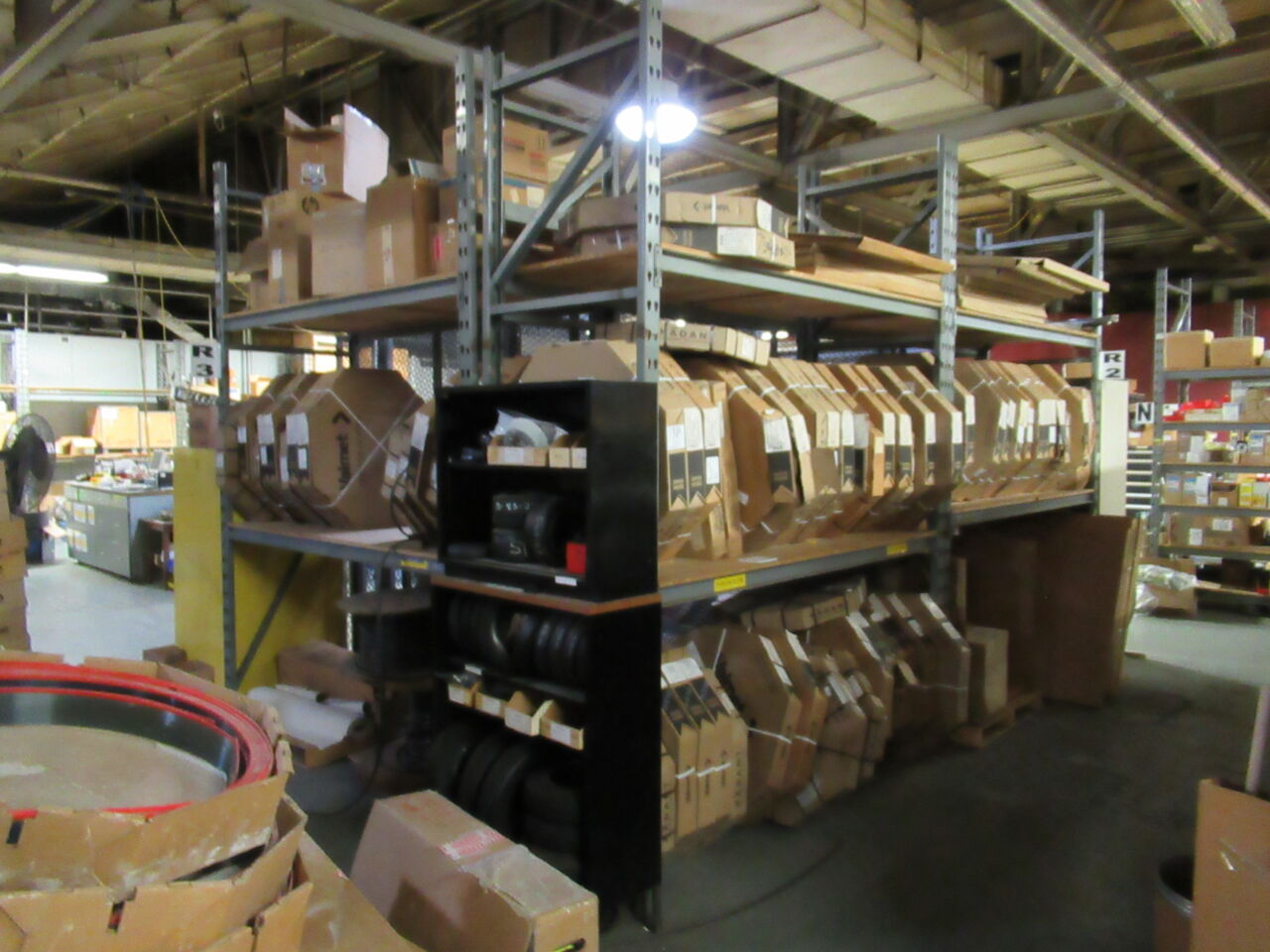

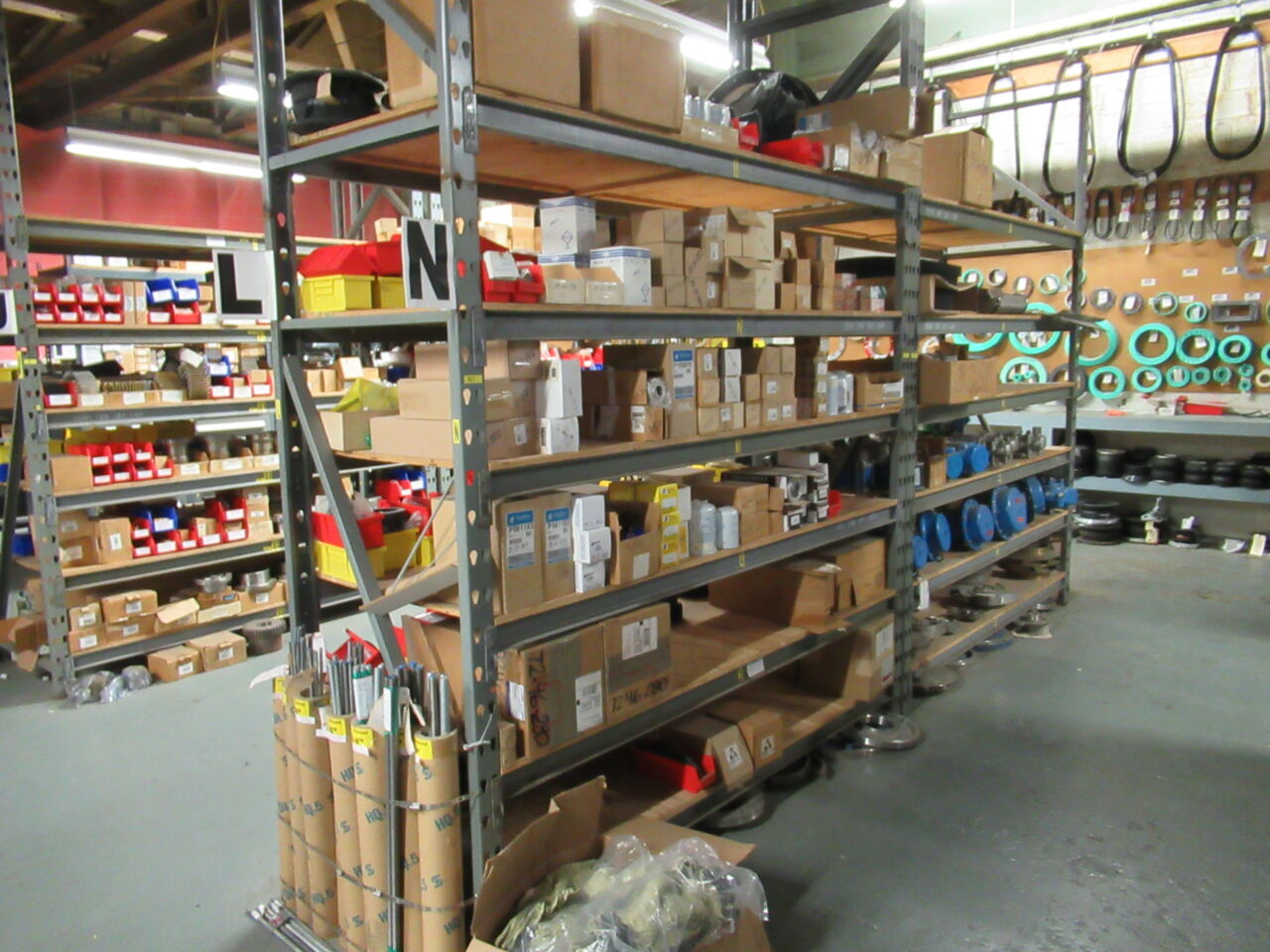

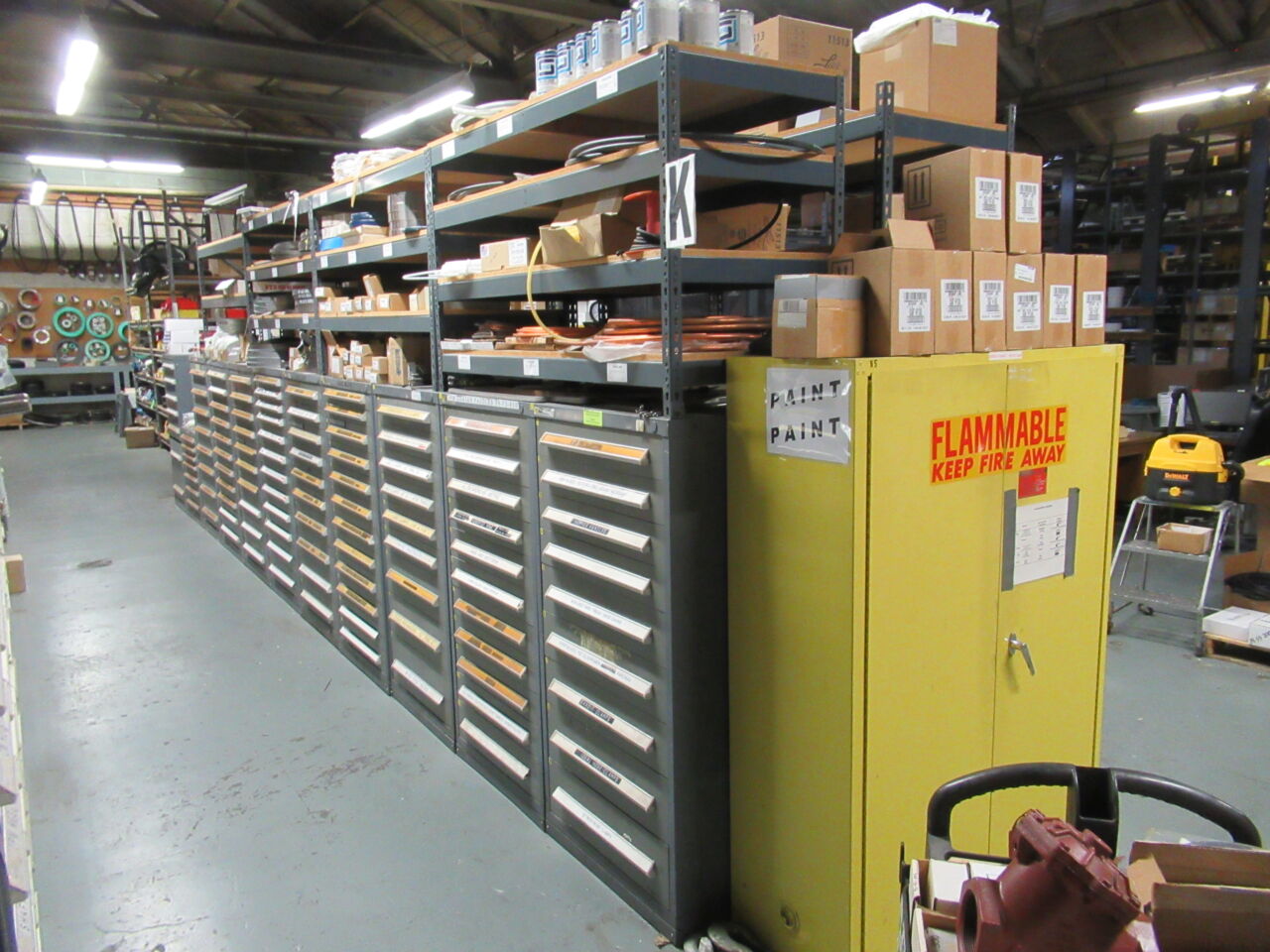

• 130+ Vidmar multi-drawer parts cabinets loaded with parts and supplies

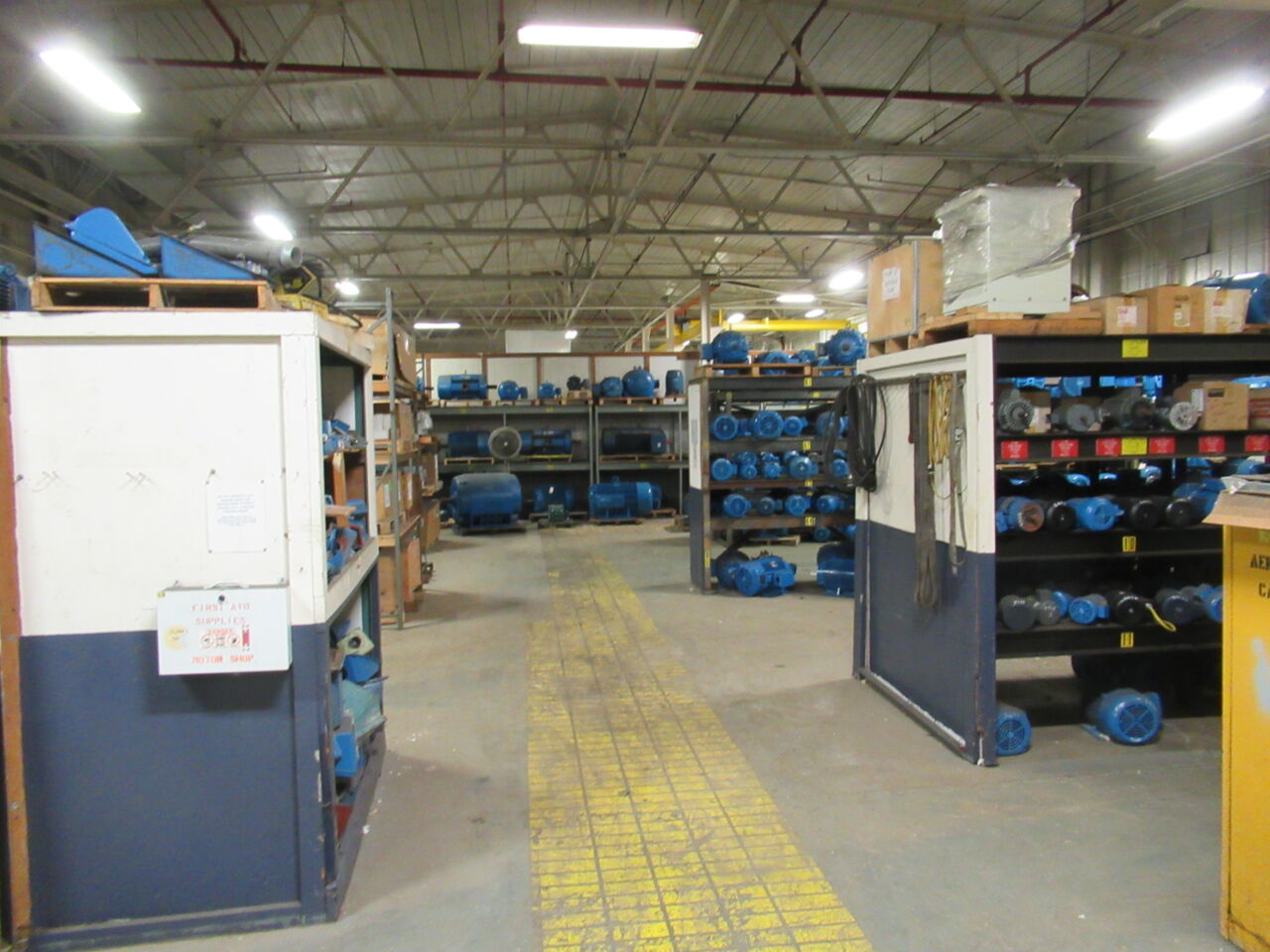

• Motor and pump modular storage and semi-automatic retrieval systems

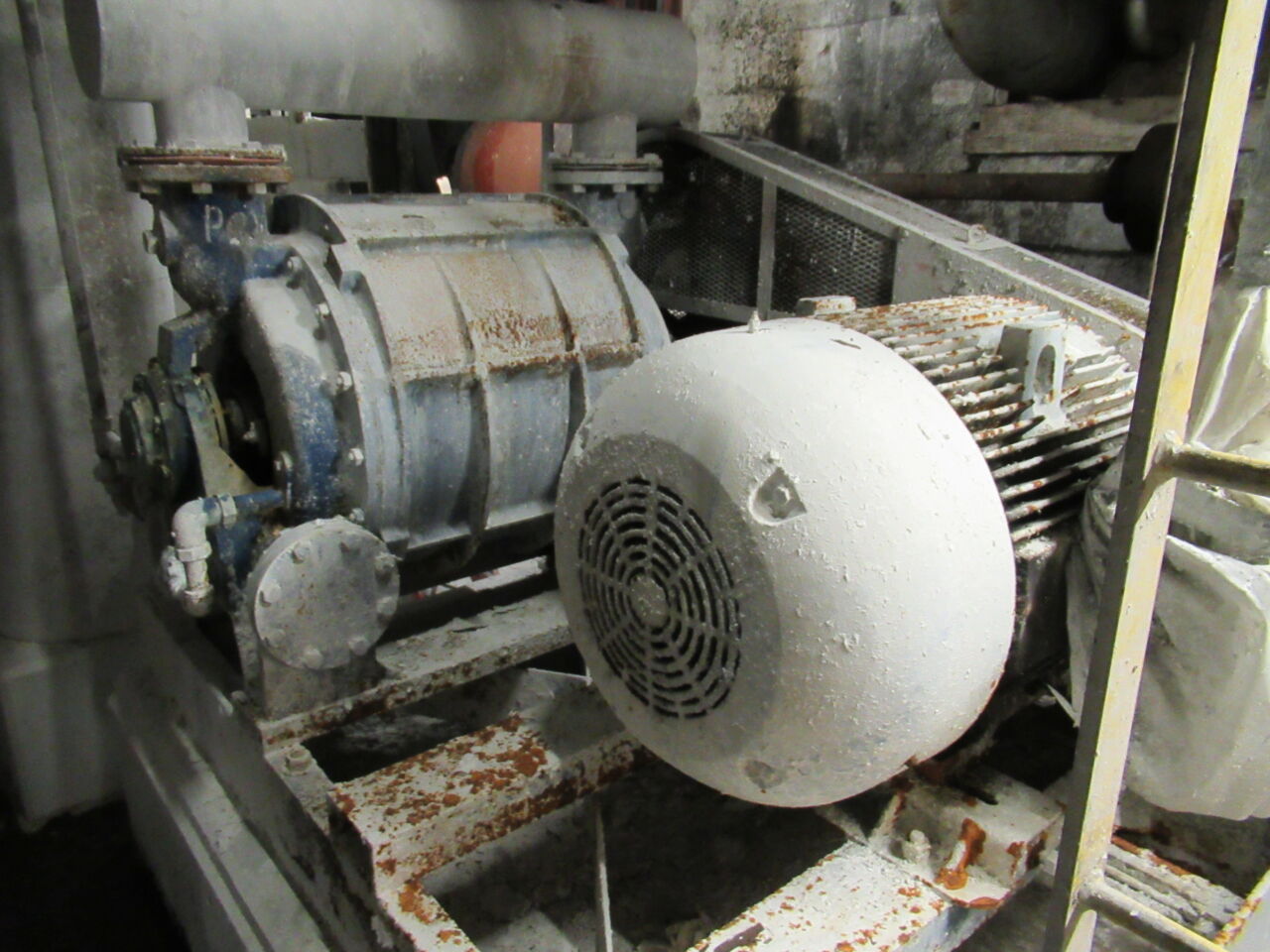

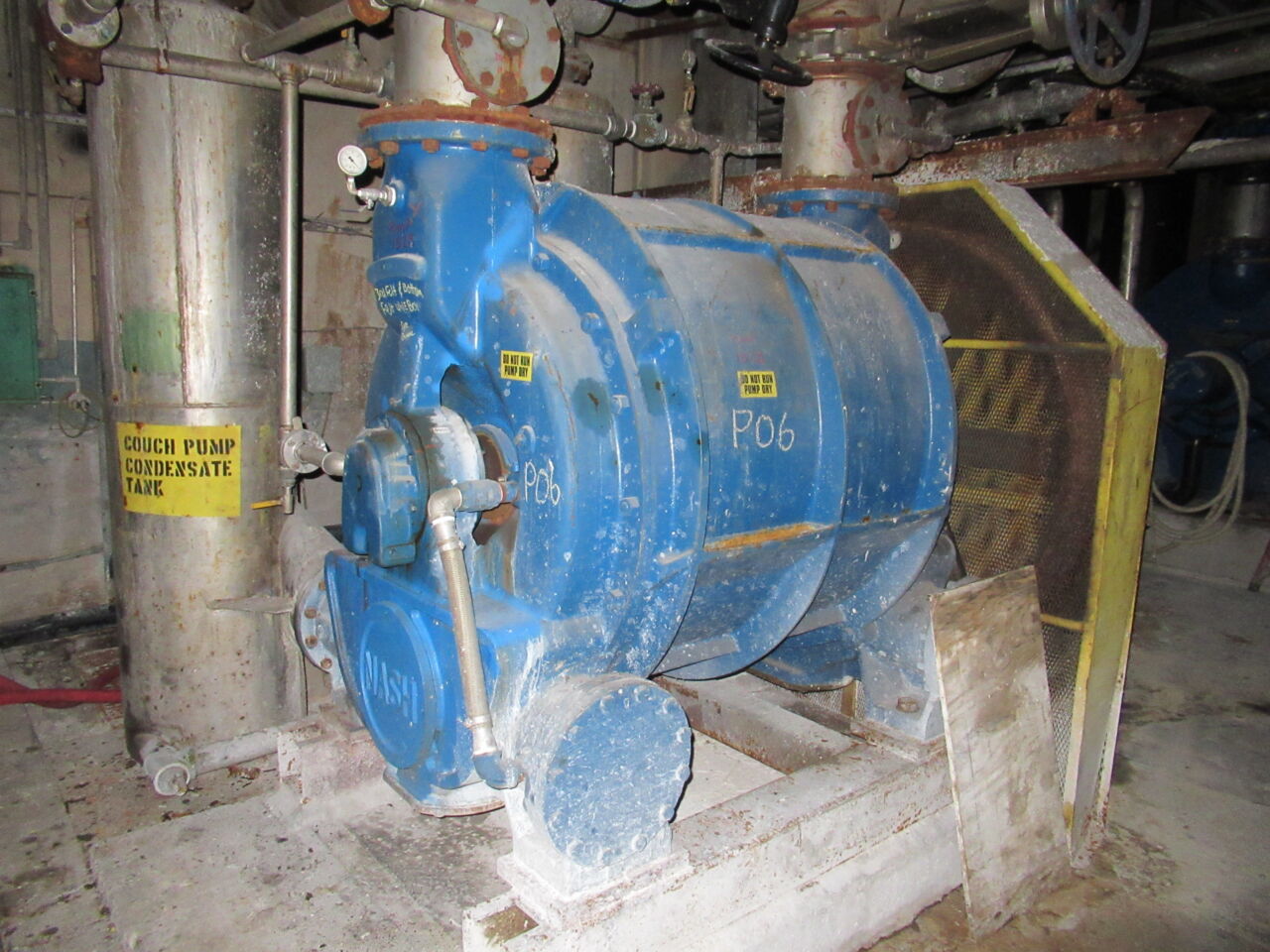

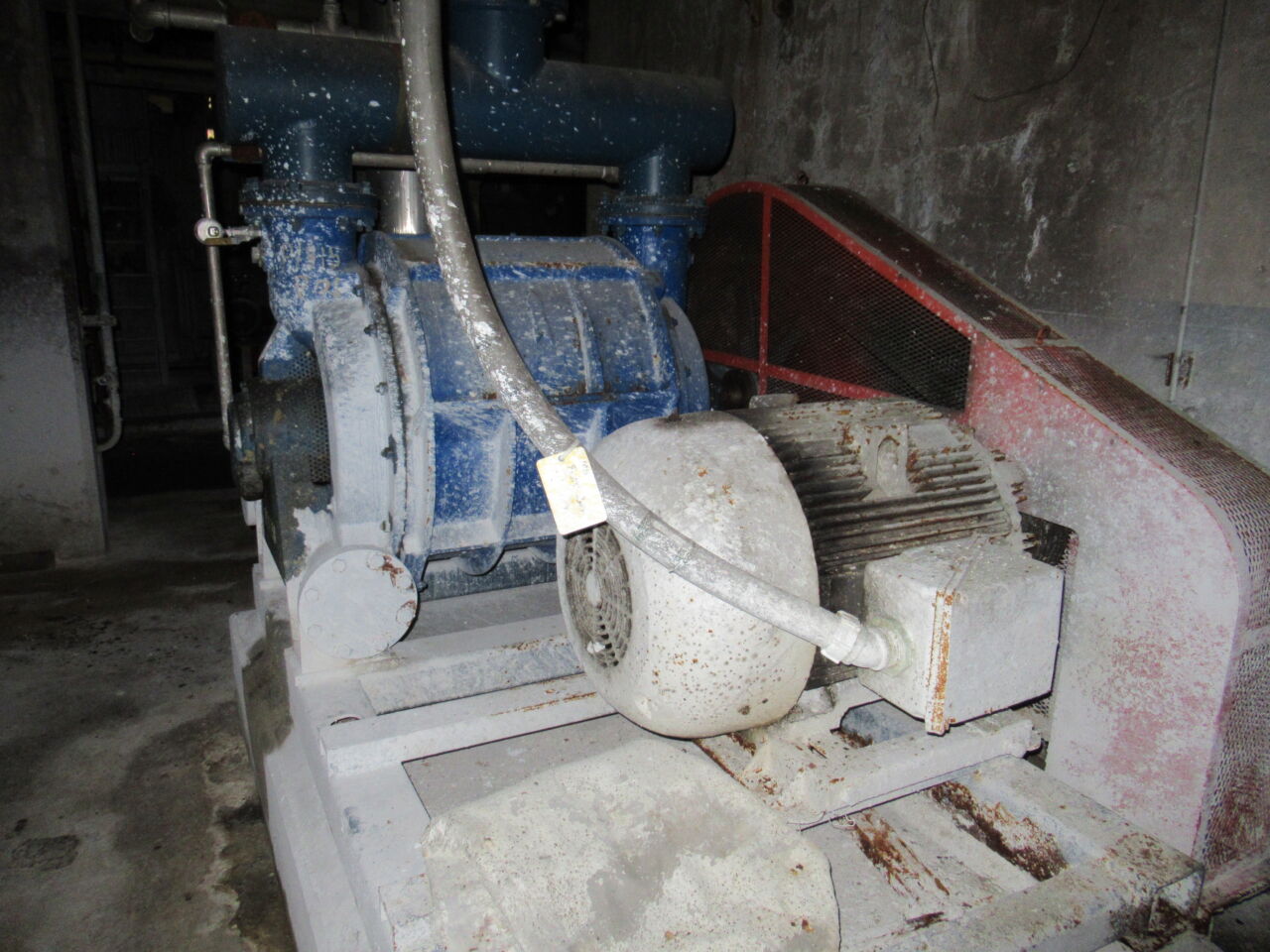

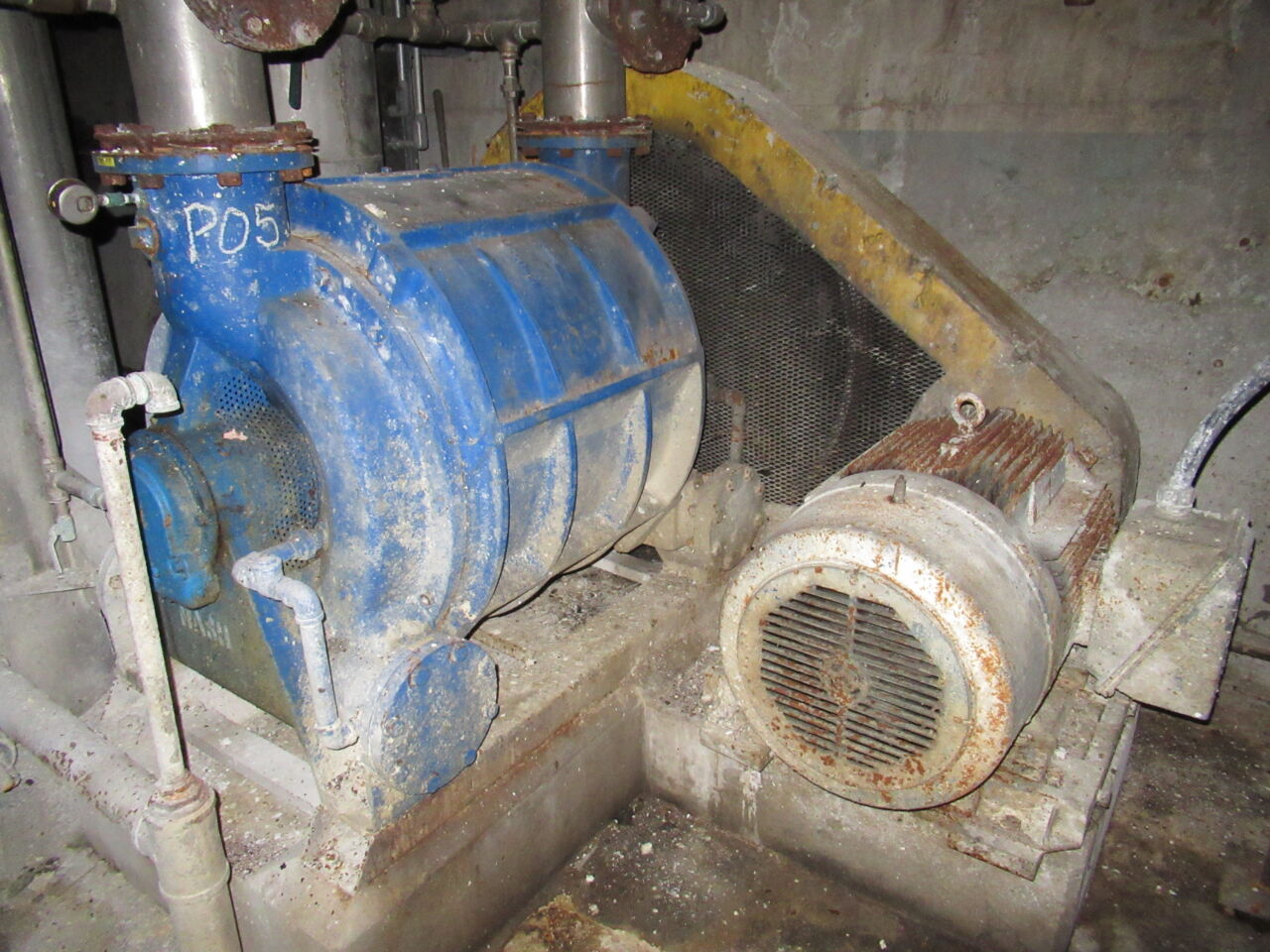

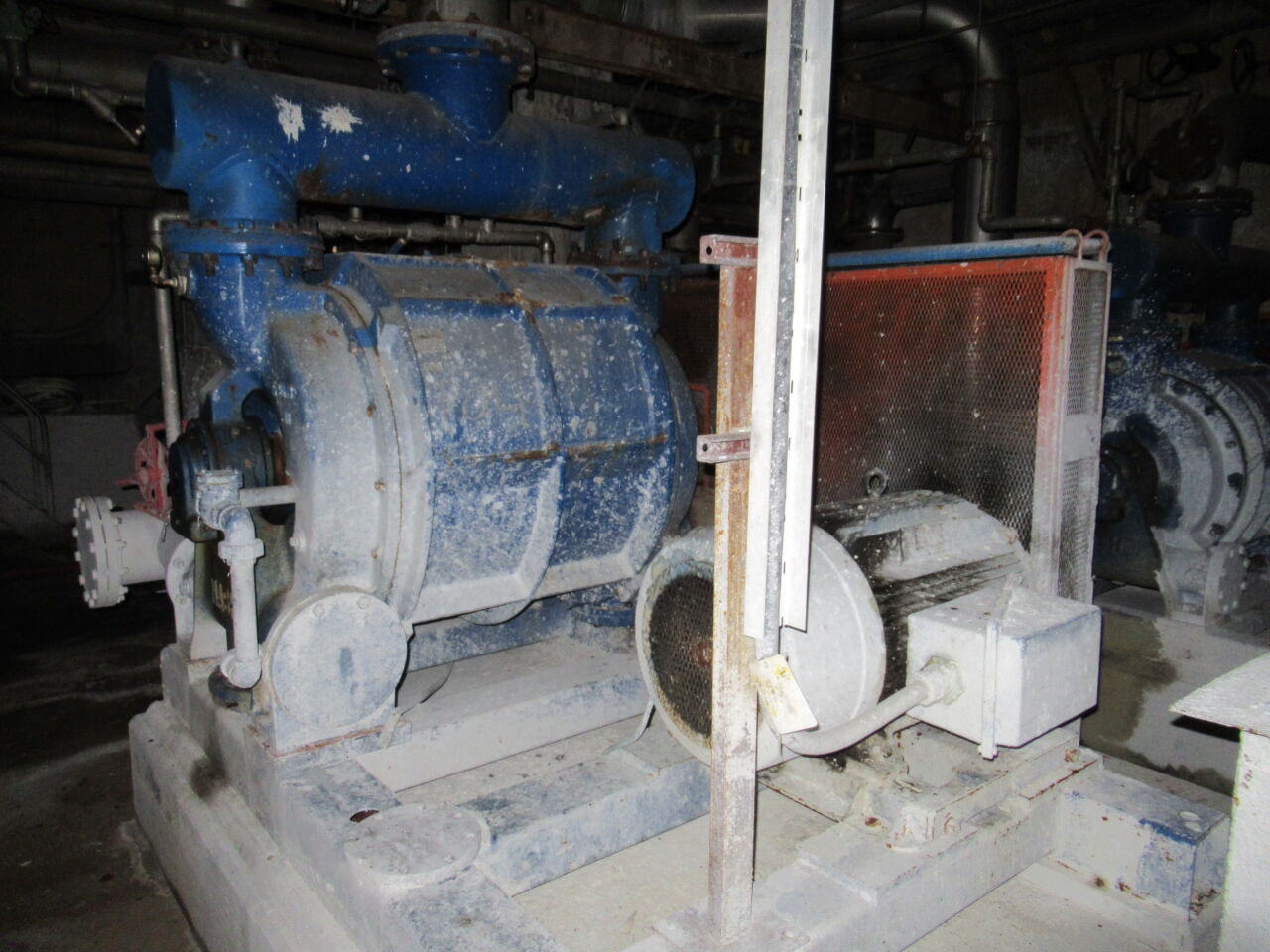

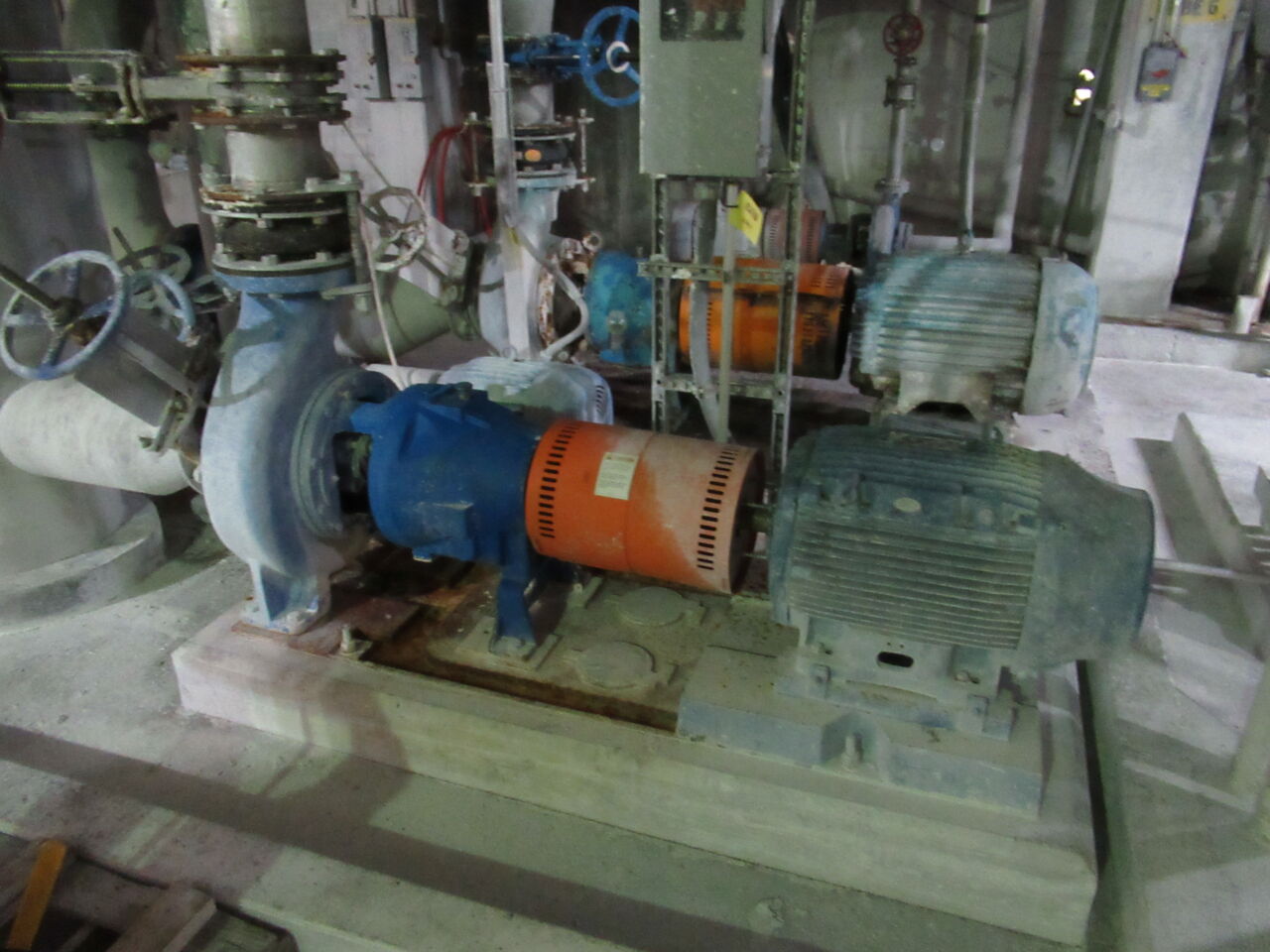

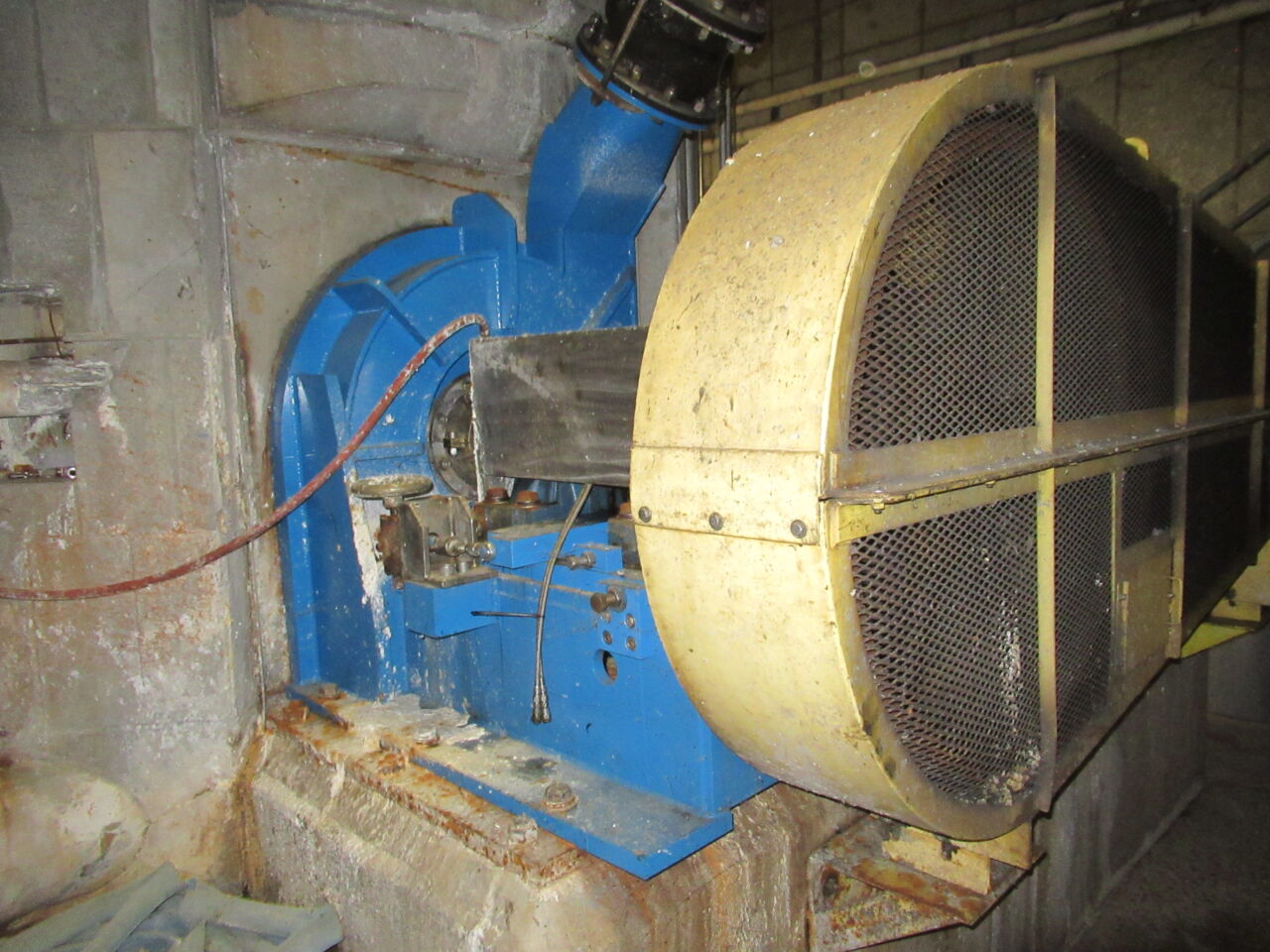

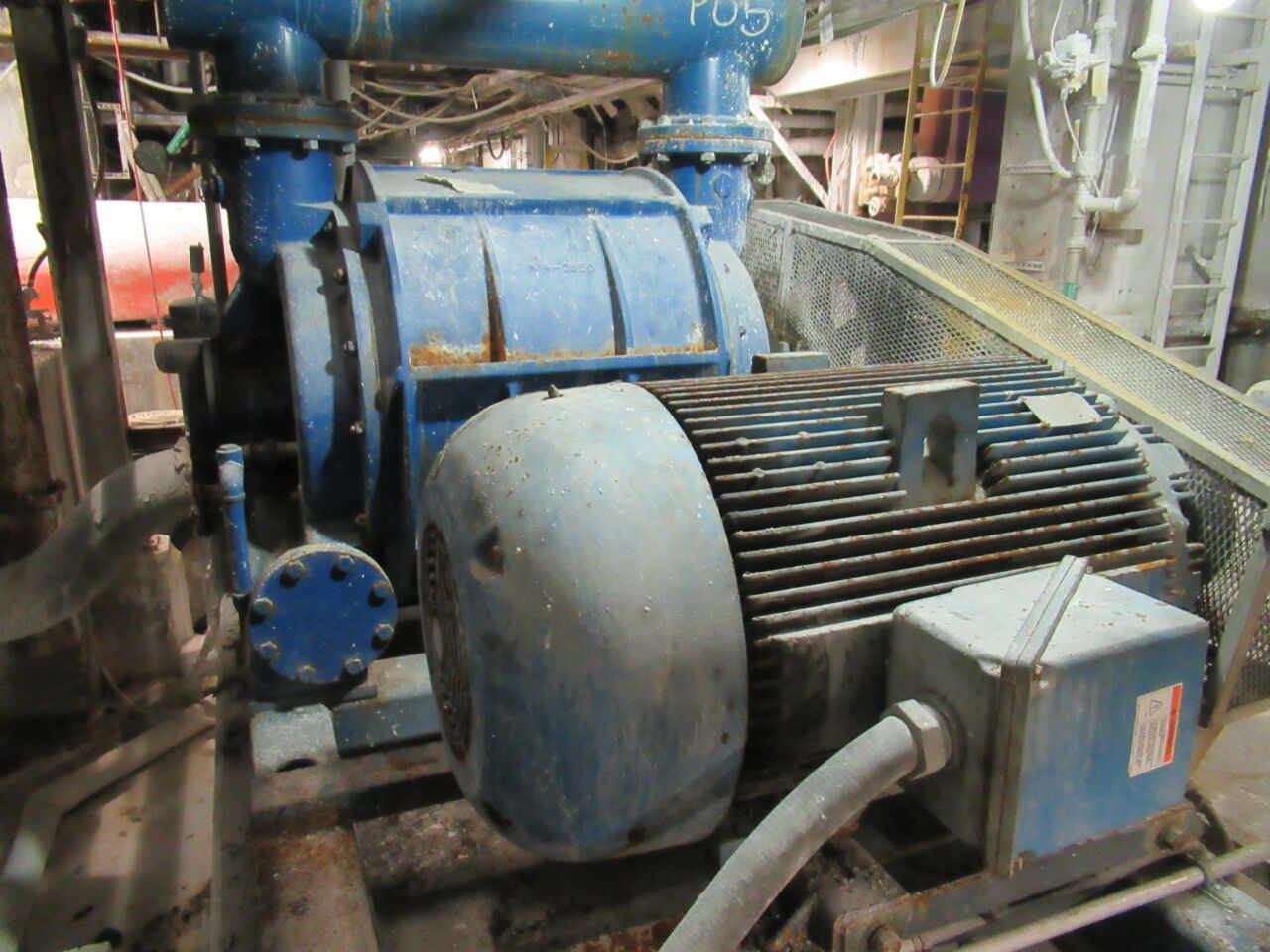

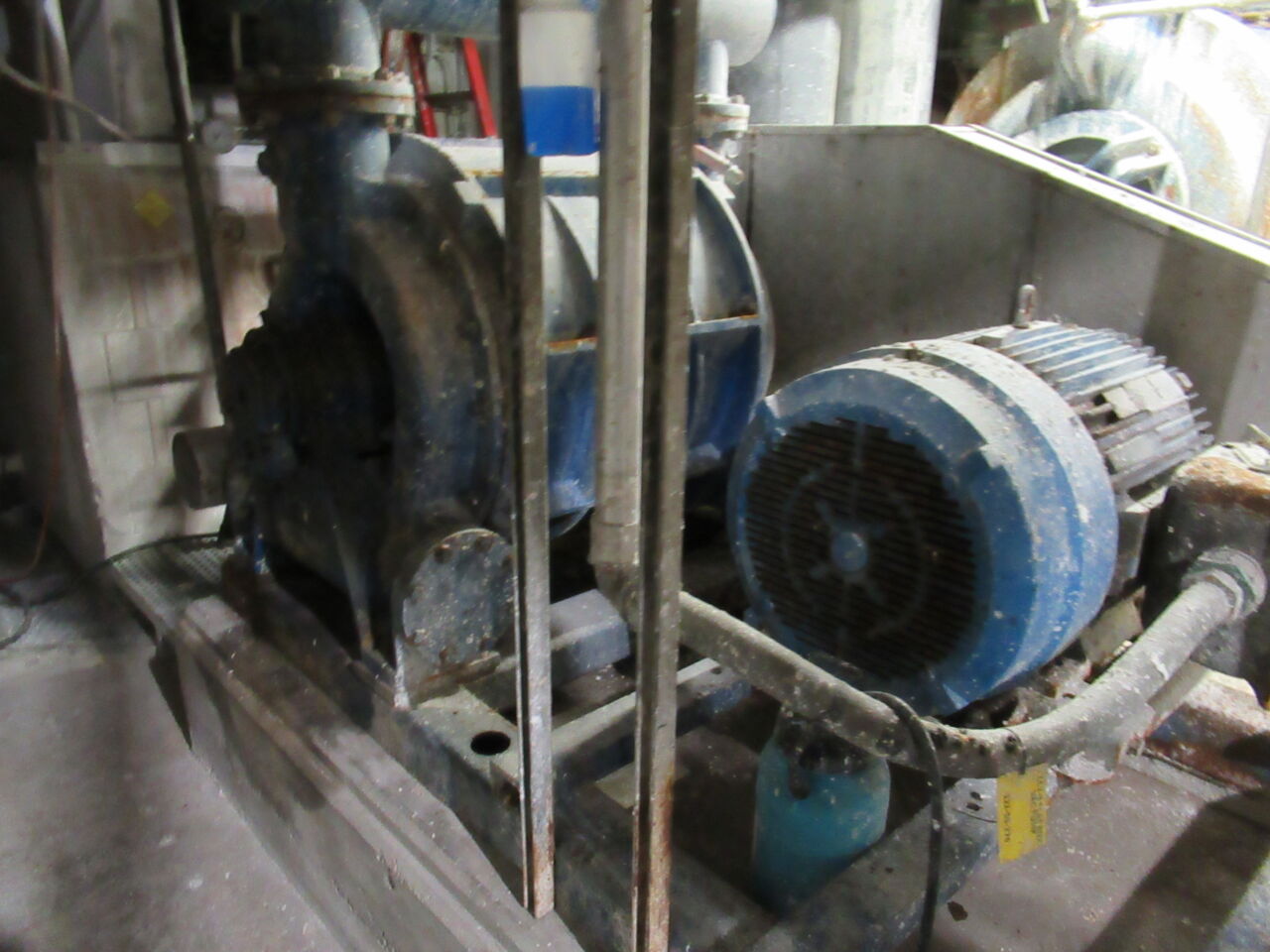

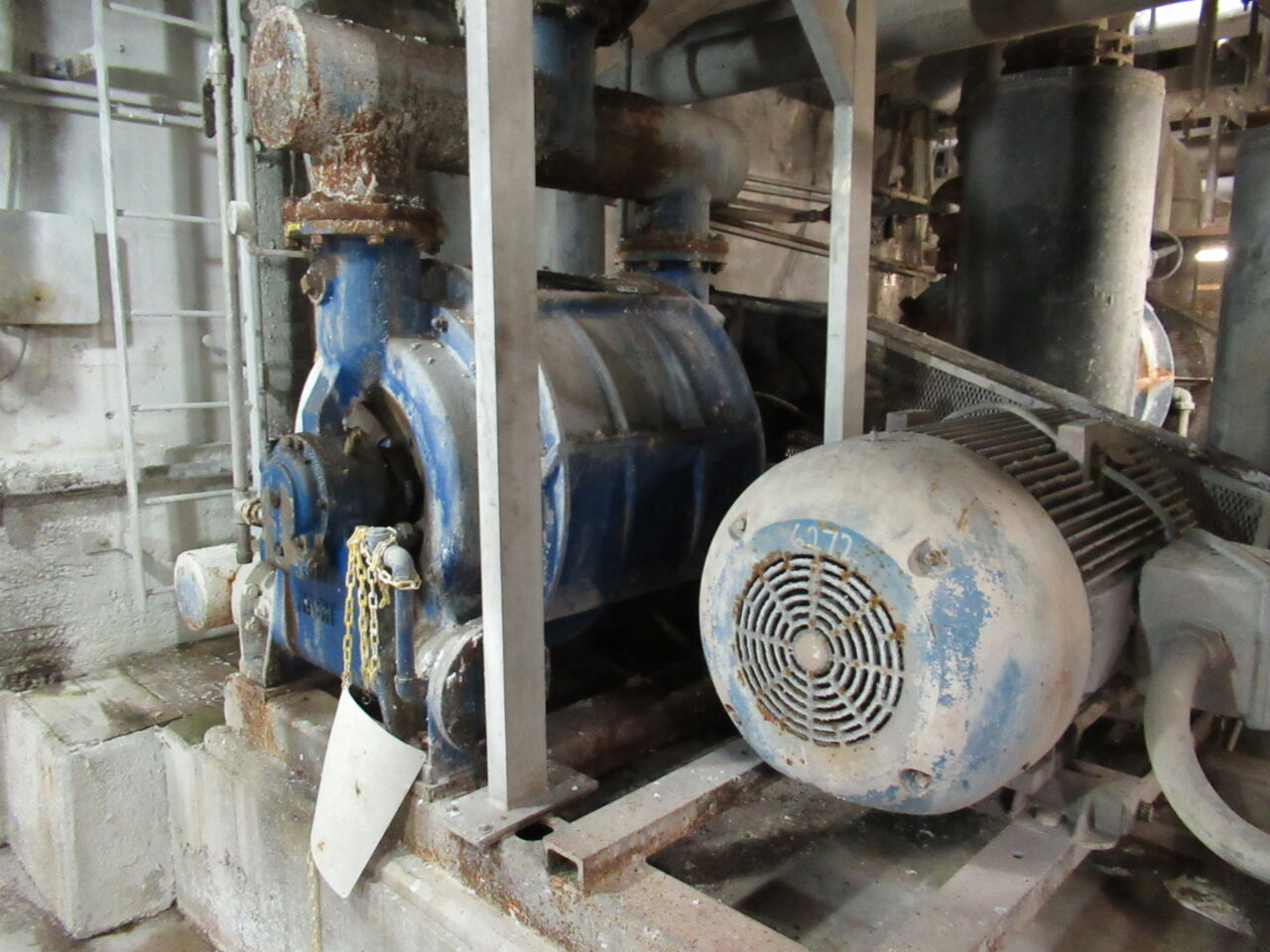

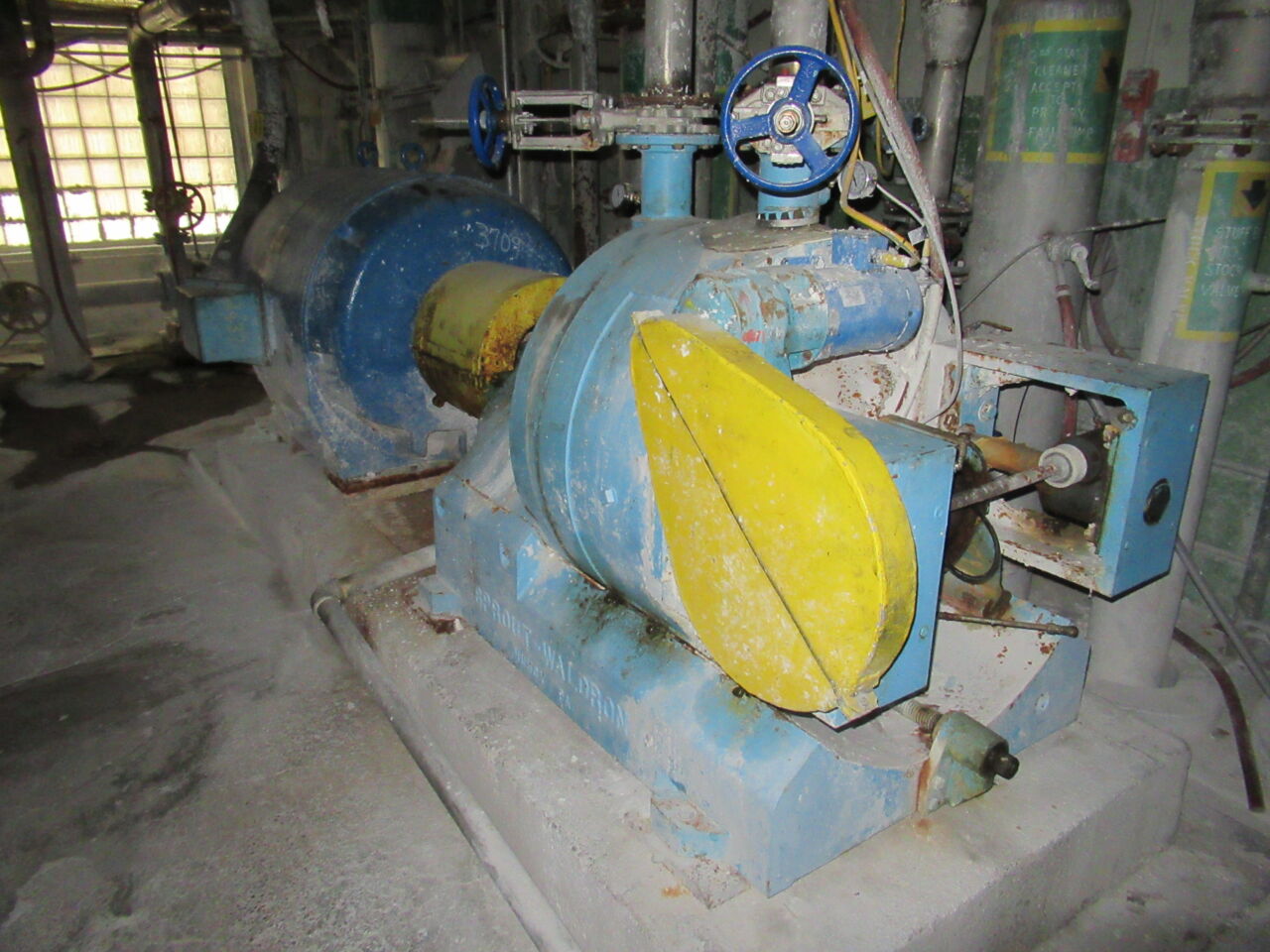

• Wide selection of Nash vacuum pumps and Goulds SS centrifugal and split case pumps

Q.A. Lab / Maintenance Shops / Facility Equipment

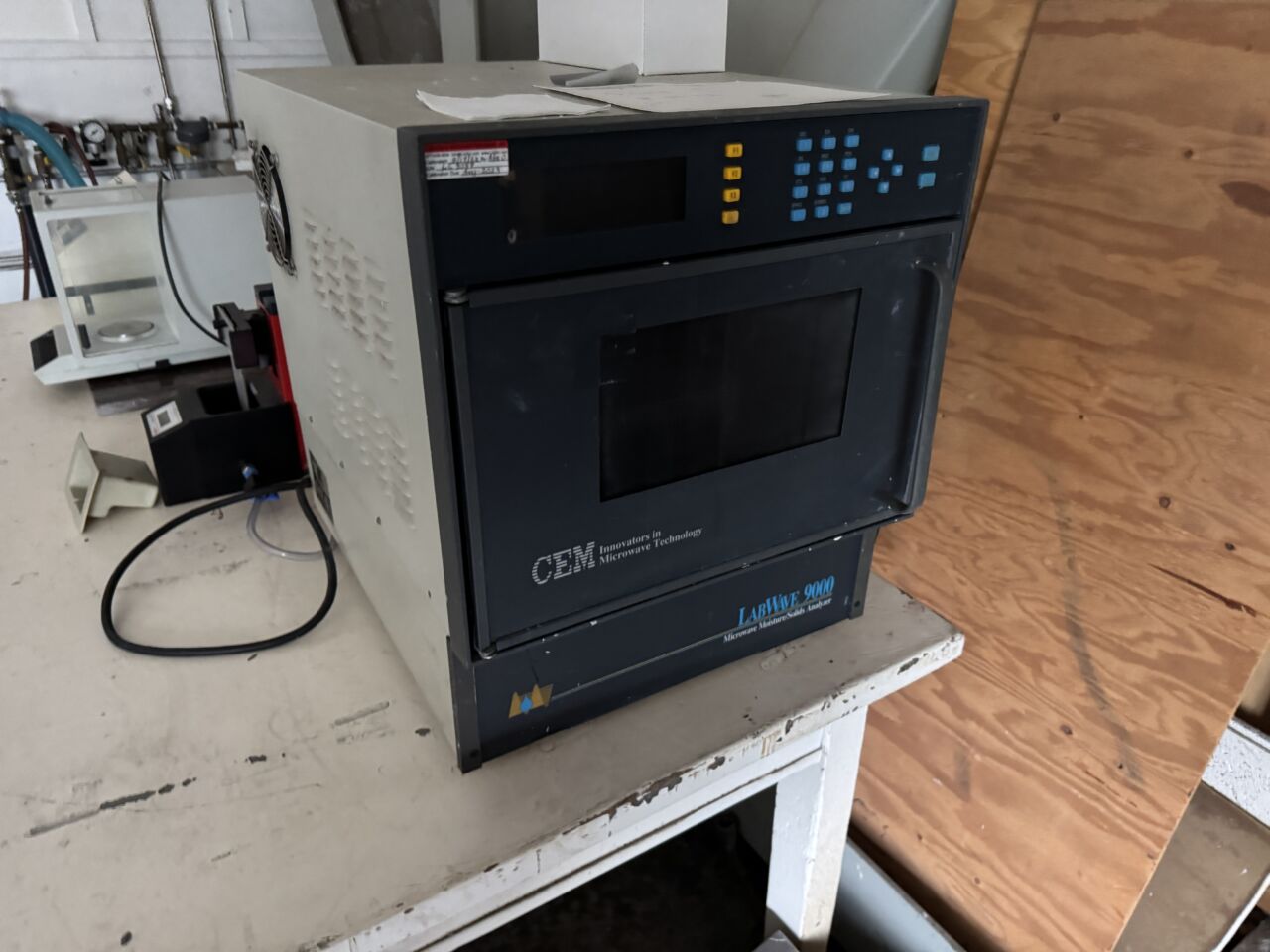

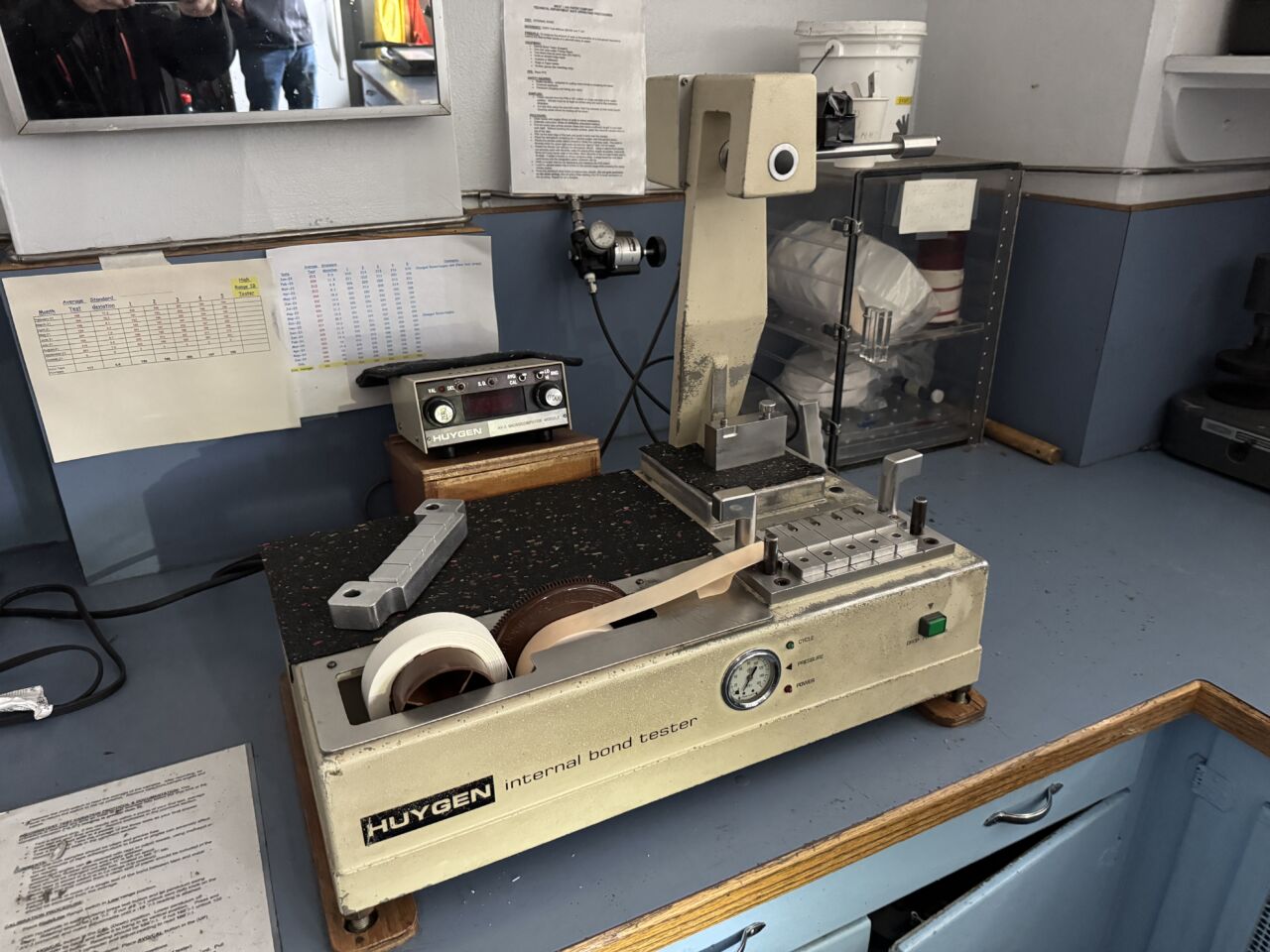

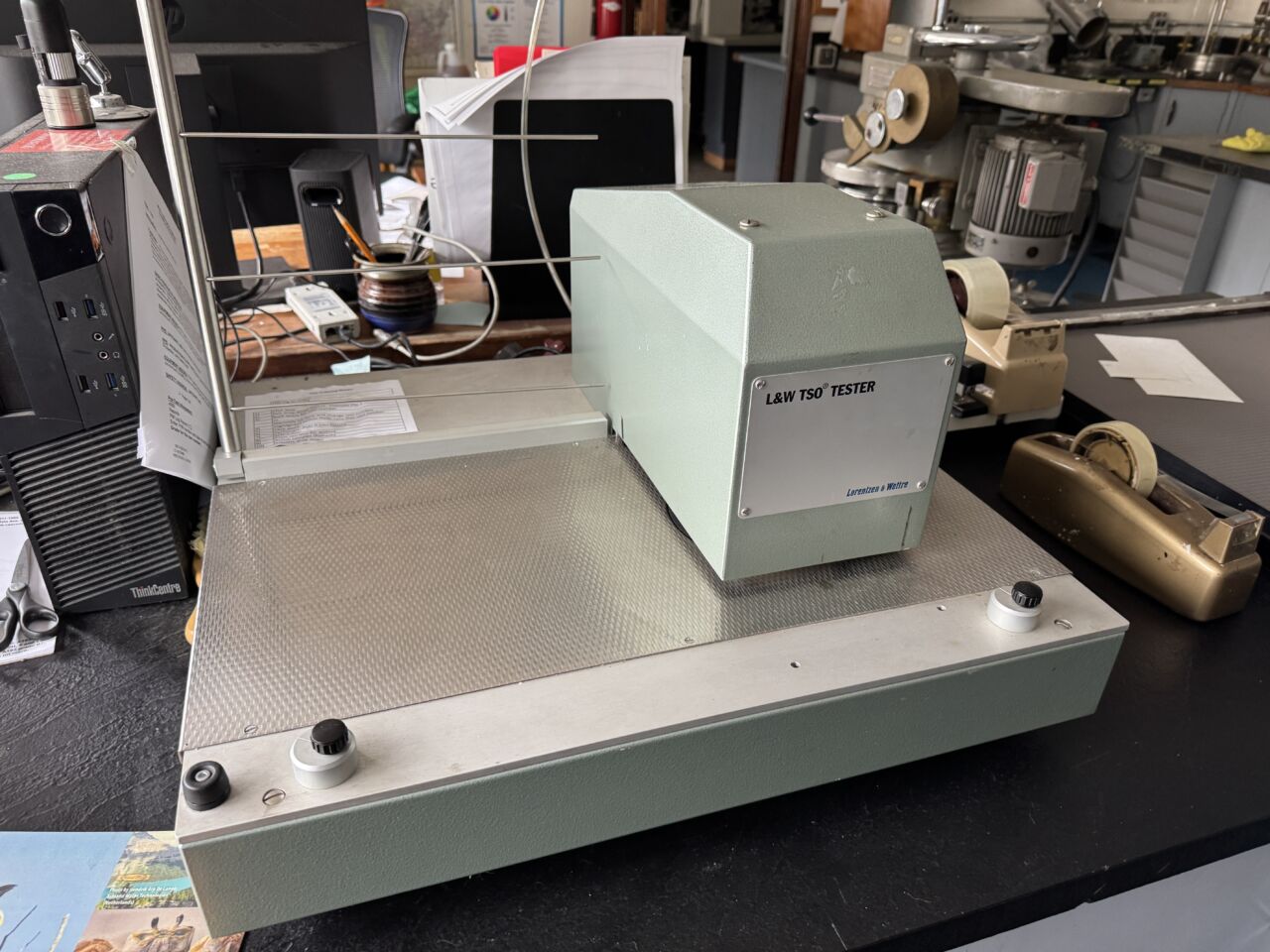

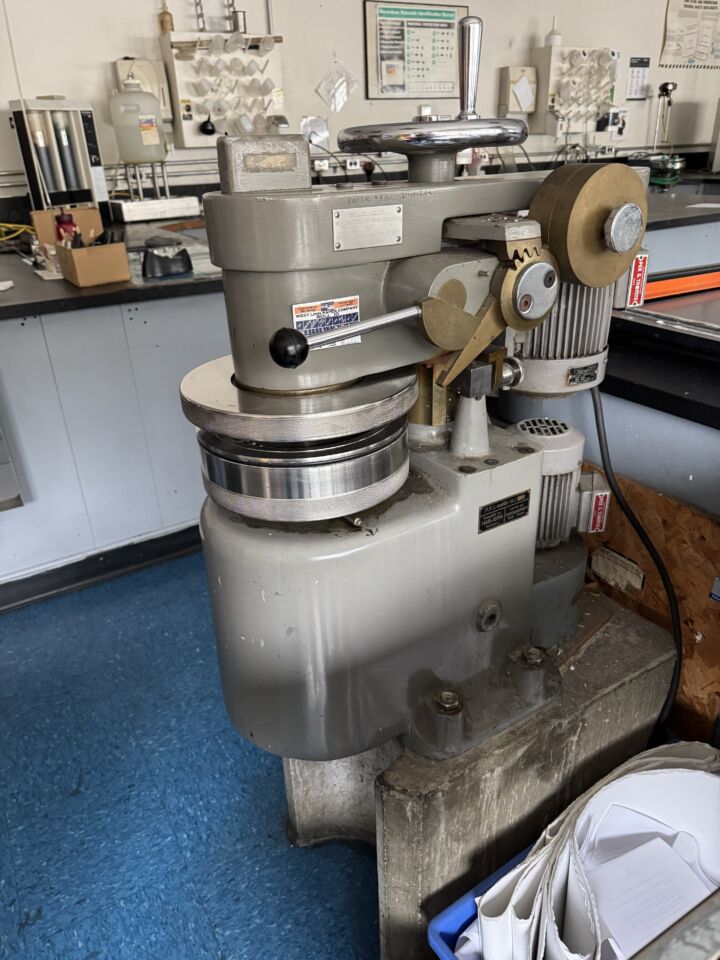

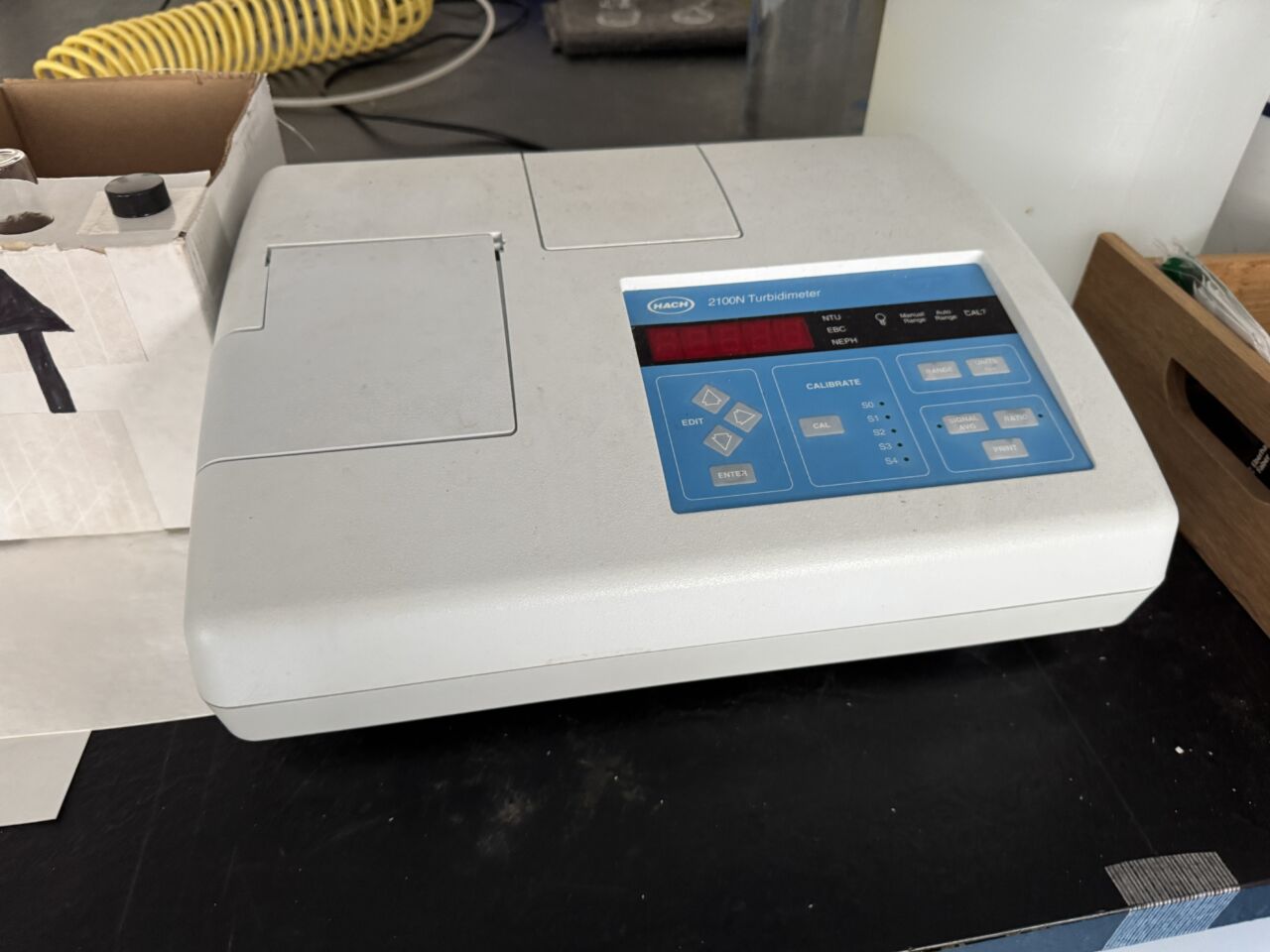

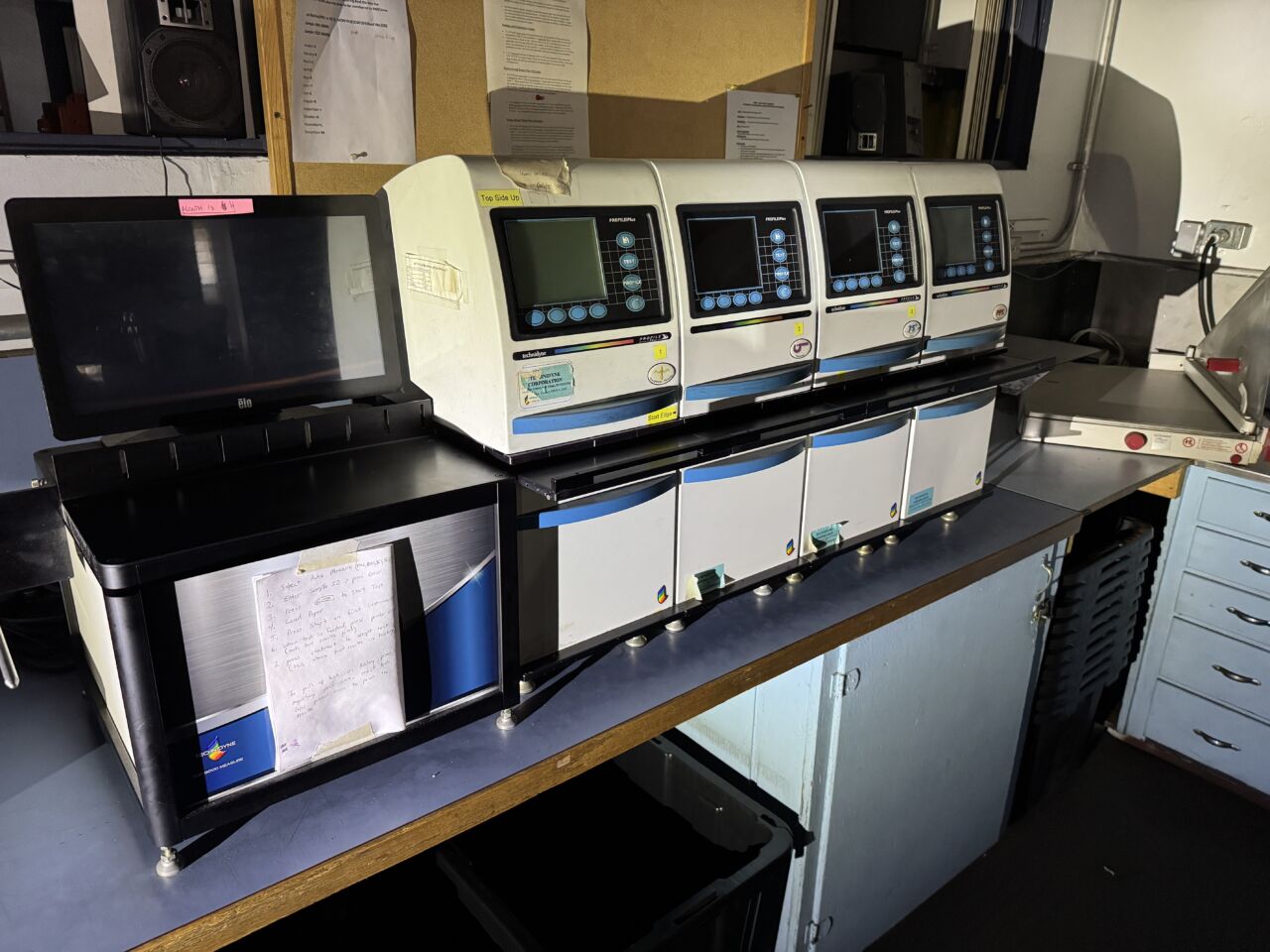

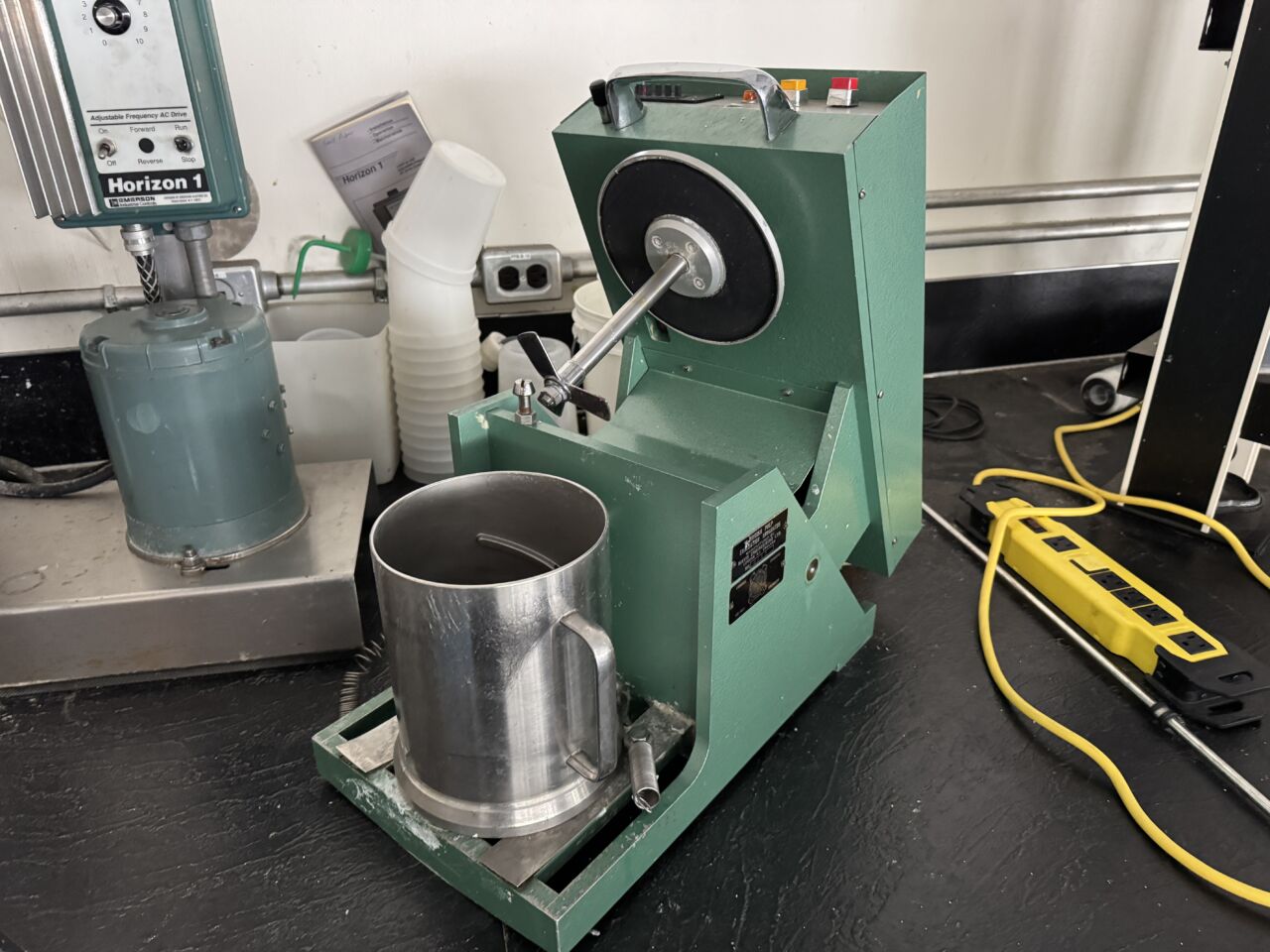

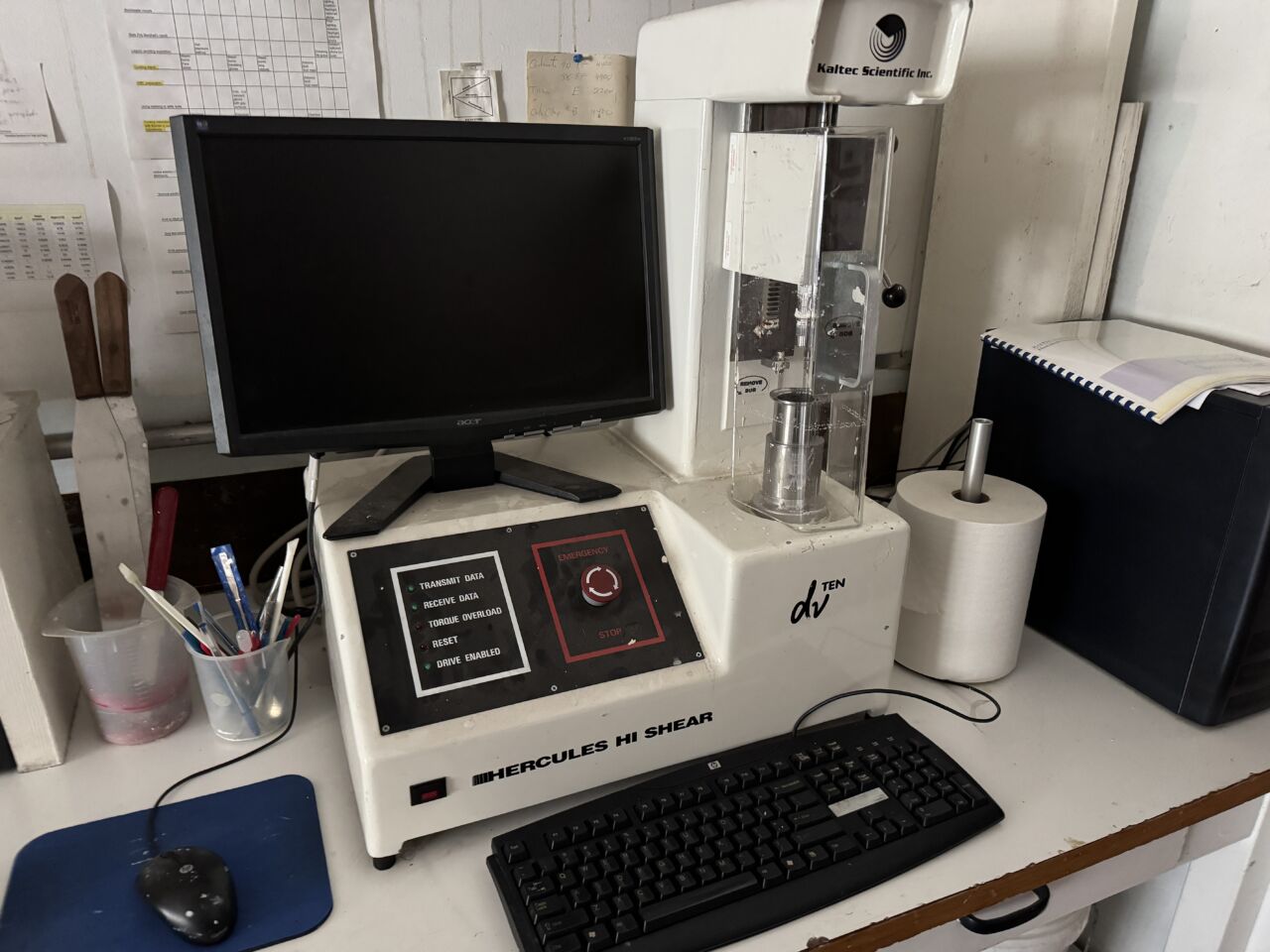

• (2) Q.A. laboratories with tension test, measurement analyzing & lab instruments

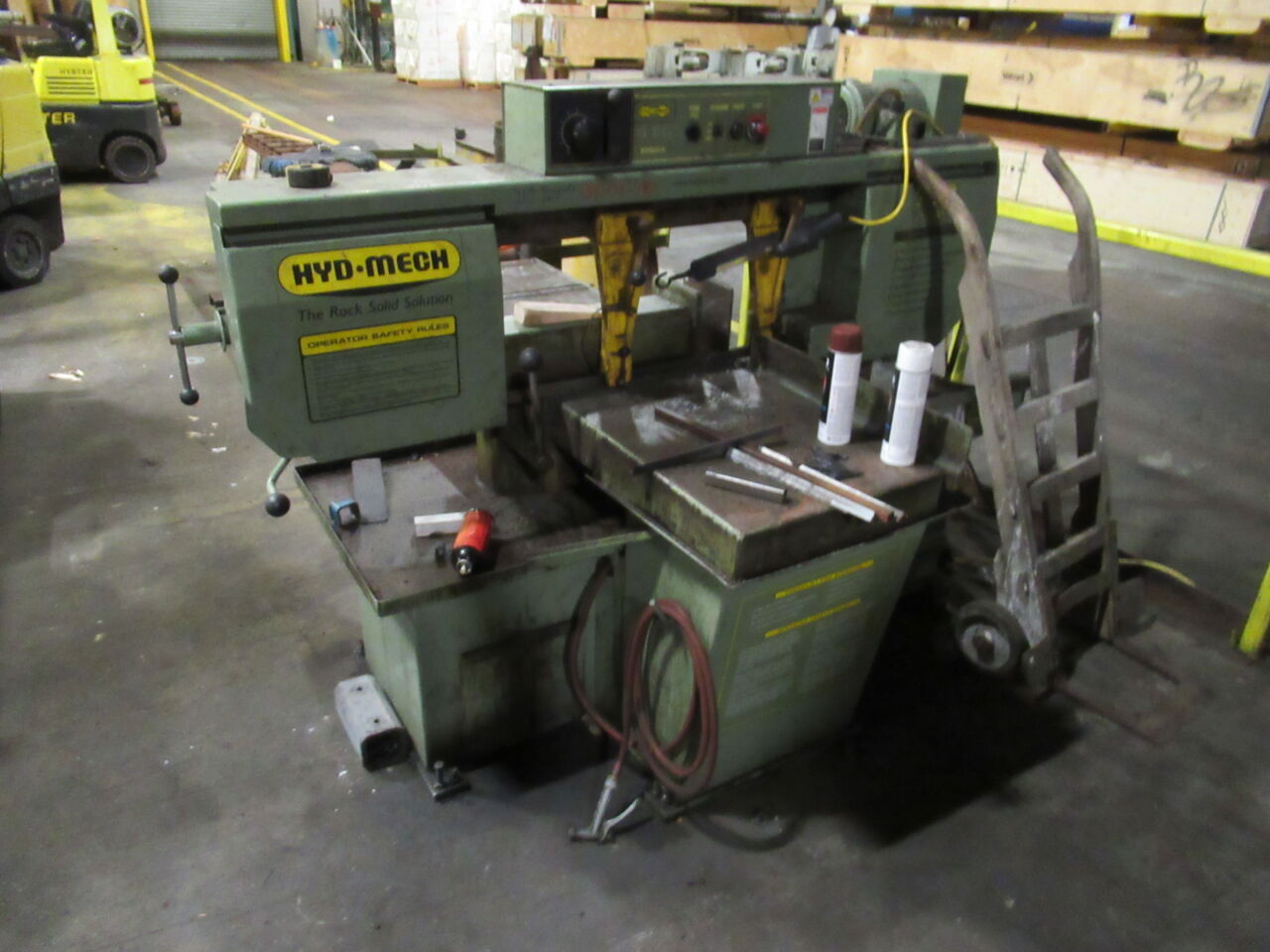

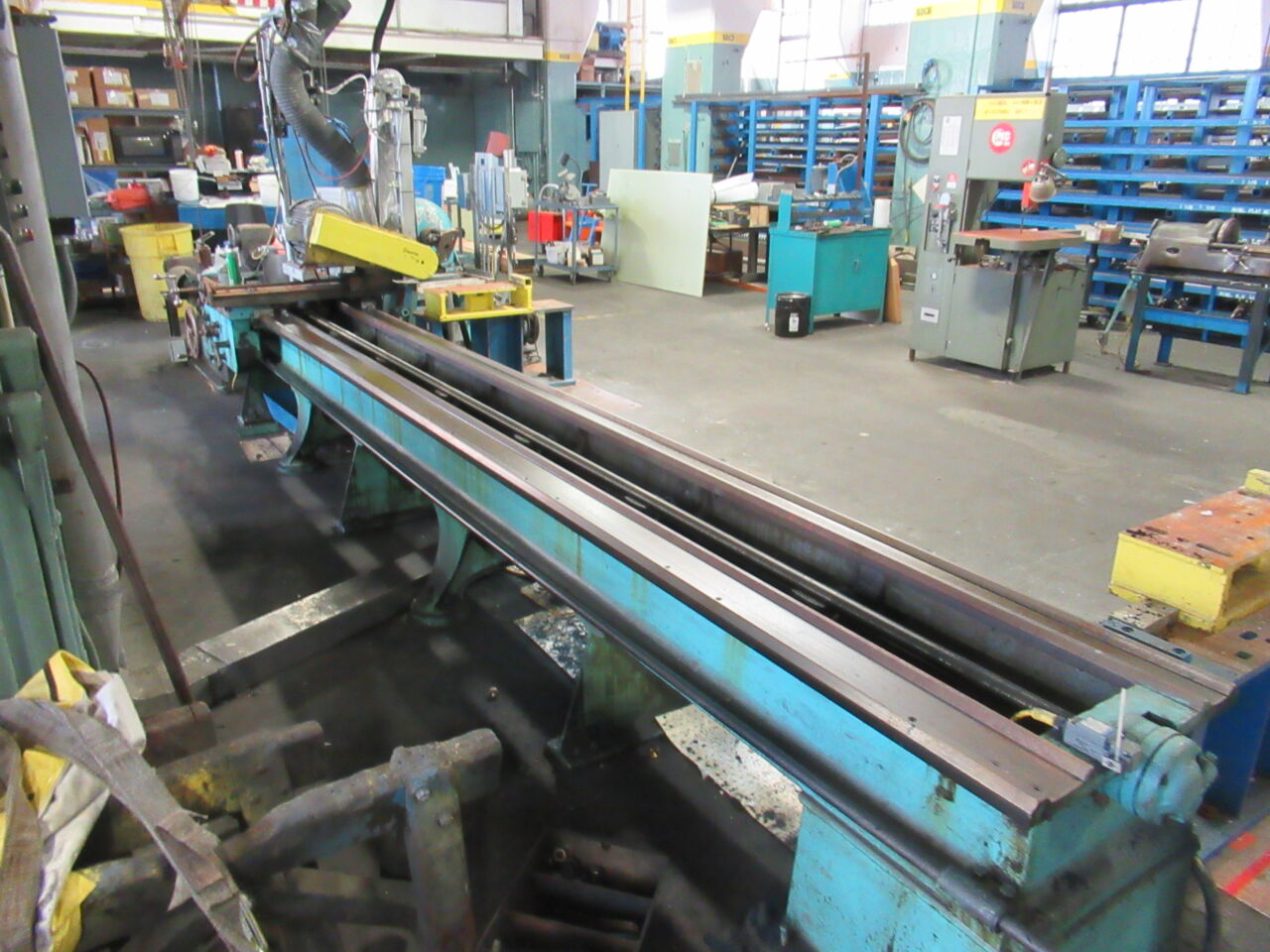

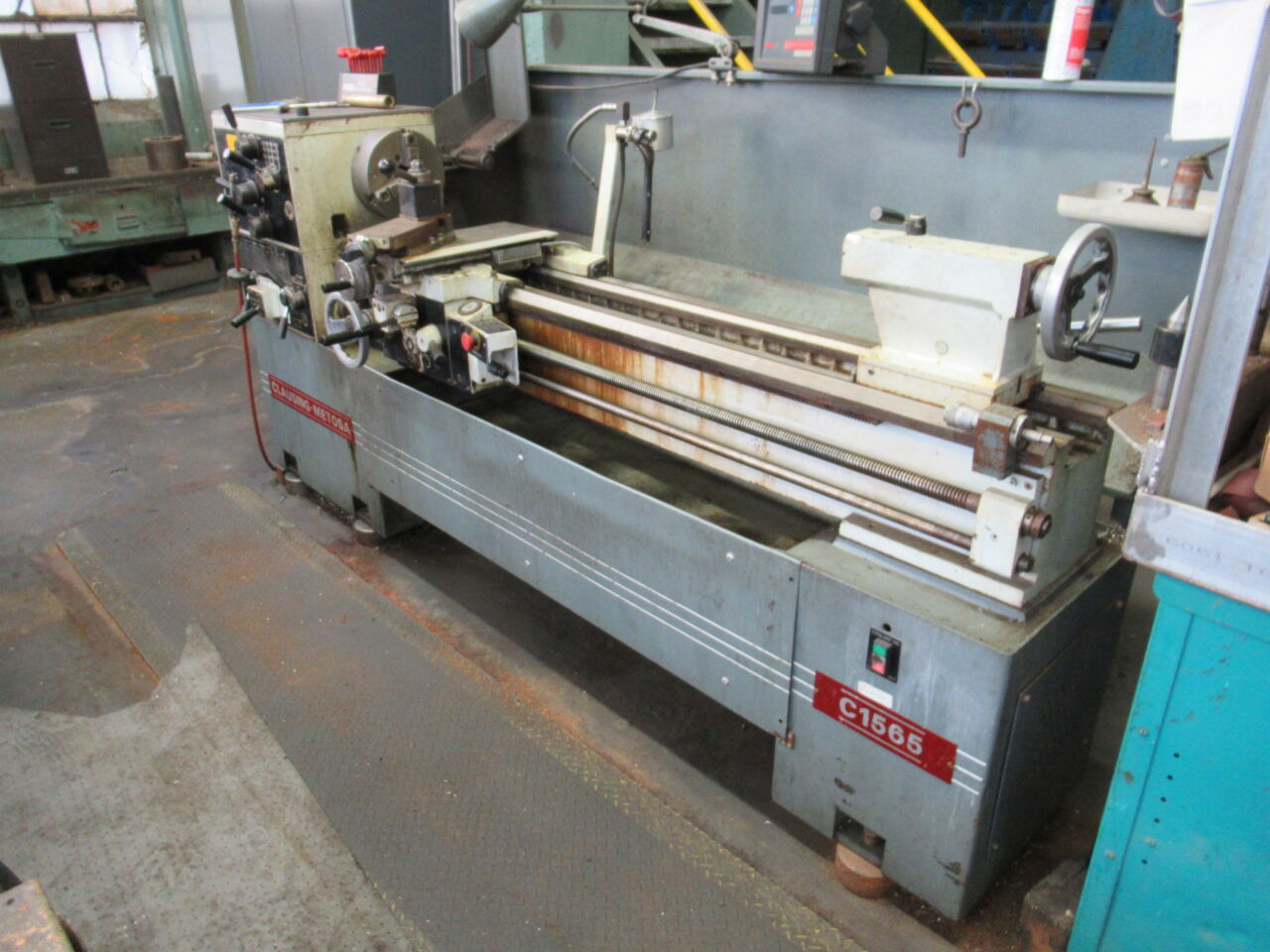

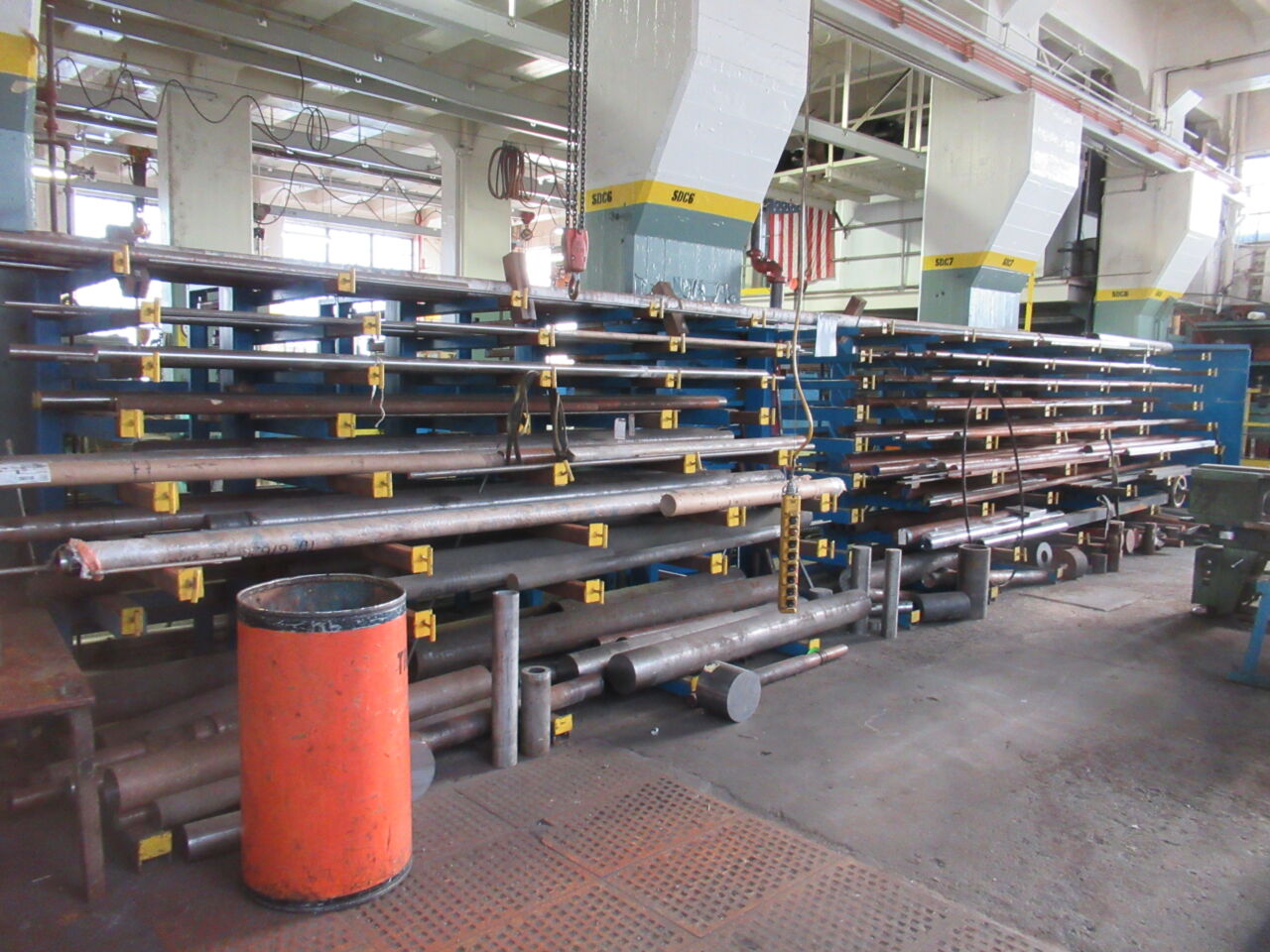

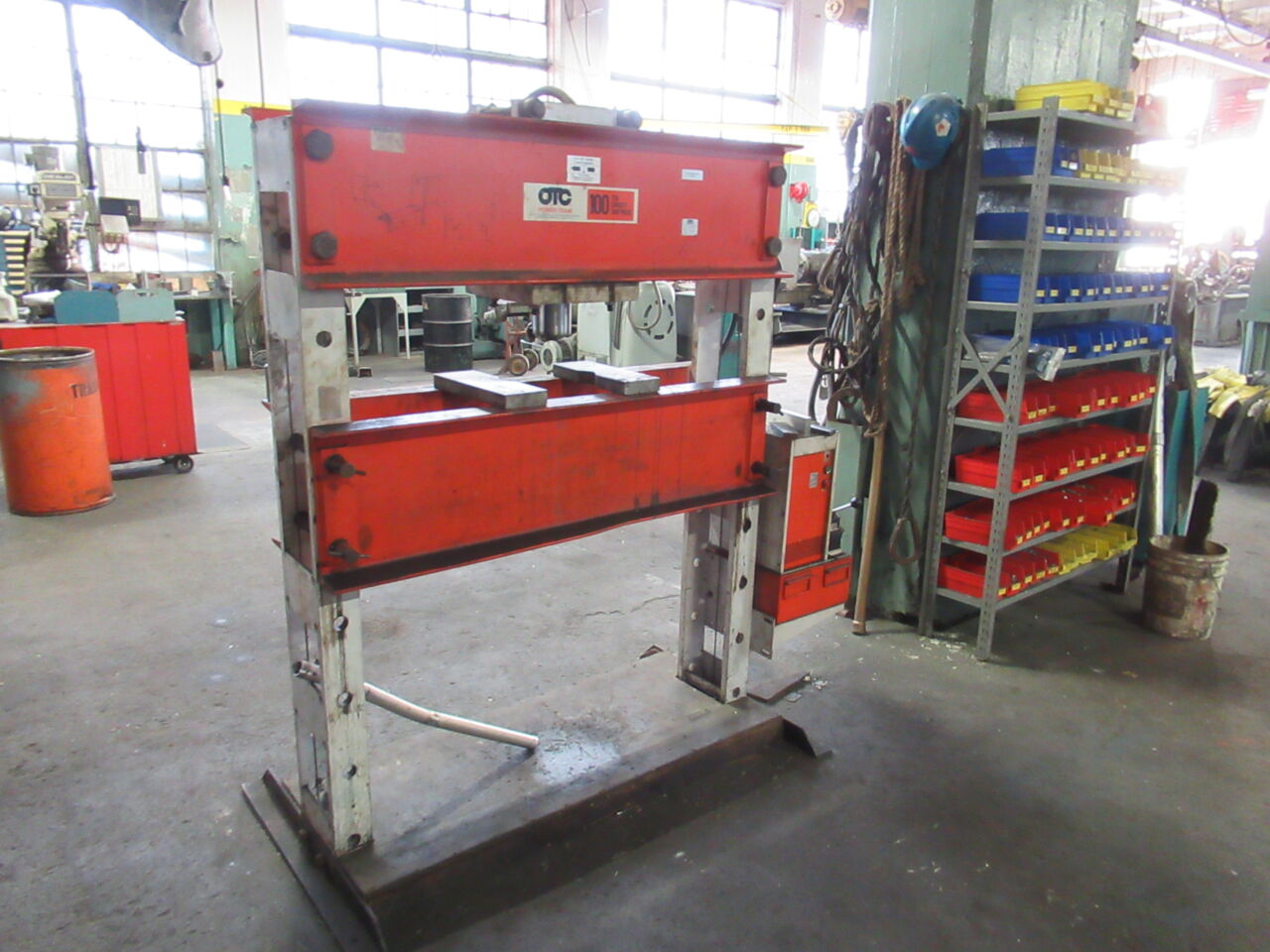

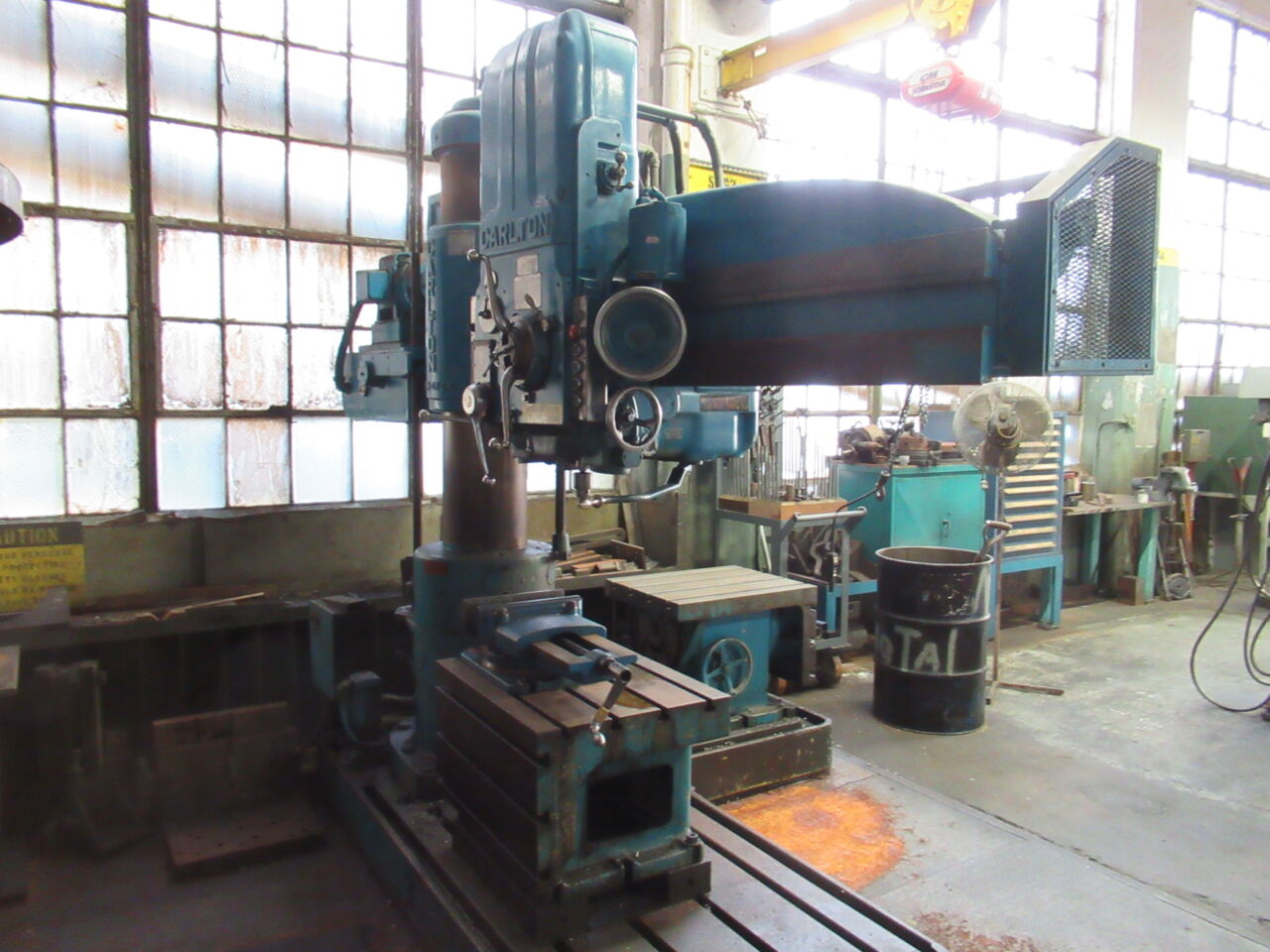

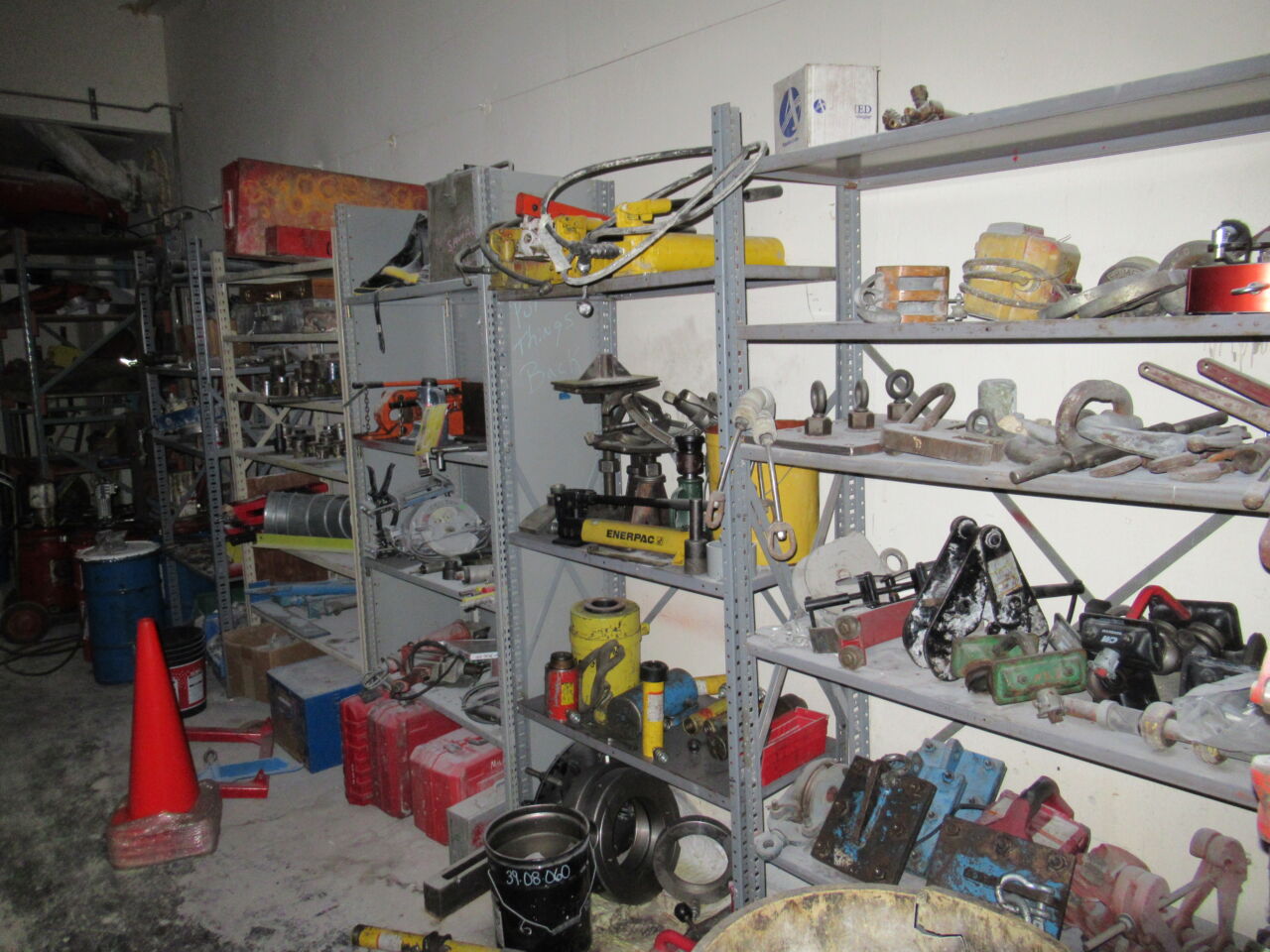

• Machine shop with engine lathes, radial drills, grinders, hyd. presses, welders
• Electrical & pipe shops with pipe threaders, bearing heaters, portable transformers

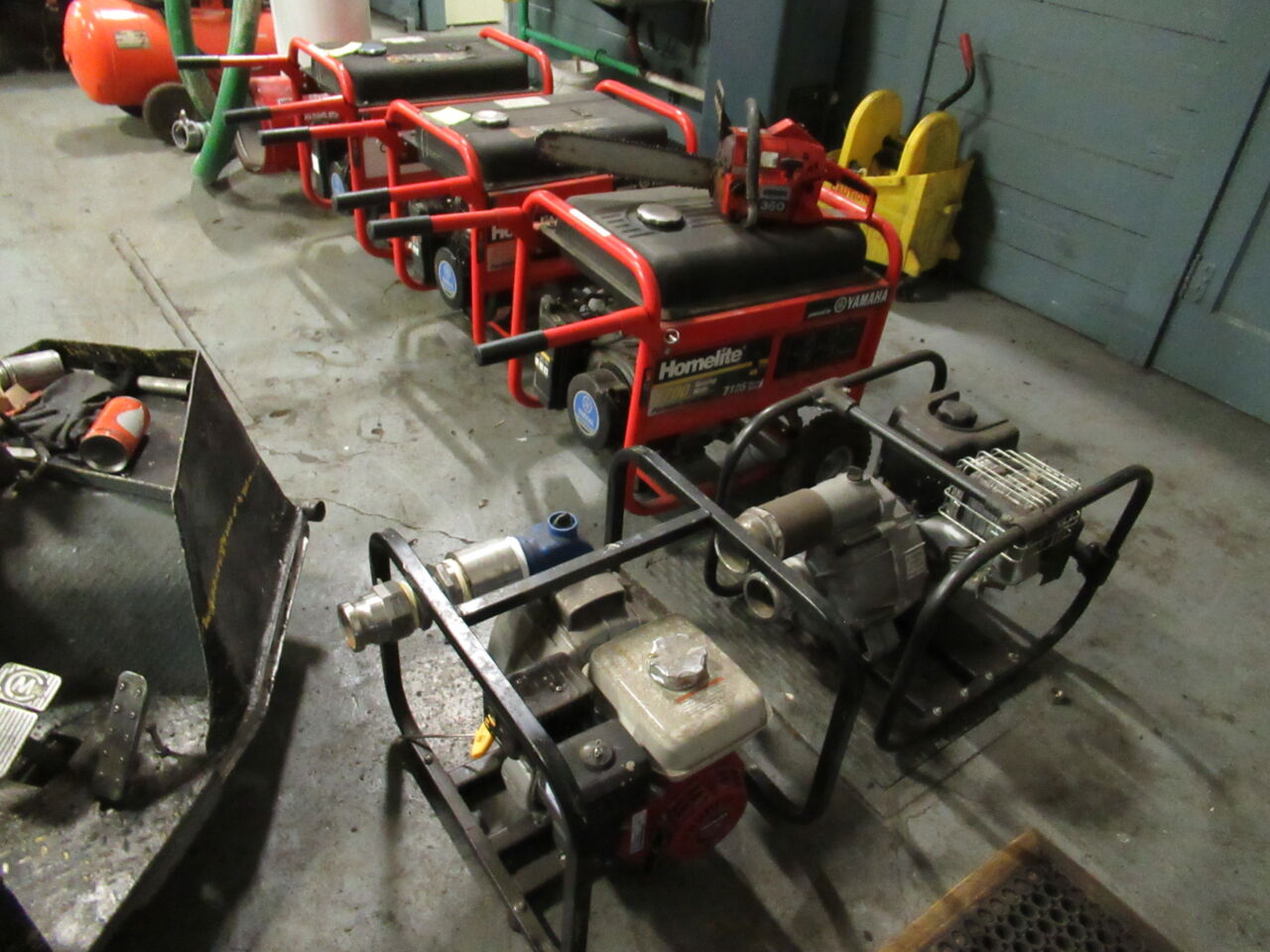

• Forklift repair shop with hydraulic lifts, pressure washers, portable generators
• Carpenter ship with planers, table and cutoff saws, grinders, drills and materials

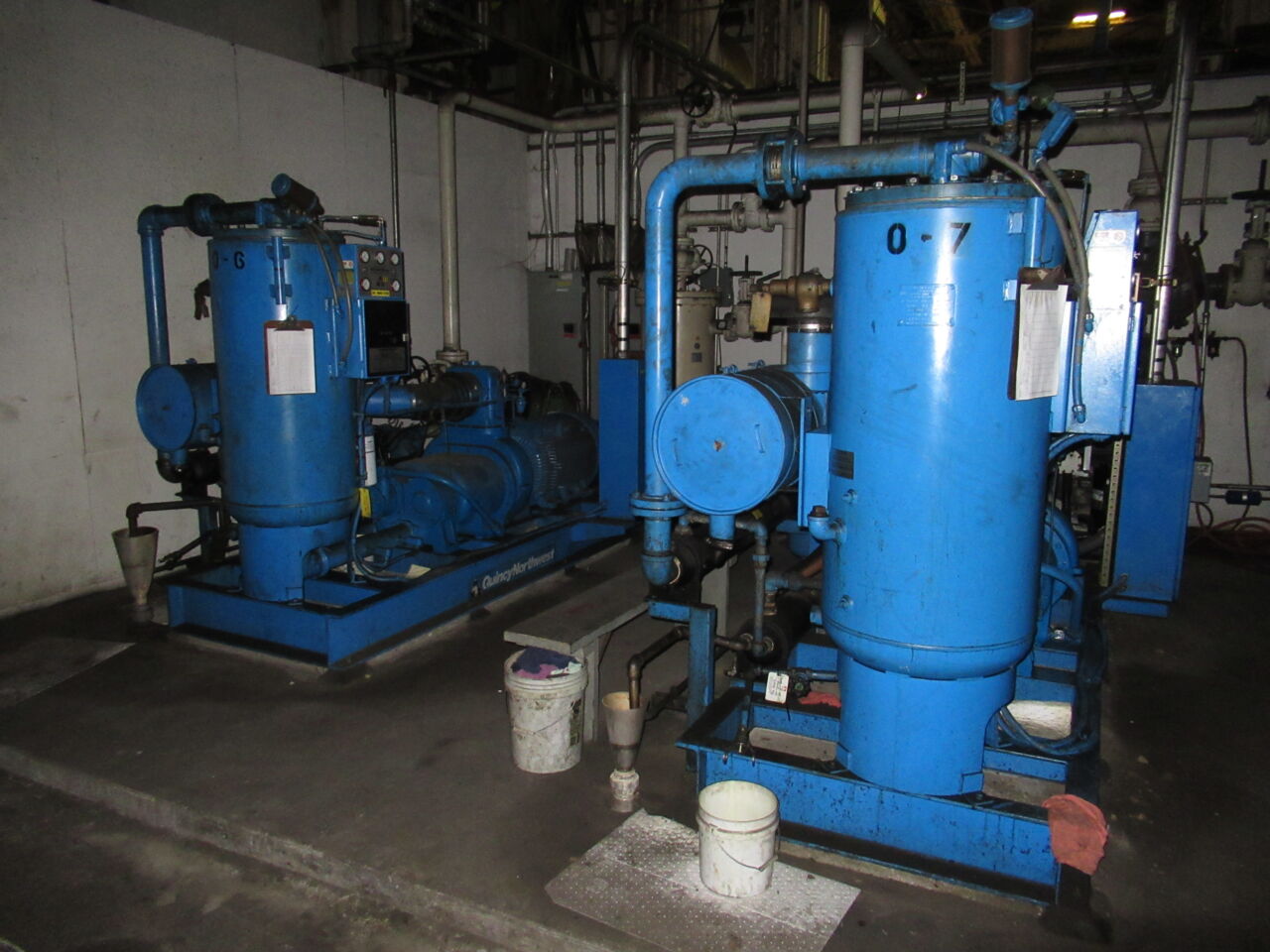

• Plant wide air compressors featuring Quincy Northwest rotary screw compressors

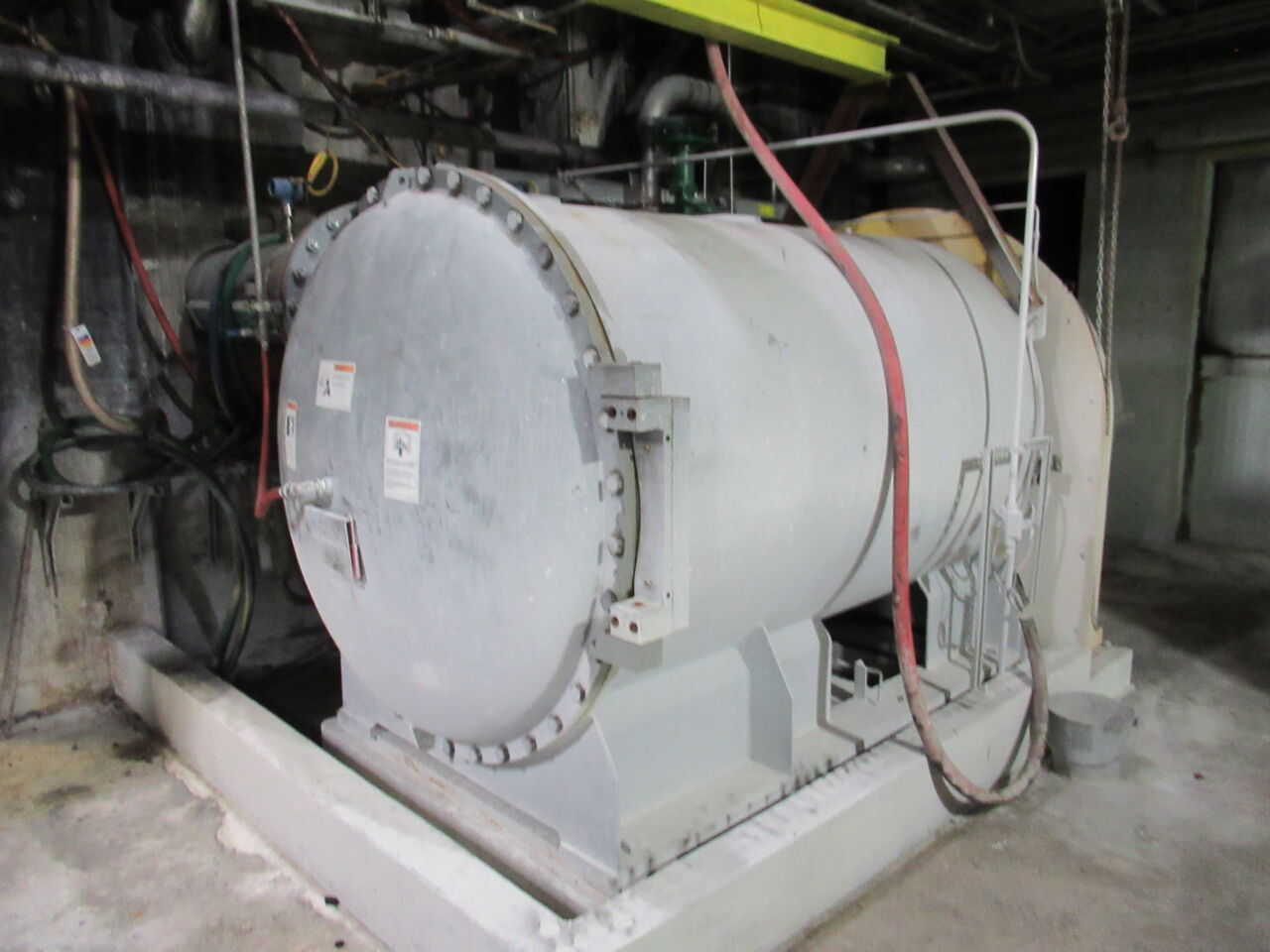

• Entire power house with package boilers, deareators, feed pumps & heat exchangers
• Large array of paper machine motor control rooms with MCC’s, VFD’s, & transformers

Forklifts, Mobile Equipment + Barge

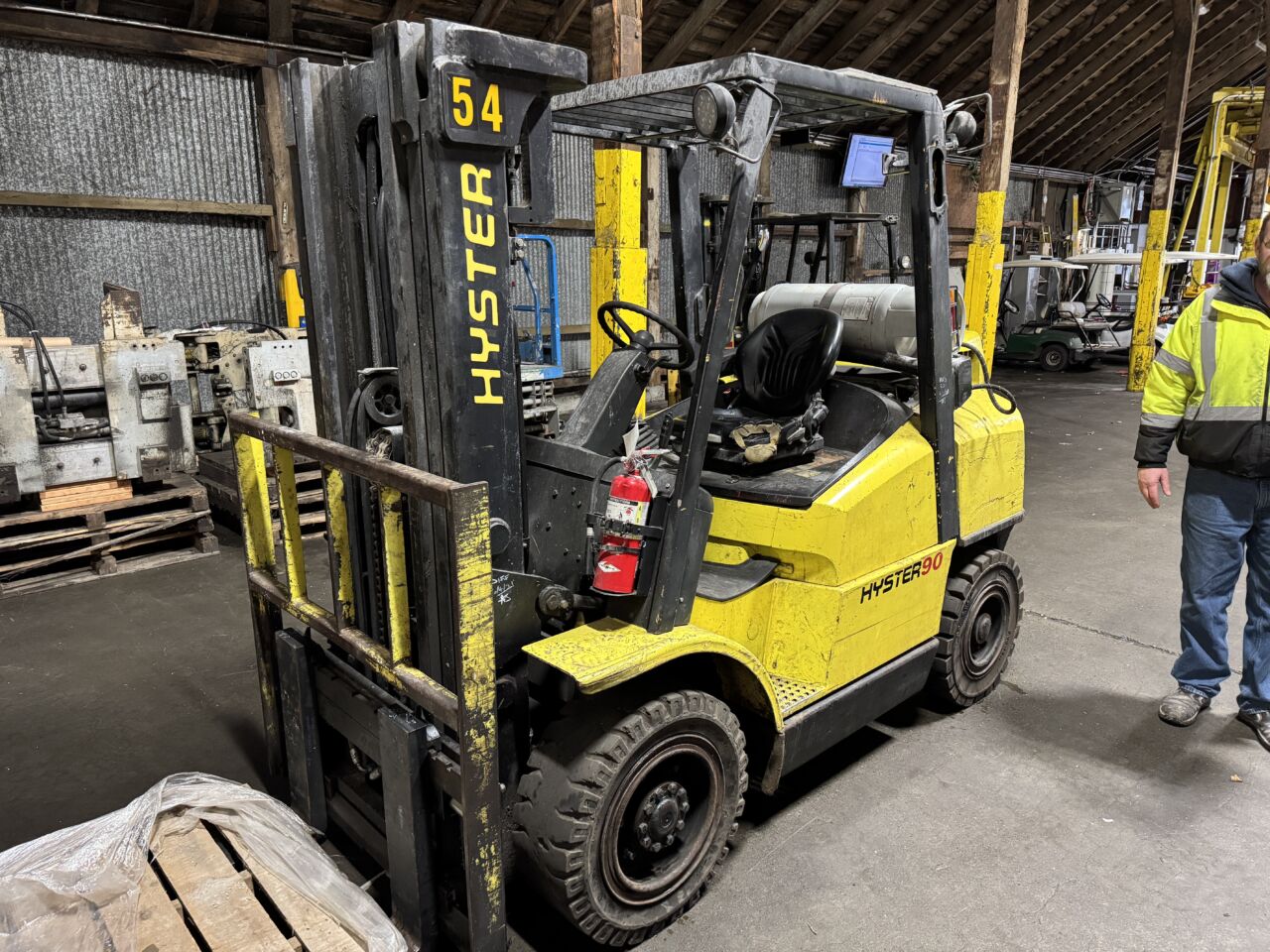

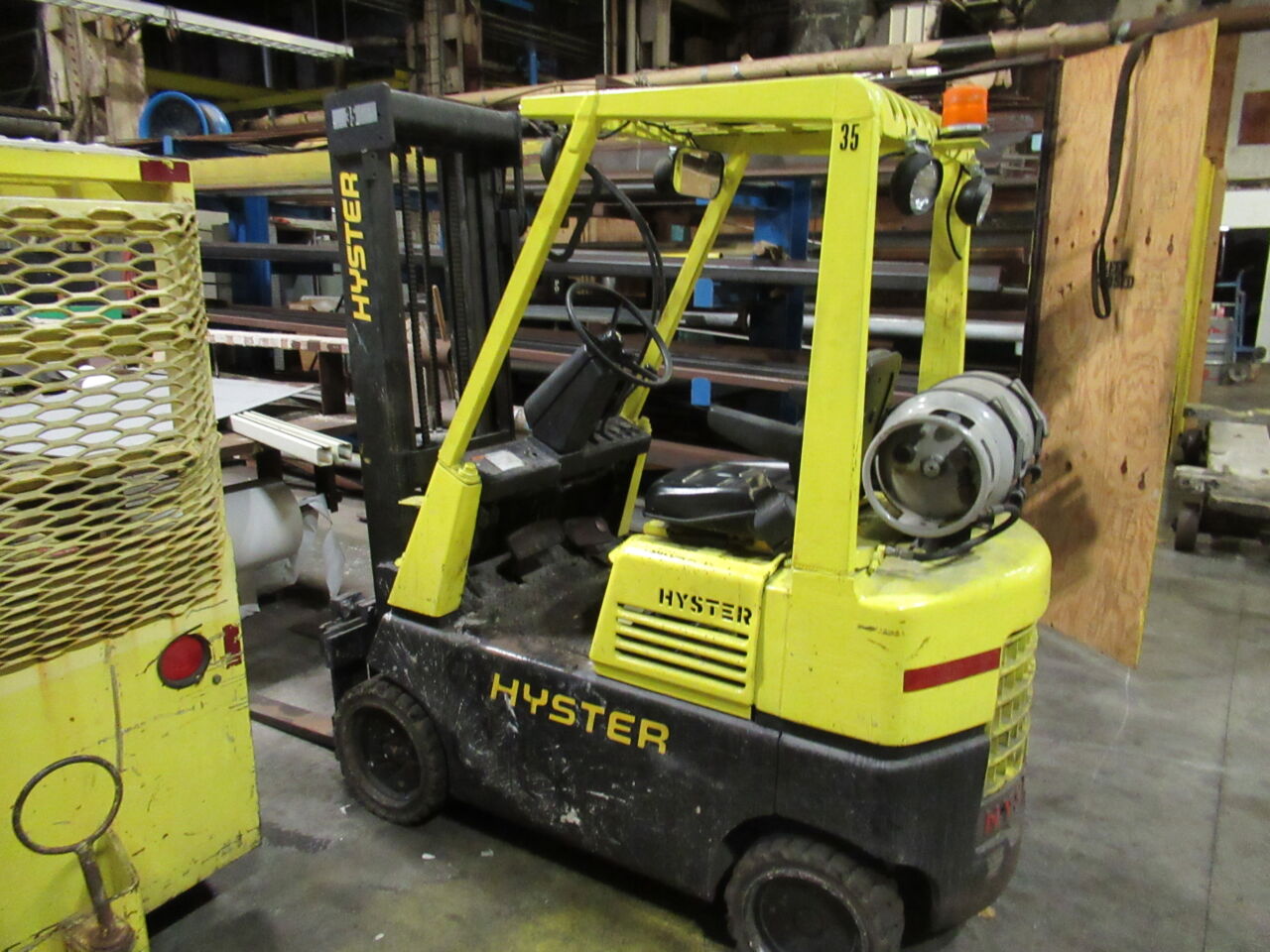

• Hyster 5500 lb. to 8400 lb. cap. LP forklifts, models S-80XM and H-90XMS

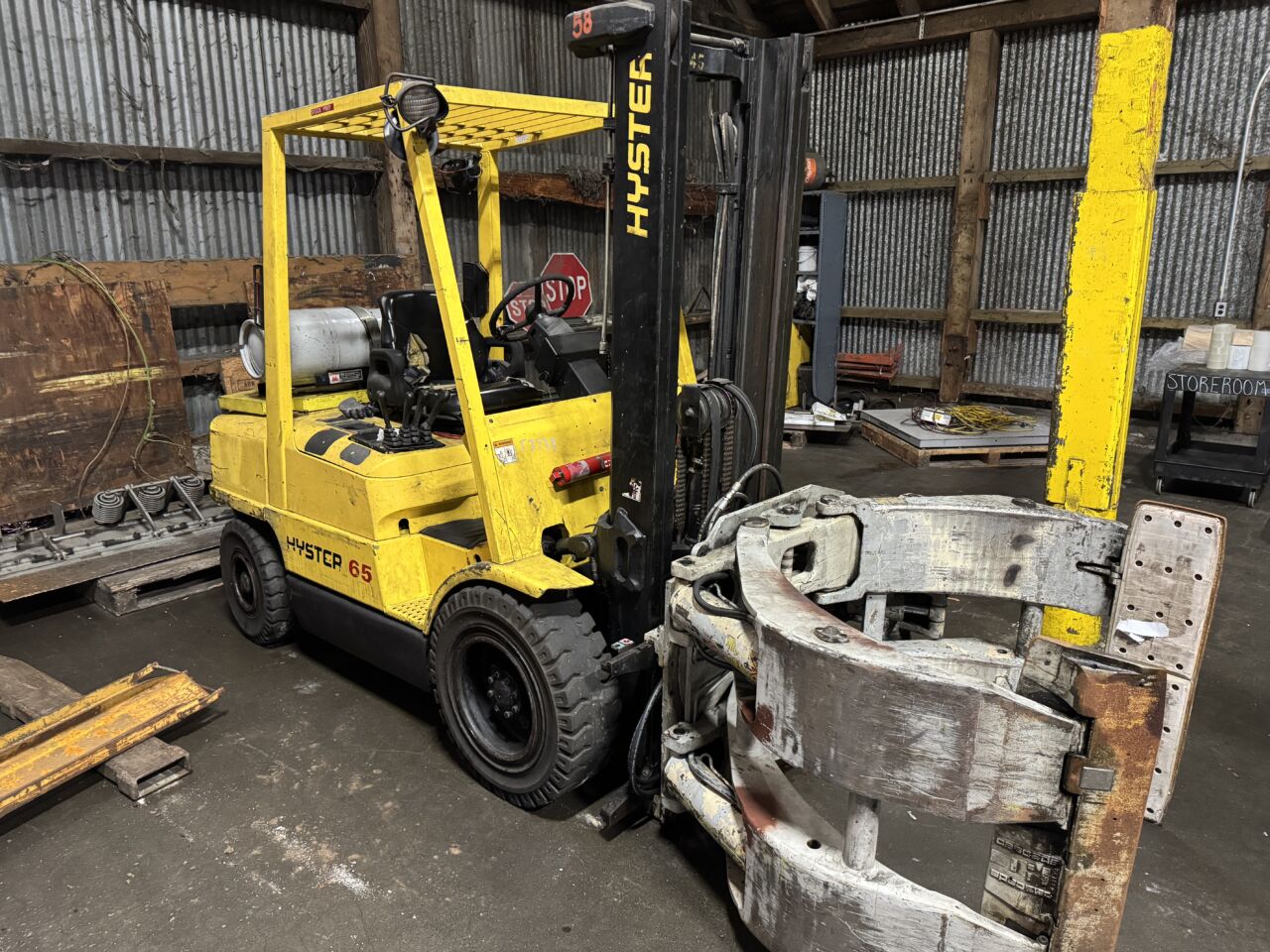

• Hyster 5000 lb. to 6600 lb. cap. LP forklifts, models H-65XM and S-70FT

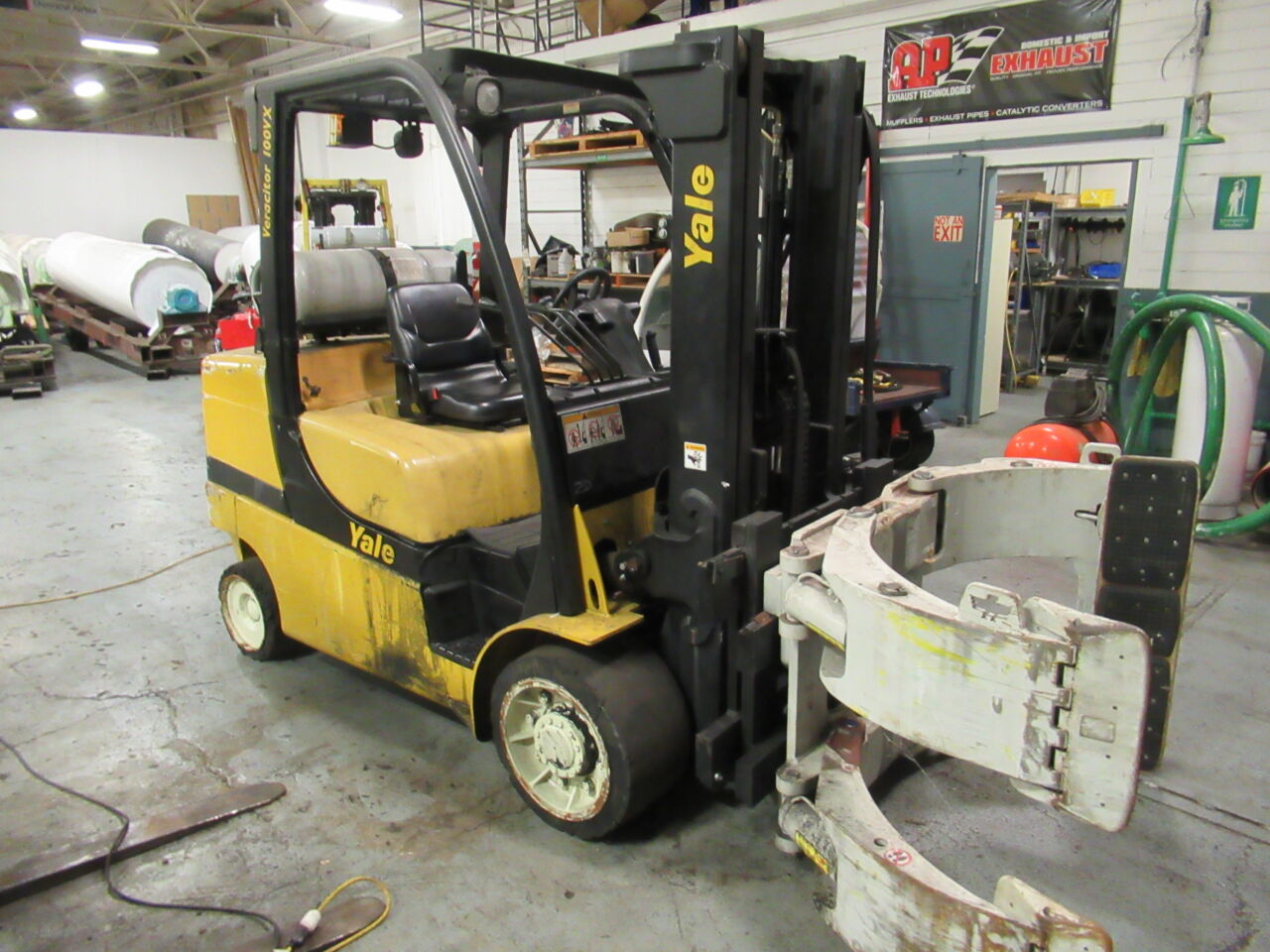

• Yale 10,400 lb. cap LP forklift, model GLC-100 with Cascade bail attachment

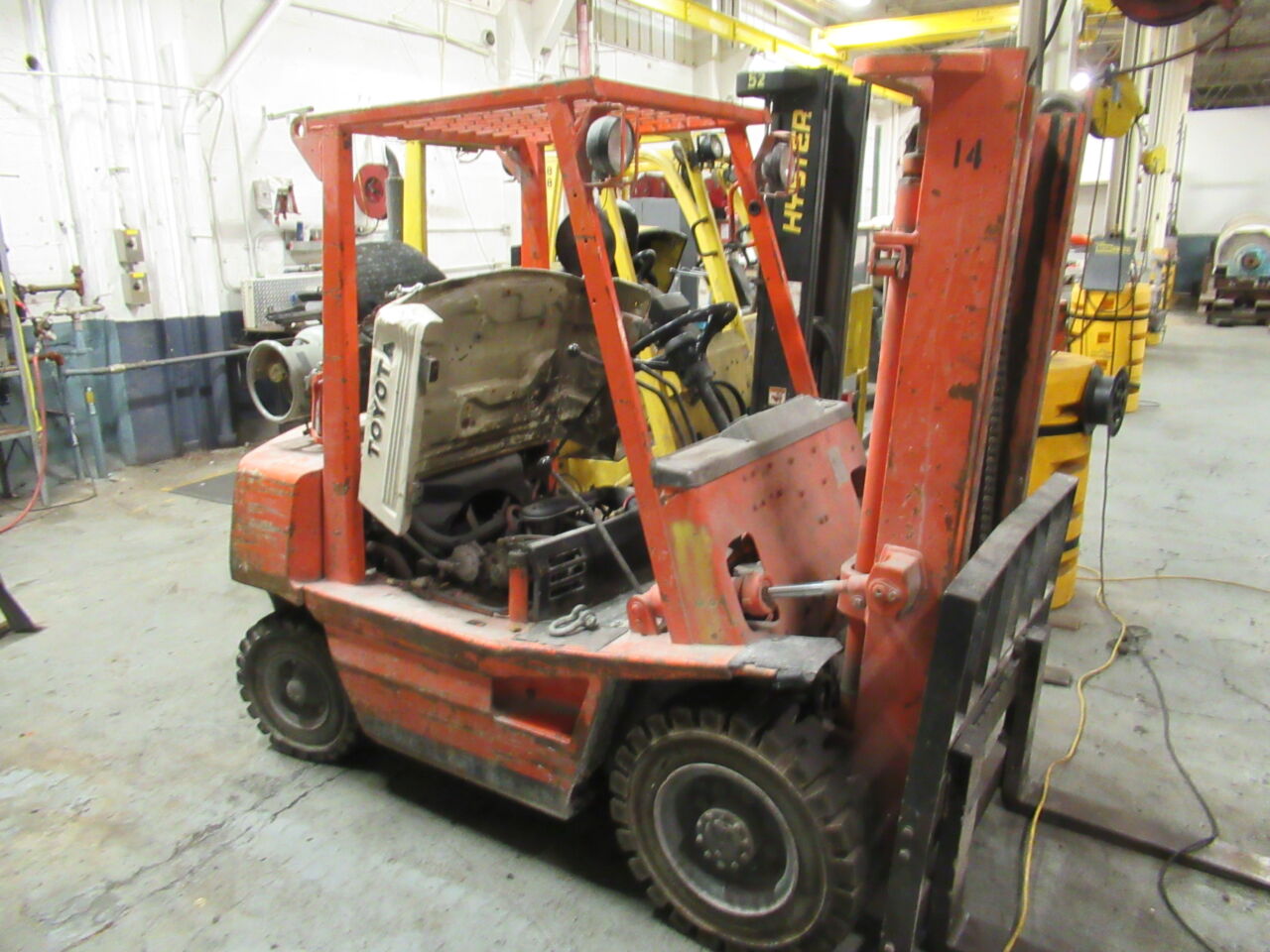

• Hyster & Toyota 3300 lb. to 4000 lb. LP forklifts, models S-40E and 4FGL26

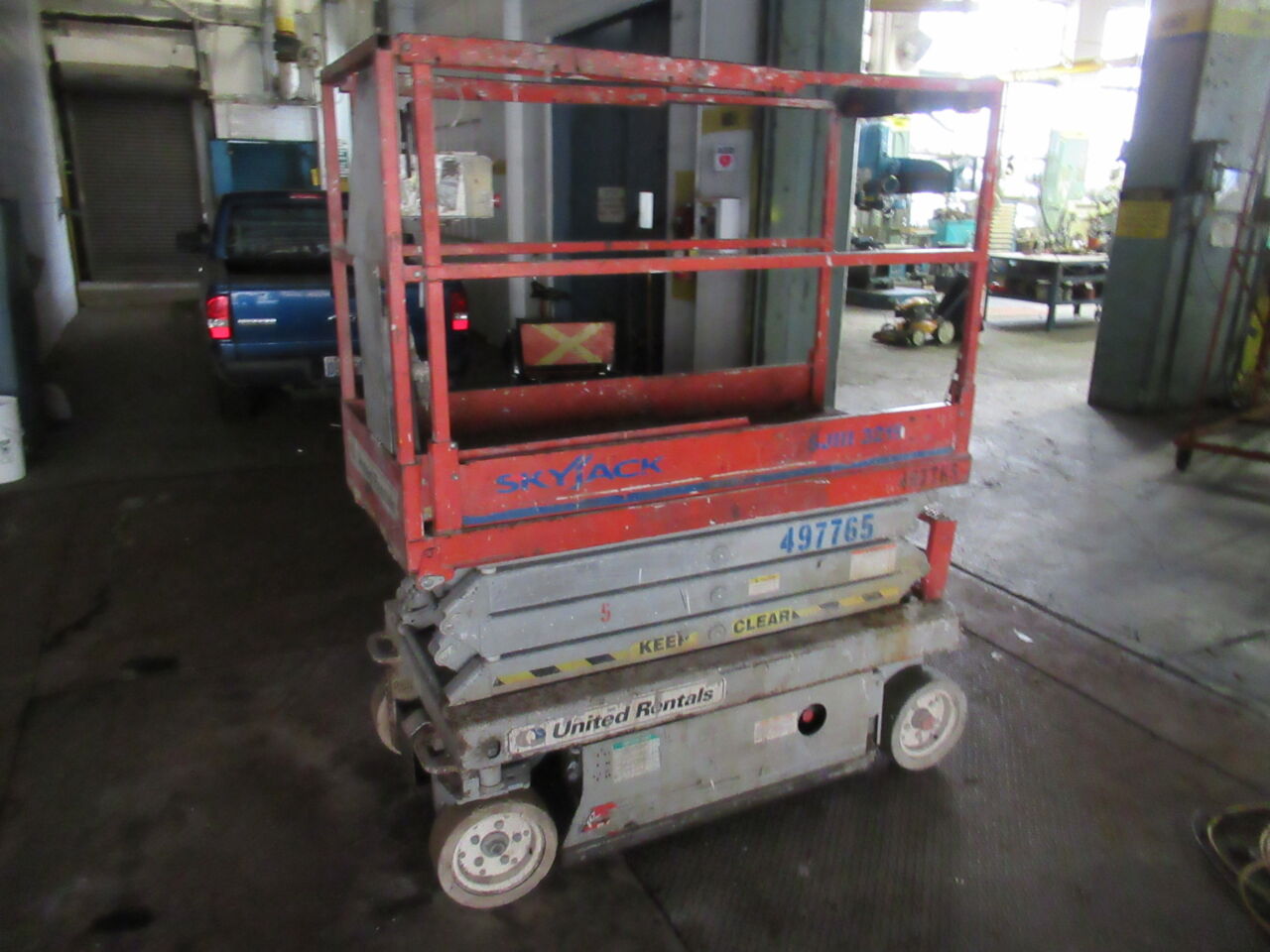

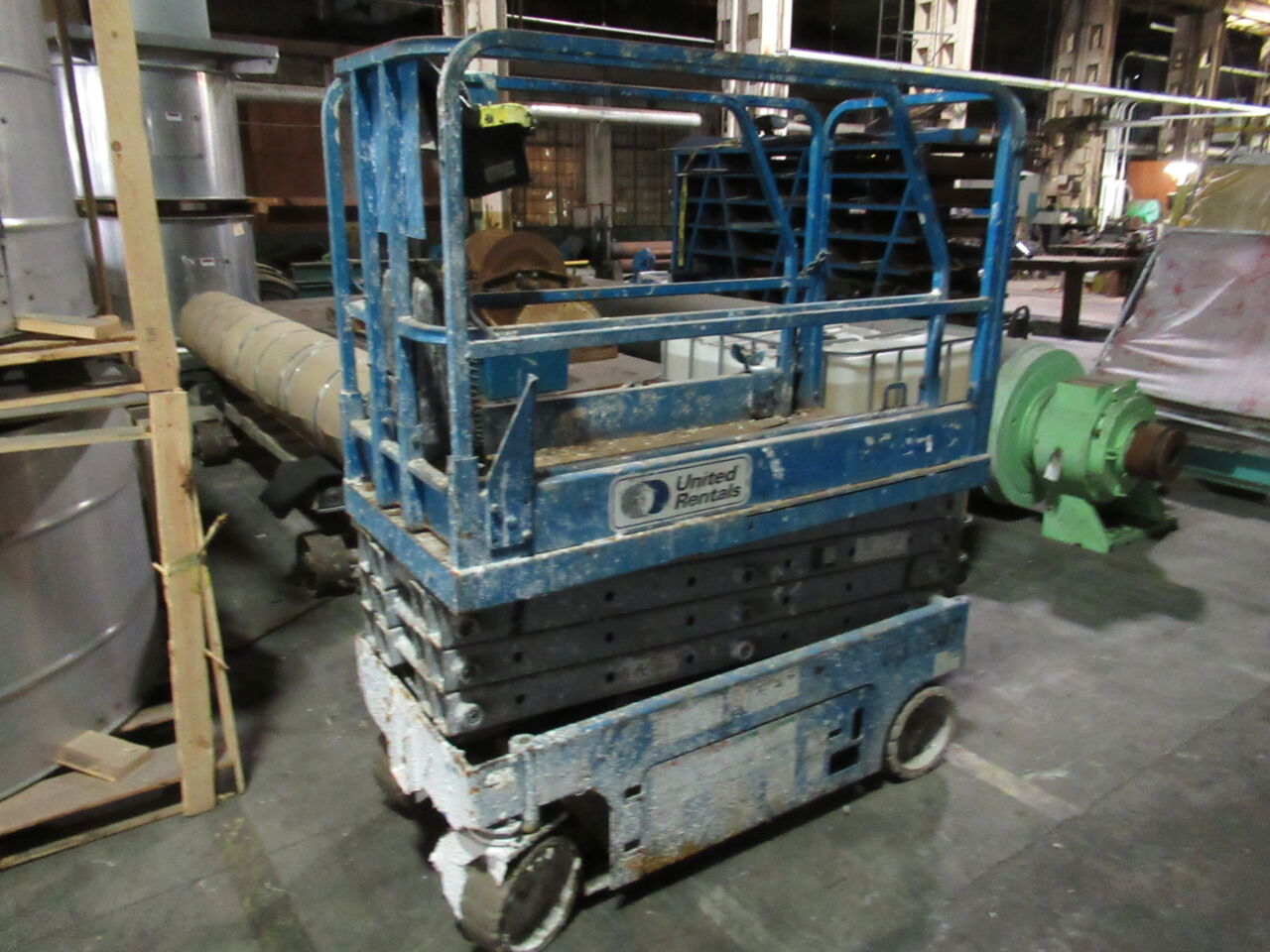

• Genie and Sky Jack electric scissor lifts, models GS-1930 and SJIII-3219

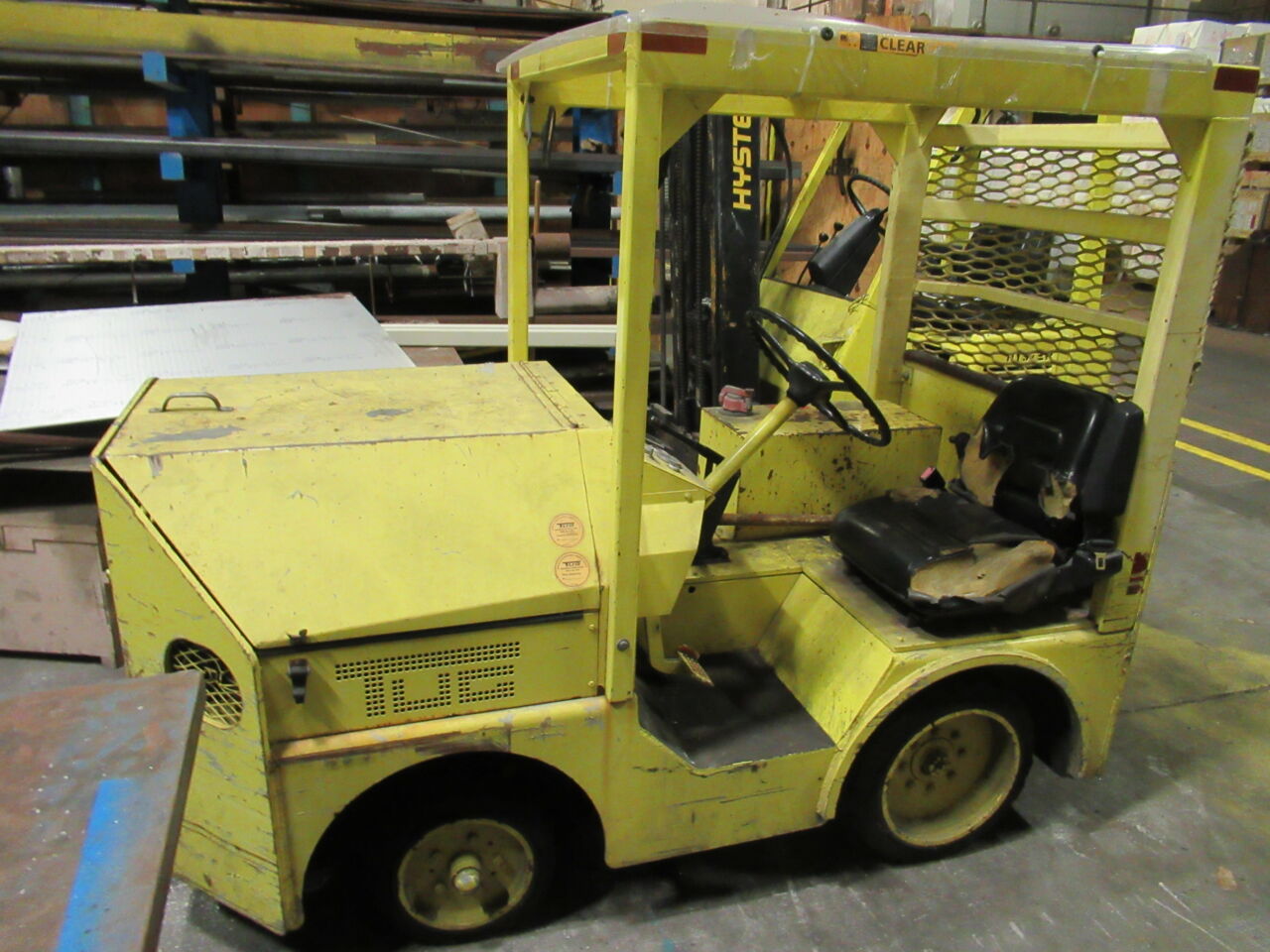

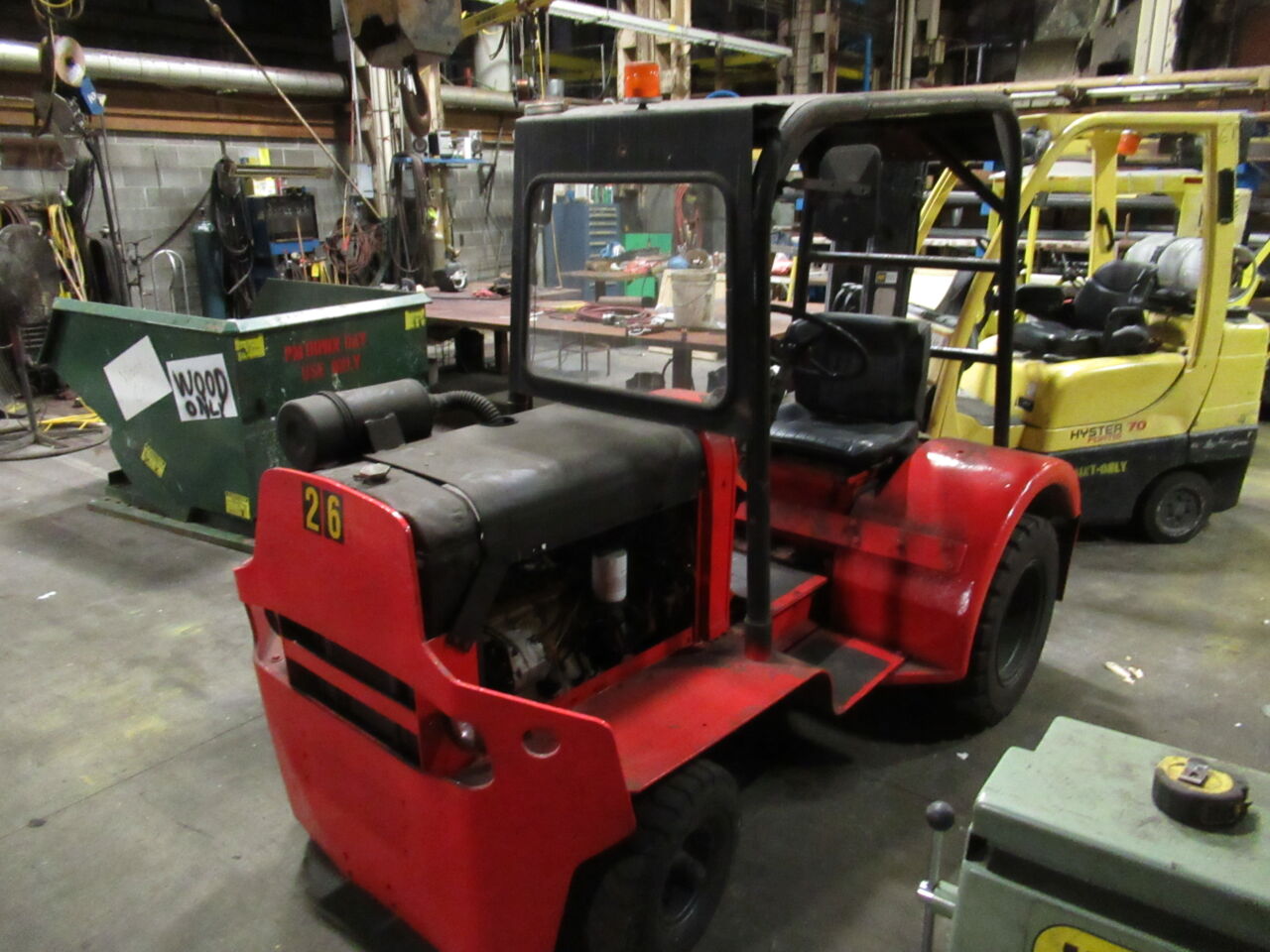

• Clark & Tug two tractors, 4000 lb. cap. diesel & 3000 lb. cap. LP respectively

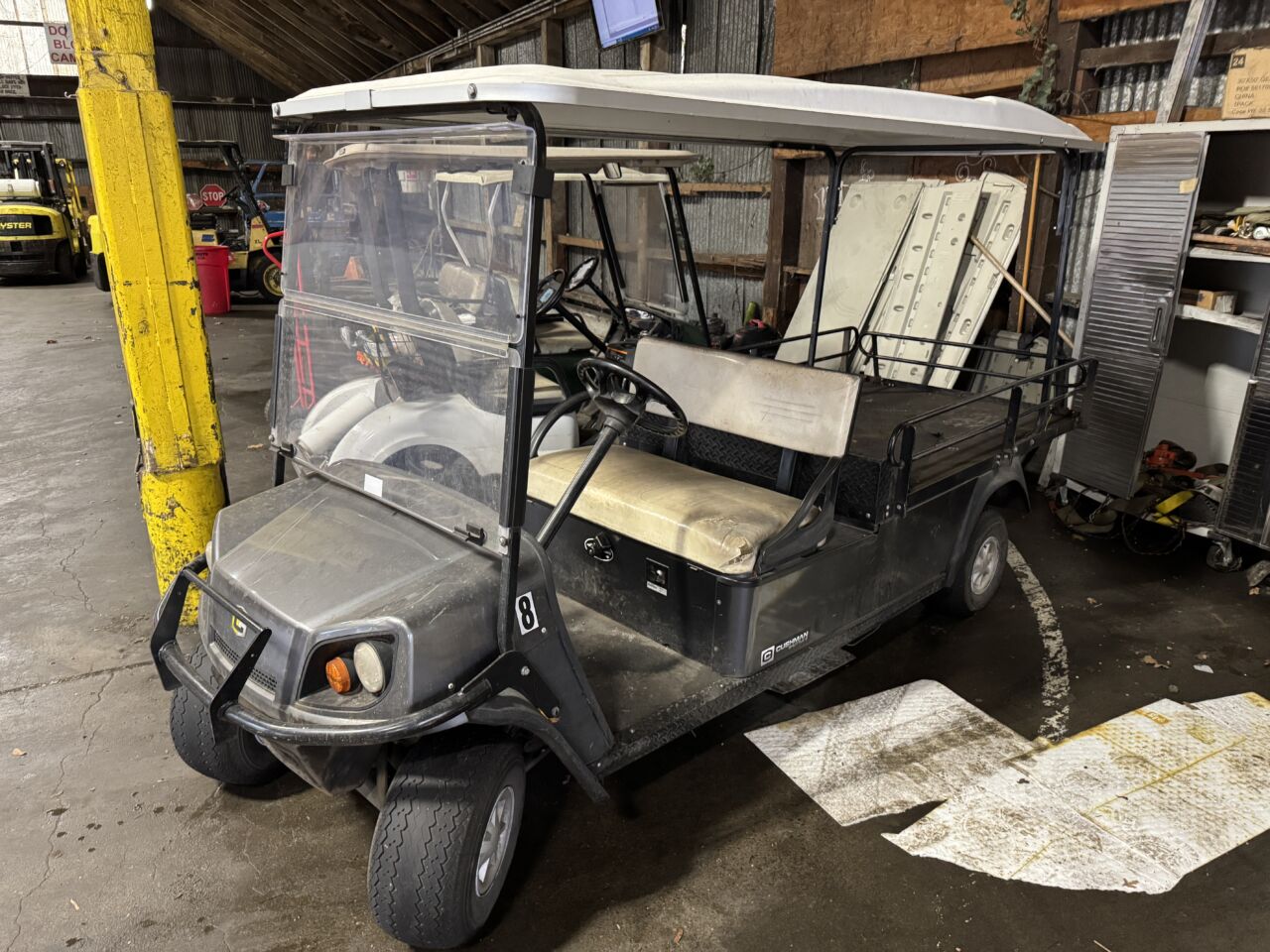

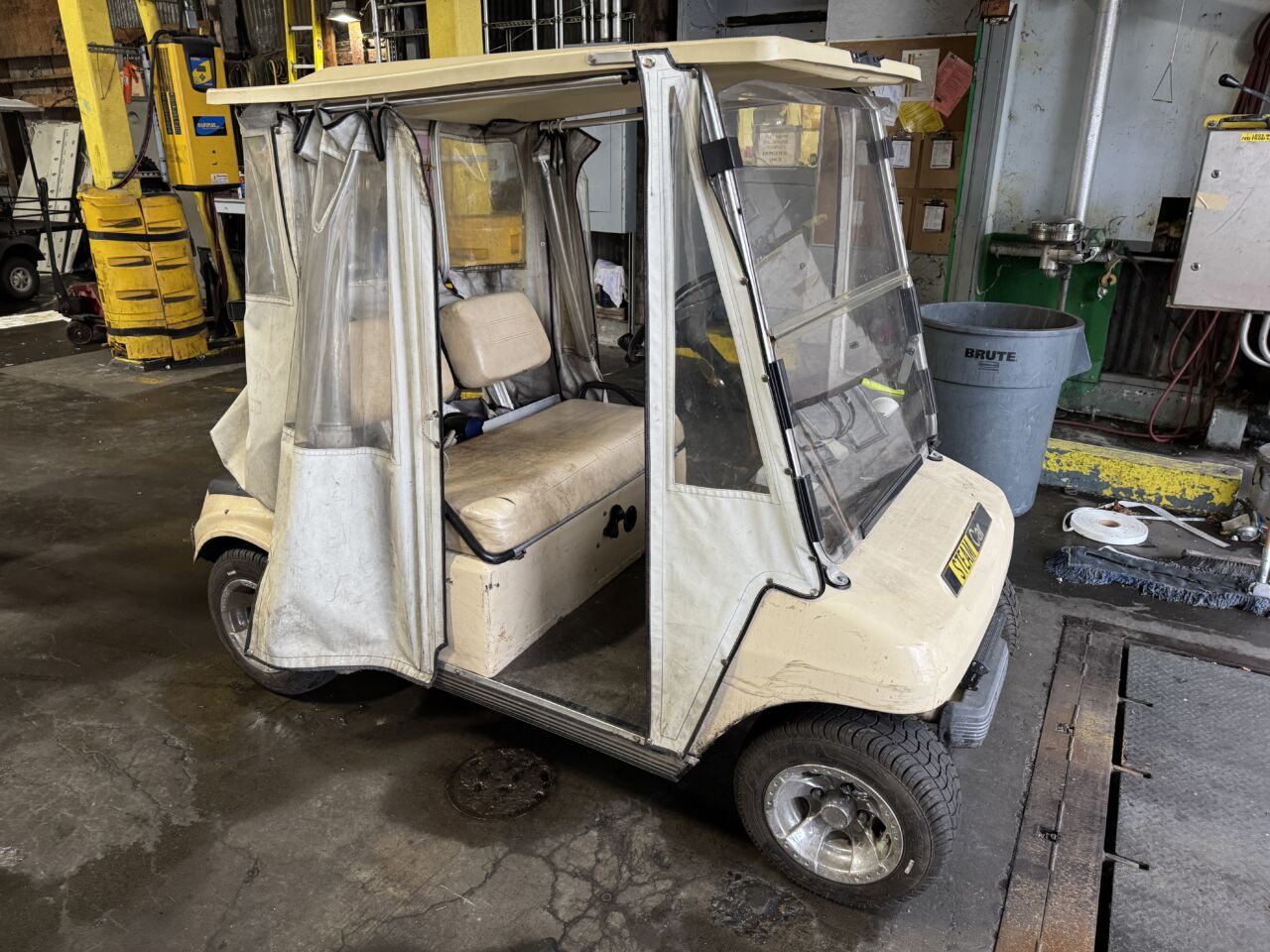

• Fleet of EZ-GO, Club Car, Yamaha, & Cushman golf style and Utility carts

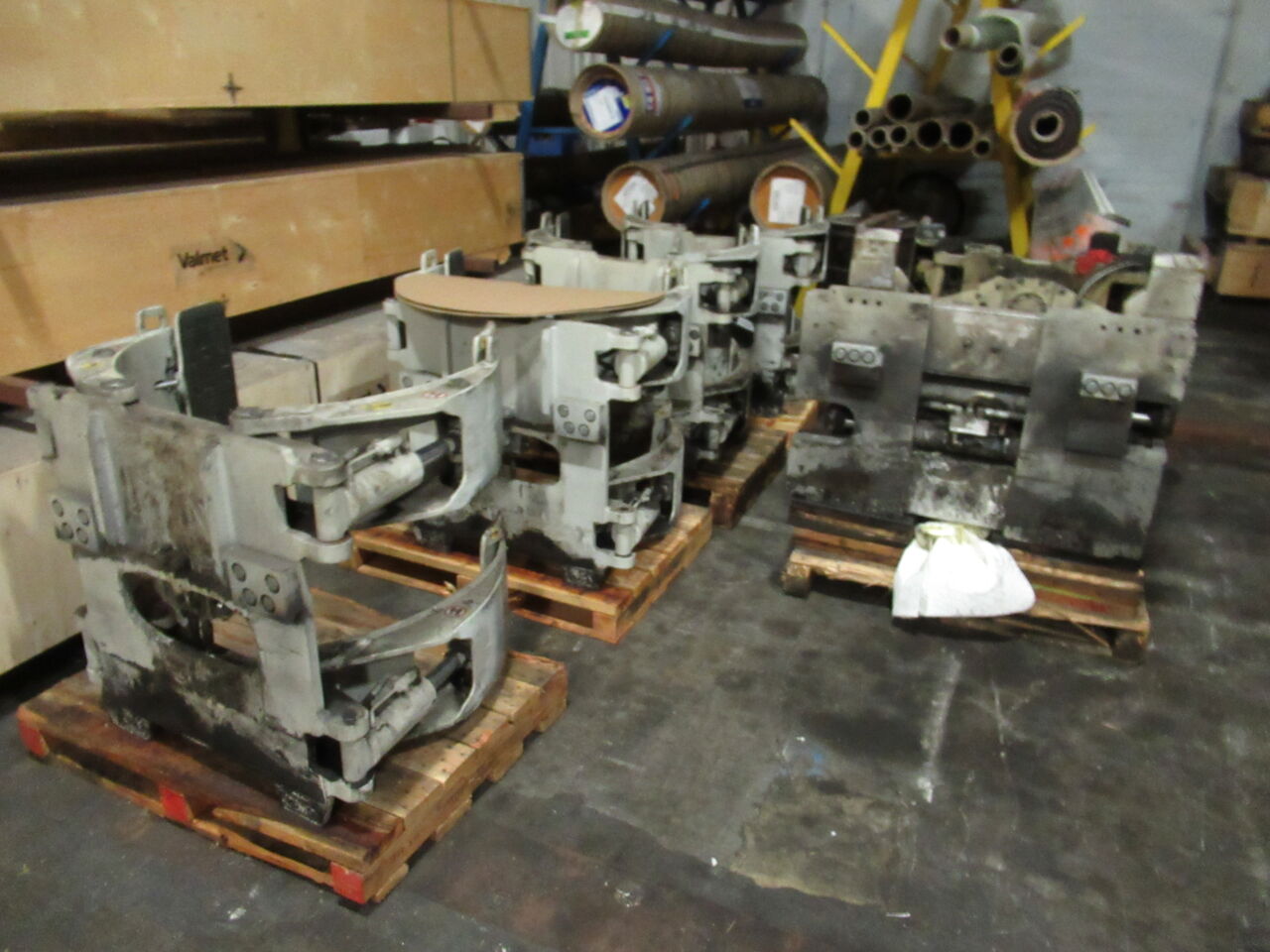

• Wide assortment of Cascade roll clamps & telescoping boom attachments
• Steel hull flat deck barge measuring 120’ long x approximately 30’ wide
