Complete Milling & Processing Facility for Rice, Oats, Cinnamon & Ancient Grains

Heat Treatment and Pasteurization System

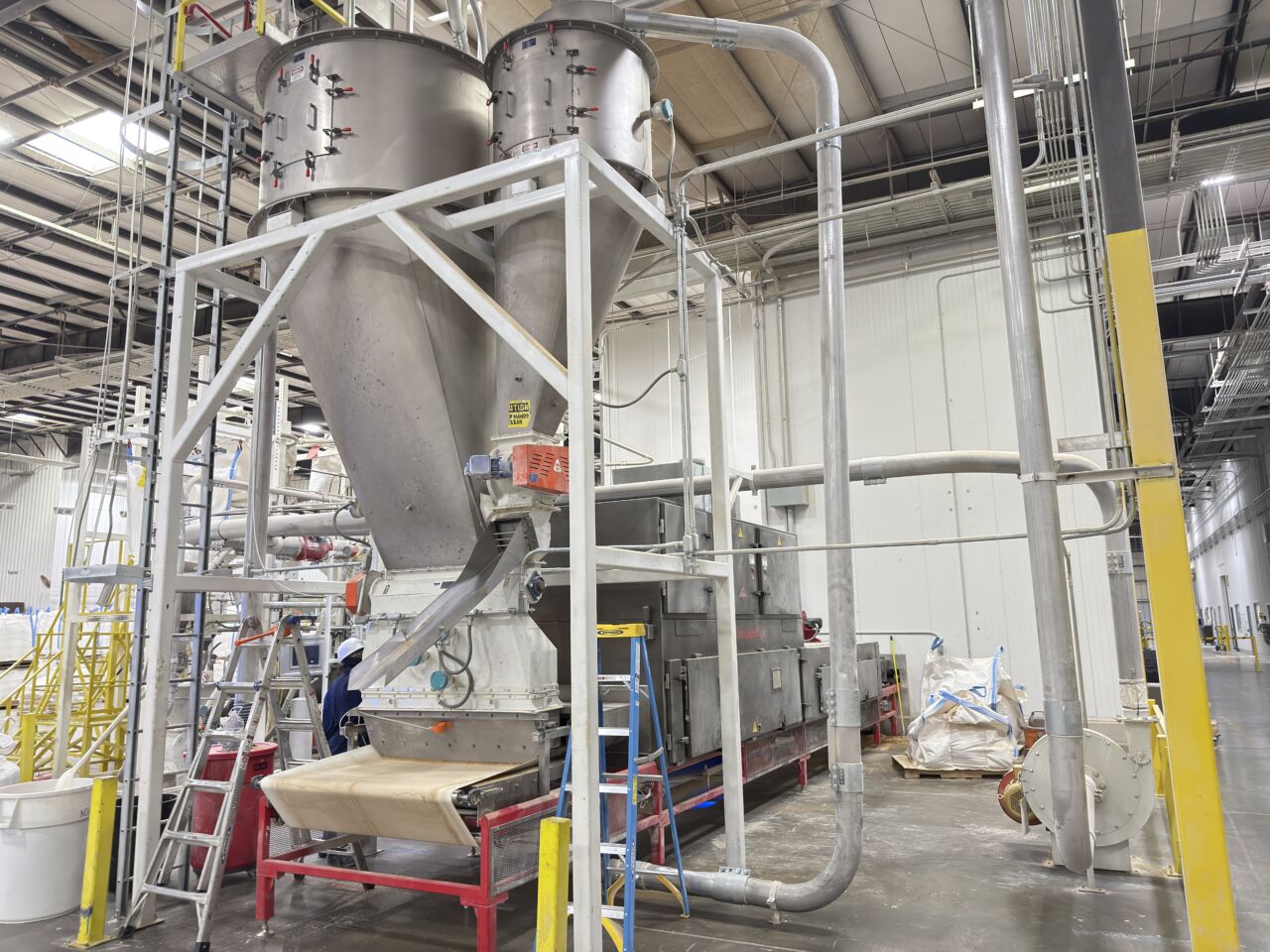

2,500Lbs. To 4,000 Lbs./Hr. Pasteurization System for Bulk Grains, Flours, And Packaged Grains and Seeds. The Line Includes, Supersack Unloader

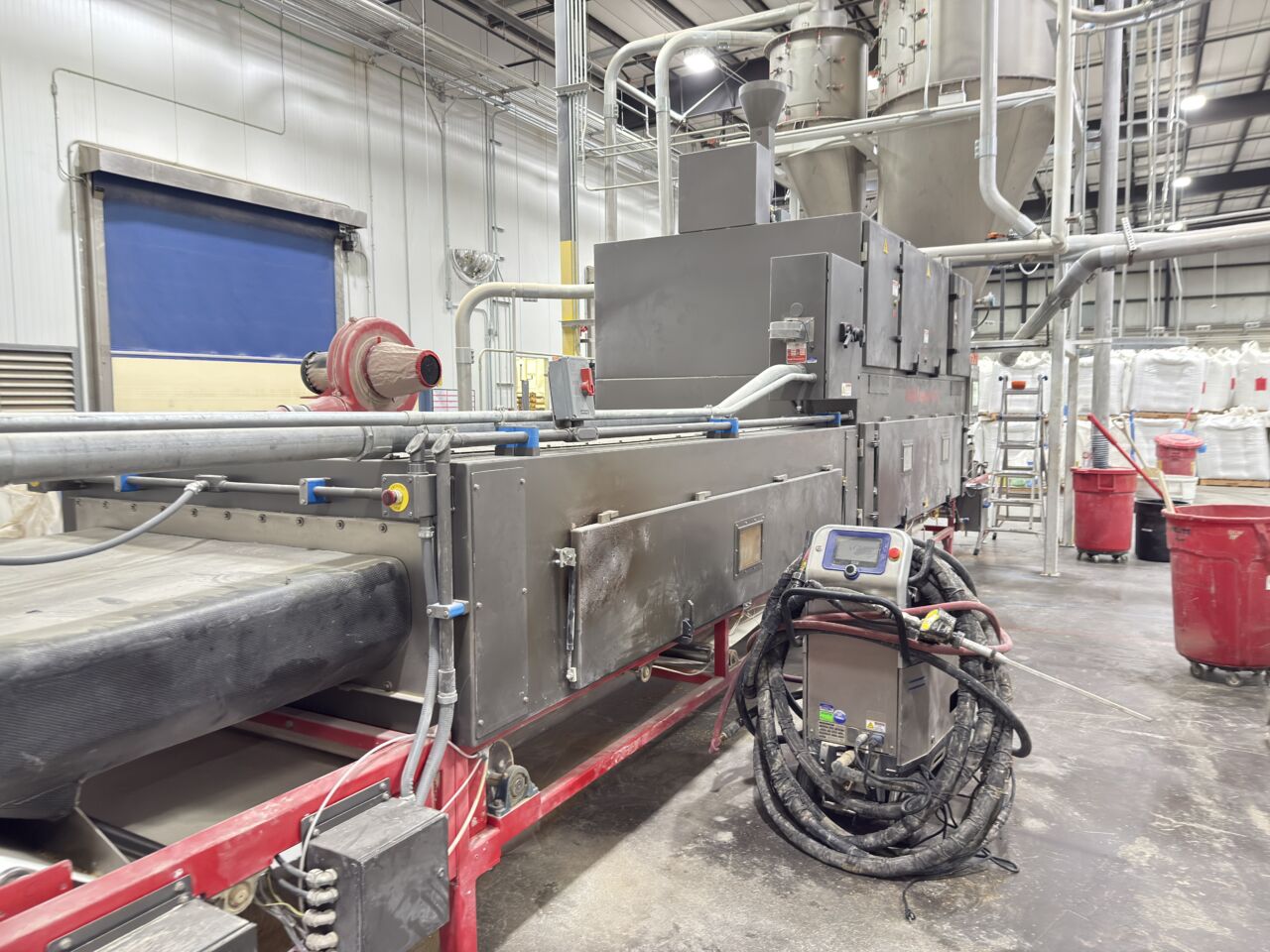

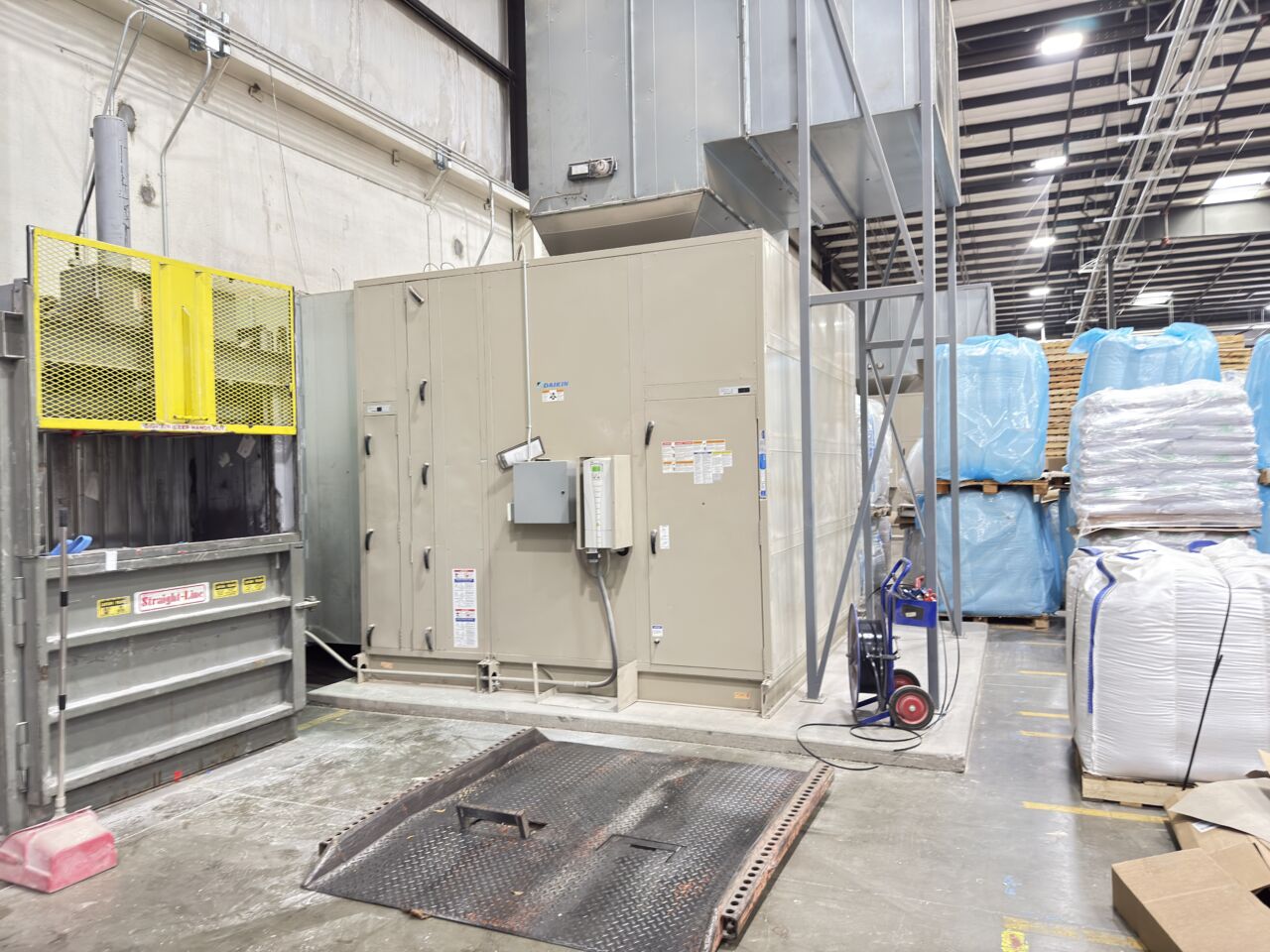

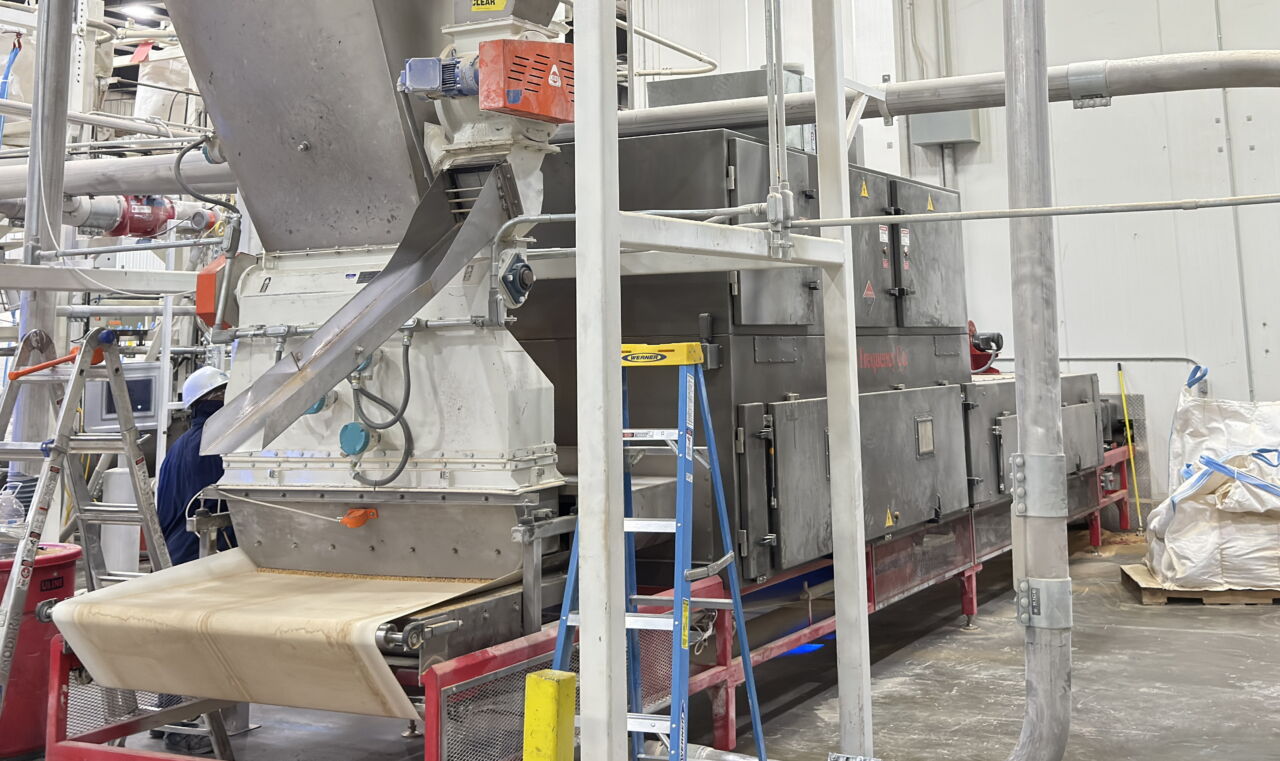

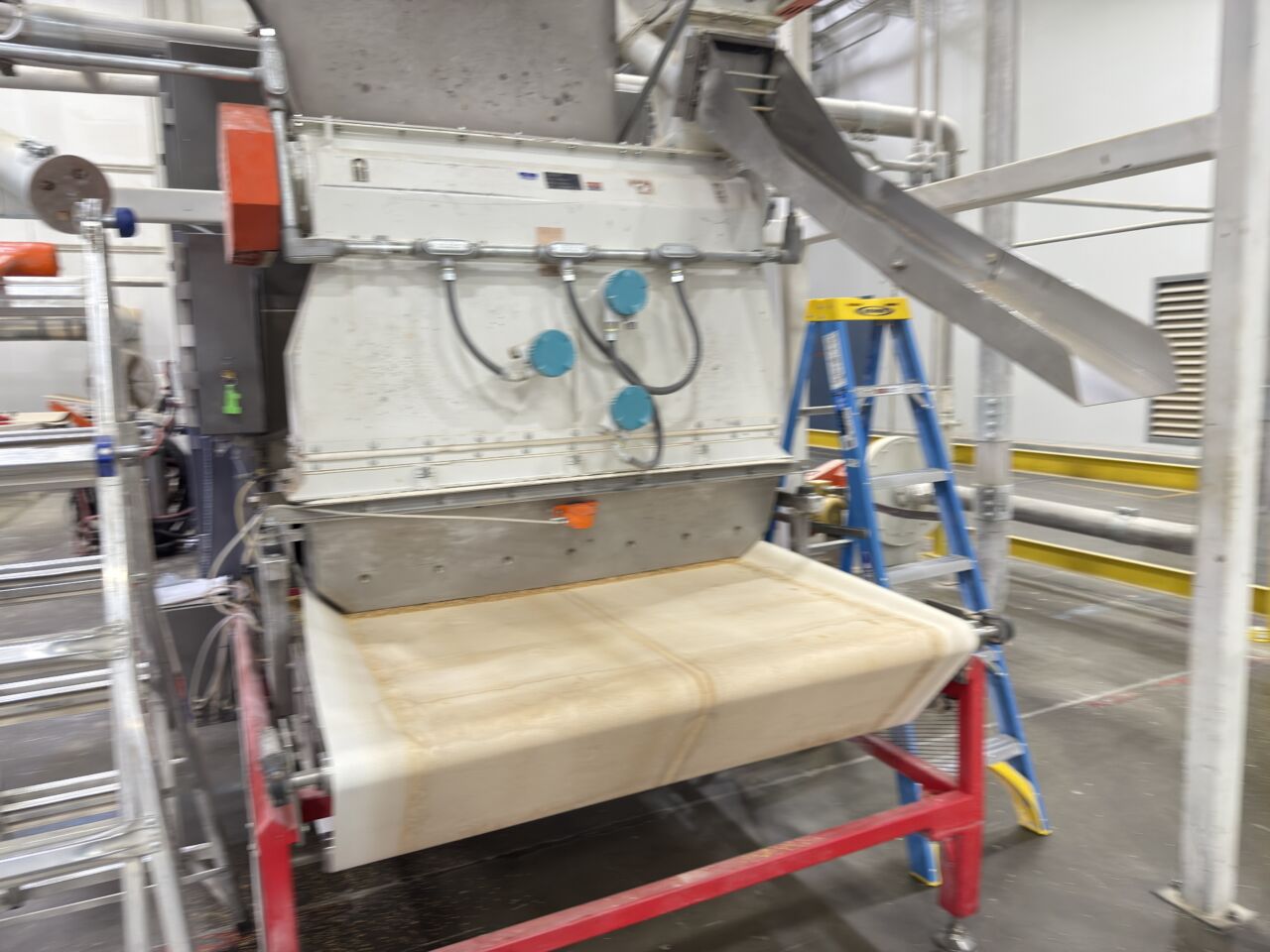

• Radio Frequency Co. Model 7120 120kw Macrowave Dryer/Pasteurizer

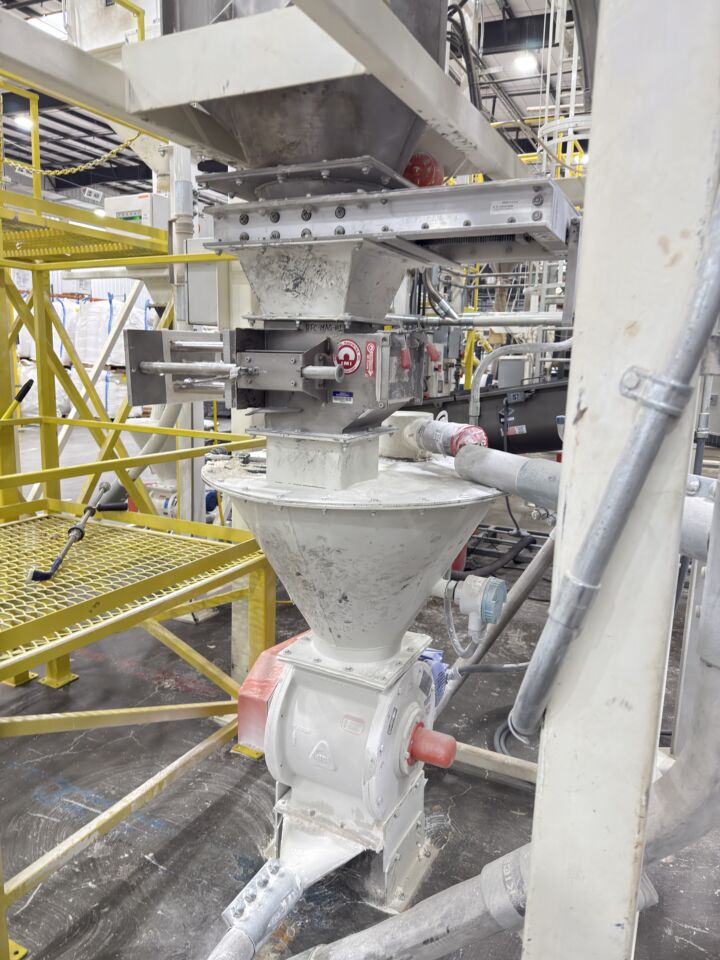

• Supersack Unloading Station with Industrial Magnet Drop-Through Magnets

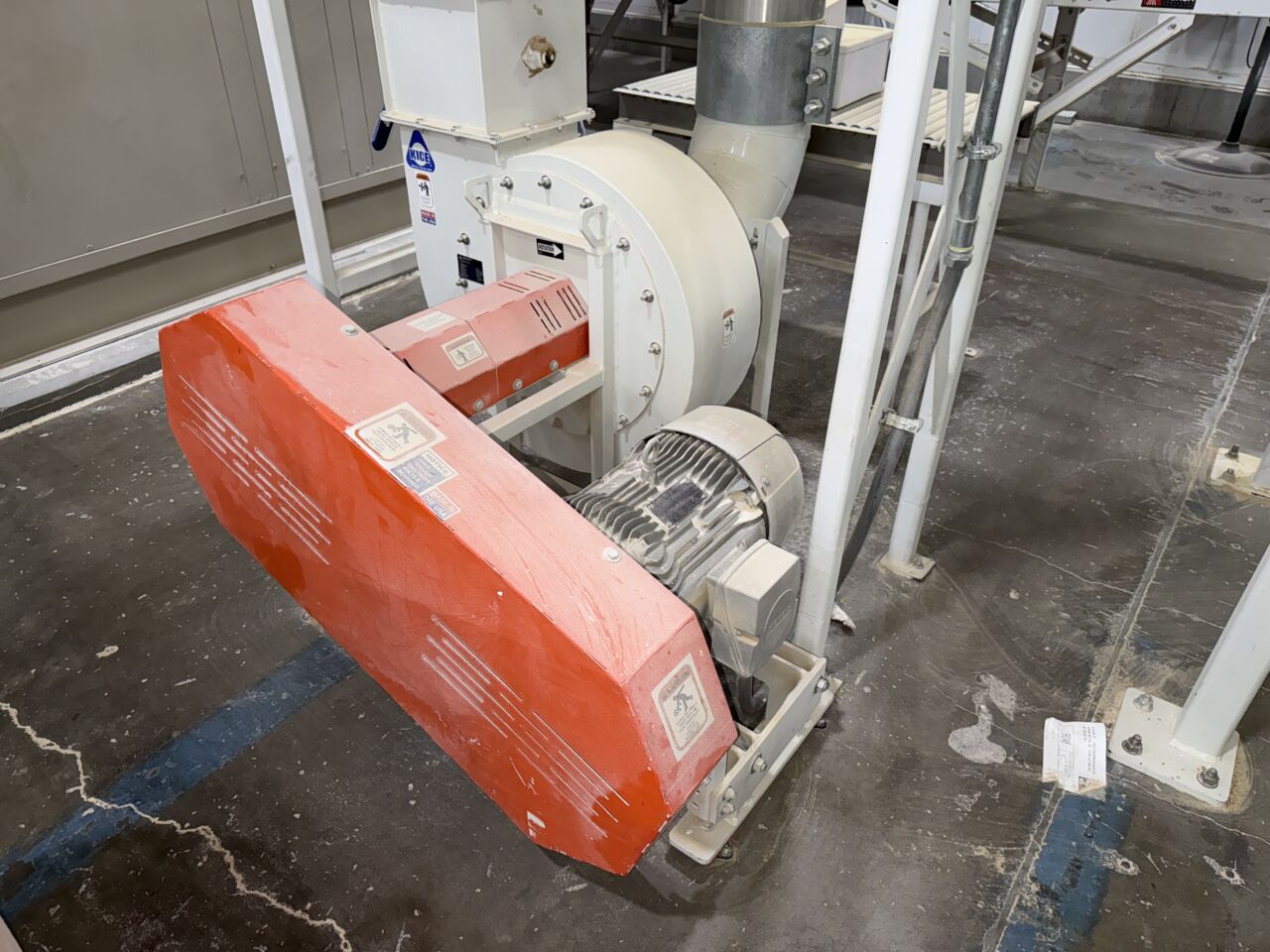

• Kice Cyclone Dust Collector W/ 10hp. Blower, Explosion Protection, Airlocks

Oat Flaking and Milling

2,000 Lbs. To 2,500 Lbs./Hr. Oak Flaking and Milling System, with The Flexibility to Grind, Flake, and Package into Multi-Wall Kraft Bags or Bulk into Supersacks.

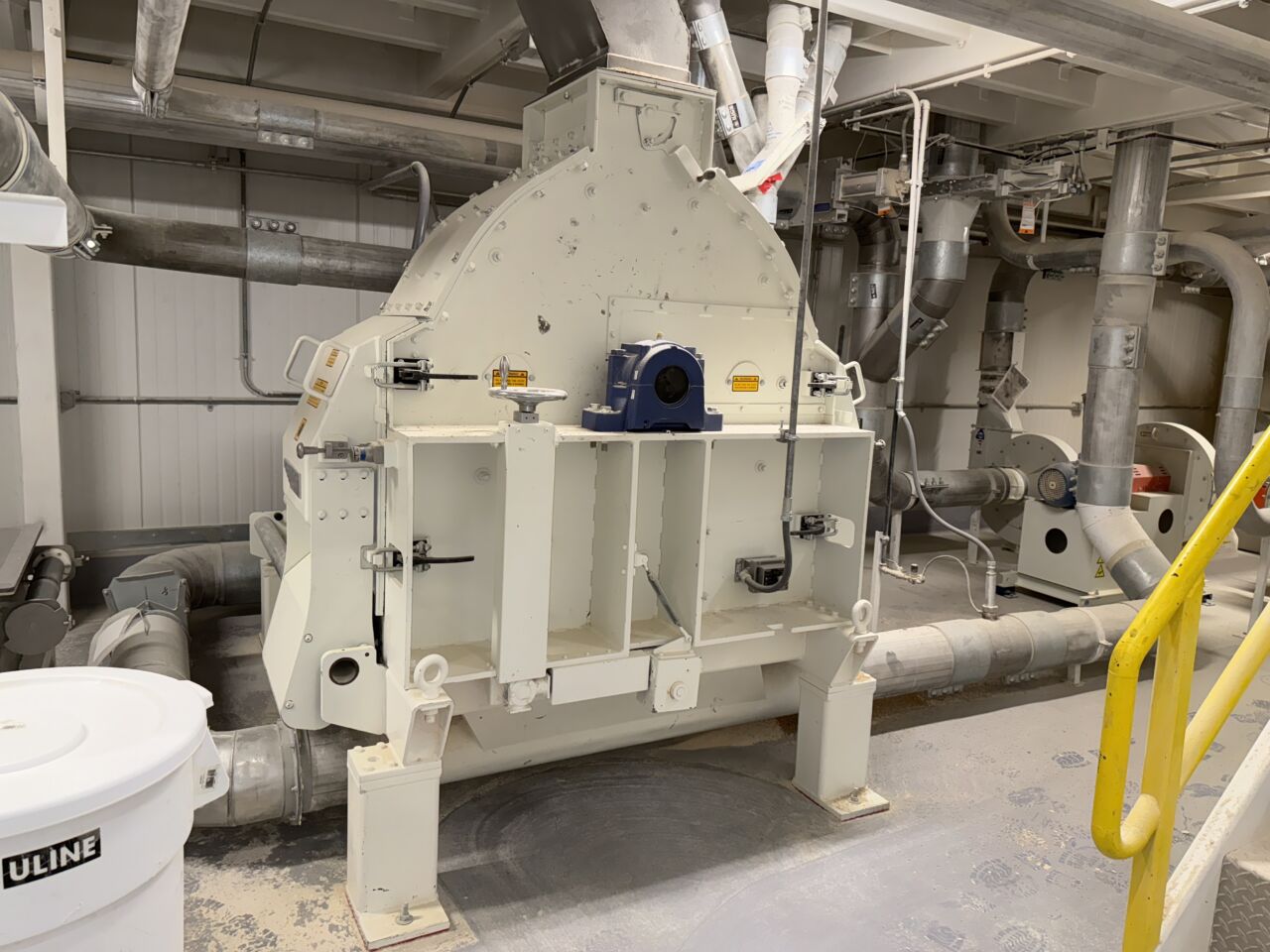

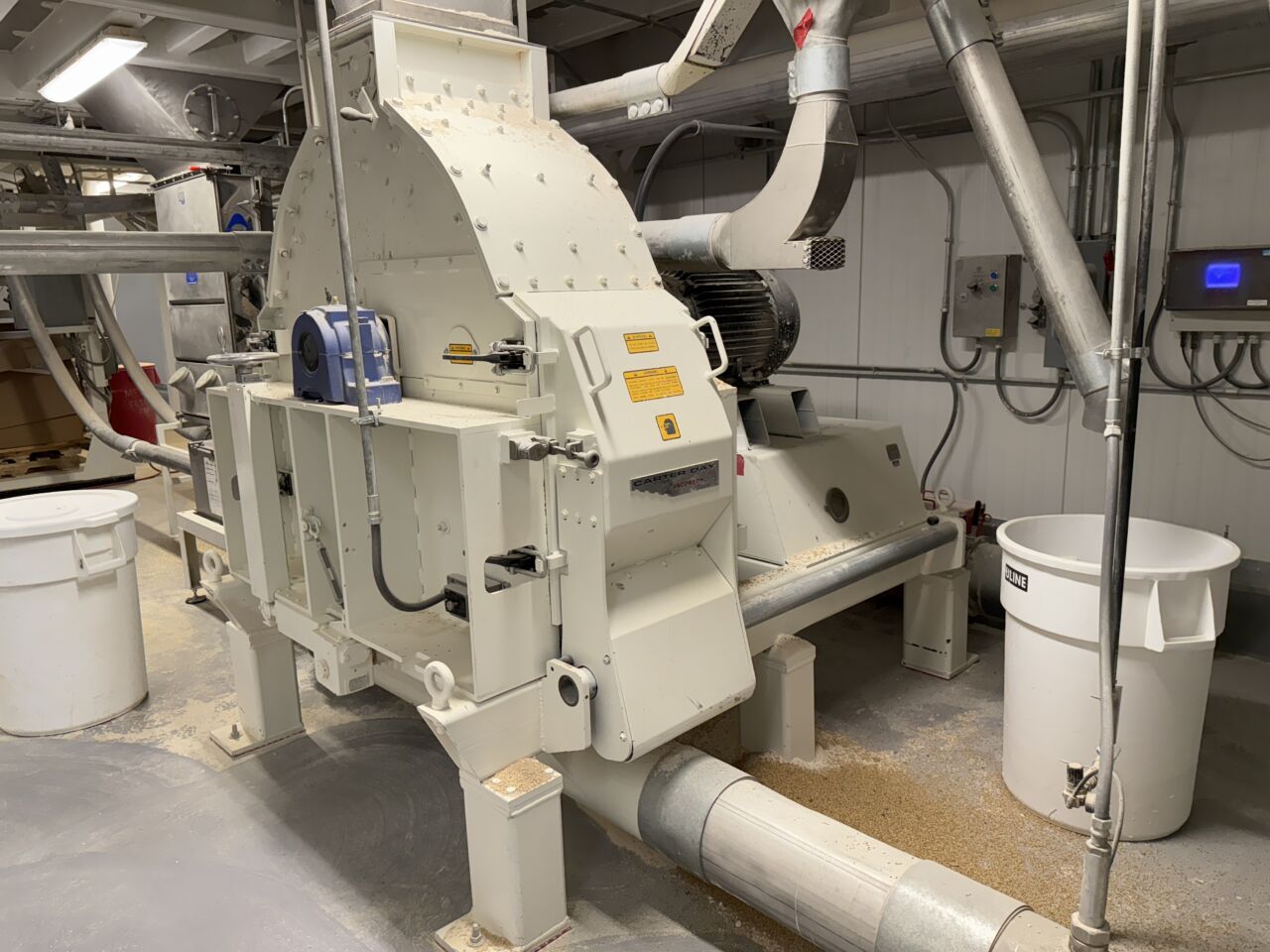

• Carter Day Jacobson DTJ1 ‘DA’ Commander Hammermill, 75hp. Motor

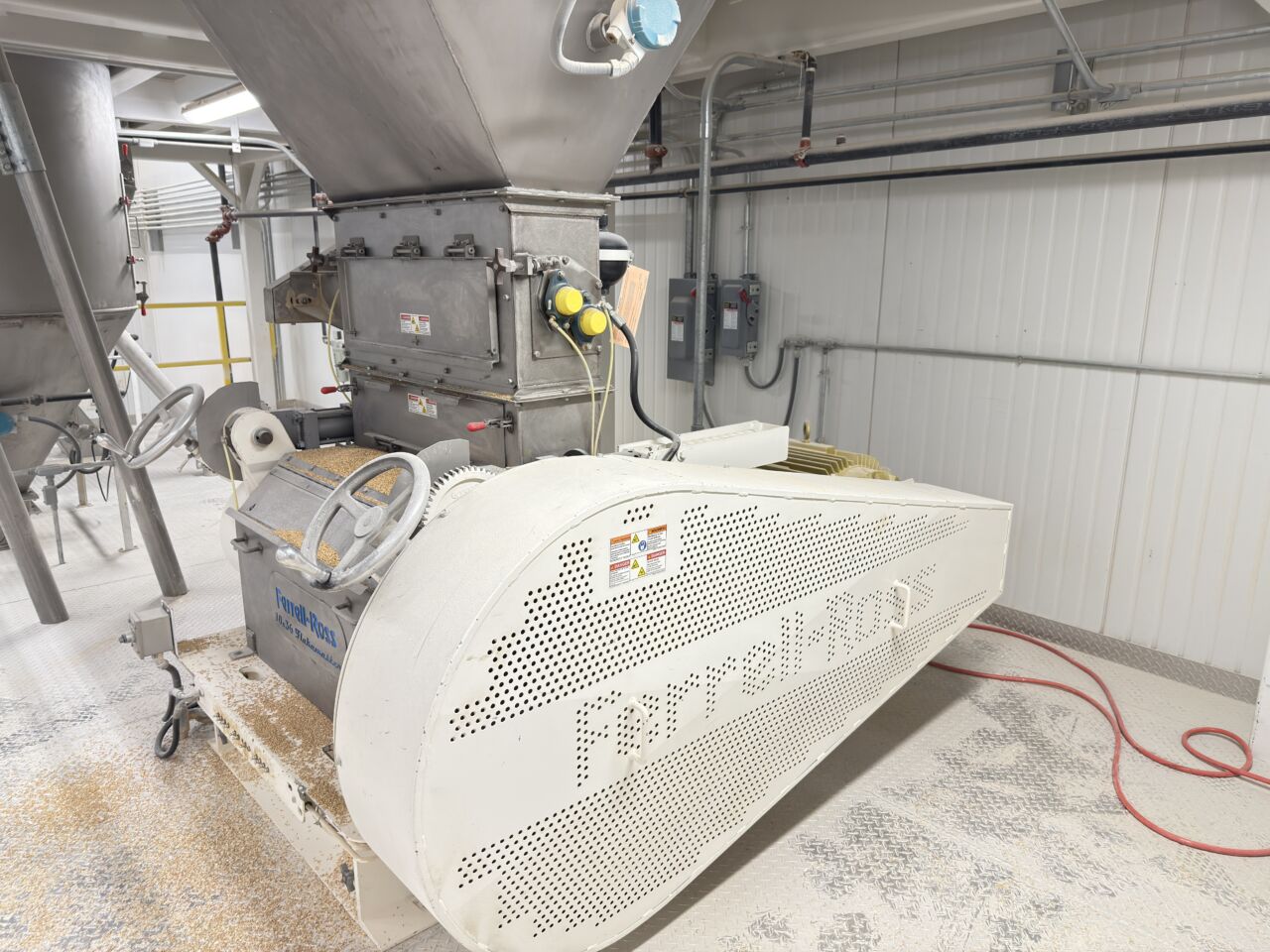

• Ferrell-Ross 18 X 36 Flakemaster Flaking Mill, 60hp. Motor

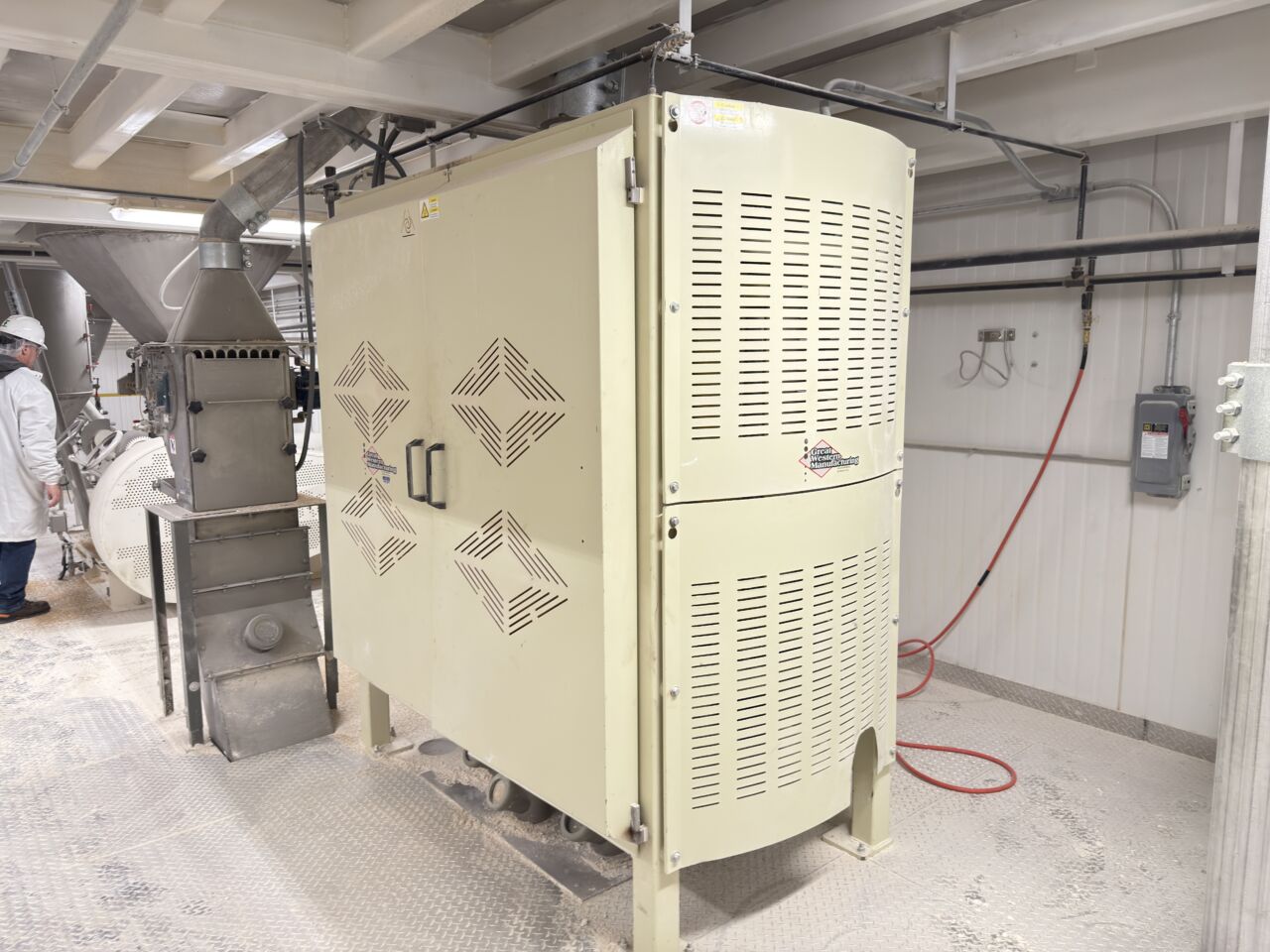

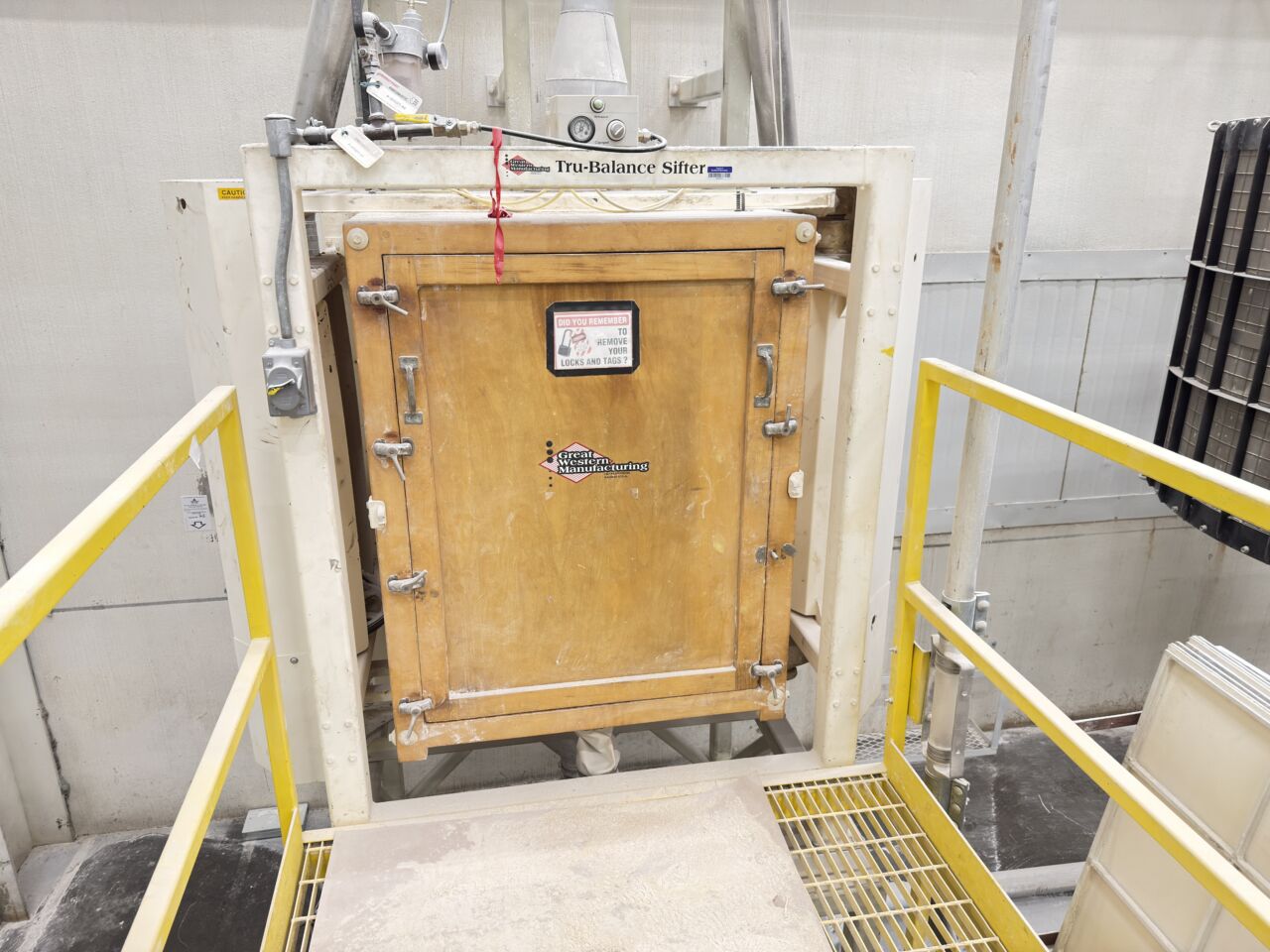

• Great Western True Balance Modular Sifter

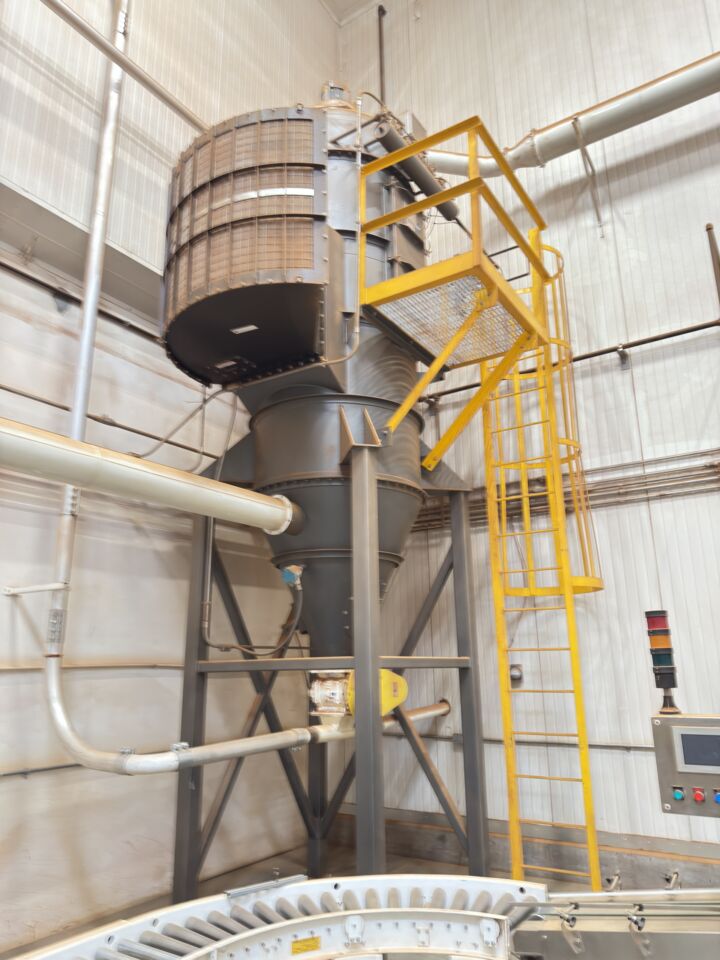

• Kice Cyclone Dust Collector W/ 18.63bhp. Blower, Explosion Protection

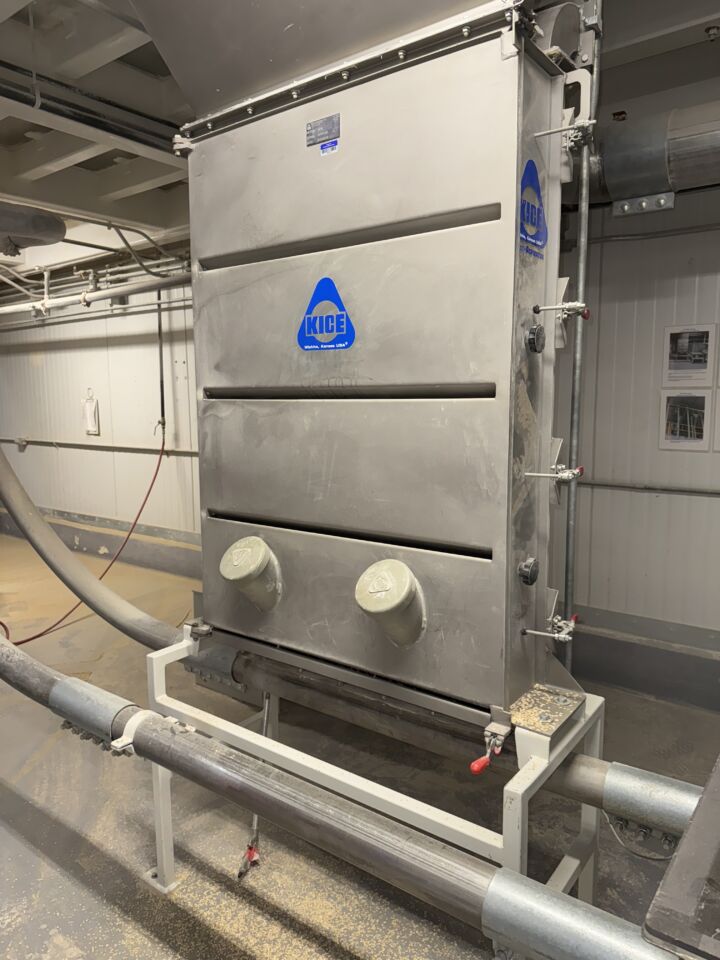

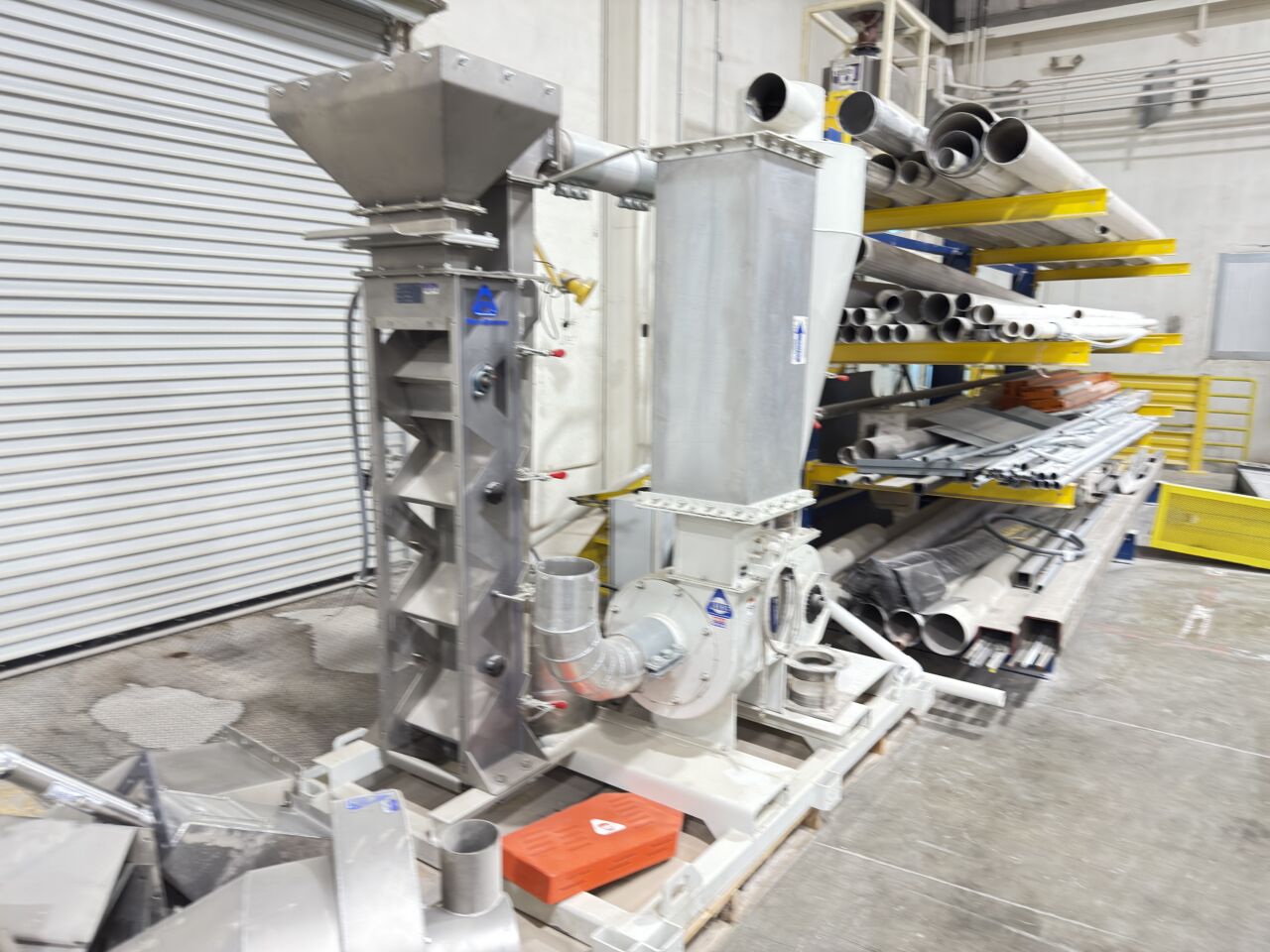

• Kice 4E36 Multi Aspirator W/ Cablevey System

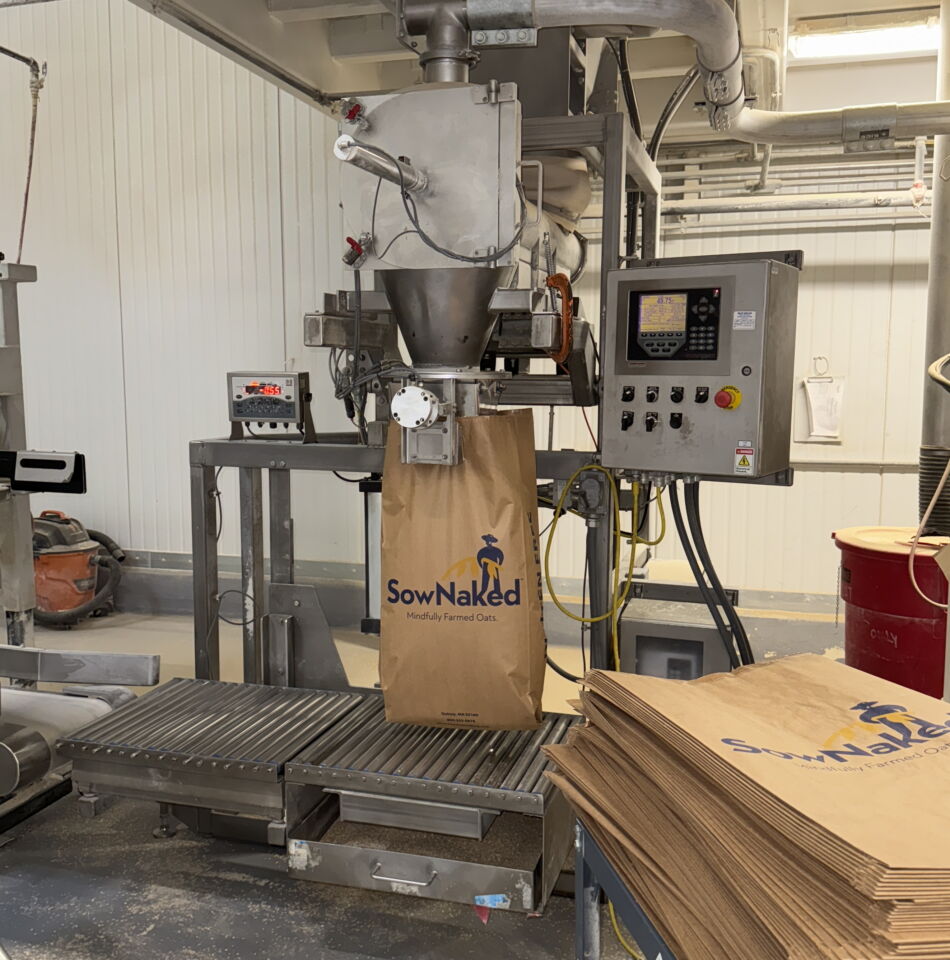

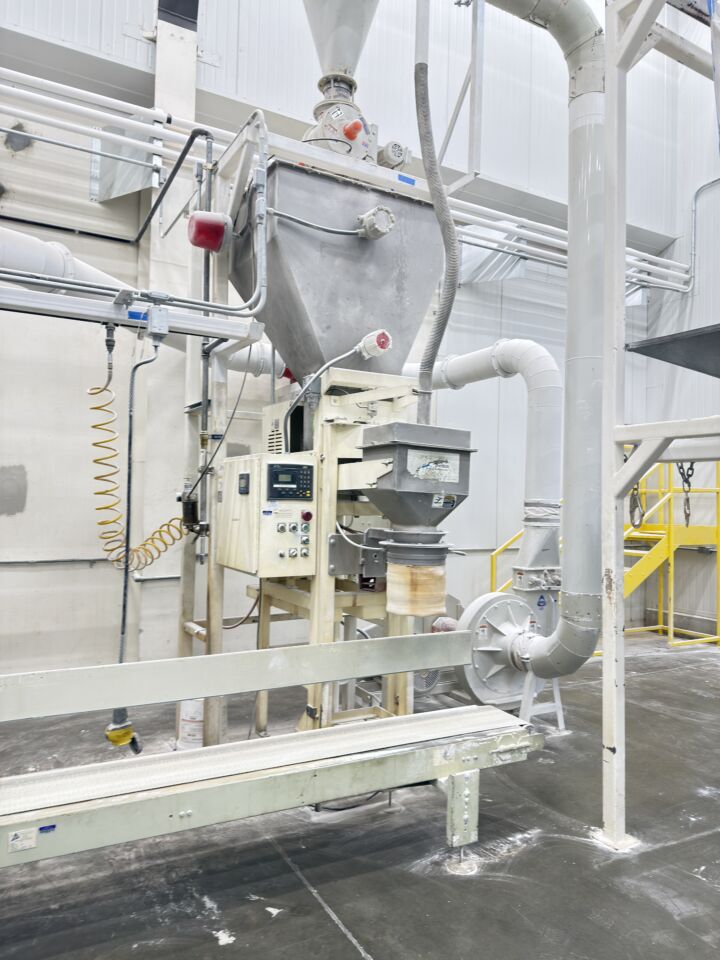

• Auger Powder Bagger W/ Rice Lake Controls, Bag Conveyor, And Turner

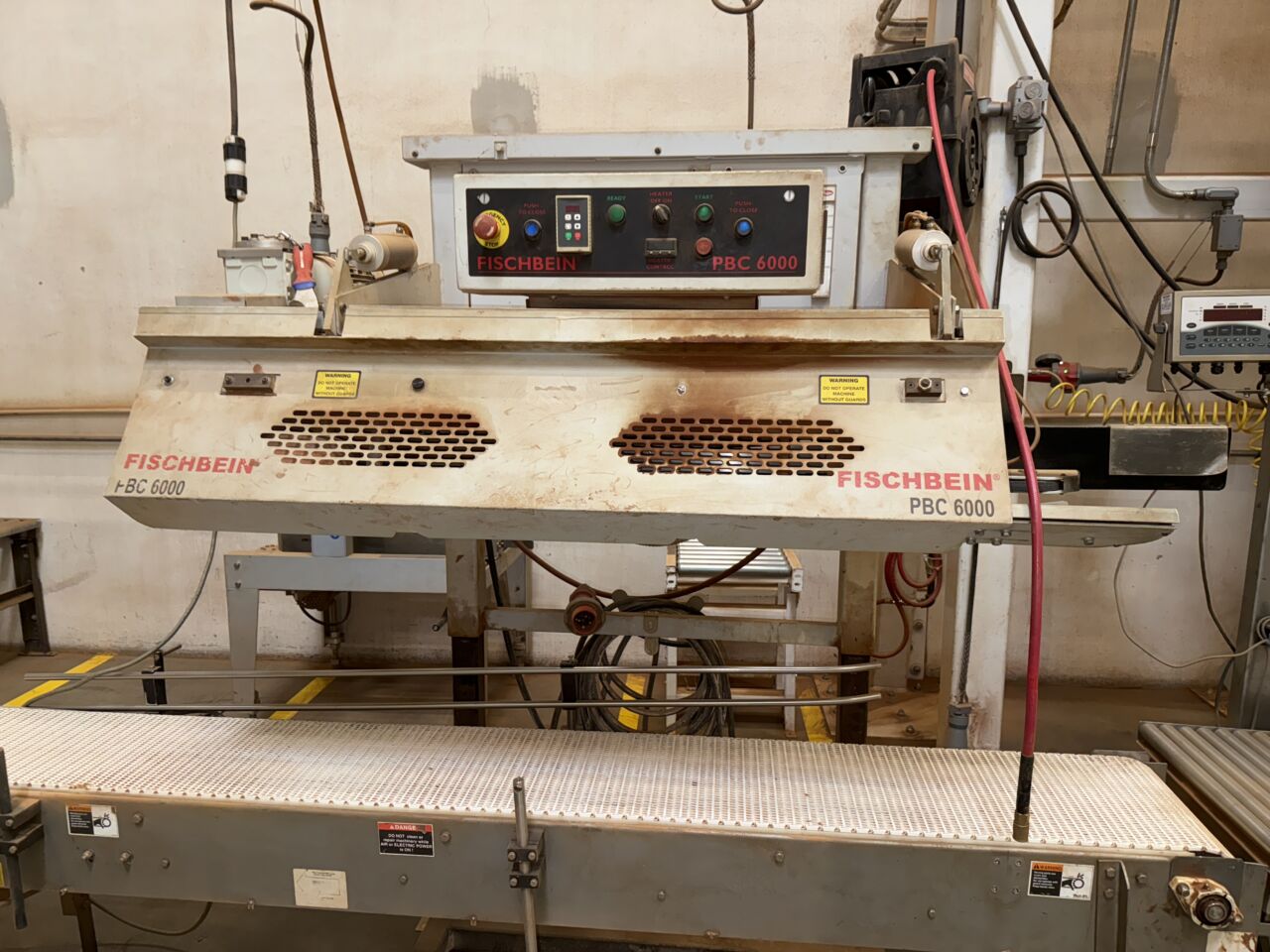

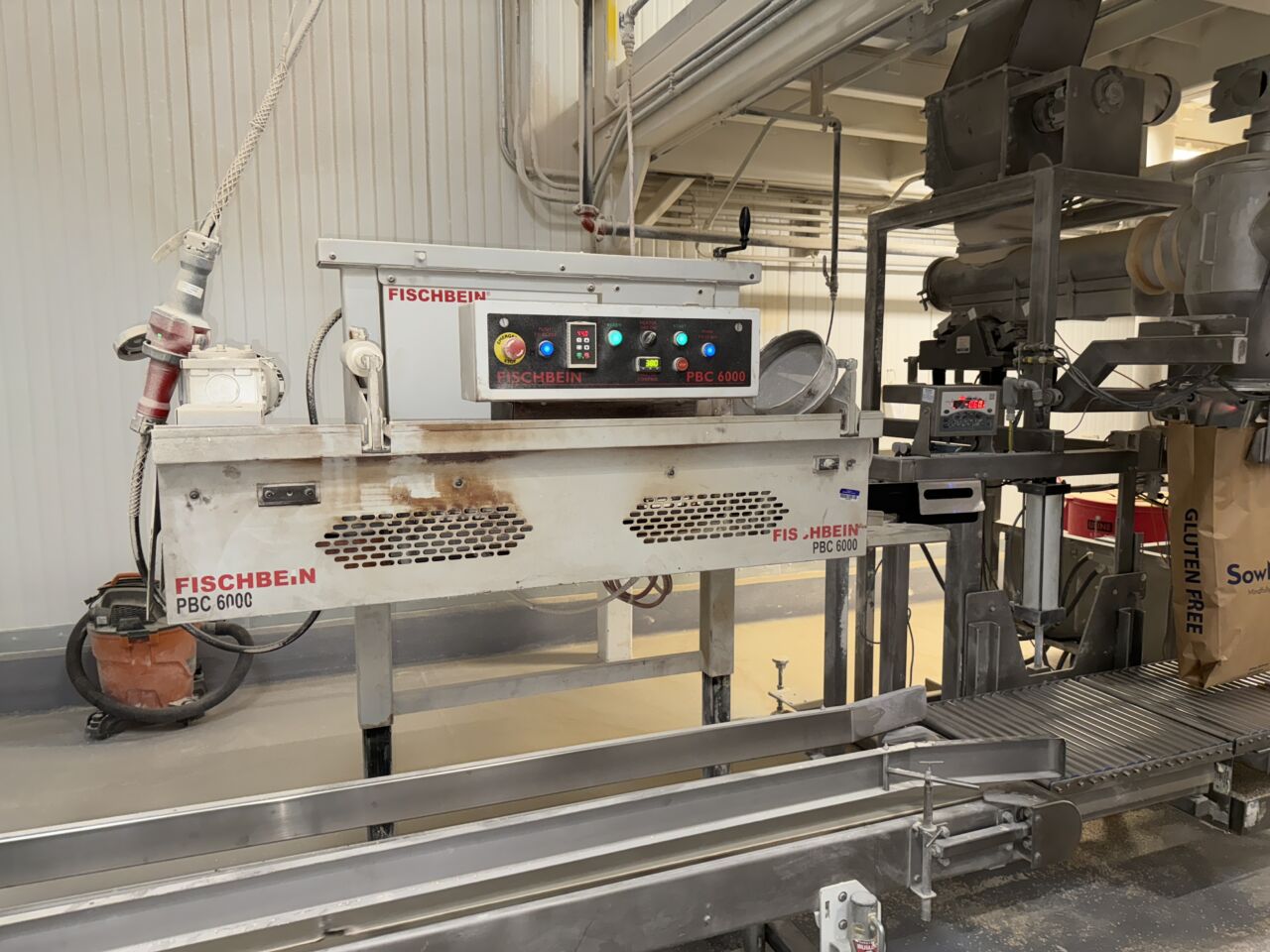

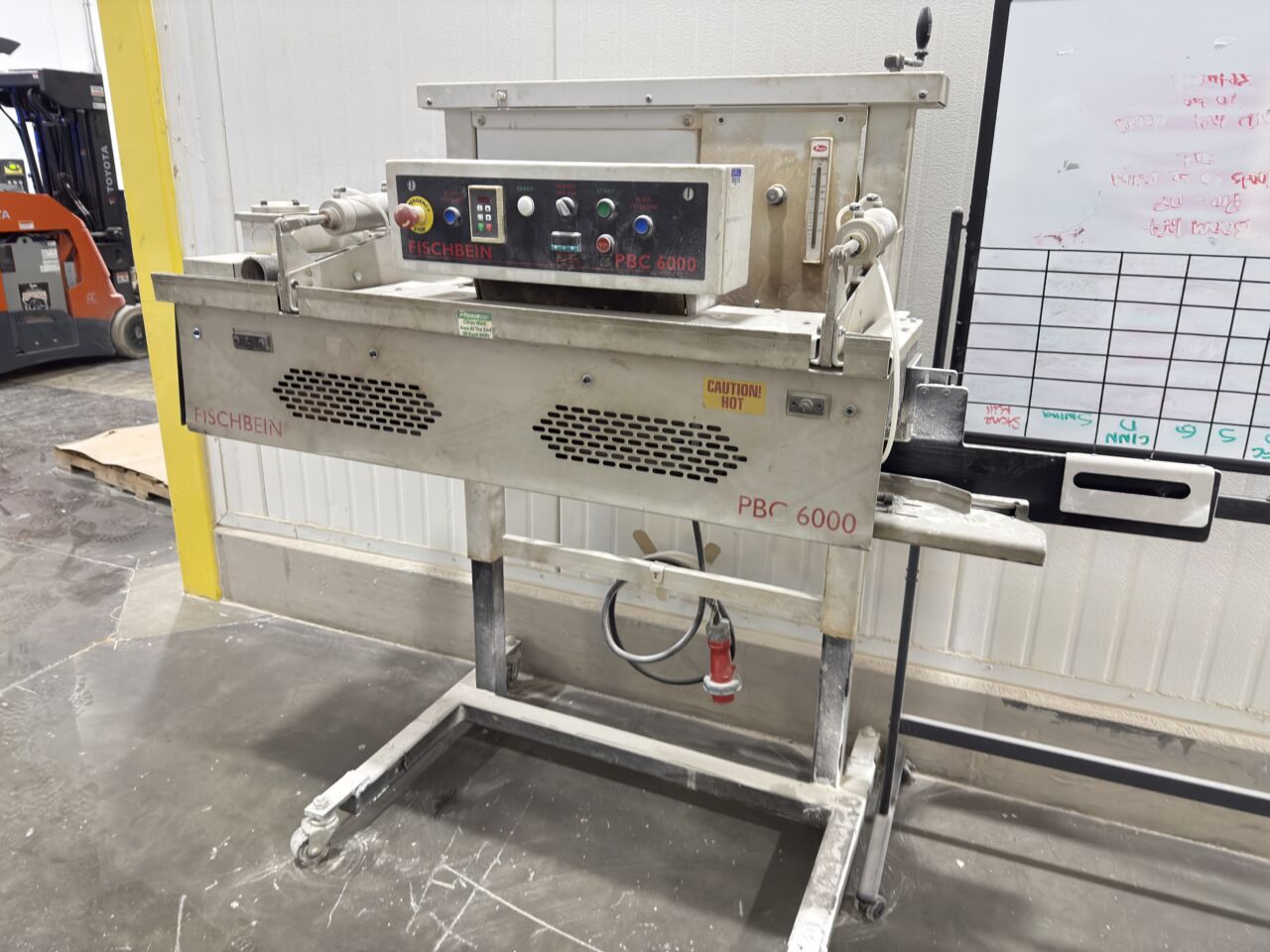

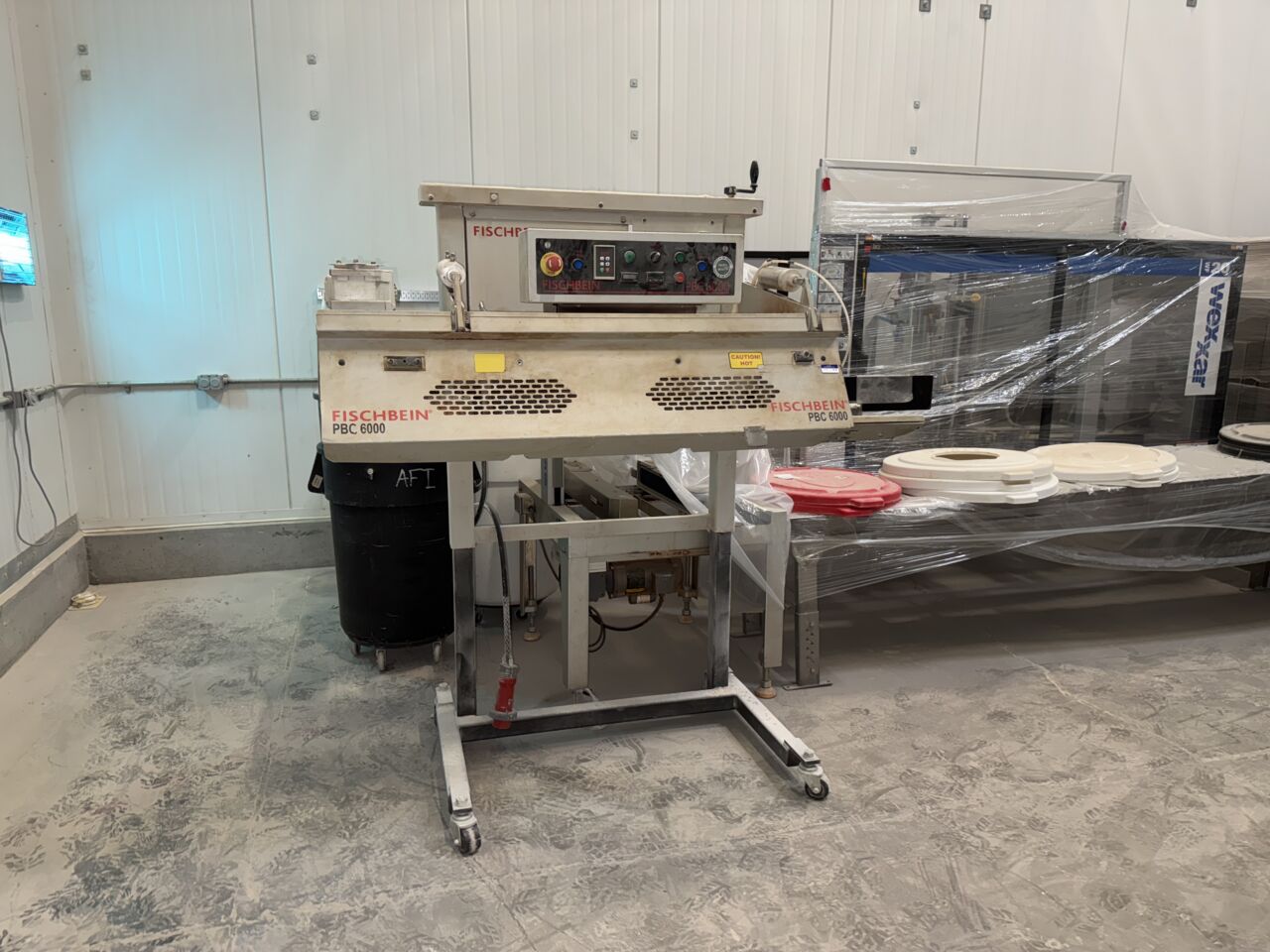

• Fischbein PBC 6000 Bag Sealer

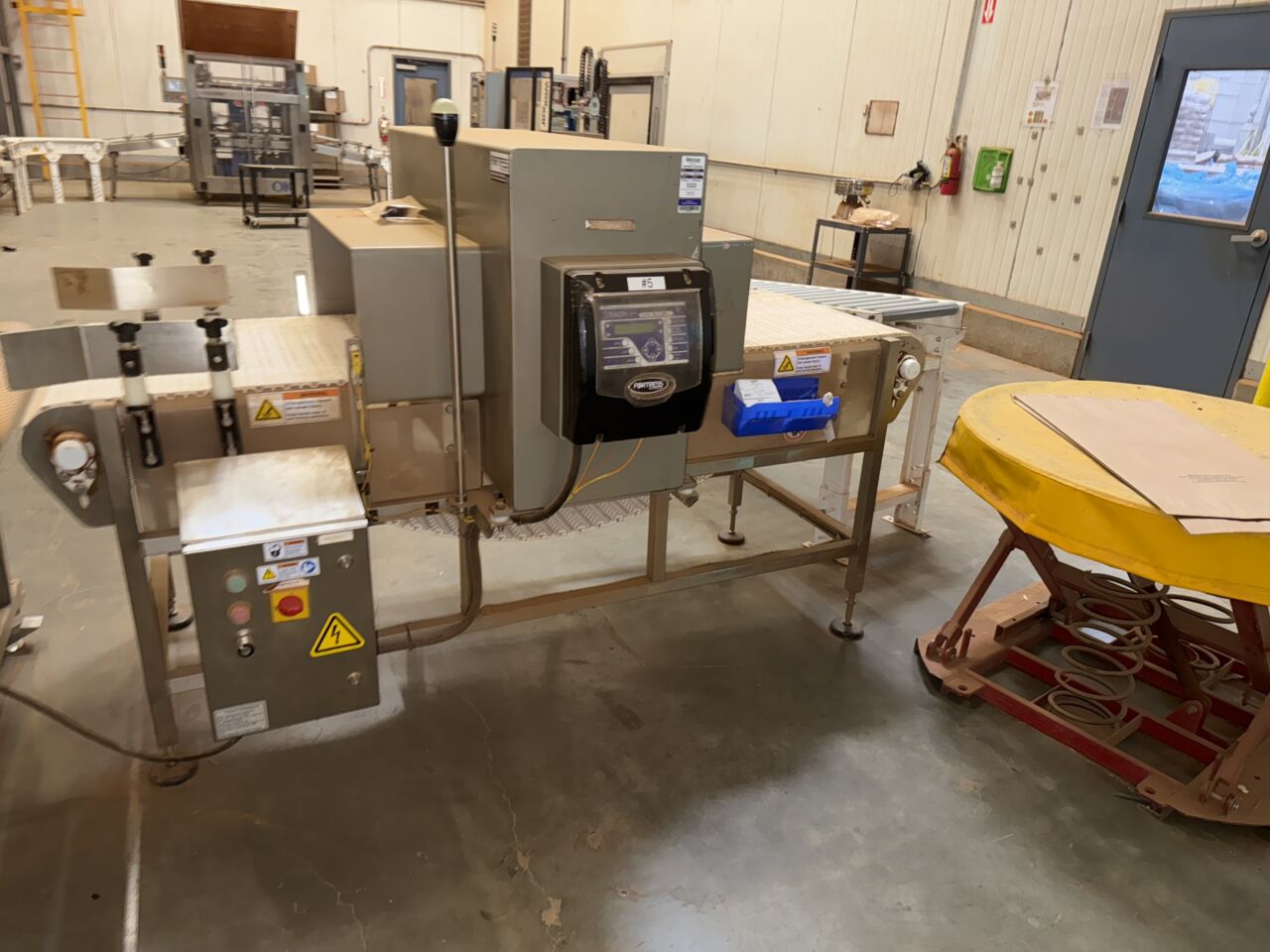

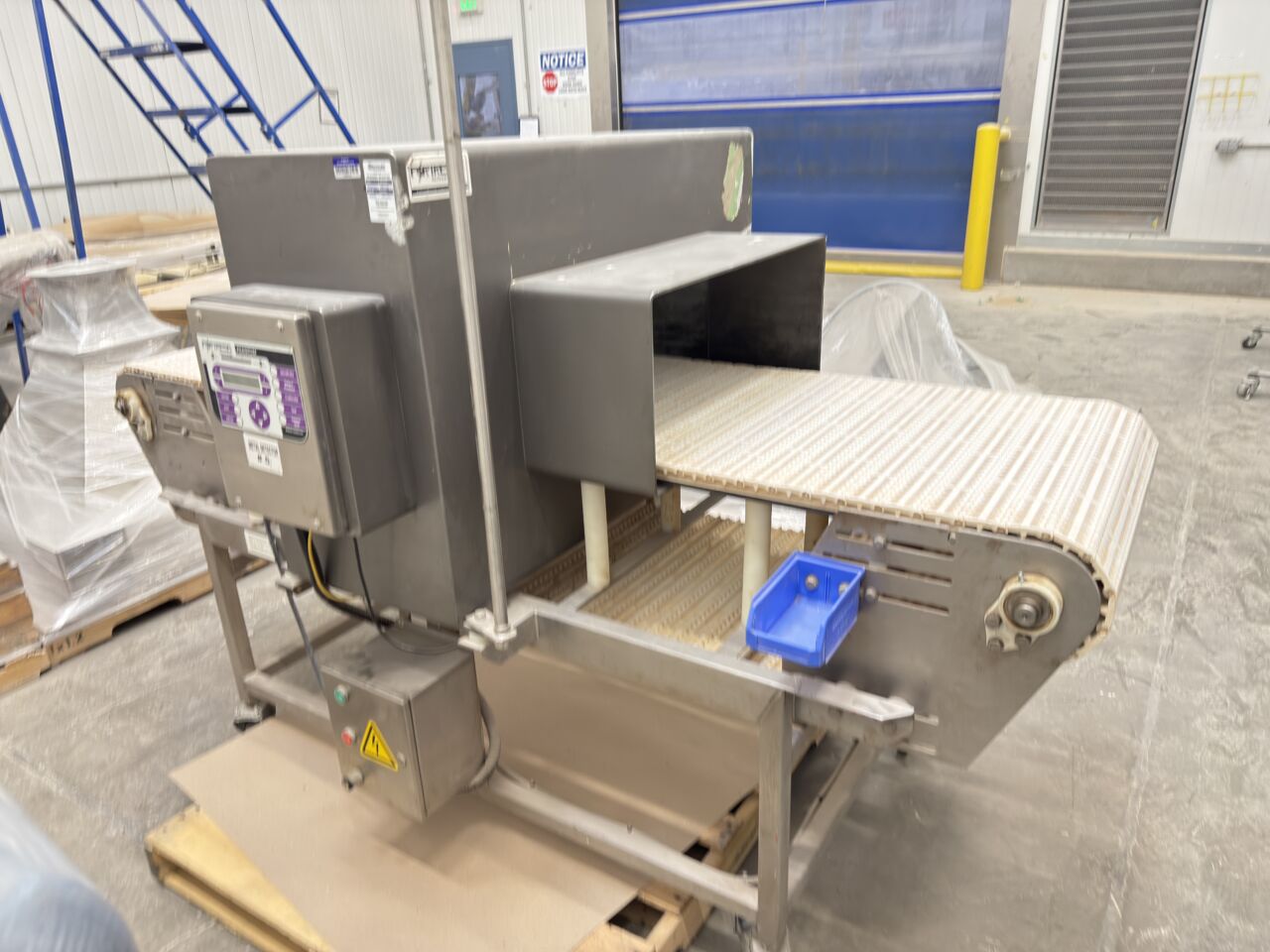

• Fortress Stealth Metal Detector 24″ X 10″ Opening

Cinnamon/Spice Milling

2,000 Lbs. To 2,500 Lbs./Hr. Custom Designed. Milling Line for Grinding Spices. The System Includes a Pre-Breaker. 100 Hp. And 40hp. Universal Mills. 2) Sifters, Pneumatic Conveyors, Dust Collection, MCCs, PLCs, and HMI Automation Controls.

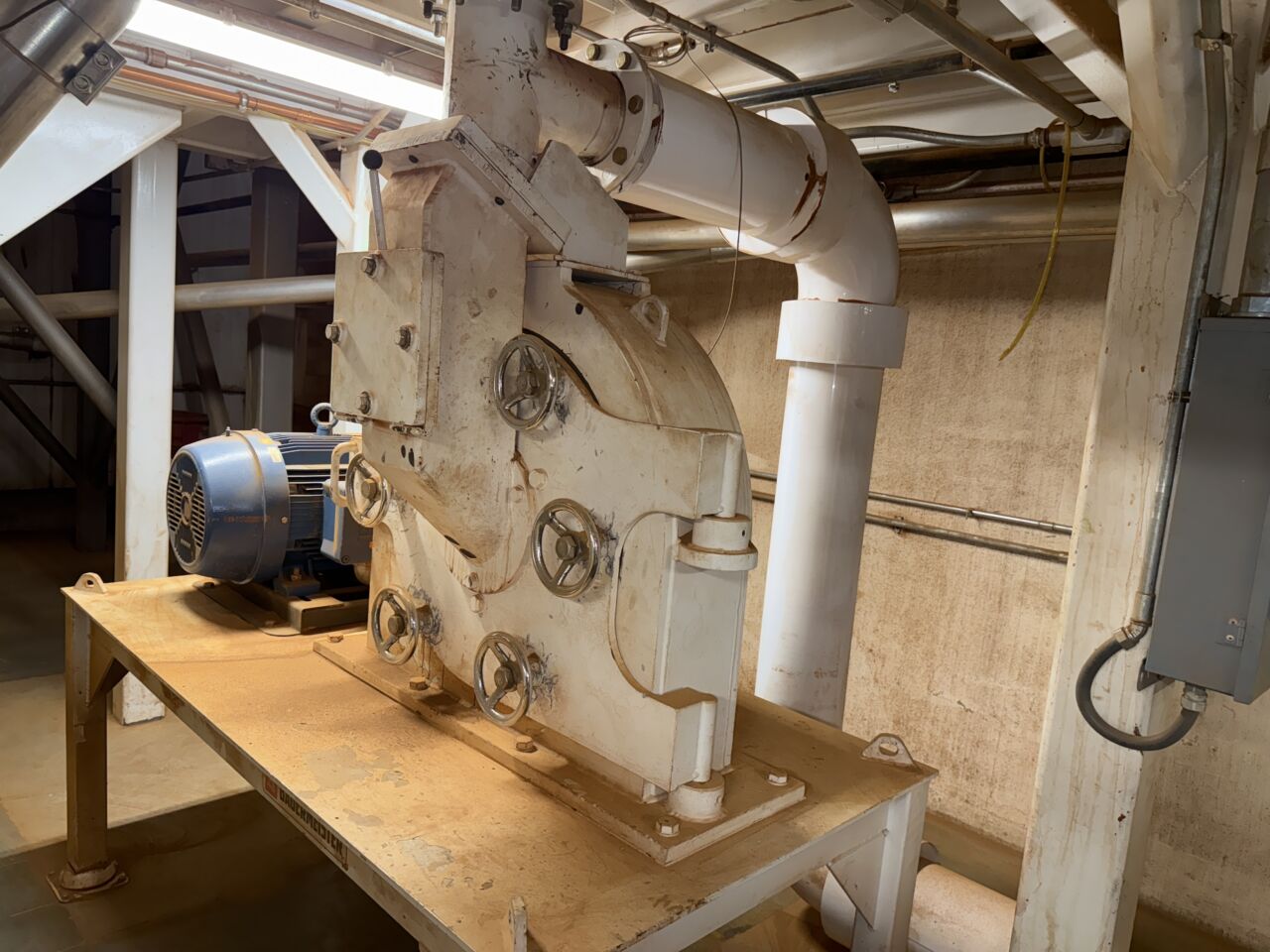

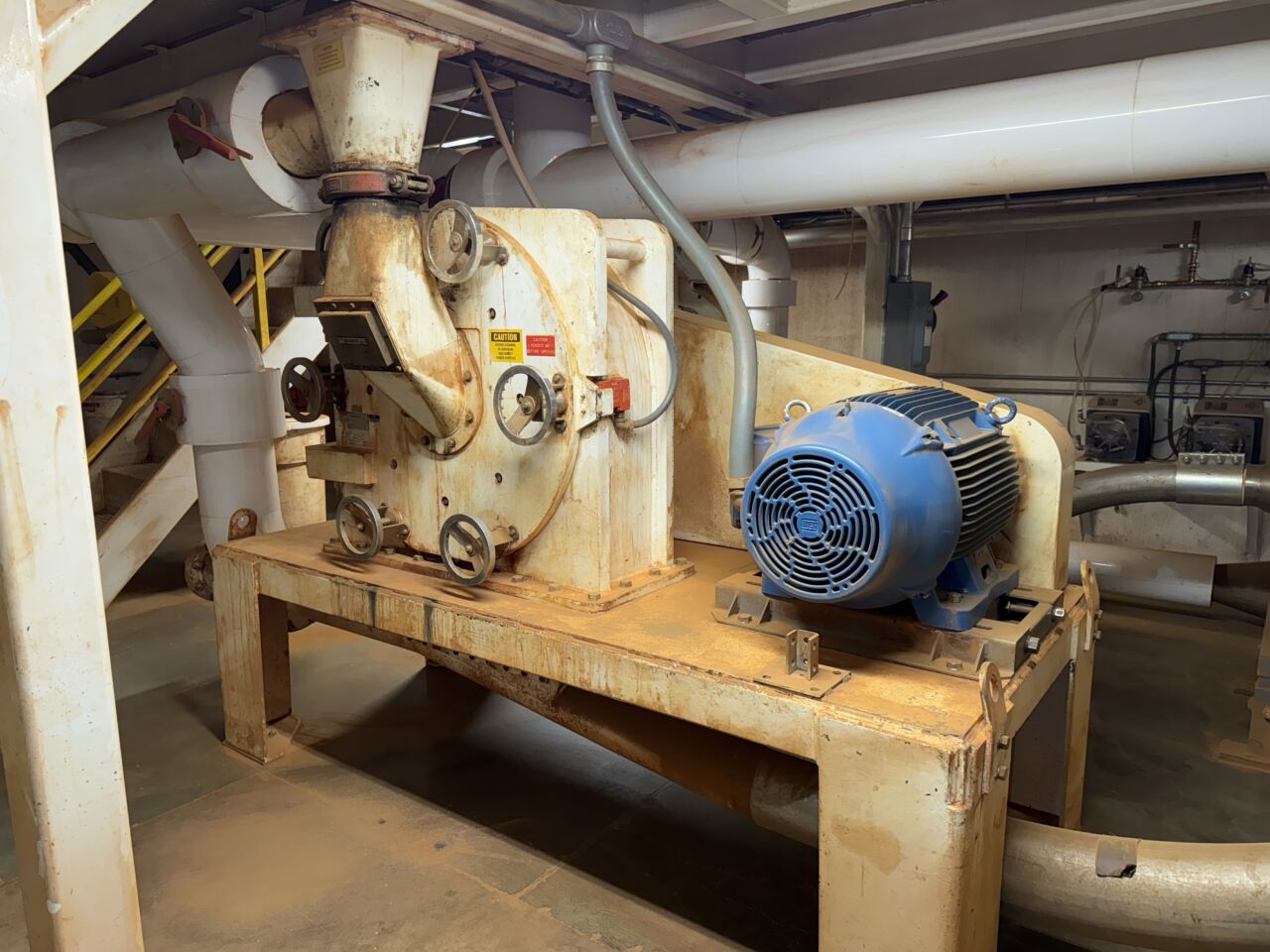

• Kemutec 2H.MILL.W.B. Universal Powder Mill, 100hp. Motor

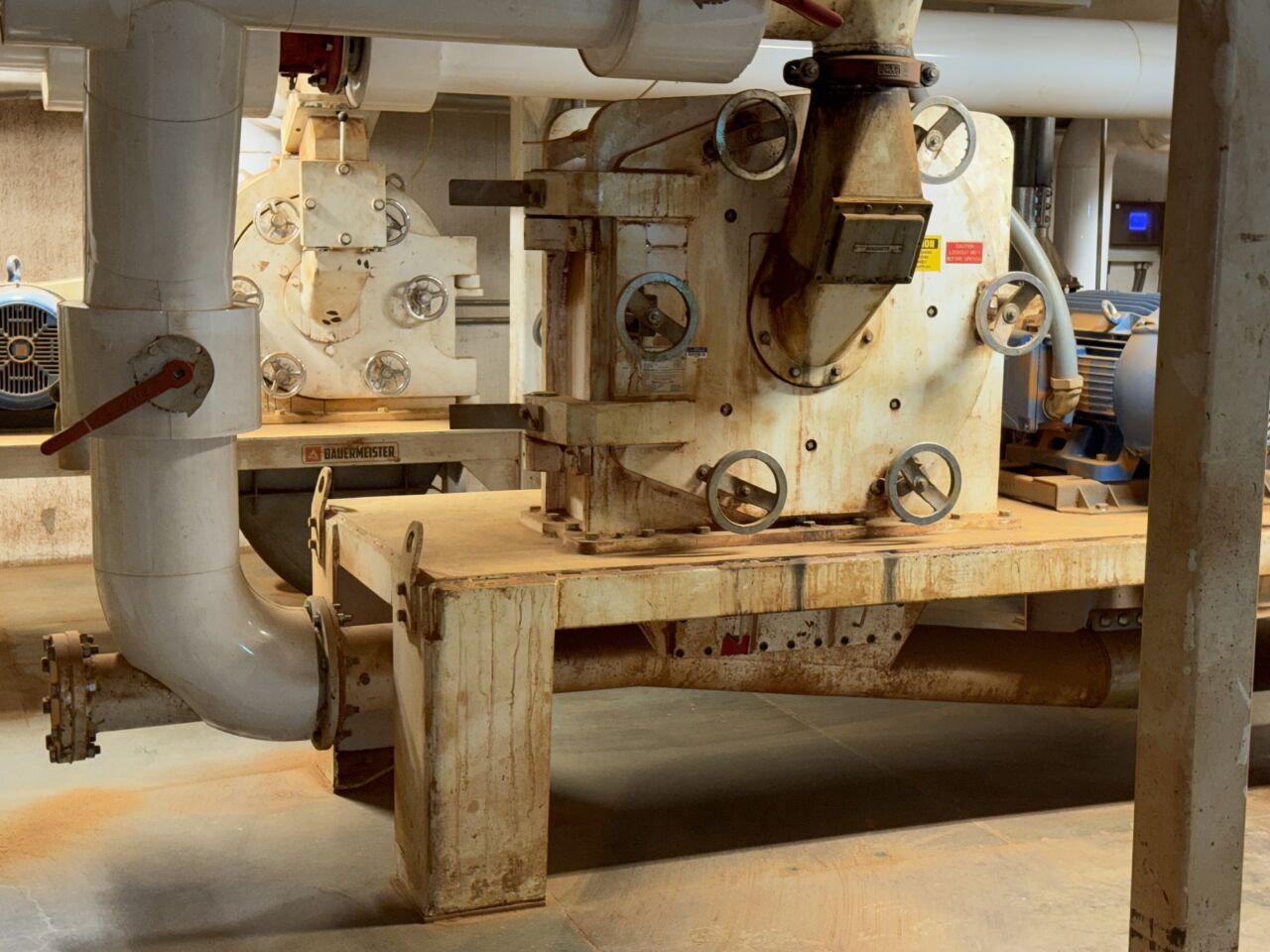

• Bauermeister UM2.3 Universal Powder Mill, 40hp. Motor

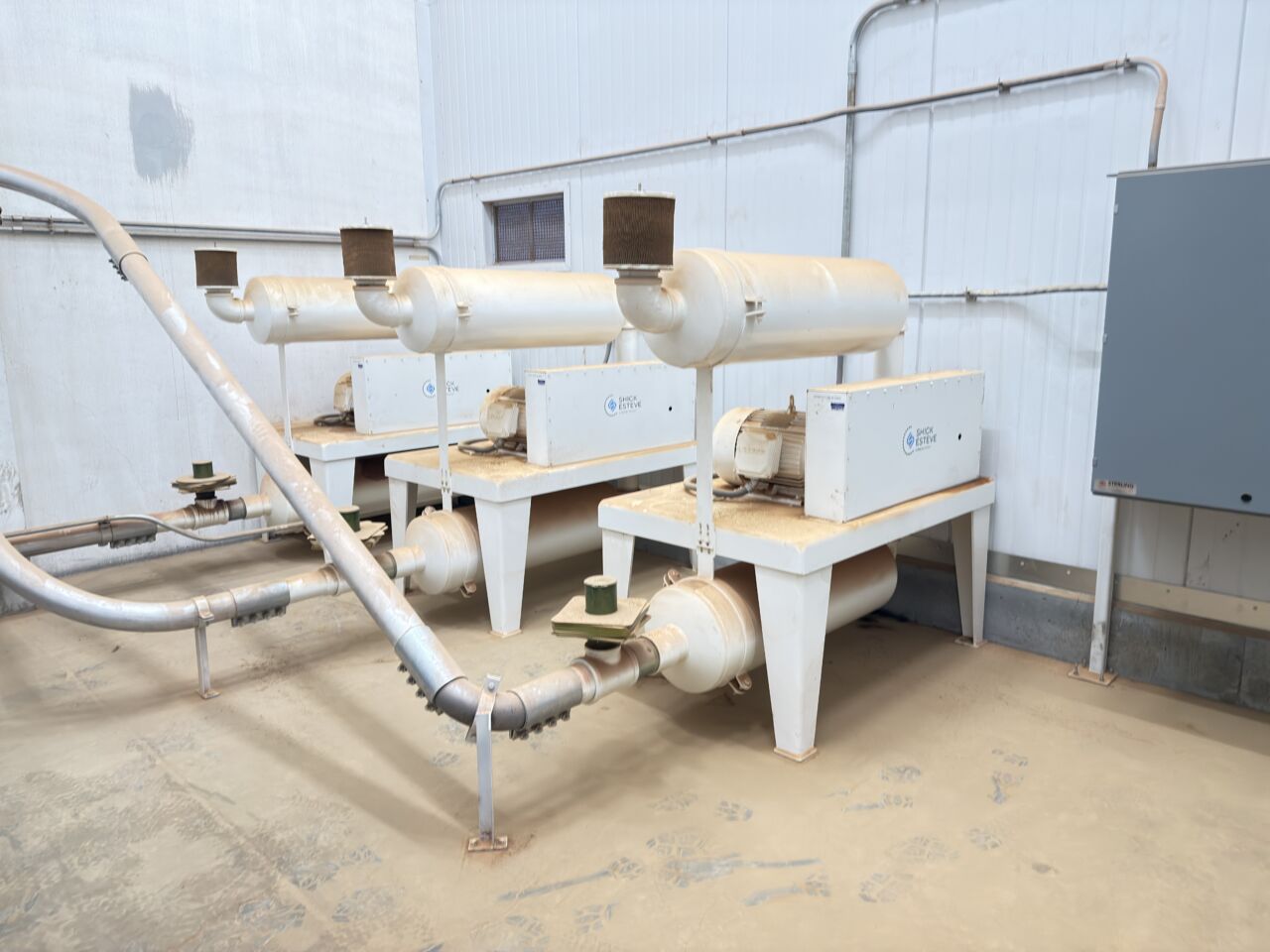

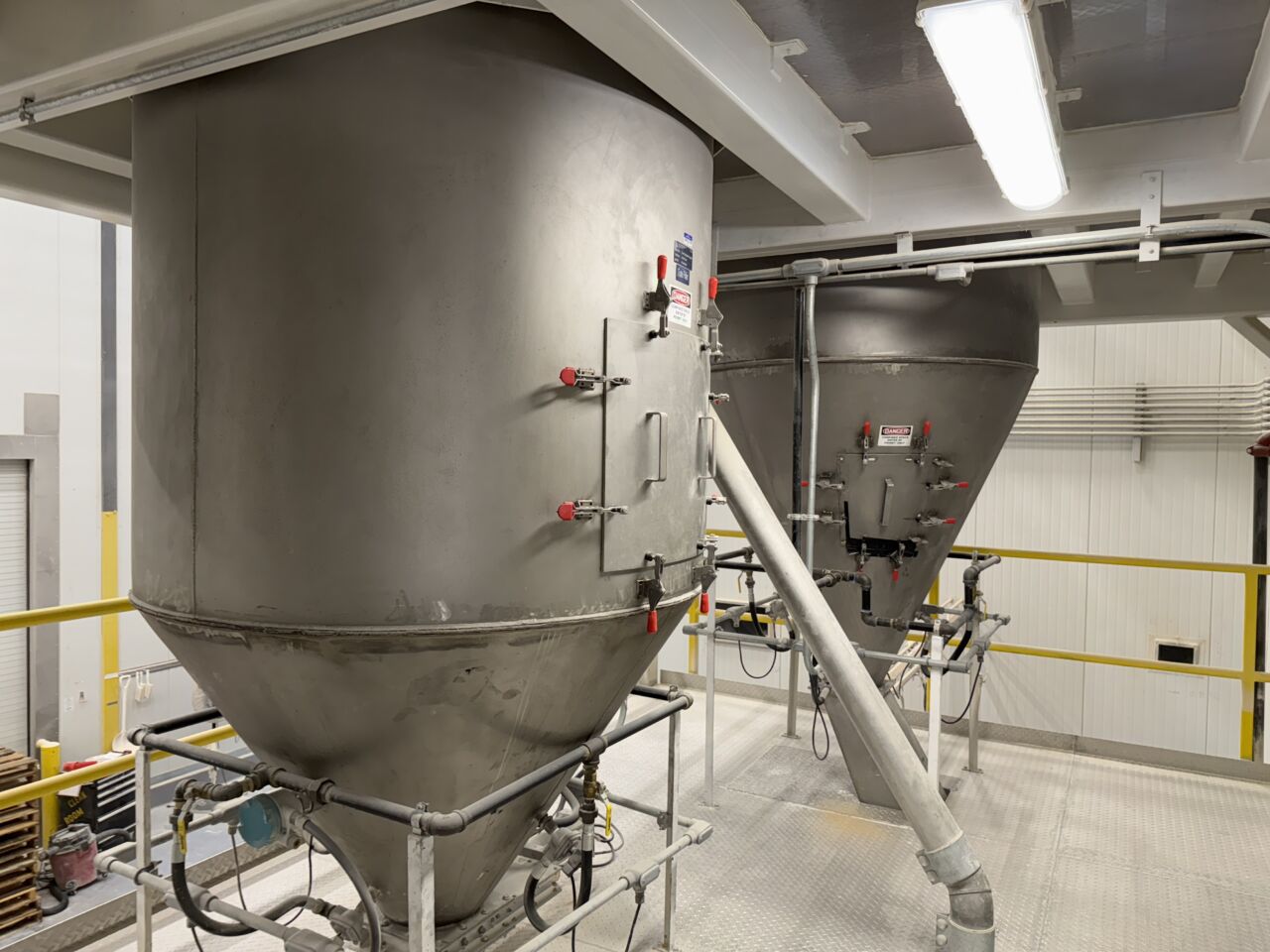

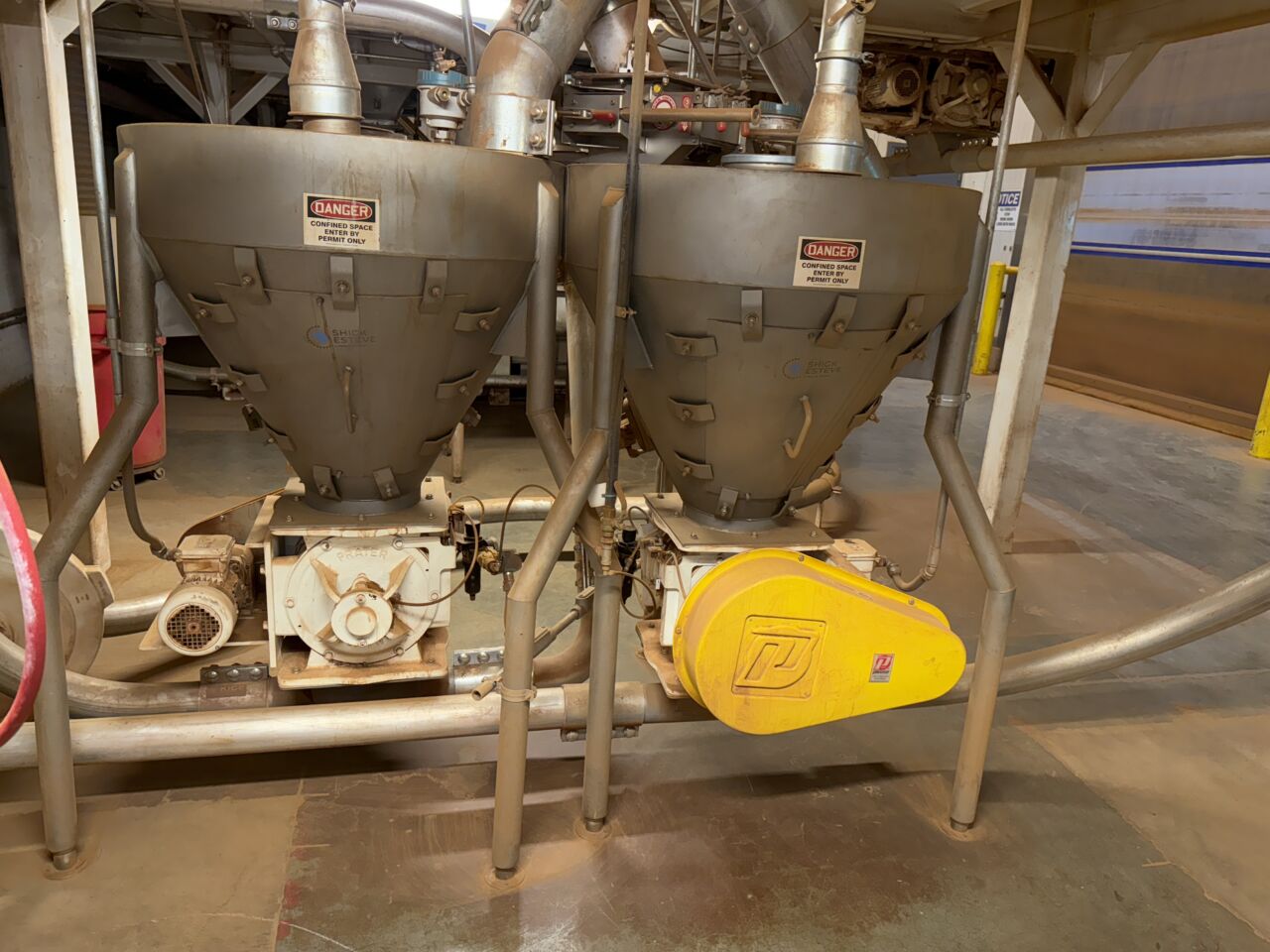

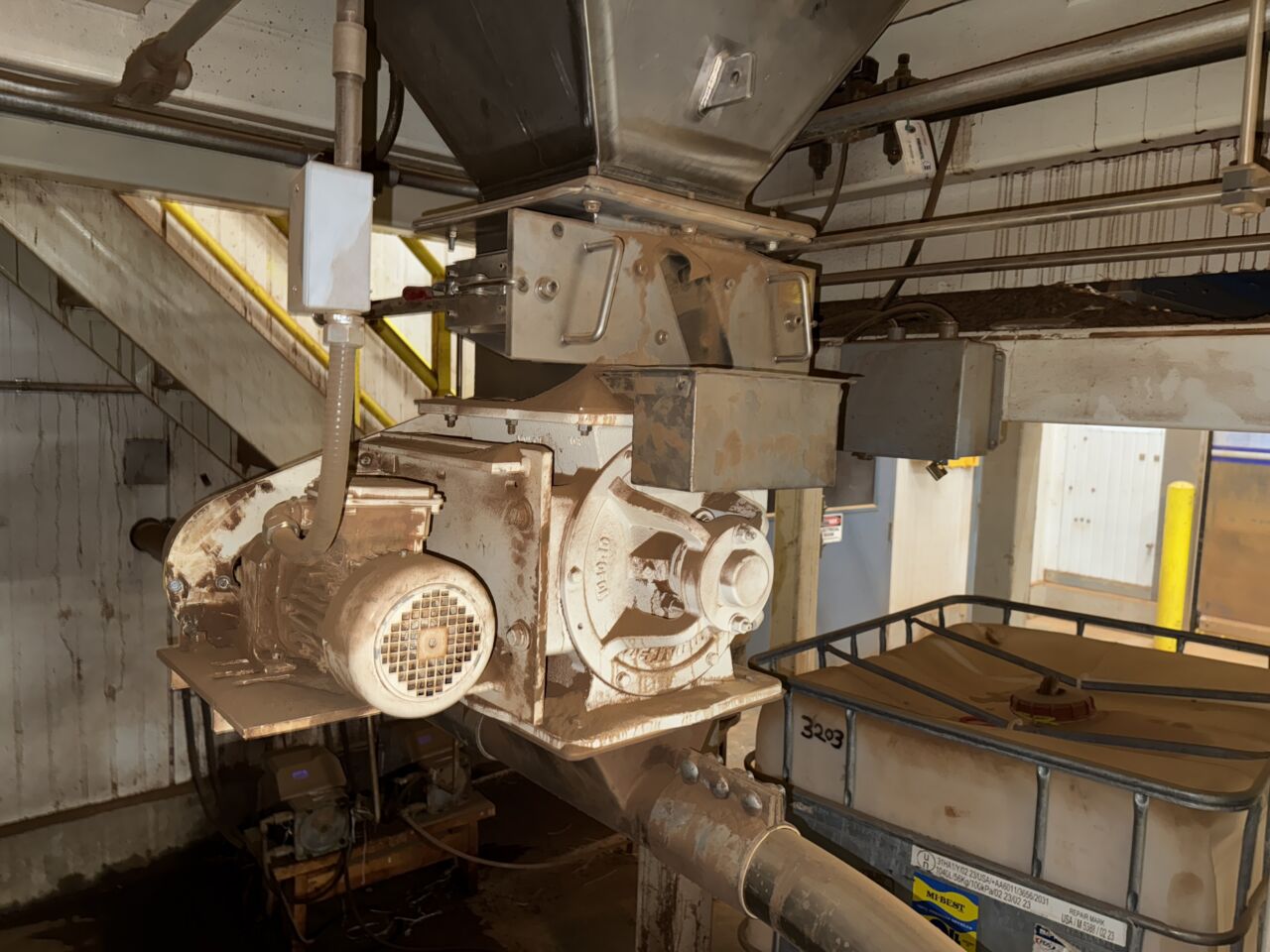

• 2) Shick Esteve S/S Hoppers W/ Prater Airlocks, Dump Station & 3) Blowers

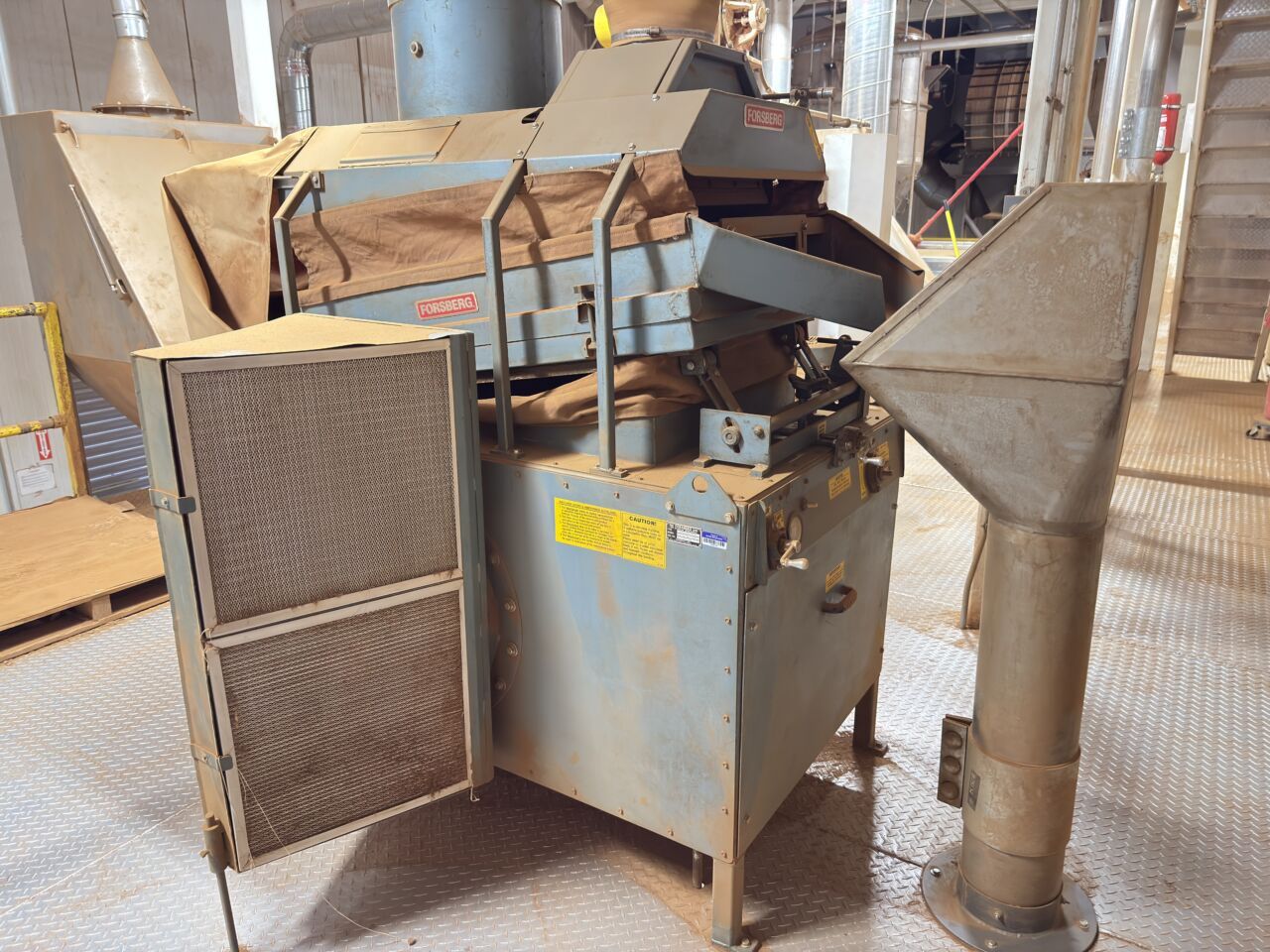

• Forsberg 5-G Destoner
• Great Western True Balance Modular Sifter

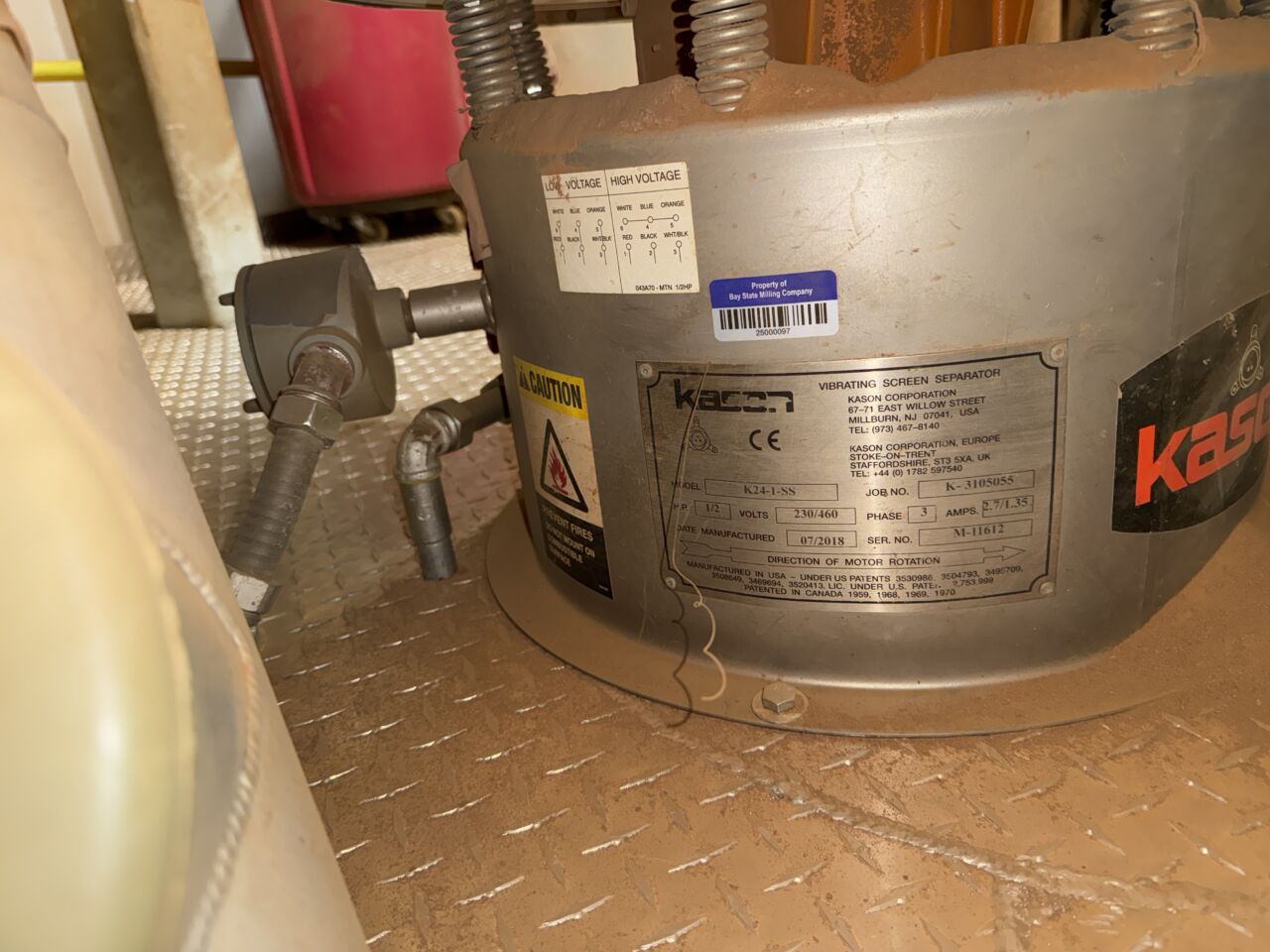

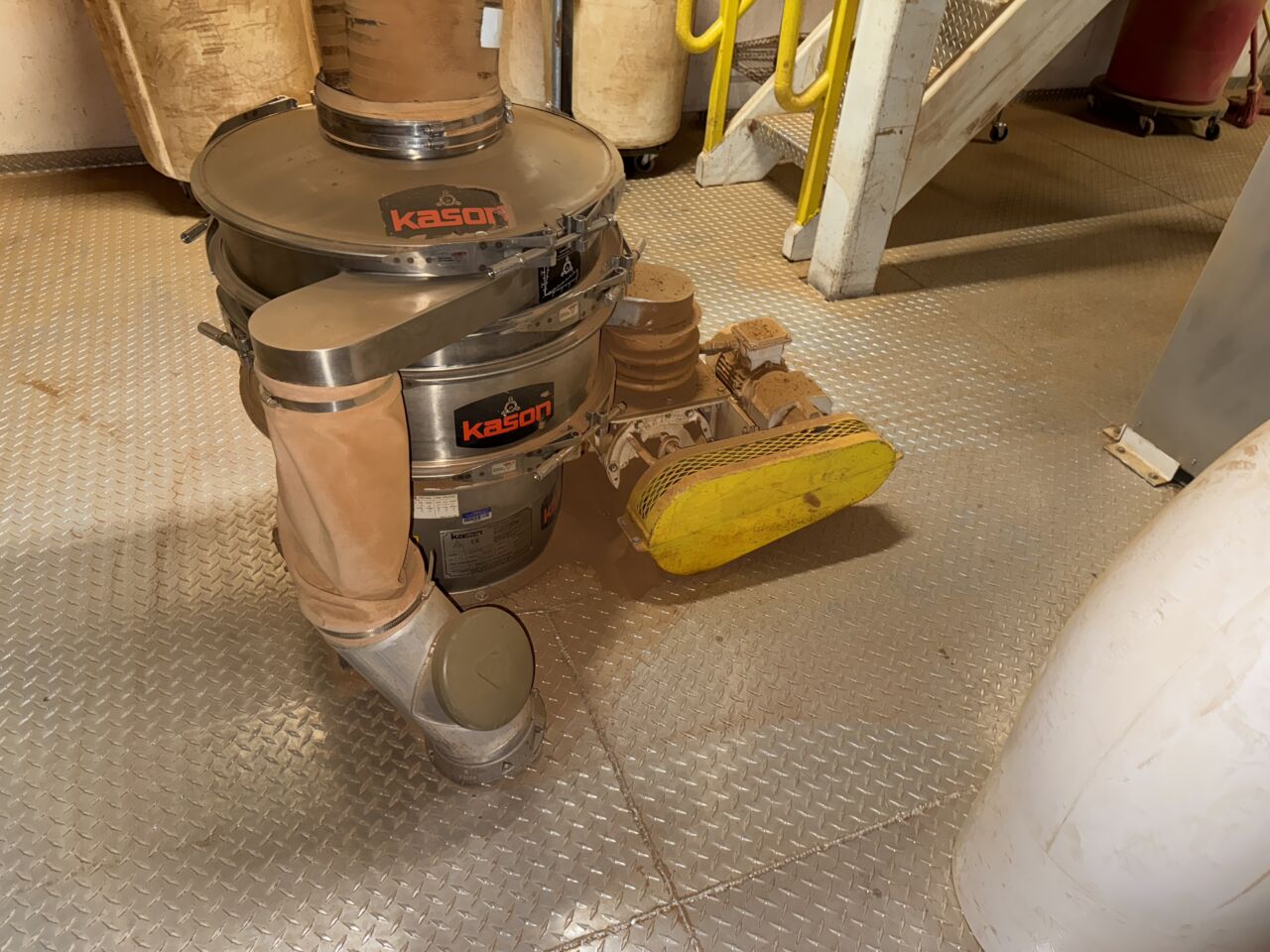

• Kason K24-1-SS Stainless 24″ Double Deck Sifter

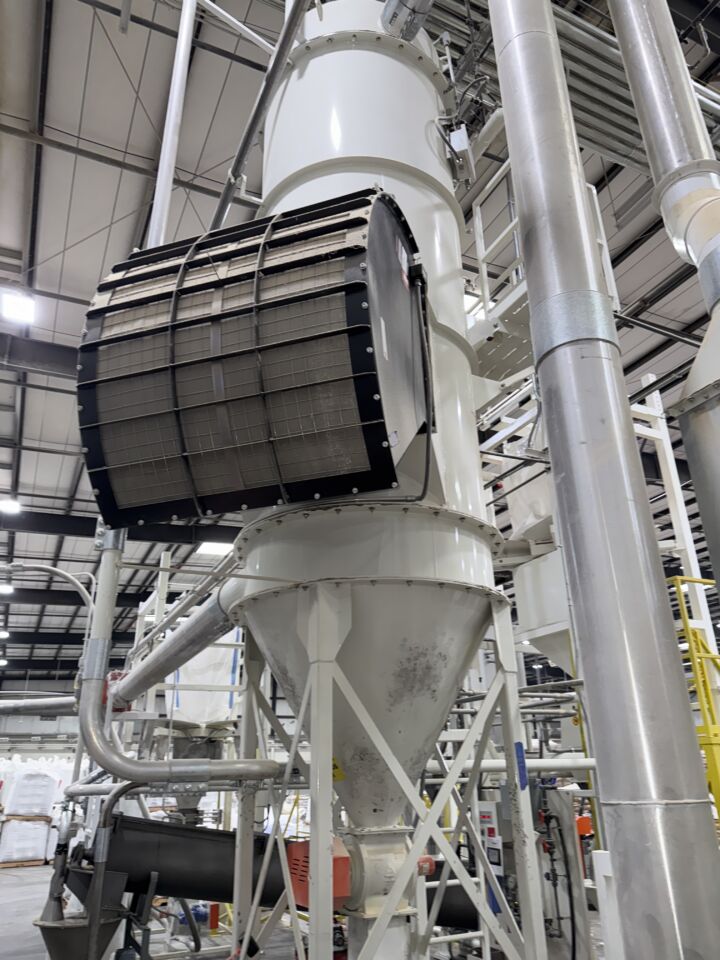

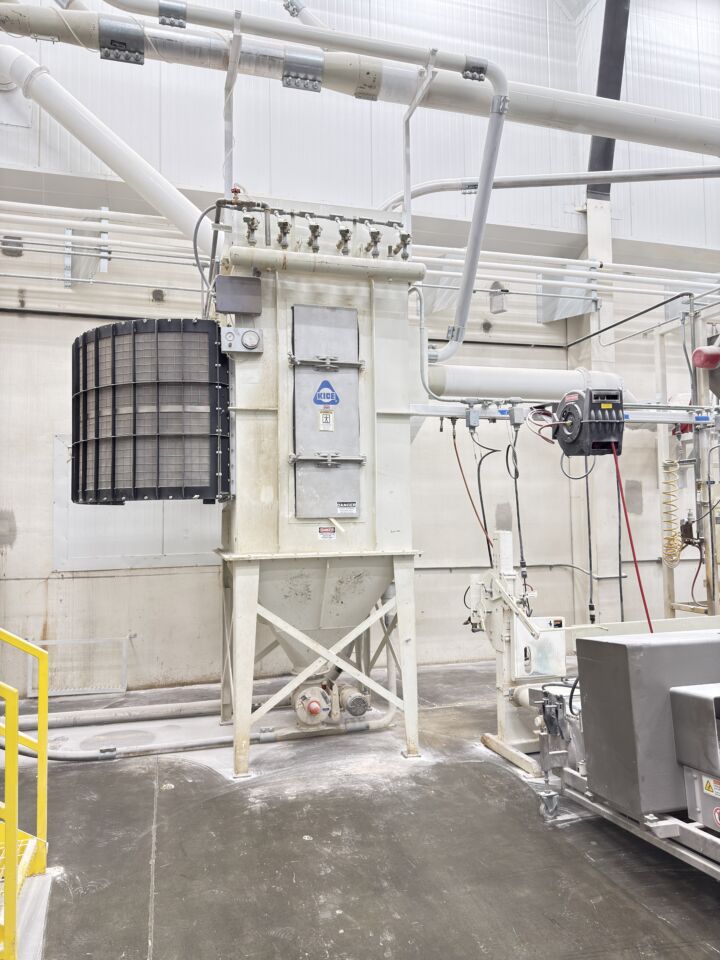

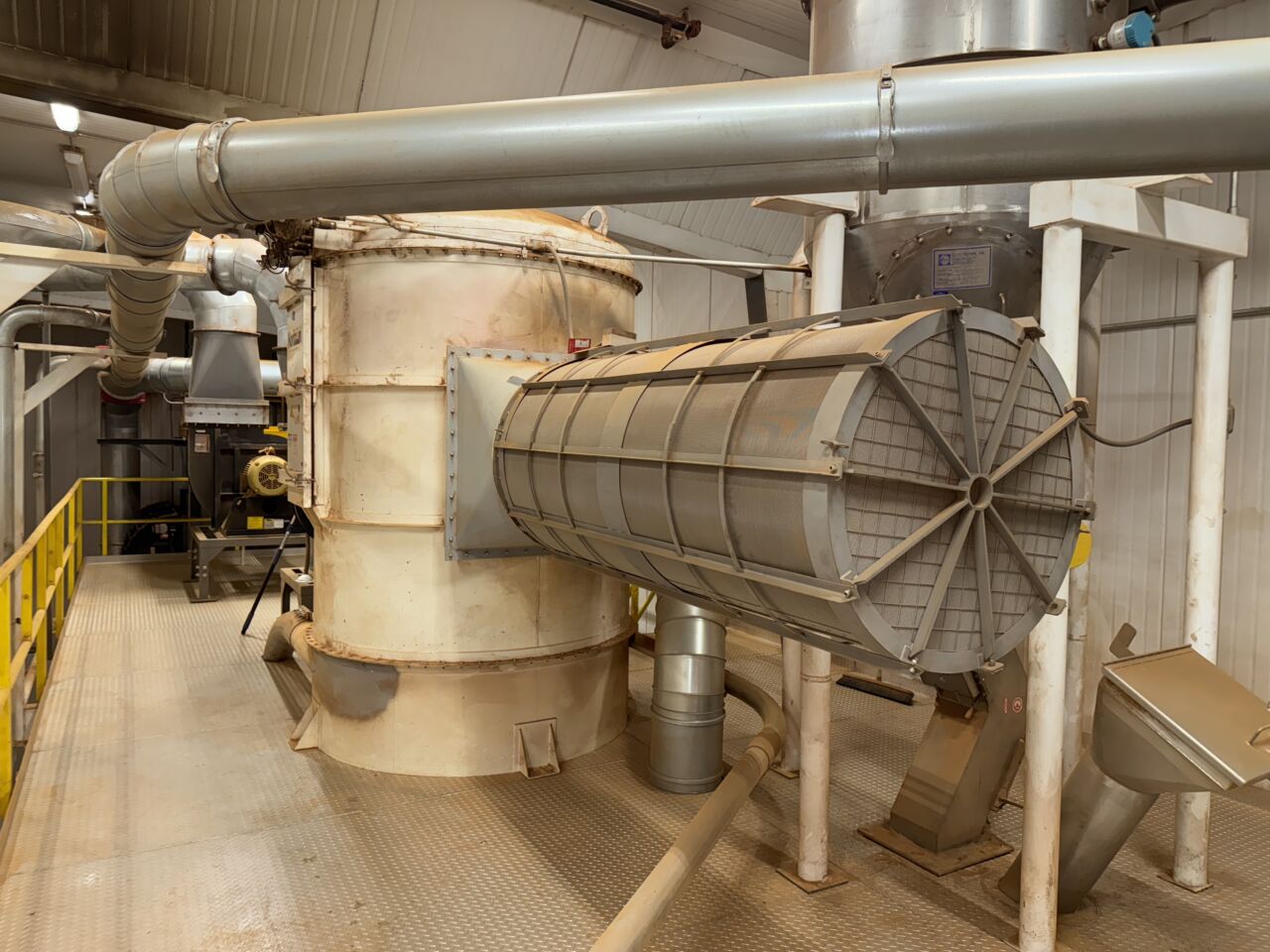

• Horizon & C.P.E. Filters Dust Collectors, CV Explosion Protection & Blowers

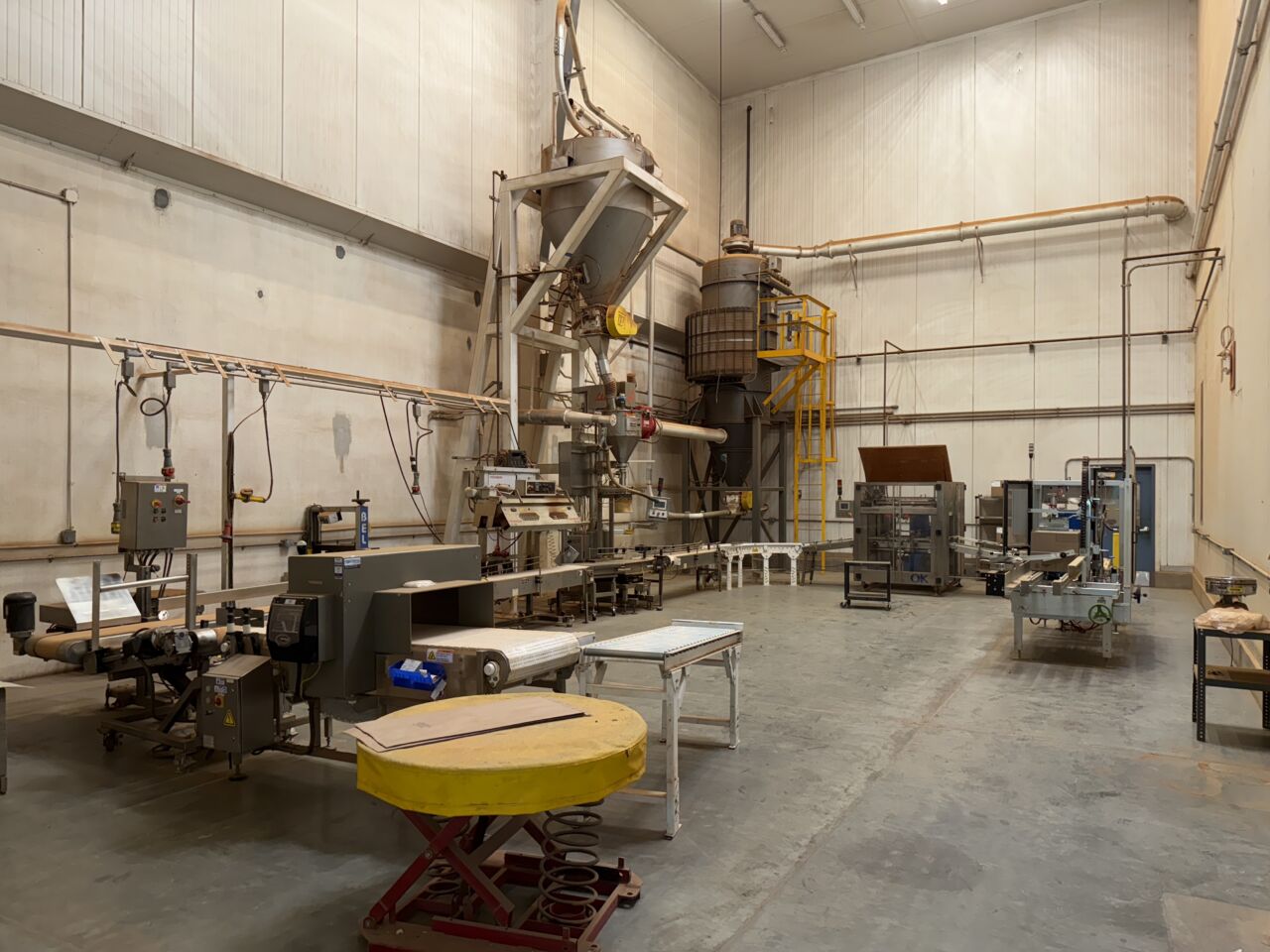

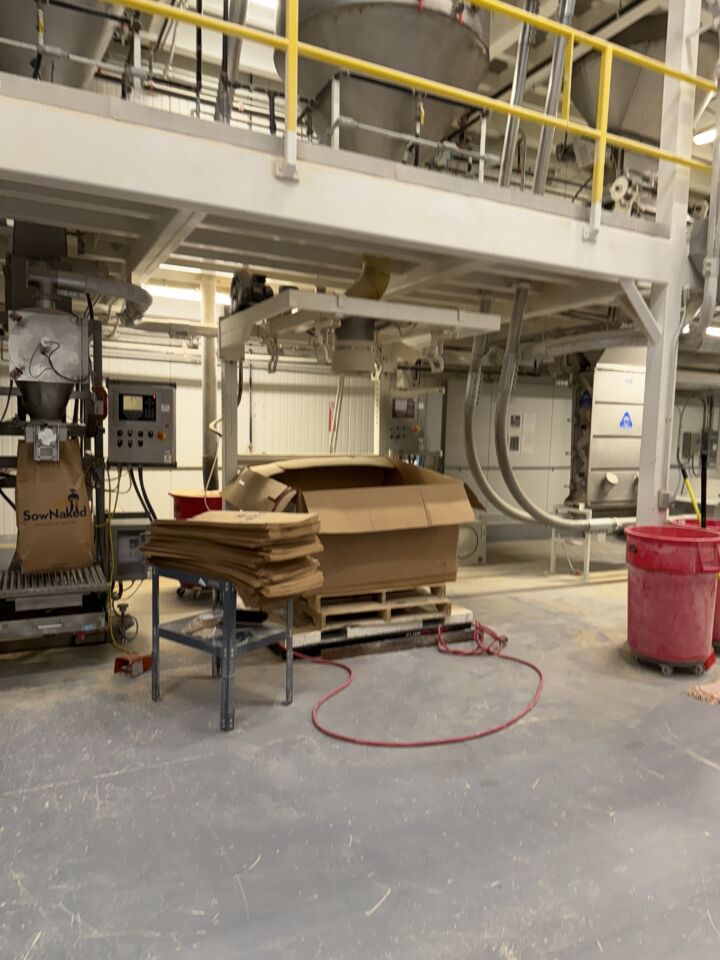

Cinnamon/Spice Packaging

2,000 Lbs. To 2,500 Lbs./Hr. Including Case Erector, Bag Inserter, And All-Fill Auger Filler, Capable of Filling 5 Lb., 10 Lb., 25 Lb., And 50 Lb. Multi-Wall Kraft Bags. With Accumulation Conveyors, Case-Taper Bag Sealer, Metal Detector, And Dust Collection System.

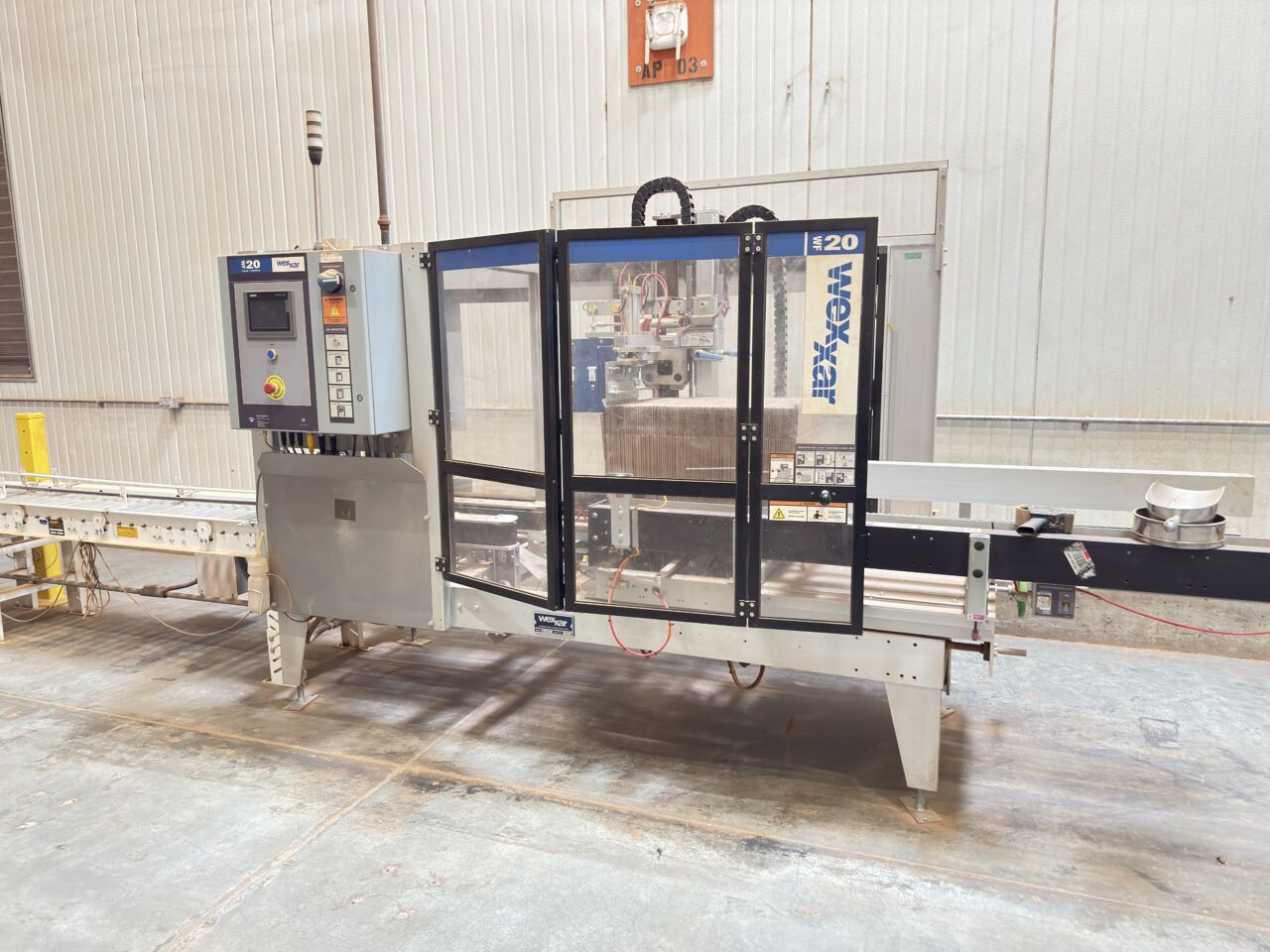

• Wexxar WF20 T Automatic Case Former

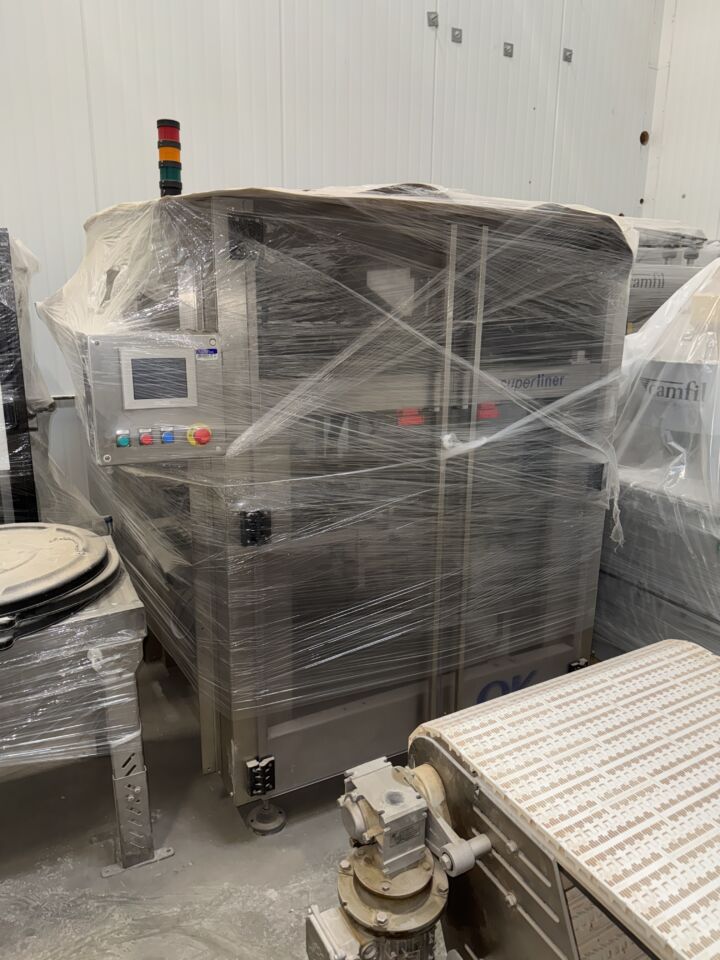

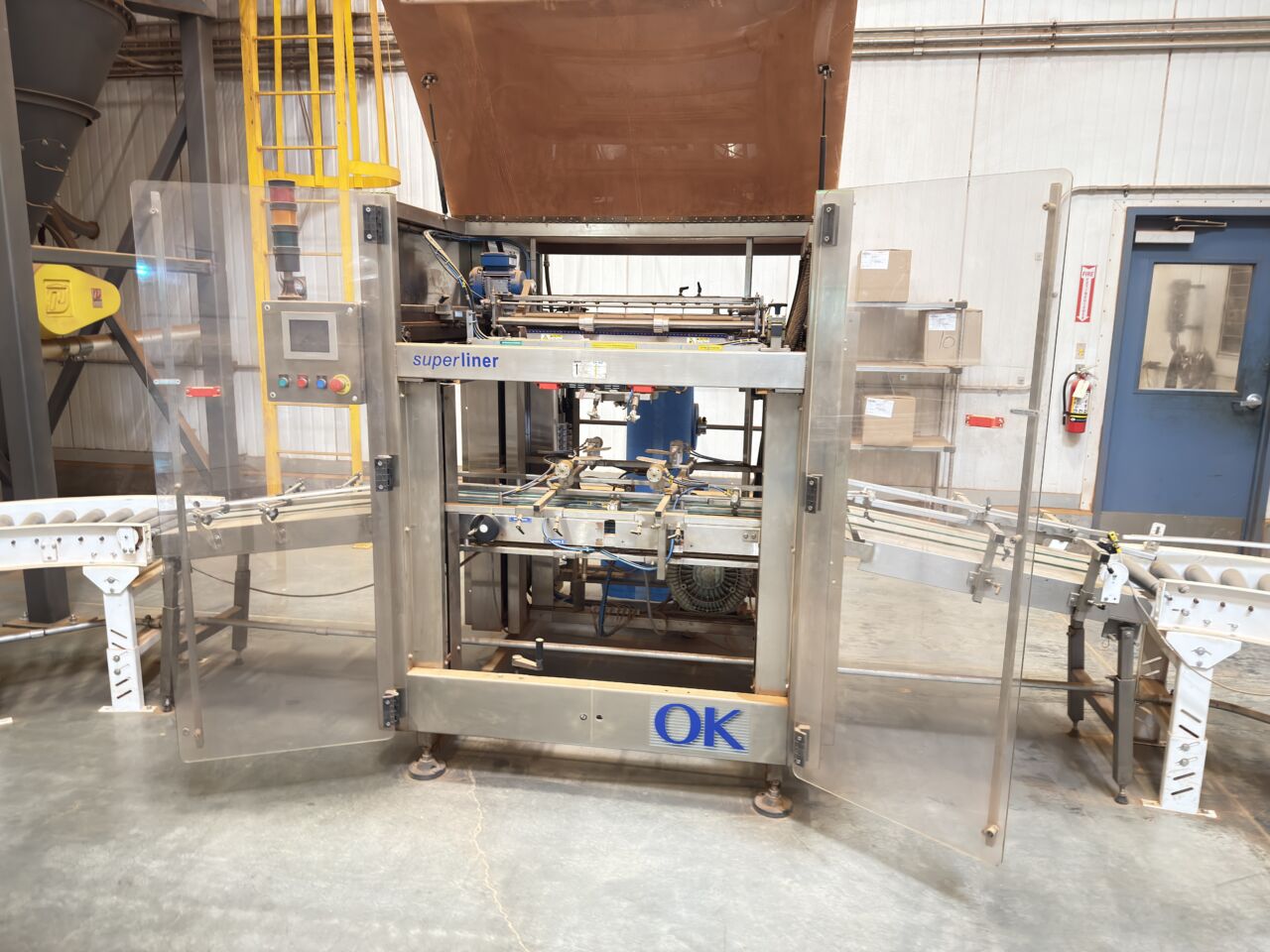

• Ok Superliner BL 220 Box Liner for Bag in Box Application

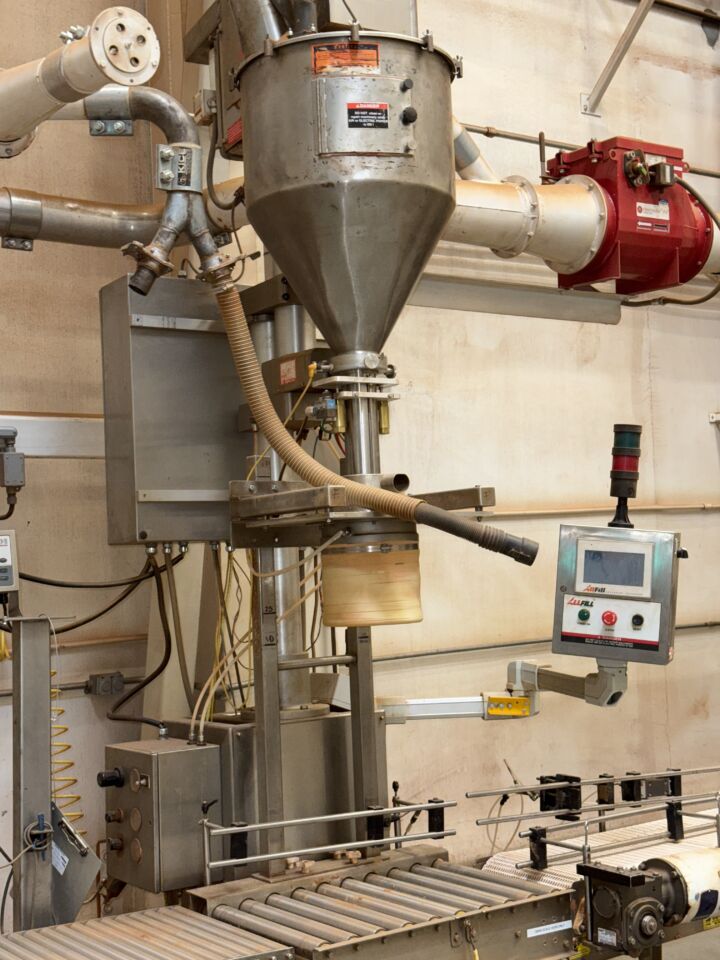

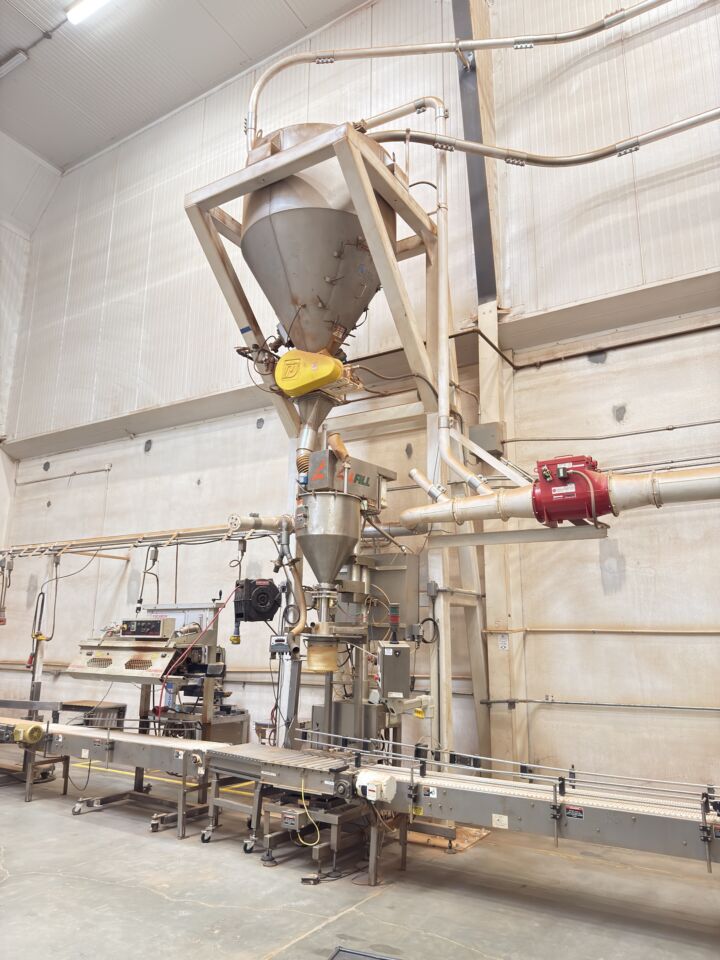

• All-Fill BS-600 Auger Powder Filler W/ Bag Conveyor and Bag Turner
• C.P.E. Filtersdust Collector with Cv Explosion Protection, Prater Airlock
• Fischbein Pbc 6000 Bag Sealer
• Fortress Stealth Metal detector 24″ x 10″ opening

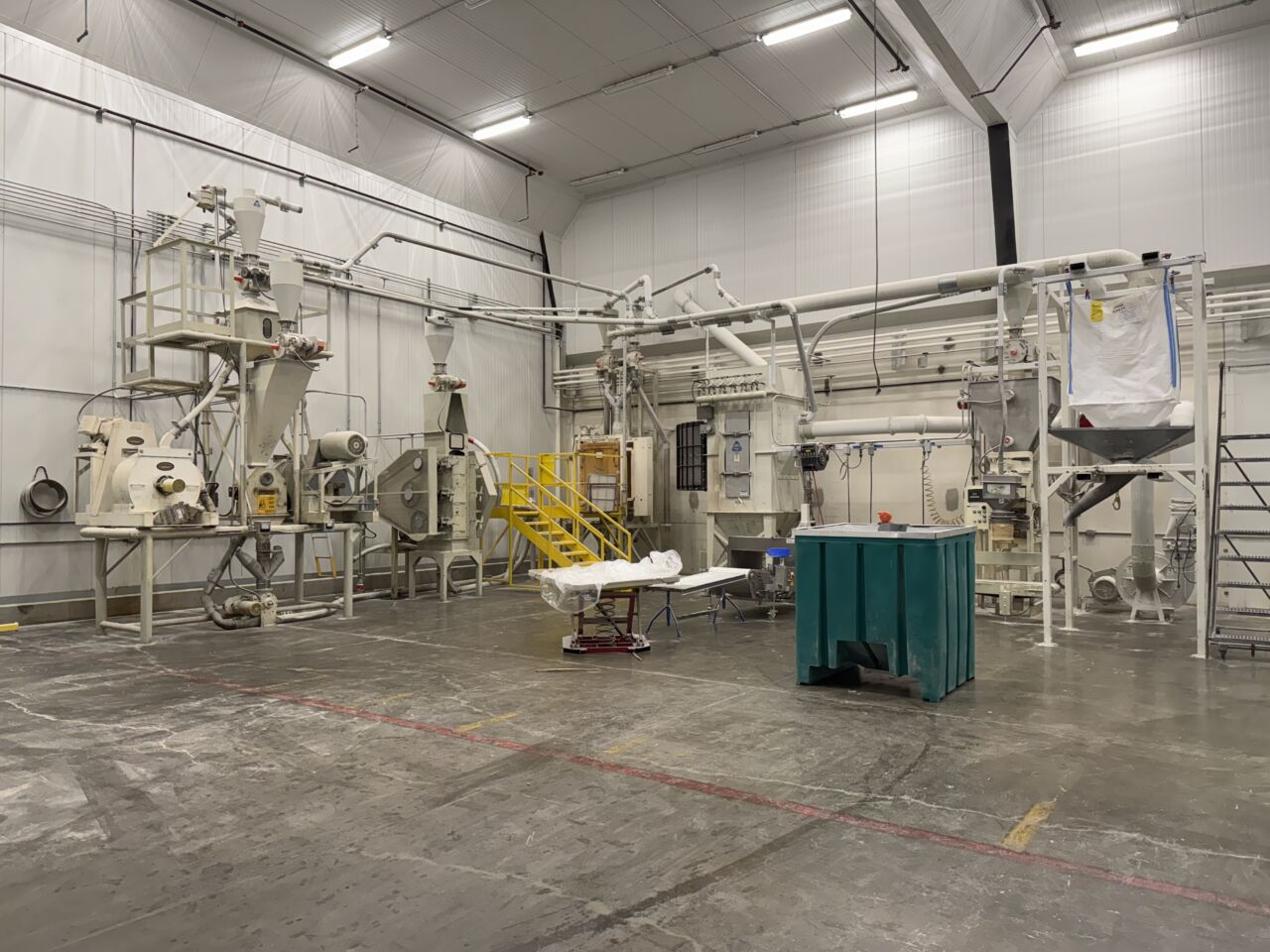

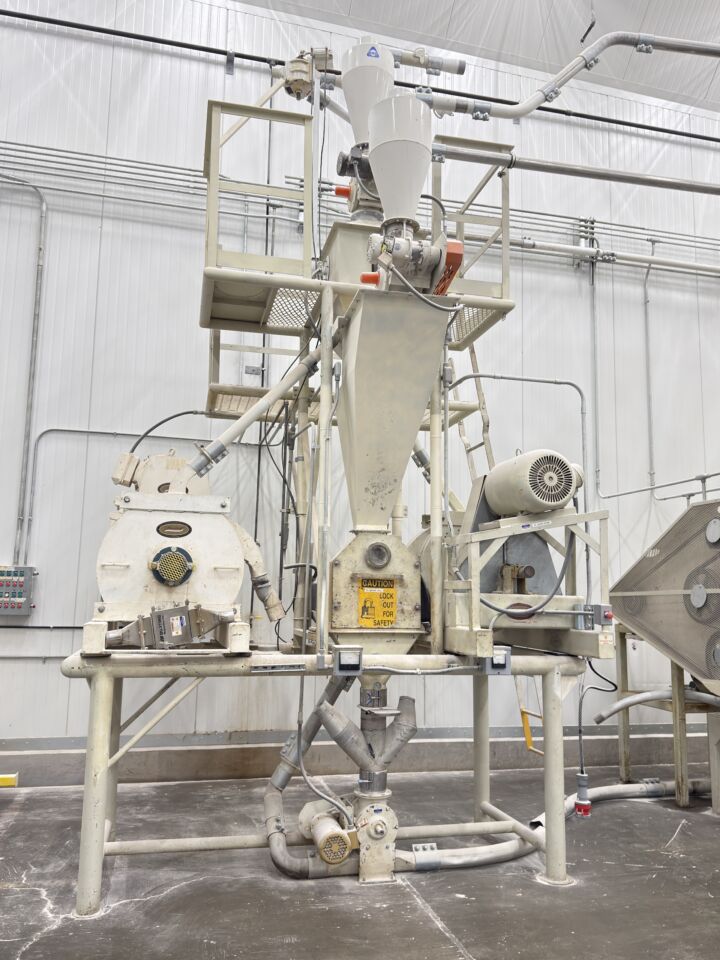

Stone Mill

1,500 Lbs./Hr. Stone Milling System That Produces a Wide Variety of Coarse to Medium Granulations, Including Steelcut/Cracked, Coarse and Fine Flours.

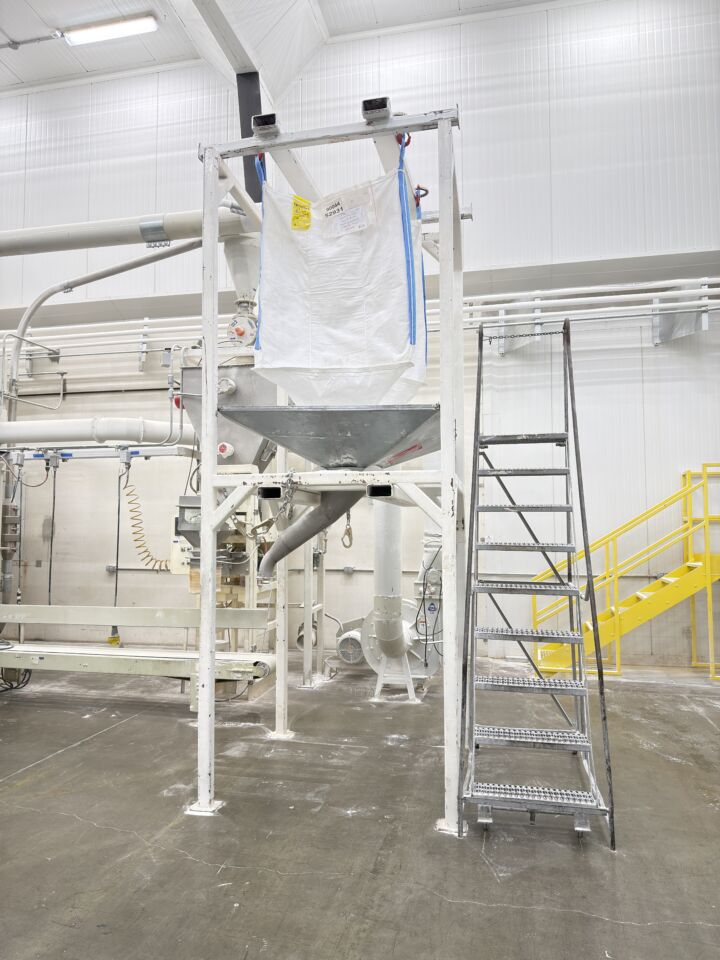

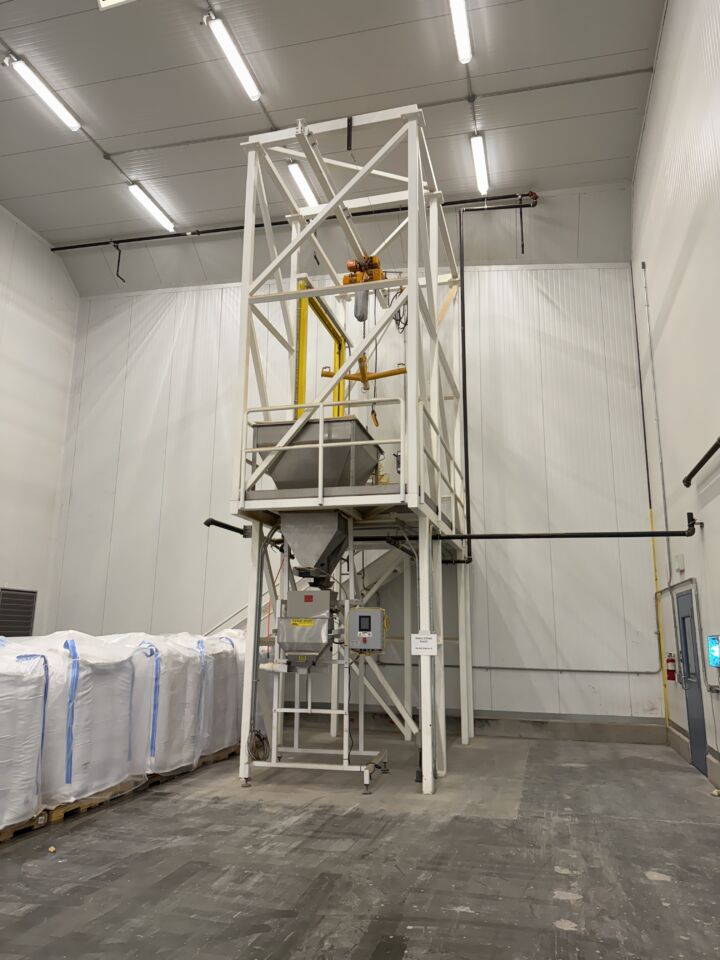

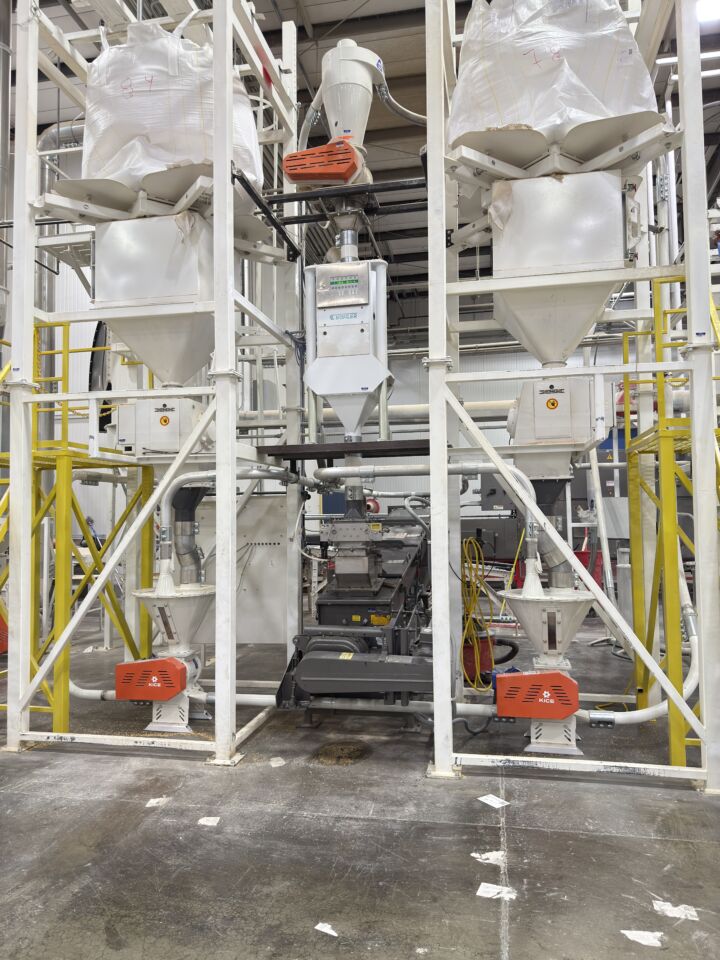

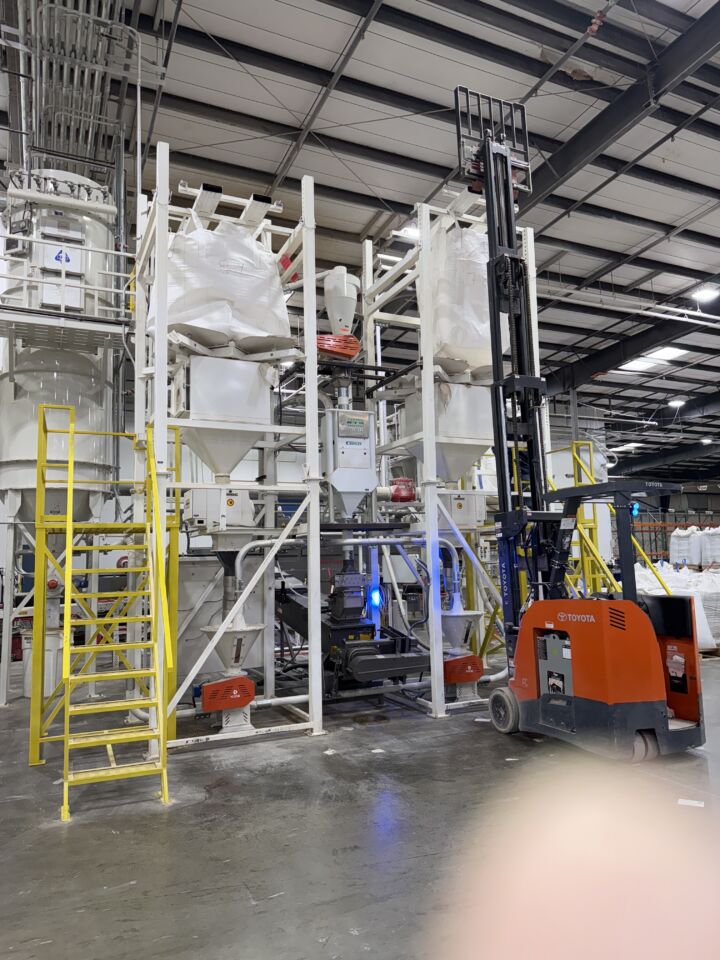

• Supersack Unloading Tower

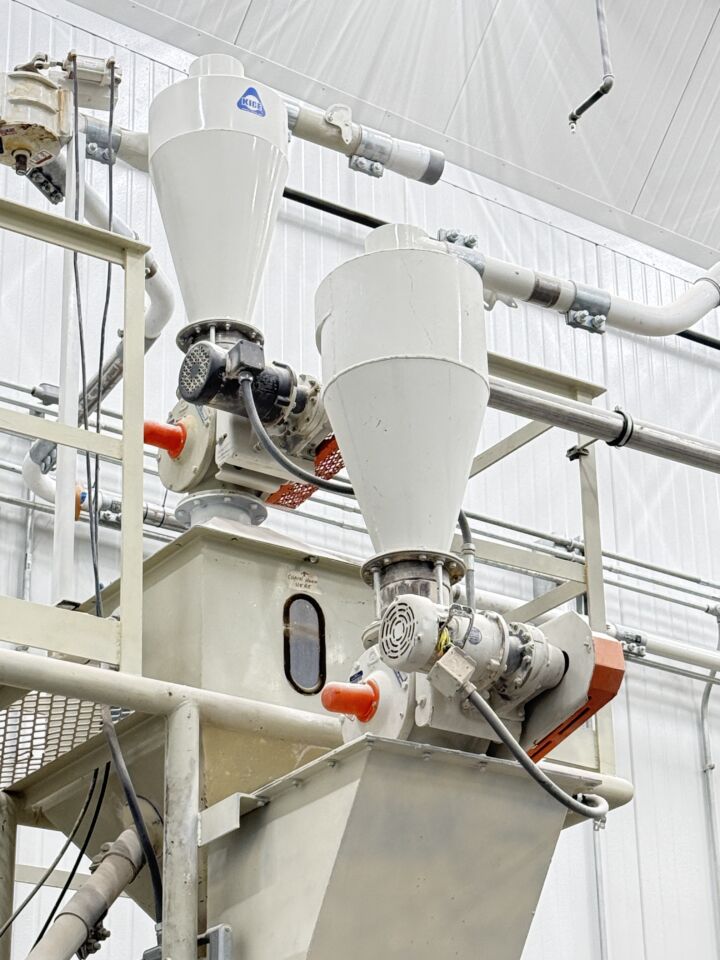

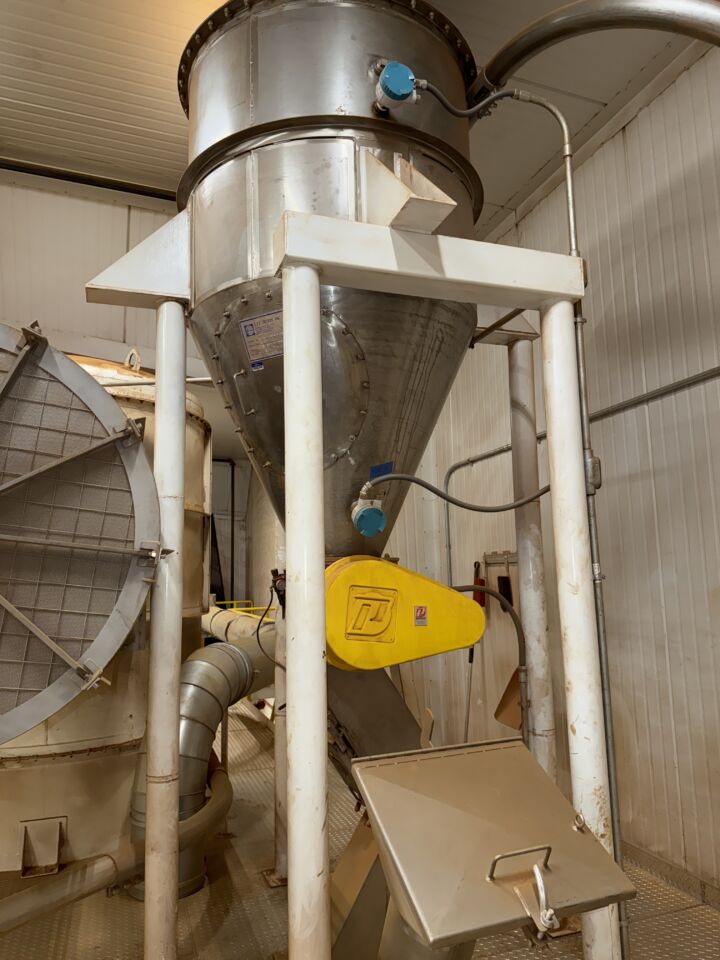

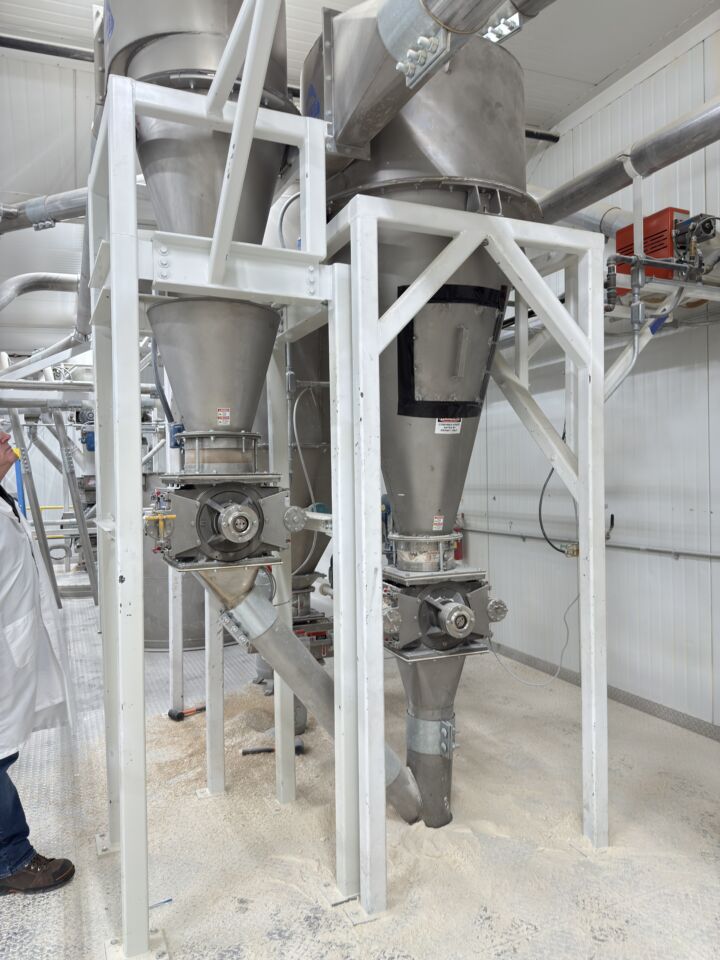

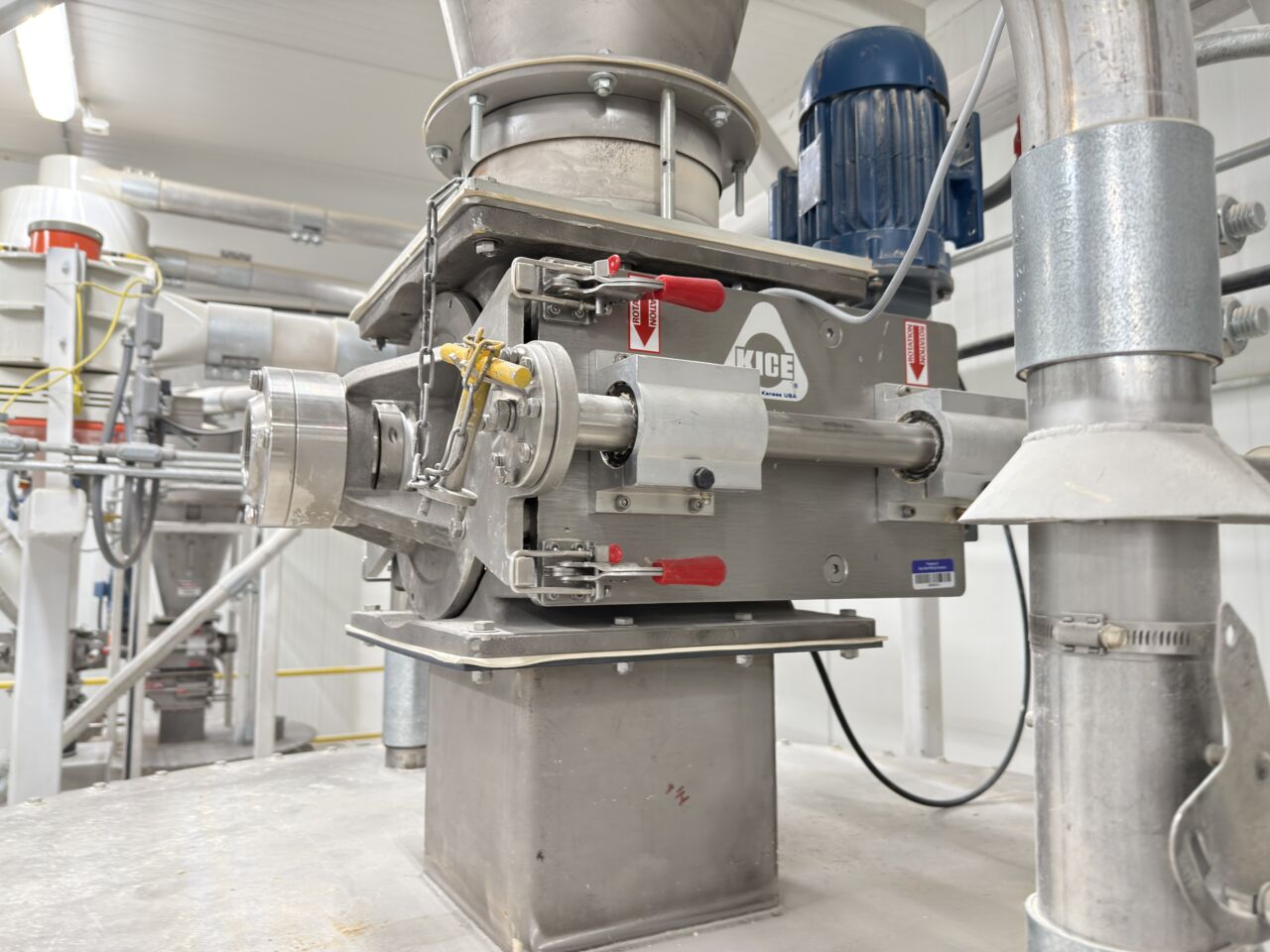

• 2) Kice Cyclones W/ 3) Airlocks and Feed Hopper

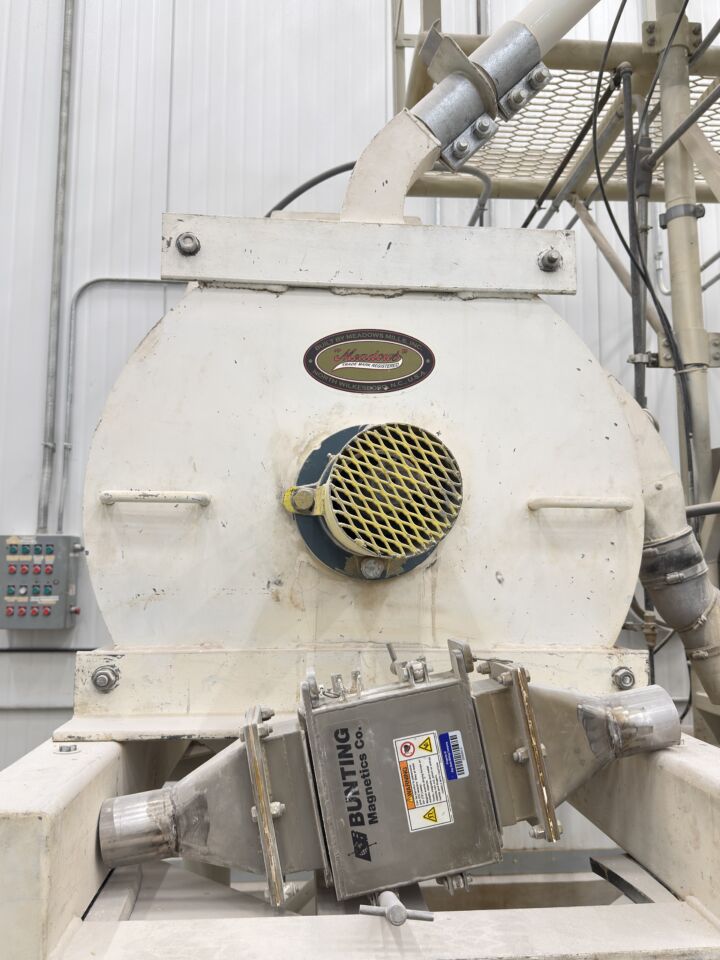

• 2) Meadows Mills Stone Mills

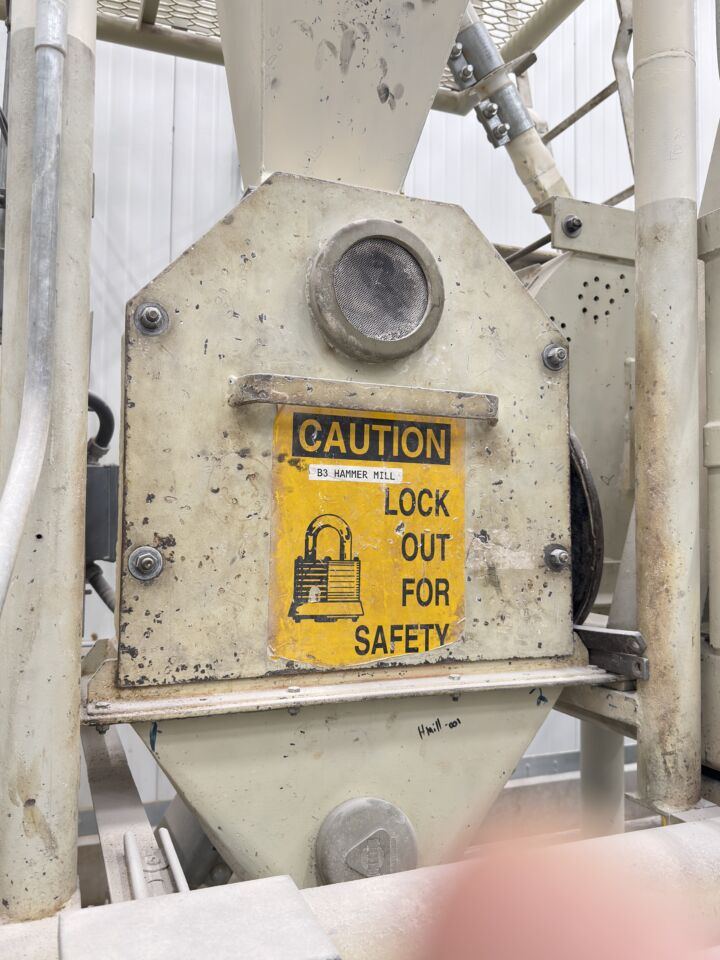

• Hammer Mill
• Bunting Drop Thru Magnet

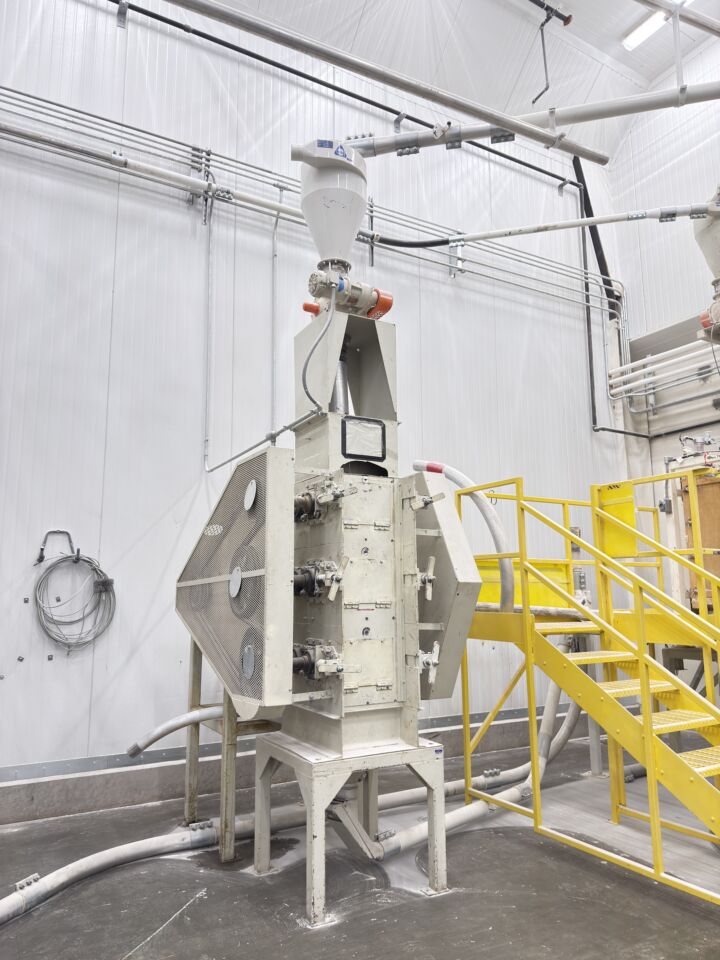

• Break Roll Stand 20-Hp. Motor, Kice Cyclone, And Airlock
• Great Western True Balance Sifter, W/ 2) Kice Cyclones and Airlocks
• Kice Dust Collector W/ Explosion Protection & Airlock

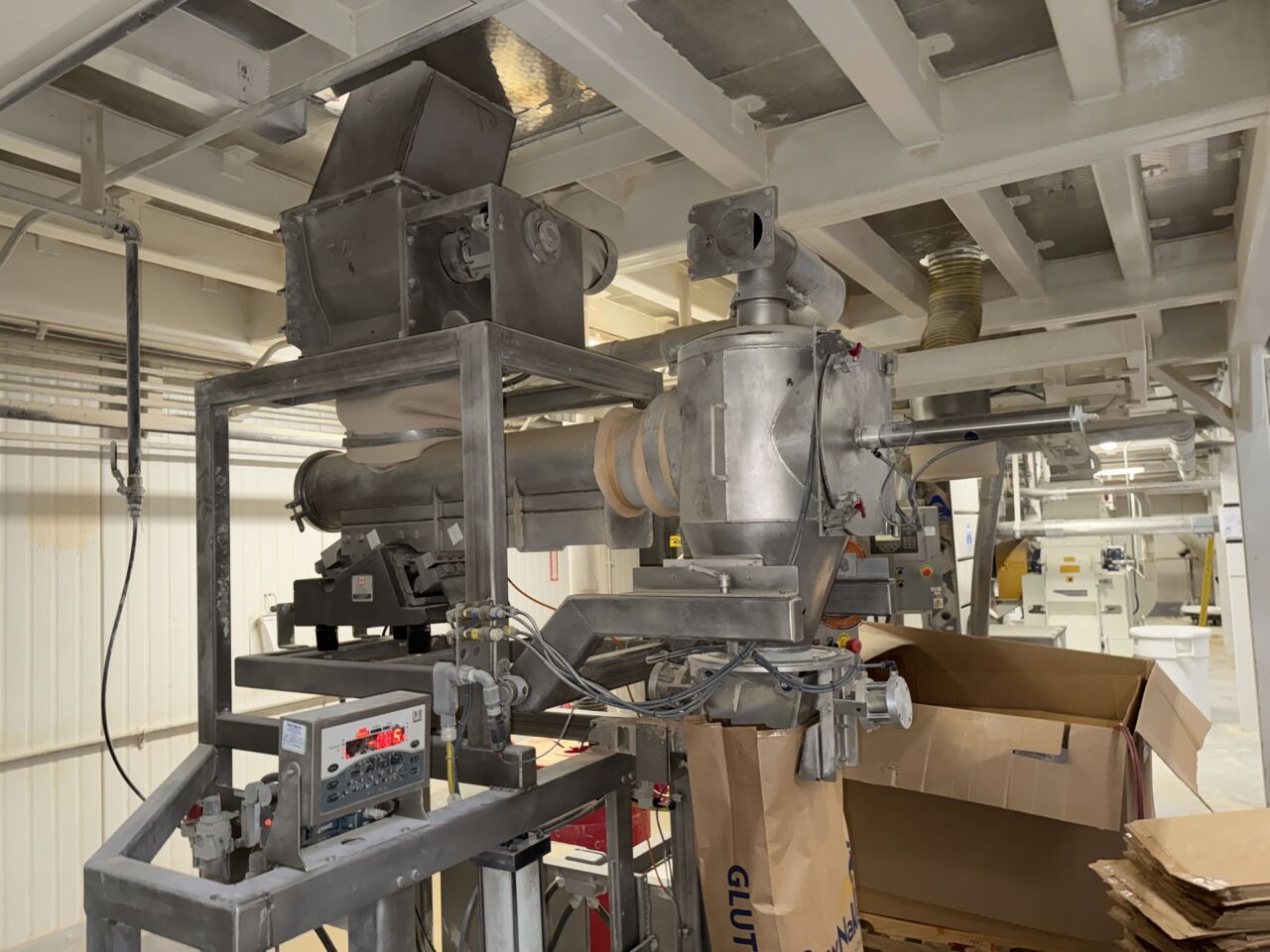

• Taylor Auger Powder Bagger W/ Hopper, Bag Conveyor, And Bag Turner
• Fischbein PBC 6000 Bag Sealer

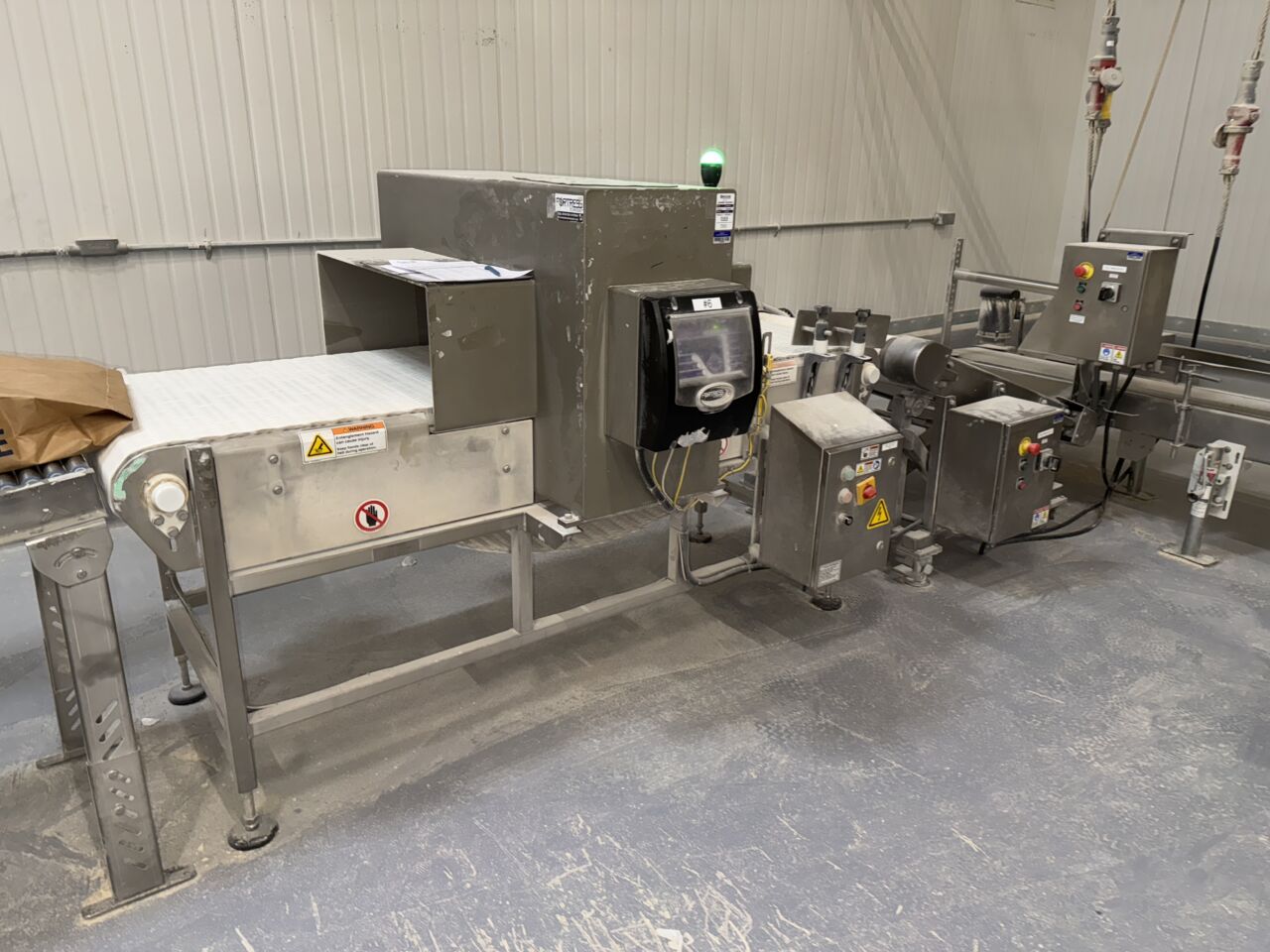

• Fortress Stealth Metal detector 24″ x 10″ opening

Bag in Box Line

Capable of Filling 5 Lb., 10 Lb., 25 Lb., And 50 Lb. Multi-Wall Kraft Bags, Including Case Erector, Bag Inserter, And Auger Filler, Accumulation Conveyors, Bag Sealer, Case-Taper, and Metal Detector

• Fischbein PBC 6000 Bag Sealer
• Wexxar WF20 Automatic Case Former
• Fortress Stealth Metal detector 24″ x 10″ opening

Plant Utilities and Rolling Stock

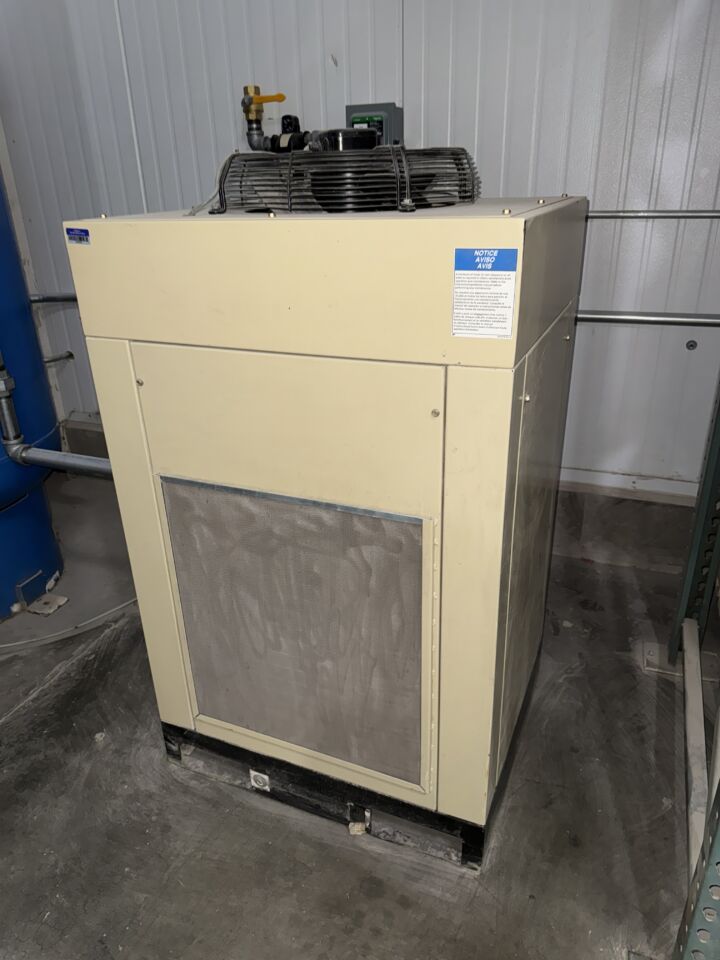

• Ingersoll Rand IRN50HCC 50 hp. Air Compressor w/ Oil Separator

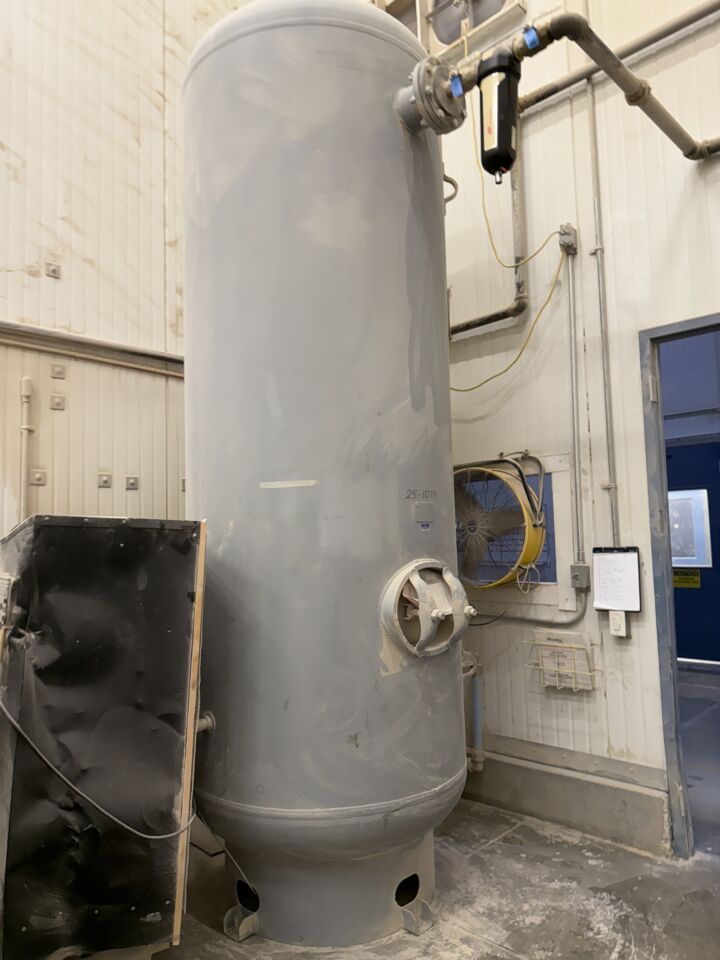

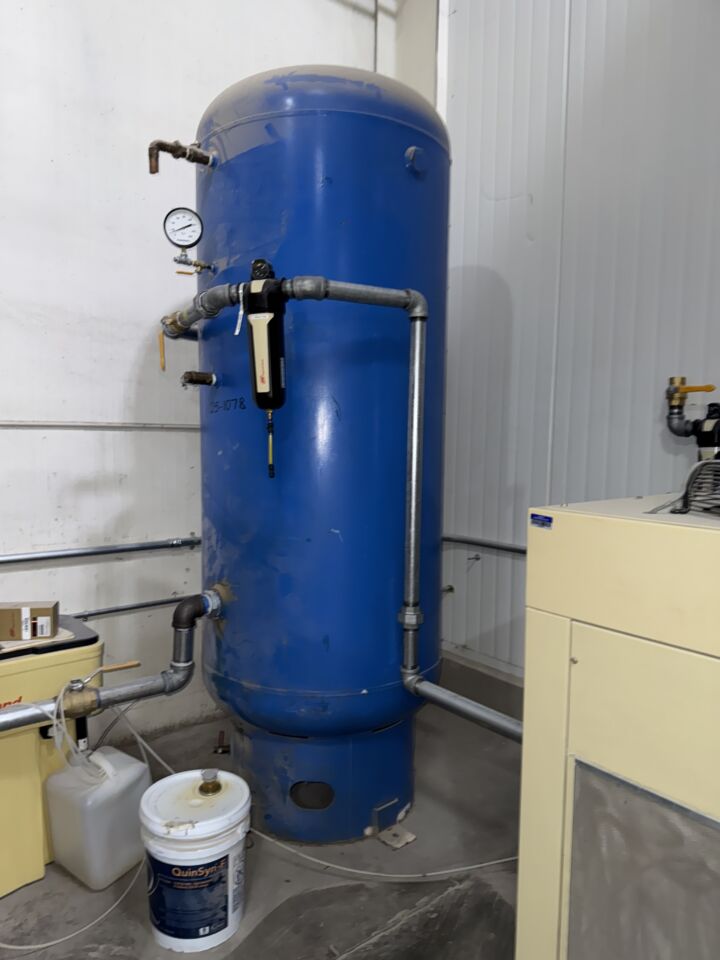

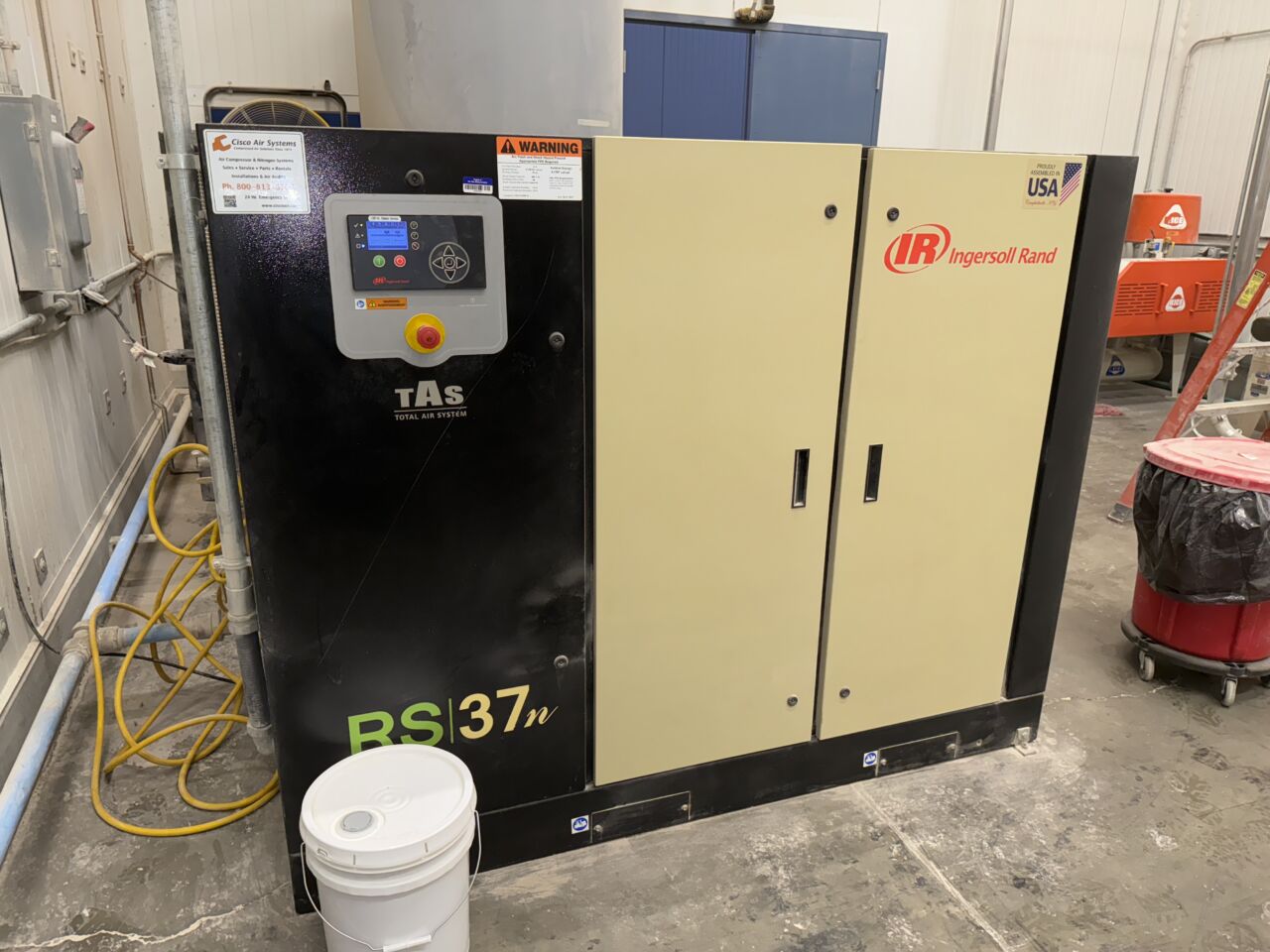

• Ingersoll Rand RS37n-A135 50 hp. Air Compressors w/ Receiver

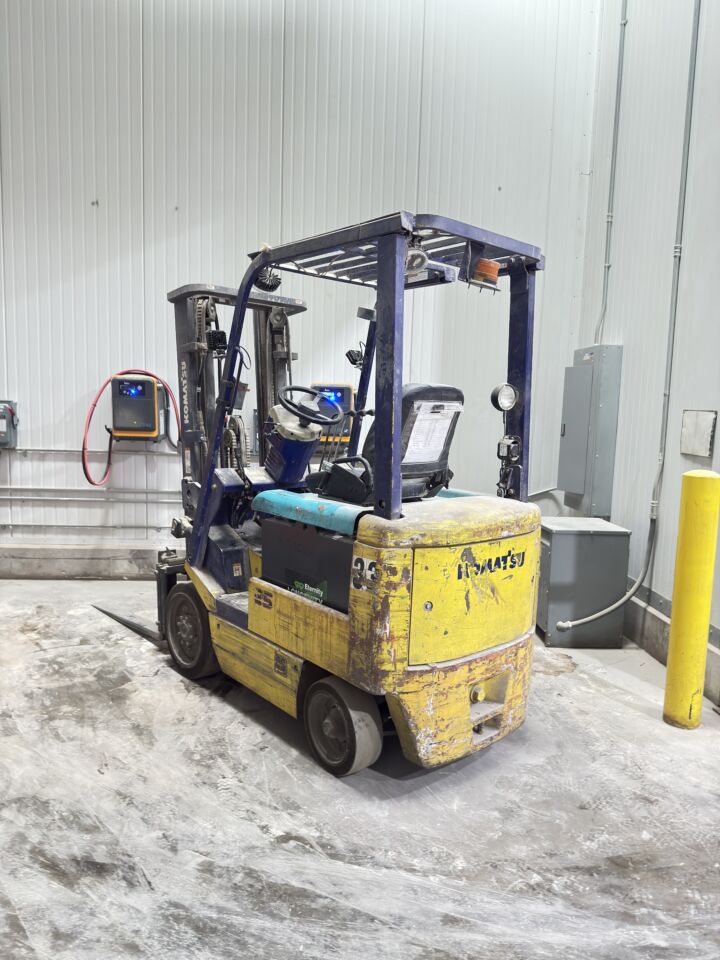

• Komatsu FB25SH-5 3500 lbs. cap. Electric Forklifts

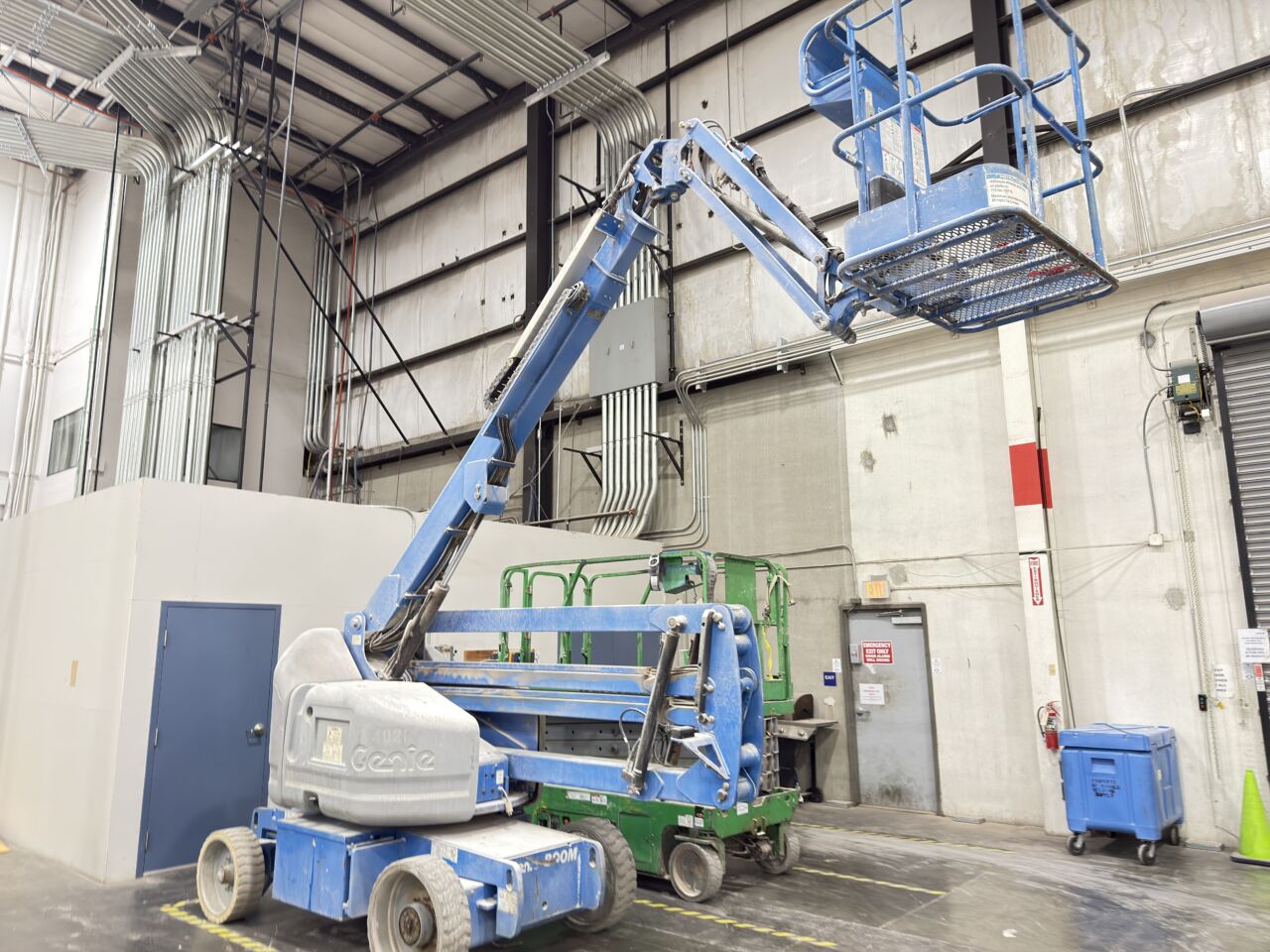

• Genie Z-40/23N RJ Articulating boom lift

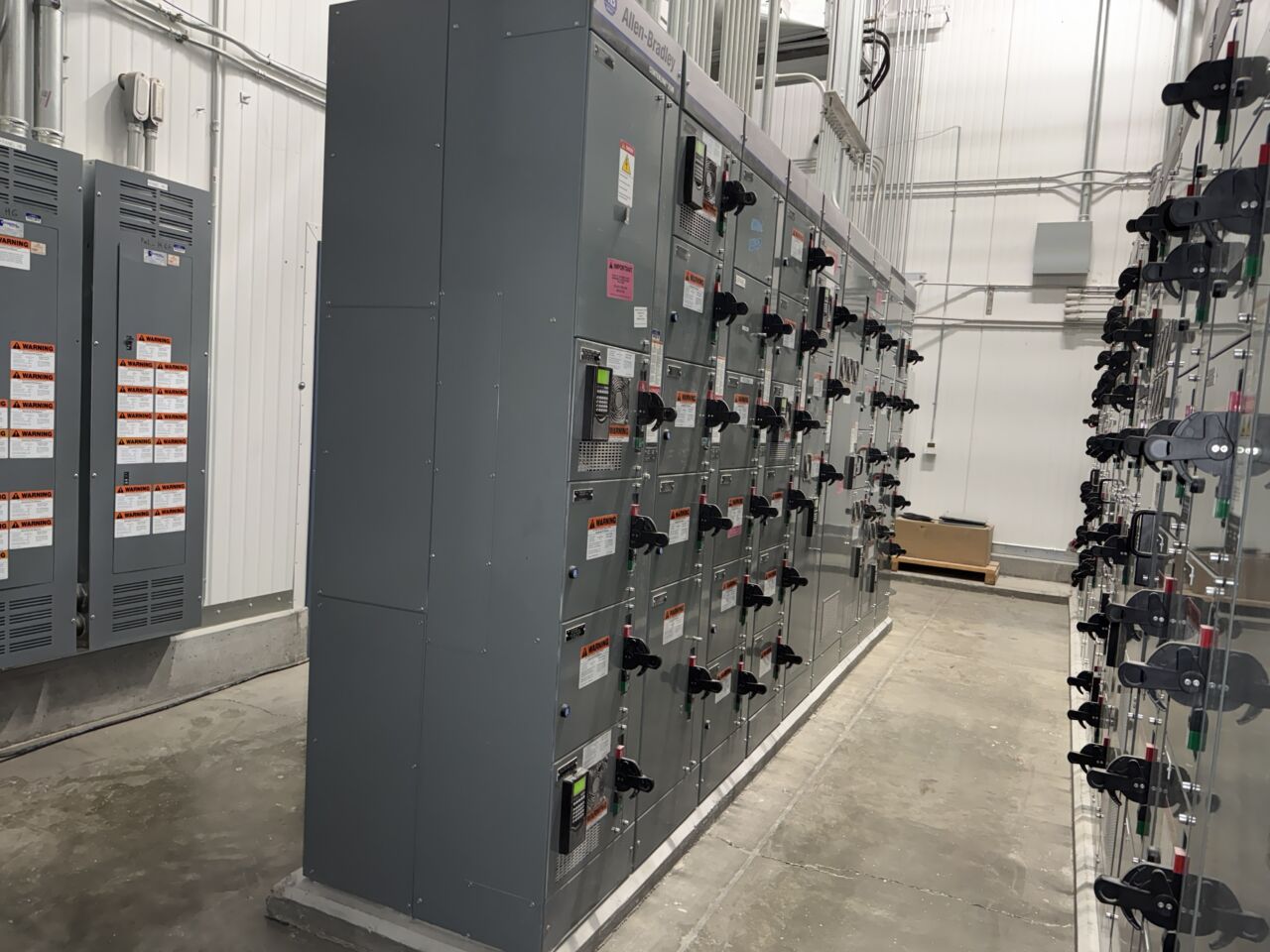

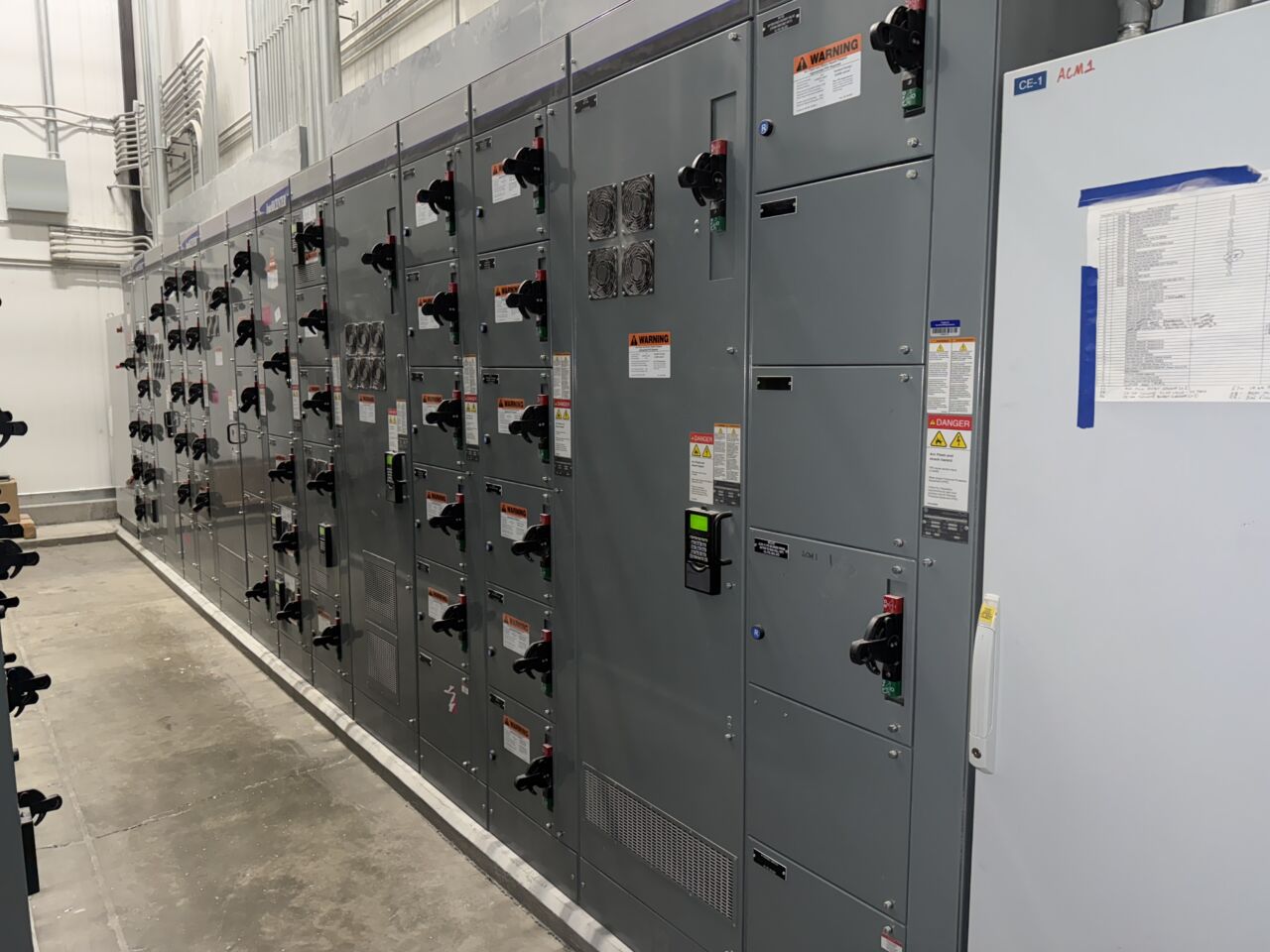

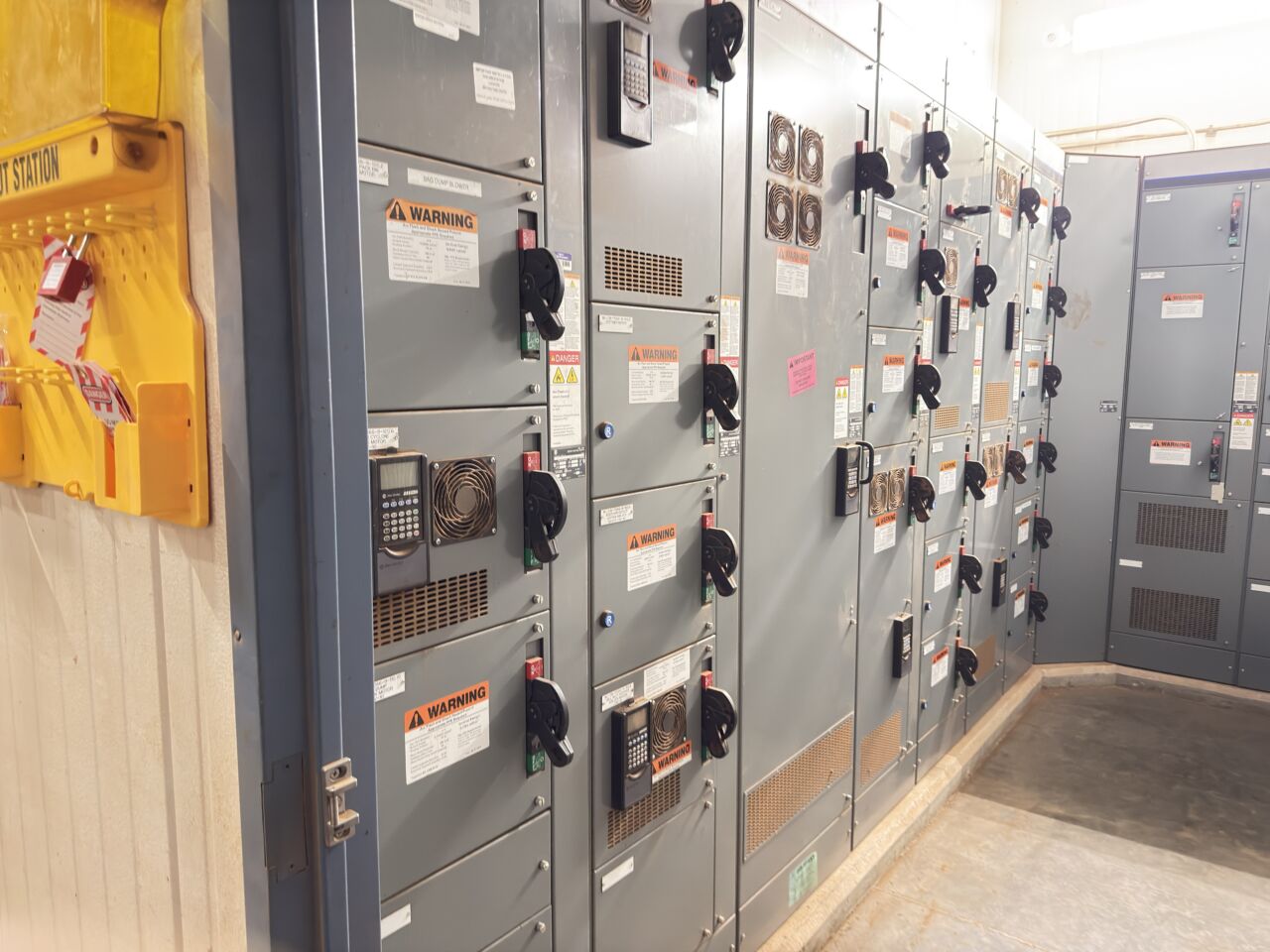

• Allen-Bradley MCC with buckets and transformers

Miscellaneous

• Camfil Pollution Control System

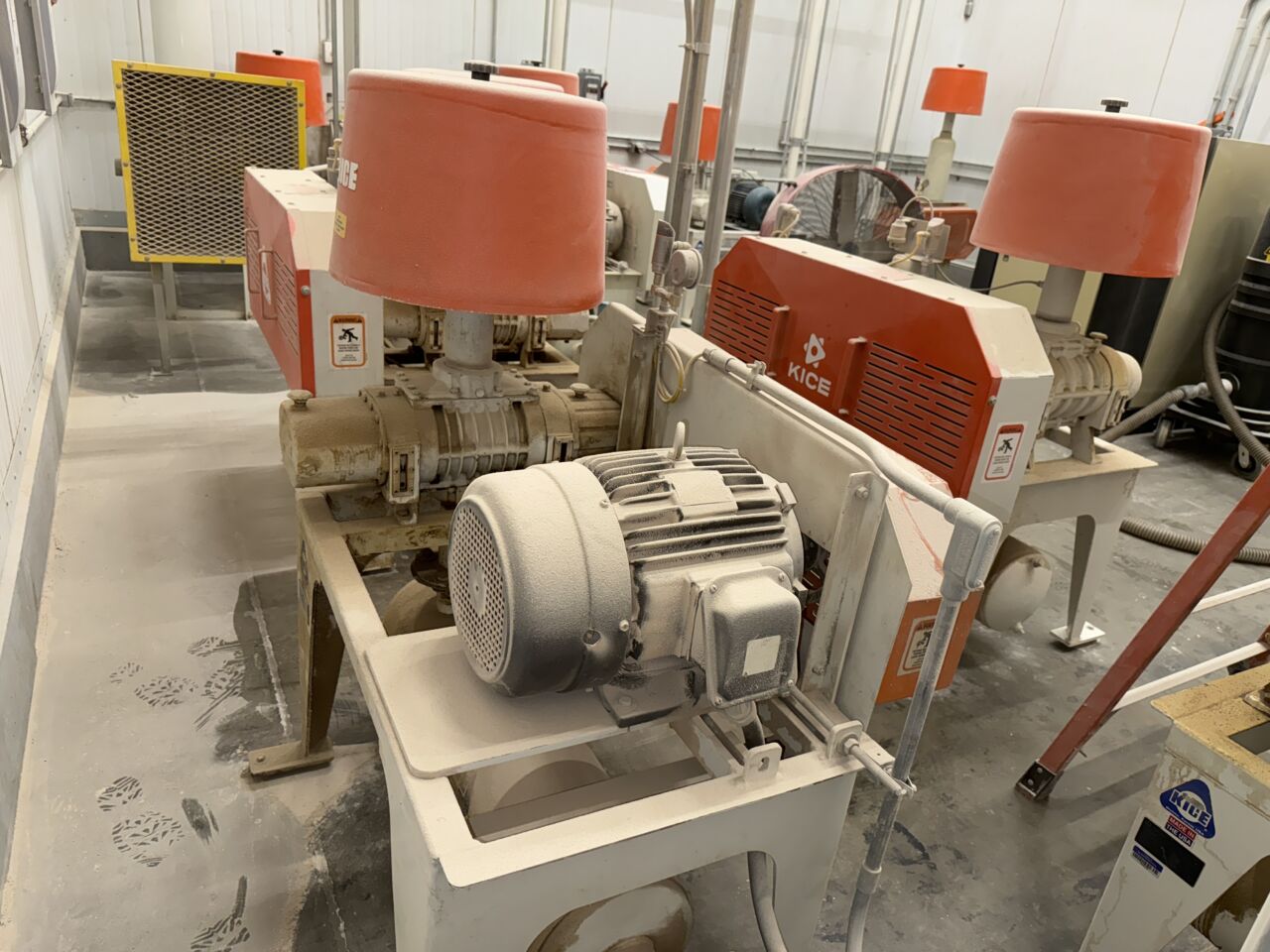

• MAC Flour Blower

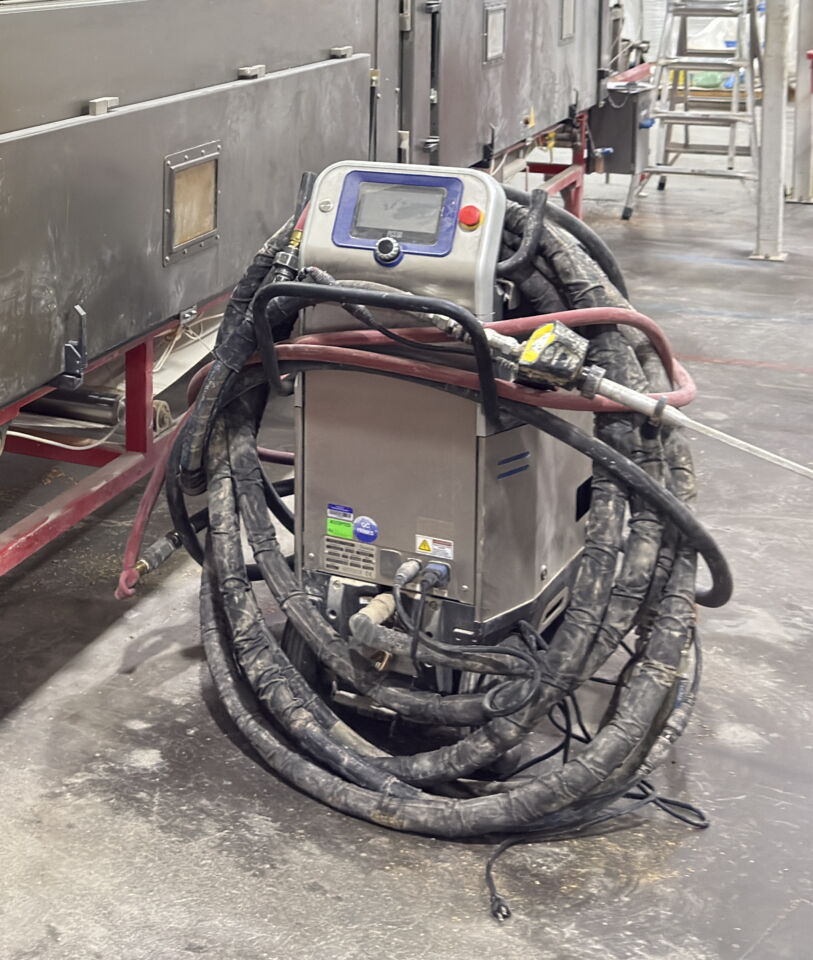

• Cool Jet PCS 60 COOL Dry Ice Blaster
